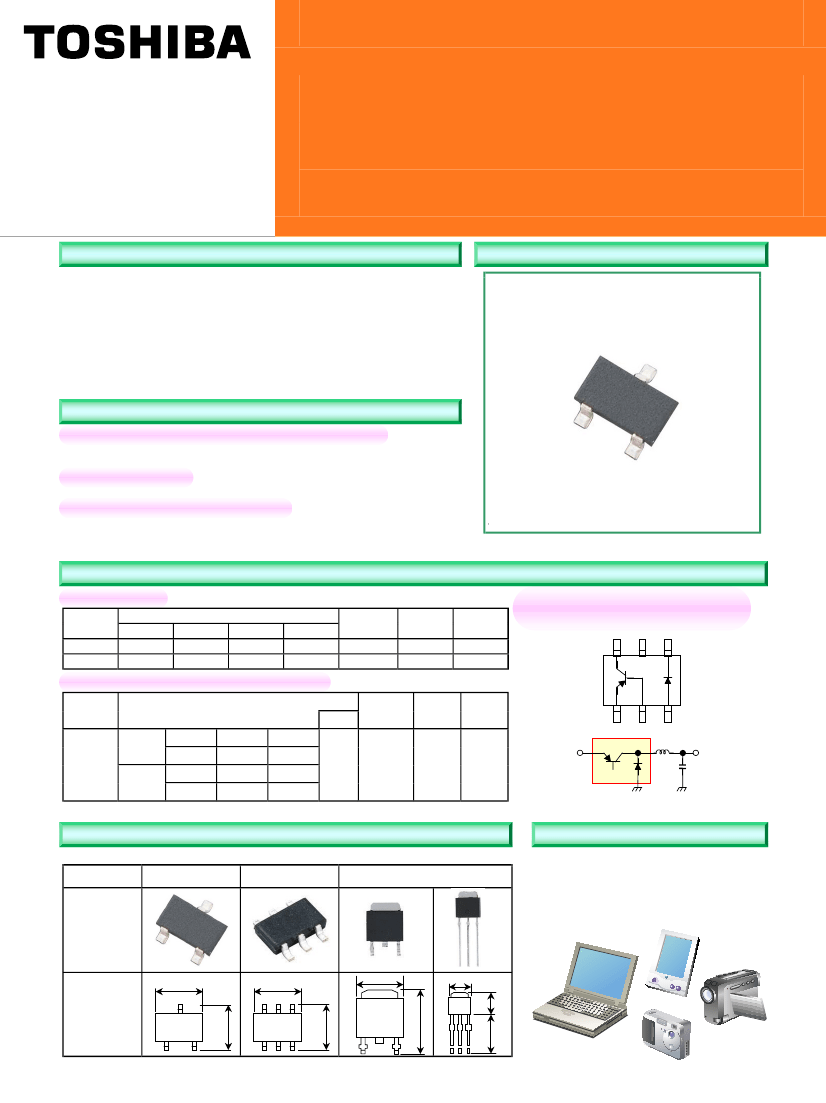

New Product Guide
2002-9
Low-Voltage Bipolar
Transistors with Ultra-High
Speed Switching
Overview
The newly developed high-density pattern (Toshiba
comparison:
×7.5)
allows the low-voltage bipolar transistors to
realize low-saturation voltage and high-speed switching. The
transistors are suitable for use as main switches in DC/DC
converters for portable devices and improve the efficiencies of
the devices. The transistors are housed in a compact
surface-mount packages, yielding a smaller mounting area.
Appearance
●
Low collector-emitter saturation voltage V
CE (sat)
●
High current gain
Features
(Example)
2SC5906: V
CE (sat)
= 0.20 V max. (Test condition: I
C
=
1.6
A, I
B
= 53 mA, Ta = 25℃)
(Example) 2SC5906: h
FE
= 200 to 500 (Test condition: V
CE
= 2 V, I
C
= 0.5 A, Ta = 25℃)
●
Compact surface-mount package
The world’s slimmest TSM and VS-6: 0.85 mm (max) High power dissipation
(Example) 2SC5906: P
C
=
1.25
W
2
When mounted on FR4 board (glass epoxy,
1.6
mm thick, Cu area: 645 mm )
Future Product Lineup
●
Transistors
Product
No.
S3F97*
S3F98*
Rating
V
CBO
(V)
40
120
V
CEO
(V)
30
50
I
C
(A)
3
5
P
C
(W)
0.625
(20)
#
●
Package
TSM
PW-MOLD
Sample
02/4Q
02/4Q
Mass
Production
03/1Q
03/1Q
TPC6D02 Circuit Configuration
and Application Circuit Example
6
5
4
●
Multi-Chip Device (transistor + SBD)
Product
No.
Transistor
TPC6D02
SBD
Rating
V
CBO
(V)
–15
V
RRM
(V)
30
V
CEO
(V)
–15
I
O
(A)
0.7
I
C
(A)
–1.5
I
FSM
(A)
7
0.6
#
P
C
(W)
Package
Sample
Mass
Production
1
Input
VS-6
02/4Q
03/1Q
2
3
Output
*: Prototype no.
#: When mounted on FR4 board (glass epoxy,
1.6
mm thick, Cu area: 645 mm
2
)
TPC6D02
Step-down DC/DC Converter
Package
(Unit: mm)
TSM
VS-6
PW-MOLD
Recommended Applications
●
DC/DC Converter
●
LCD backlight inverter
●
Portable devices
Cellular phones, PDAs, DSCs, video
cameras, notebook PCs, headphone
stereos, etc.
Appearance
2.9
2.8
2.9
2.8
6.5
6.5
7.0
9.5
12.0
min
Package
Dimensions
Rating
Product No.
Rating
V
CBO
(V)
V
CEO
(V)
I
C
(A)
P
C
(W)
Package
2SC5906
40
30
4
1.25
#
TSM
#: When mounted on FR4 board (glass epoxy, 1.6 mm thick, Cu area: 645 mm
2
)

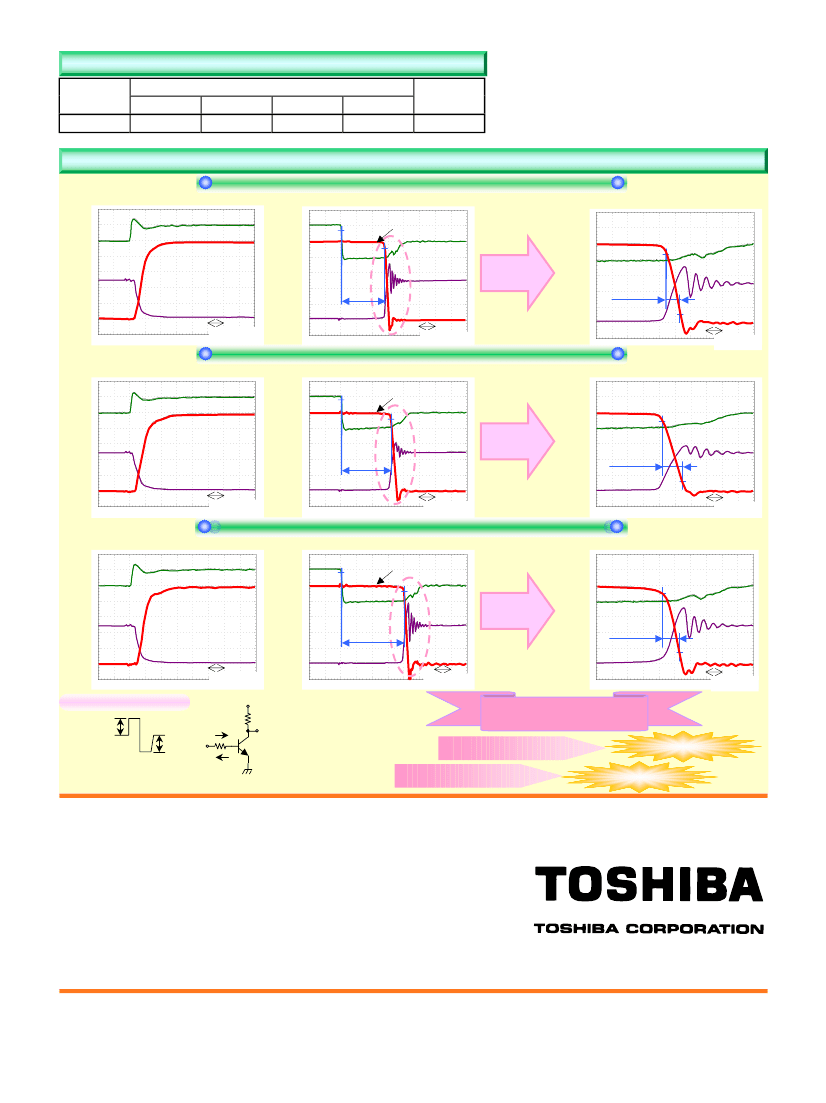

Switching Waveforms
<Turn ON>
I
B
: 0 A
→
I
B
: 50 mA/div
I
C
: 320 mA/div
New product (2SC5906: V
CEO
= 30 V, I
C
= 4 A)
<Turn OFF>
I
B
: 0 A
→
I
B
: 50 mA/div
I
C
: 320 mA/div
I
B
: 0 A I : 320 mA/div
→
C
Enlarged view
of area t
f
I
C
: 0 A
100 ns/div
I
B
: 50 mA/div
t
f
= 23 ns
V
CE
: 5 V/div
I
C
: 0 A
V
CE
: 5 V/div
I
C
: 0 A
t
stg
= 280 ns
→
V
CE
: 0 V
→
V
CE
: 0 V
50 ns/div
V : 5 V/div
→
CE
V
CE
: 0 V
<Turn ON>
I
B
: 0 A
→
I
B
: 50 mA/div
Toshiba conventional product (V
CEO
= 20 V, I
C
= 5 A)
<Turn OFF>
I
B
: 0 A
→
I
B
: 50 mA/div I : 320 mA/div
C
I
B
: 0 A I
C
: 320 mA/div
→
Enlarged view
of area t
f
I
C
: 0 A
100 ns/div
I
B
: 50 mA/div
t
f
= 30 ns
25 ns/div
I
C
: 320 mA/div
V
CE
: 5 V/div
I
C
: 0 A
V
CE
: 5 V/div
50 ns/div
I
C
: 0 A
t
stg
= 310 ns
→
V
CE
: 0 V
→
V
CE
: 0 V
V : 5 V/div
→
CE
V
CE
: 0 V
25 ns/div
<Turn ON>
I
B
: 0 A
→
Competitor’s equivalent product (V
CEO
= 30 V, I
C
= 5 A)
<Turn OFF>
I
B
: 50 mA/div
I
C
: 320 mA/div
I
B
: 0 A
→
I
B
: 50 mA/div I : 320 mA/div
C
V
CE
: 5 V/div Enlarged view
of area t
f
I
C
: 0 A
→
V
CE
: 0 V
t
stg
= 400 ns
100 ns/div
I
C
: 0 A
→
V
CE
: 0 V
I
B
: 0 A I
C
: 320 mA/div
→
I
B
: 50 mA/div
t
f
= 28 ns
V
CE
: 5 V/div
25 ns/div
I
C
: 0 A
→
V
CE
: 0 V
V
CE
: 5 V/div
50 ns/div
♦
Test condition
I
B1
I
B2
Input
V
CC
= 12 V
I
B1
I
B2
R
L
Output
Switching time comparison
between new product and
conventional product
Storage time t
stg
Fall time t
f
310 ns
⇒
280 ns
Shortened by
10%
Shortened by
23%
I
C
= 1.6 A, I
C
/I
B
= 30, Ta = 25℃
