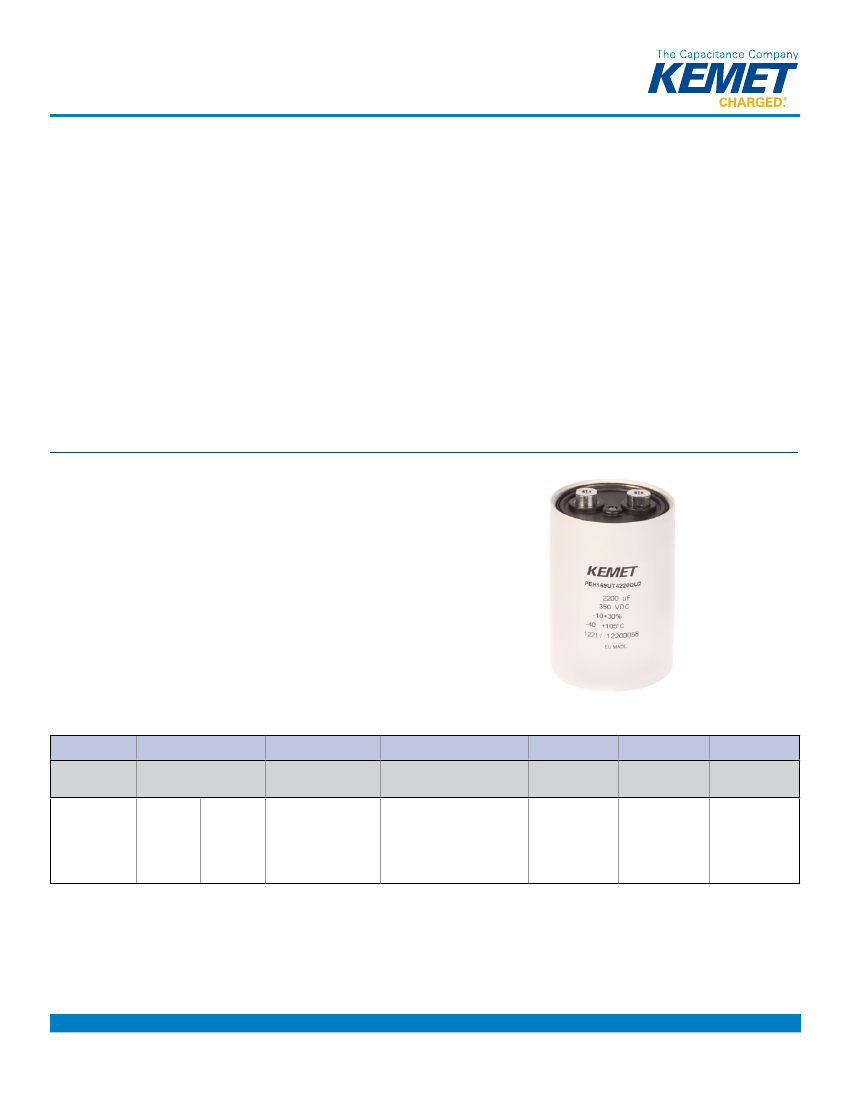

Screw Terminal Aluminum Electrolytic Capacitors
PEH169 Series, +105°C
Overview
Applications
Typical applications for KEMET's PEH169 capacitor
include smoothing, energy storage or pulse operation in
telecommunication demanding power supplies, process control,
AC motor control, traction, welding, and measuring.
KEMET's PEH169 Series is a long-life electrolytic capacitor
with outstanding reliability and electrical performance. The
device has a polarized all-welded design, heavy duty screw
terminals, extended cathode construction, safety vent, and
plastic insulation. The PEH 169 Series winding is housed
in a cylindrical aluminum can with a reinforced molded lid
incorporating a safety vent. The sealing system is designed for
electrolyte leakage-free operation and a very low gas-diffusion
rate of electrolyte. Mechanical contact between the winding
and case allows excellent heat transfer from the winding to the
ambient, which means cooler operation. Low ESR is the result
of a low resistive paper/electrolyte system, at least two tabs per
foil and all-welded design.
Benefits
•
•
•
•
•
High performance
Long life
Low ESR and ESL
High stability, 10 years shelf life
Optimized designs available on request
Part Number System
PEH169
Series
Computer
Grade
Aluminum
Electrolytic
E
Voltage (VDC)
E = 10
G = 16
H = 25
K = 40
M = 63
P = 100
Q = 160
R = 200
S = 250
U = 350
A
Size Code
See Dimension Table
468
Capacitance Code (µF)
The second 2 digits indicate
the 2 most significant digits
of the capacitance value.
The first digit indicates the
total number digits.
0
Version
0 = Standard
Q
Capacitance
Tolerance
Q = -10 + 30%
U2
Stud Option
U2 = Plain Can
B2 = Threaded
mounting stud
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4038_PEH169_105ºC • 4/16/2013
1
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Temperature Range
Capacitance Tolerance
Operational Lifetime
Shelf Life
Leakage Current
100 – 330,000 µF
10 – 350 VDC
-40 to +105°C
-10/+30% at 100 Hz / +20°C
25,000 hours at +105°C
5,000 hours at +105°C or 10 years at +40°C 0 VDC
I = 0.003 CV + 4,000 (µA)
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
0.75 mm displacement amplitude
or 10 g maximum acceleration.
Vibration applied for three
2-hour sessions at 10 – 500 Hz
(Capacitor clamped by body).
0.75 mm displacement amplitude or
10 g maximum acceleration.
Vibration applied for three 2-hour
sessions at 10 – 55 Hz (Capacitor
clamped by body).
Requirements
Performance Characteristics
D ≤ 50 mm
Vibration Test Specifications
D > 50 mm
No leakage of electrolyte or other
visible damage. Deviations in
capacitance and tanδ from initial
measurements must not exceed:
∆ C/C < 5%
Standards
CECC
IEC 60384–4 long life grade 40/85/56, DIN 41240 type 1A CECC 30300, DIN 40040 GPF, DIN 41248
CECC 30301-058, corresponding to CECC 30301-803
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+105°C
2,000 hours
Maximum ripple current specified in table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
≤ 160 V
> 160 V
Does not exceed 200% of the initial value
Does not exceed leakage current limit
Within 15% of the initial value
Within 10% of the initial value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4038_PEH169_105ºC • 4/16/2013
2
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Dimensions – Millimeters
L3
L2
L1
D > 36.6
Oval
Round
Safety vent
D = 36.6
D
a
DT
DT
Optional Mounting Stud
(M x S)
Insulated Sleeve
b
Polarity Mark
Reference Size
(mm)
35 x 51
35 x 60
35 x 75
35 x 95
50 x 75
50 x 95
50 x 105
50 x 115
65 x 105
65 x 115
65 x 130
75 x 78
75 x 98
75 x 105
75 x 115
75 x 145
75 x 220
90 x 145
Size Code
A
B
C
D
H
J
K
I*
O
Q*
S*
L
P*
T
U
V
X
Y
±1.0
36.6
36.6
36.6
36.6
51.6
51.6
51.6
51.6
66.6
66.6
66.6
76.6
76.6
76.6
76.6
76.6
76.6
91.6
D
±1.0
Dimensions in mm
L1
L2
L3
±1.0
±1.0
±0.5
13.0
13.0
13.0
13.0
22.0
22.0
22.0
22.0
28.5
28.5
28.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
a
Mounting Stud
(M x S)
Nominal
M8 x 12
M8 x 12
M8 x 12
M8 x 12
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
M12 x 16
Approximate
Weight
Grams
70
85
105
130
180
240
265
300
415
460.0
520.0
430.0
530
585
640
800
1400
1400
51.5
54.5
58.9
59.5
62.5
66.9
73.5
76.5
80.9
94.5
97.5
101.9
74.5
77.5
82.4
95.5
98.5
103.4
103.5
106.5
111.4
115.5
118.5
123.4
106.0
109.2
113.0
118.0
121.2
125.0
129.0
132.2
136.0
77.0
80.2
84.0
98.0
101.2
105.0
106.0
109.2
113.0
118.0
121.2
125.0
146.0
149.2
153.0
221.0
224.2
228.0
145.5
148.7
152.4
Note: Dimensions include sleeving
Additional case sizes available on request
Termination Table
Reference
Diameter
35
50
65
75
90
Thread
M5
M5
M5
M5
M5
Termination
Style
Round
Oval
Oval
Oval
Oval
Dimensions in mm
DT
8
15
15
15
15
13
13
13
13
b
Note: M6 and other termination options available on request
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4038_PEH169_105ºC • 4/16/2013
3
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however the leakage
current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of three years at 40°C. See
sectional specification under each product series for specific data.
Re-age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen to a steady
value below the specified limit. During re-aging a maximum charging current of twice the specified leakage current or 5 mA (whichever
is greater) is suggested.
Reliability
The reliability of a component can be defined as the probability that it will perform satisfactorily under a given set of conditions for a
given length of time.
In practice, it is impossible to predict with absolute certainty how any individual component will perform; thus, we must utilize probability
theory. It is also necessary to clearly define the level of stress involved (e.g. operating voltage, ripple current, temperature and time).
Finally, the meaning of satisfactory performance must be defined by specifying a set of conditions which determine the end of life of the
component.
Reliability as a function of time, R(t), is normally expressed as: R(t)=e-
λt
where R(t) is the probability that the component will perform satisfactorily for time t, and λ is the failure rate.
Failure Rate
The failure rate is the number of components failing per unit time. The failure rate of most electronic components follows the
characteristic pattern:
• Early failures are removed during the manufacturing process.
• The operational life is characterized by a constant failure rate.
• The wear out period is characterized by a rapidly increasing failure rate.
The failures in time (FIT) are given with a 60% confidence level for the various type codes. By convention, FIT is expressed as 1 x 10
-9
failures per hour. Failure rate is also expressed as a percentage of failures per 1,000 hours.
e.g., 100 FIT = 1 x 10
-7
failures per hour = 0.01%/1,000 hours
End of Life Definition
Catastrophic Failure: short circuit, open circuit or safety vent operation
Parametric Failure:
• Change in capacitance > ±10%
• Leakage current > specified limit
• ESR > 2 x initial ESR value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4038_PEH169_105ºC • 4/16/2013
4
Screw Terminal Aluminum Electrolytic Capacitors – PEH169 Series, +105°C
MTBF
The mean time between failures (MTBF) is simply the inverse of the failure rate.
MTBF= 1/λ
early failures
wear out
Failure Rate
operational life
Time
The failure rate is derived from our periodic test results. The failure rate (λ
R
) is, therefore, only given at test temperature for life tests. An
estimation is also given at 60°C.
The expected failure rate for this capacitor range is based on our periodic test results for capacitors with structural similarity.
Failure Rate per Hour
T
a
60°C 100 FIT
Failure rate per hour includes both catastrophic and parametric failures.
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental effects
of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like China, legislation
has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic equipment. All products in this
catalog are produced to help our customers’ obligations to guarantee their products and fulfill these legislative requirements. The only
material of concern in our products has been lead (Pb), which has been removed from all designs to fulfill the requirement of containing
less than 0.1% of lead in any homogeneous material. KEMET will closely follow any changes in legislation world wide and makes any
necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode coatings.
To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels for RoHS compatible
capacitors.
Because of customer requirements, there may appear additional markings such as LF = Lead Free or LFW = Lead Free Wires on the
label.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4038_PEH169_105ºC • 4/16/2013
5
