T-1 3/4 (5mm) SOLID STATE LAMP
L-53SEC-E
HYPE ORANGE
Features
!
LOW POWER CONSUMPTION.
!
POPULAR T-1 3/4 DIAMETER PACKAGE.
!
GENERAL PURPOSE LEADS.
!
RELIABLE AND RUGGED.
!
LONG LIFE - SOLID STATE RELIABILITY.
Description
The Hyper Orange source color devices are made with
DH InGaAlP on GaAs substrate Light Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO:DSAA5612
APPROVED: J.LU
REV NO: V.3
CHECKED: Allen Liu
DATE:MAR/13/2003
DRAWN:S.J.HOU
PAGE: 1 OF 3
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 20 m A
Min .
L-53SEC-E
HYPER ORANGE (InGaAlP)
WATER CLEAR
15 0 0
Ty p .
500 0
V i ew i n g
An g l e
2θ1/2
30 °
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
λ
p e a k
λ
D
∆λ
1/2
C
V
F
I
R
Par am et er
Peak Wavelength
Dominate Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
D ev i c e
Hyper Orange
Hyper Orange
Hyper Orange
Hyper Orange
Hyper Orange
Hyper Orange
Ty p .
6 30
6 21
20
25
2.0
2.5
10
Max .
Un it s
nm
nm
nm
pF
V
uA
Tes t Co n d it io n s
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
°
Absolute Maximum Ratings at T
)
=25°C
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Hy p er Or an g e
15 0
30
19 5
5
-40
°
C To +85
°C
260
°
C For 5 Seconds
Un it s
mW
mA
mA
V
SPEC NO:DSAA5612
APPROVED: J.LU
REV NO: V.3
CHECKED: Allen Liu
DATE:MAR/13/2003
DRAWN:S.J.HOU
PAGE: 2 OF 3

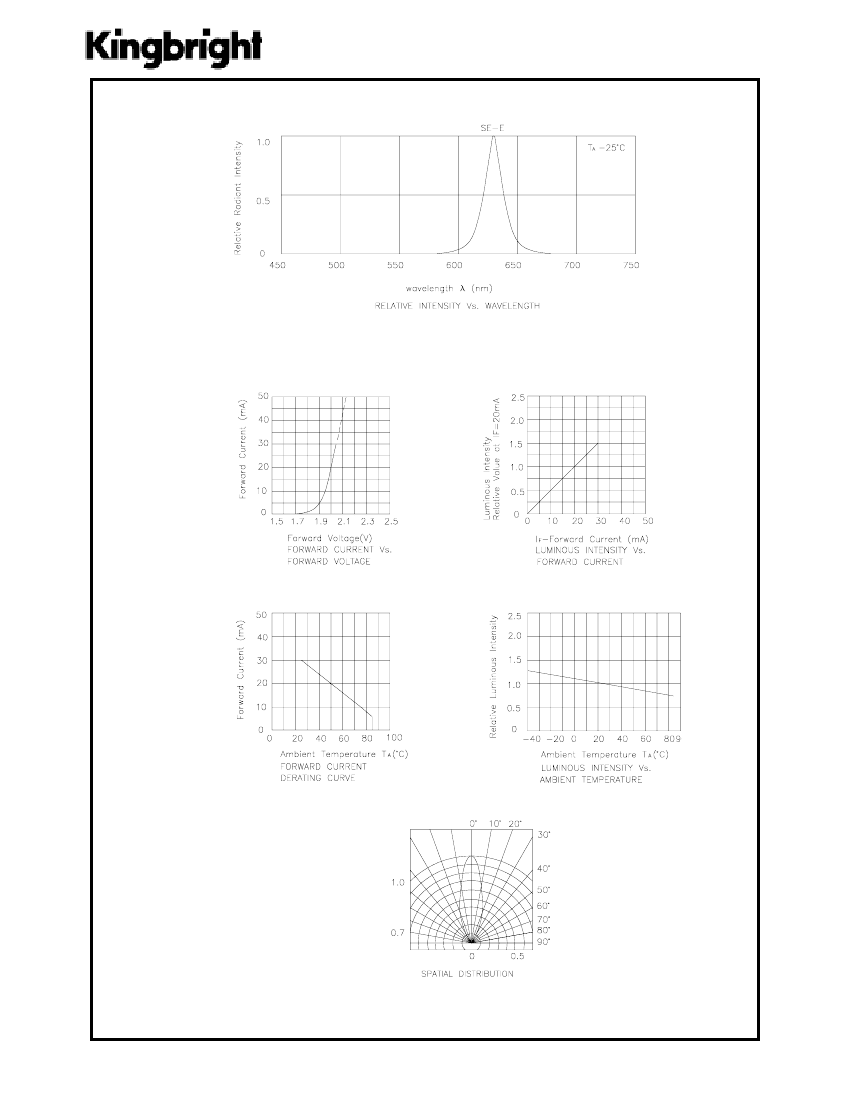

Hyper Orange
L-53SEC-E
SPEC NO:DSAA5612
APPROVED: J.LU
REV NO: V.3
CHECKED: Allen Liu
DATE:MAR/13/2003
DRAWN:S.J.HOU
PAGE: 3 OF 3
