L-53SET datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-53SET

L-53SET: DescriptionSingle Color LED, Super Bright Orange, Orange Transparent, T-1 3/4, 5mm,; CategoryLED optoelectronic/LED photoelectric; File Size503KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L-53SET Overview

Single Color LED, Super Bright Orange, Orange Transparent, T-1 3/4, 5mm,

L-53SET Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	SUPER BRIGHT ORANGE
color@wavelength	Amber
Configuration	SINGLE
Maximum forward current	0.03 A
Maximum forward voltage	2.5 V
Lens type	ORANGE TRANSPARENT
minimum luminous intensity	30 cd
Nominal luminous intensity	2500.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	TAPE AND REEL
peak wavelength	610 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	30 deg

L-53SET Preview

Kingbright

Features

T- 1 3/4 (5mm) SUPER BRIGHT LED LAMPS

L-53SE SUPER BRIGHT ORANGE

L-53SY SUPER BRIGHT YELLOW

Package Dimensions

BRIGHTNESS.

DIFFUSED

WATER CLEAR AND TRANSPARENT

LENS ARE AVAILABLE.

OUTSTANDING MATERIAL EFFICIENCY.

RELIABLE AND RUGGED.

IC COMPATIBLE/LOW CURRENT CAPABILITY.

ULTRA

Description

The Super Bright Orange source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

The Super Bright Yellow source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the lead emer-

ge package.

4. Specifications are subjected to change without notice.

Selection Guide

Part No.

L-53SEC

L-53SET

L-53SED

L-53SYC

L-53SYT

L-53SYD

SUPER BRIGHT YELLOW (InGaAlP)

SUPER BRIGHT ORANGE (InGaAlP)

Dice

Lens Type

WATER CLEAR

ORANGE TRANS.

ORANGE DIFFUSED

WATER CLEAR

YELLOW TRANS.

YELLOW DIFFUSED

Iv (mcd)

@ 20 mA

Min.

700

400

100

Max.

3000

1000

2500

500

Viewing

Angle

2θ1/2

30°

60°

30°

60°

Note:

1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

2-L53SE-1

Electrical / Optical Characteristics at T

=25°C

Symbol

Parameter

Peak Wavelength

Spectral Line

Halfwidth

Capacitance

Device

Super Bright Orange

Super Bright Yellow

Super Bright Orange

Super Bright Yellow

Super Bright Orange

Super Bright Yellow

Super Bright Orange

Super Bright Yellow

All

Typ.

620

595

1.95

2.0

Max.

Units

Test Conditions

IF=20mA

peak

∆λ

1/2

IF=20mA

2.5

2.4

VF=0V;f=1MHz

Forward Voltage

IF=20mA

Reverse Current

VR = 5V

Absolute Maximum Ratings at T

=25°C

Parameter

Power dissipation

DC Forward Current

Peak Forward Current [1]

Reverse Voltage

Operation/Storage Temperature

Lead Solder Temperature [2]

Notes:

1.1/10 Duty Cycle, 0.1ms Pulse Width.

2. 4mm below package base.

Super Bright Orange

150

Super Bright Yellow

125

150

-40

°C

To +85

°C

Units

260

°C

For 5 Seconds

2-L53SE-2

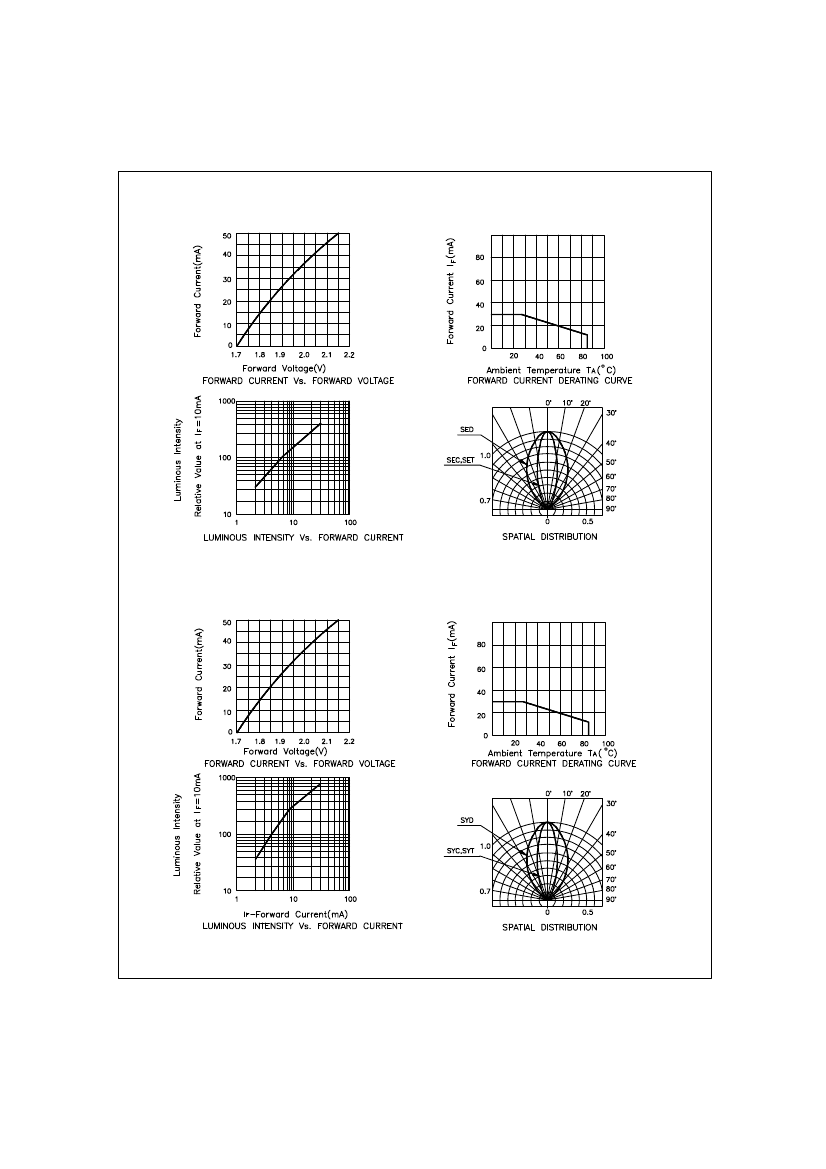

Super Bright Orange L-53SEC, L-53SET, L-53SED

Super Bright Yellow L-53SYC, L-53SYT, L-53SYD

2-L53SE-3

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
