MM5Z2V4-MM5Z75 ZENER DIODES
Features
Silicon planar power zener diodes
Other tolerances are available upon request.
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

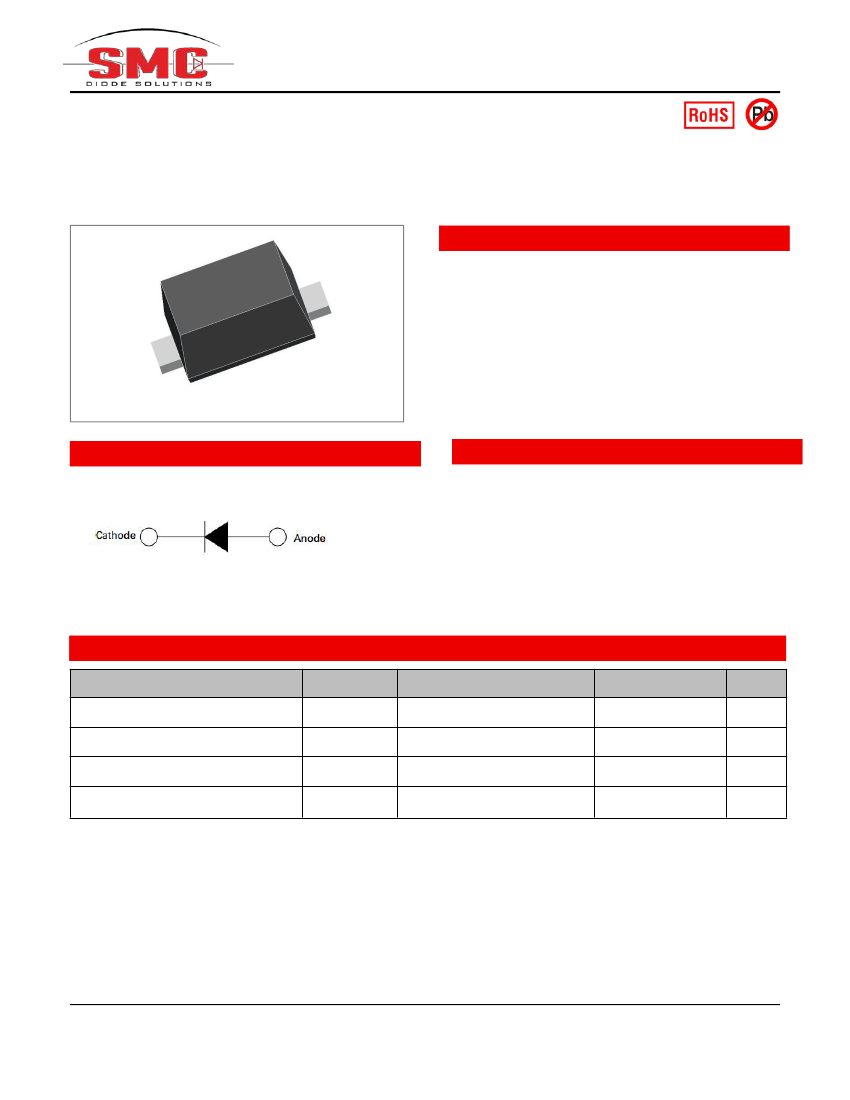

SOD-523
Circuit Diagram
Features
Case: Void- free, transfer-molded,
thermosetting plastic
Epoxy Meets UL 94 V-0
Lead Finish: 100% Matte Sn（Tin）
Mounting Position: Any
Qualified Max Reflow Temperature: 260°C
Zener diodes, SMD solderable, Single device
per housing, 2 leads
Maximum Ratings
@T
A
=25°C unless otherwise specified
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Min. Power dissipation
Max. reverse (working) voltage
@ 30mA
Symbol
T
J
T
stg
P
D
V
R
Condition
-
-
-
Specification
-65 to +150
-65 to +150
150
5.5
Units
C
C
mW
V
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
Technical Data
Data Sheet N0206, Rev. C
MM5Z2V4- MM5Z75

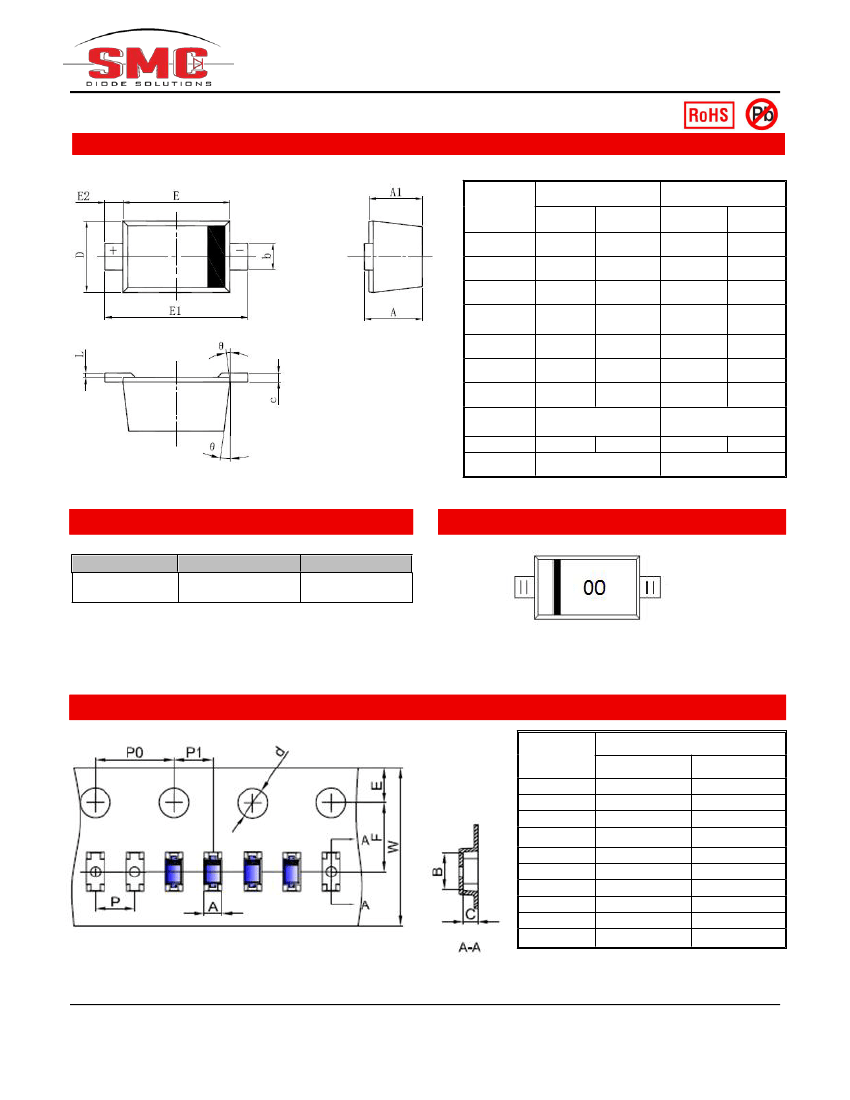

Mechanical Dimensions SOD-523
Millimeters
Min.
0.510
0.500
0.250
0.080
0.750
1.100
1.500
SYMBOL
Inches
Min.
0.020
0.020
0.010
0.003
0.030
0.043
0.059
Max.
0.770
0.700
0.350
0.150
0.850
1.300
1.700
Max.
0.031
0.028
0.014
0.006
0.033
0.051
0.067
A
A1
b
c
D
E
E1
E2
L
θ
0.200 REF
0.010
0.070
7°REF
0.008 REF.
0.001
0.003
7°REF
Ordering Information
Device
MM5Z2V4-
MM5Z75
Marking Diagram
Shipping
8000pcs / reel
Package
SOD-523
(Pb-Free)
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
00
= Device code
Carrier Tape Specification SOD-523
SYMBOL
A
B
C
d
E
F
P
P0
P1
W
Millimeters
Min.
0.85
1.89
0.68
1.40
1.65
3.40
1.90
3.90
1.90
7.90
Max.
0.95
1.99
0.78
1.60
1.85
3.60
2.10
4.10
2.10
8.30
