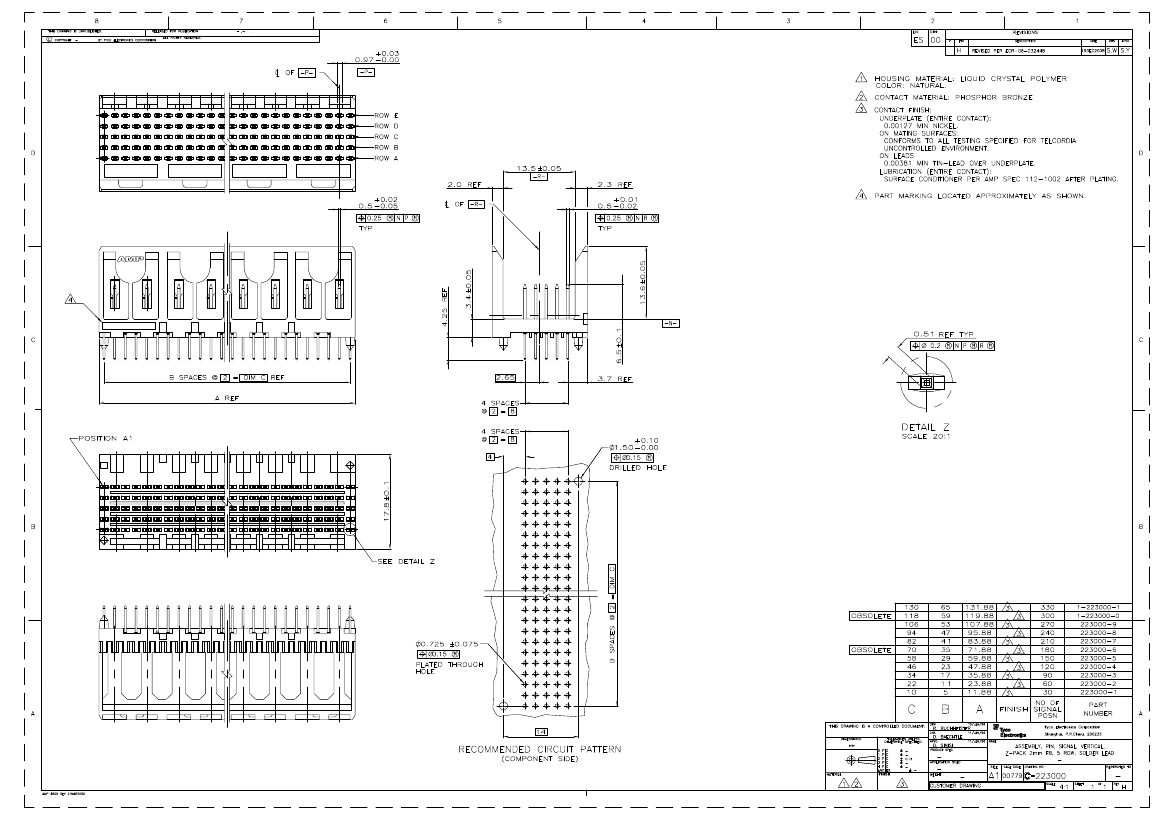

Preview

223000-8: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size134KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

223000-8 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL

223000-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Other features	MATING POST LENGTH=0.256
Board mount options	PEG
body width	0.701 inch
subject depth	0.669 inch
body length	3.775 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
maximum insertion force	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223000
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	240
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

223000-8 Related Products

	223000-8	223000-7	223000-9	1-223000-1	1-223000-0
Description	HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,210 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL	HEADER CONNECTOR,PCB MNT,RECEPT,270 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL	330 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,300 CONTACTS,PIN,0.079 PITCH,PC TAIL TERMINAL
Reach Compliance Code	compli	compli	compli	unknown	unknown
Other features	MATING POST LENGTH=0.256	MATING POST LENGTH=0.256	MATING POST LENGTH=0.256	Z-PACK	MATING POST LENGTH=0.256
Board mount options	PEG	PEG	PEG	PEG	PEG
body width	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch
subject depth	0.669 inch	0.669 inch	0.669 inch	0.669 inch	0.669 inch
body length	3.775 inch	3.302 inch	4.247 inch	5.192 inch	4.72 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI	NOT SPECIFIED	AU-PD-NI ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
maximum insertion force	.695 N	.695 N	.695 N	.695 N	.695 N
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	223000	223000	223000	223000	223000
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5	5
Number of rows loaded	5	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.167 inch	0.167 inch	0.167 inch	0.167 inch	0.167 inch
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	240	210	270	330	300
Evacuation force-minimum value	.1112 N	.1112 N	.1112 N	.1112 N	.1112 N
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	-
Base Number Matches	1	1	1	-	-
