PBL3777SO:T datasheet, PDF - EEWORLD Datasheet

PBL3777SO:T: DescriptionStepper Motor Controller, 0.9A, PDSO24, POWER, PLASTIC, SO-24; CategoryOther integrated circuit (IC) The signal circuit; File Size285KB，8 Pages; ManufacturerEricsson; Websitehttp://www.ericsson.com

Download Datasheet Parametric Compare View All

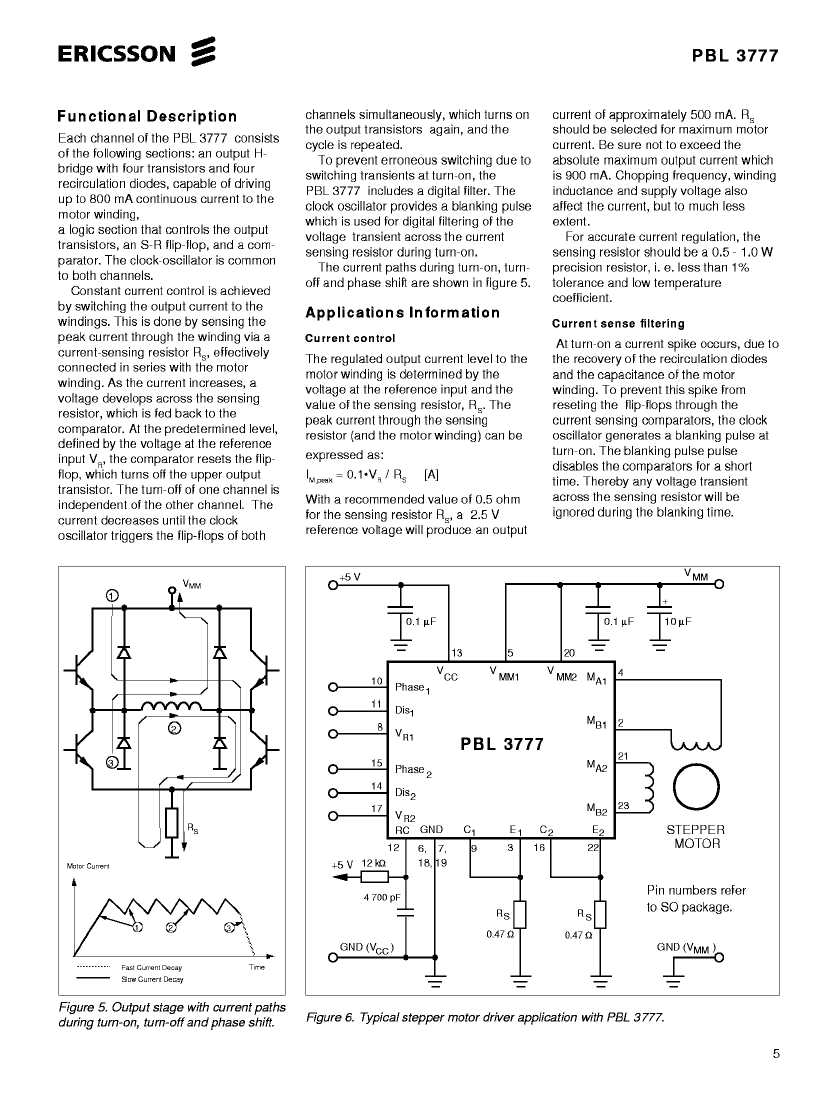

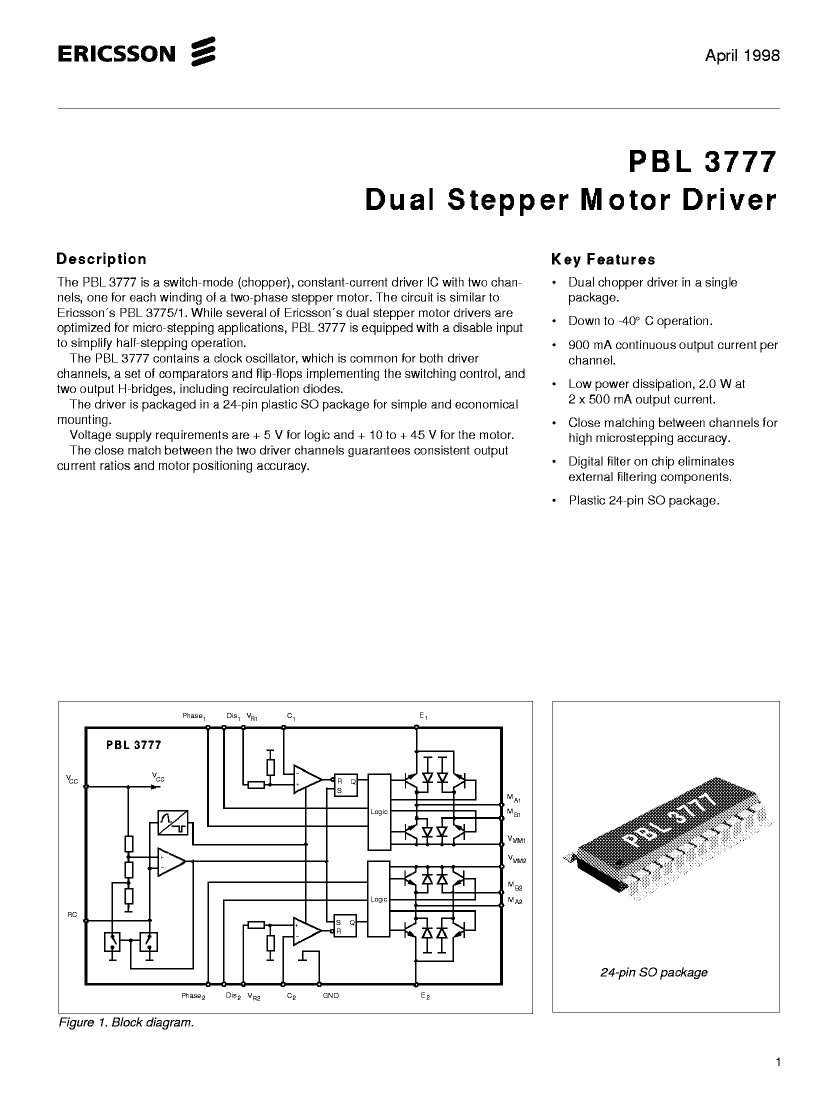

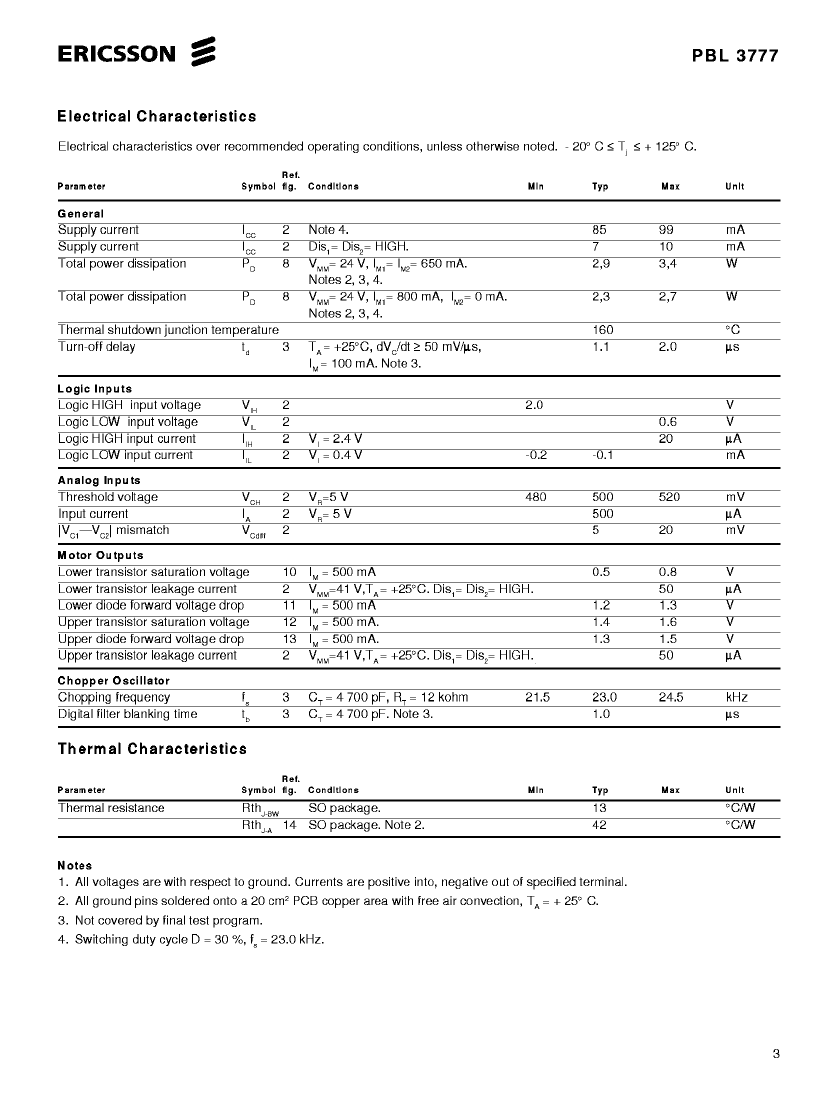

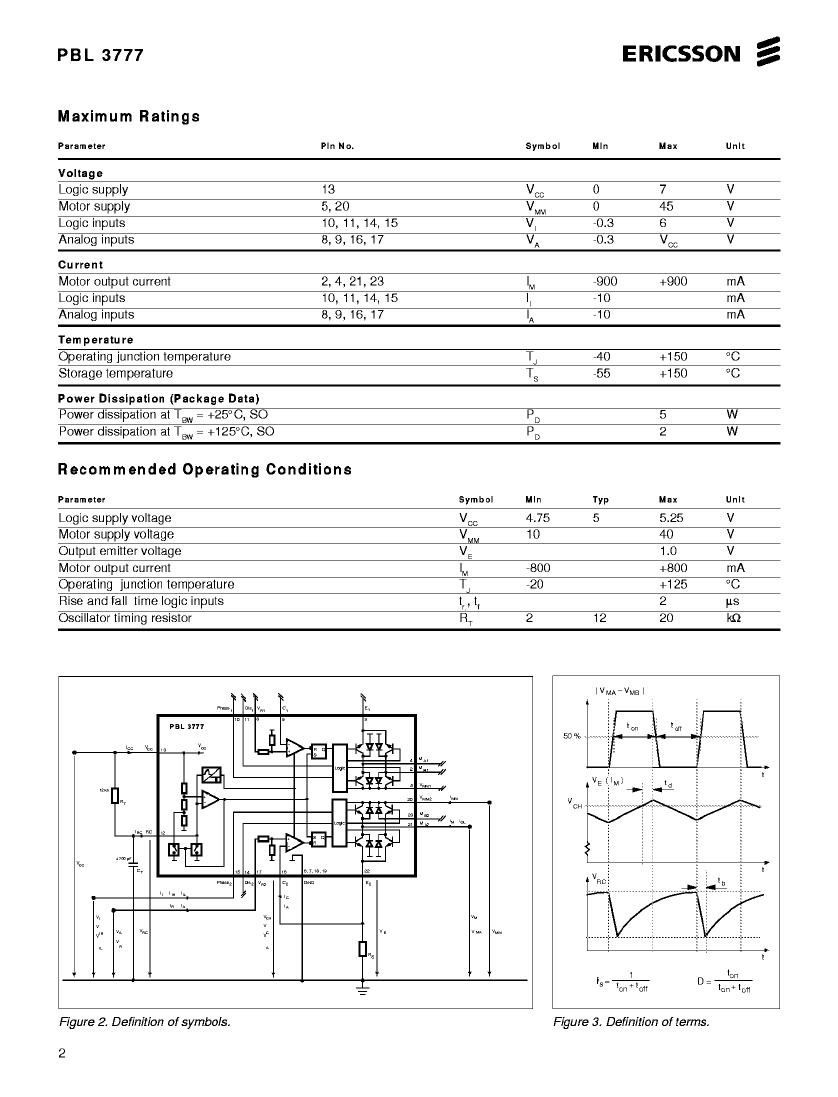

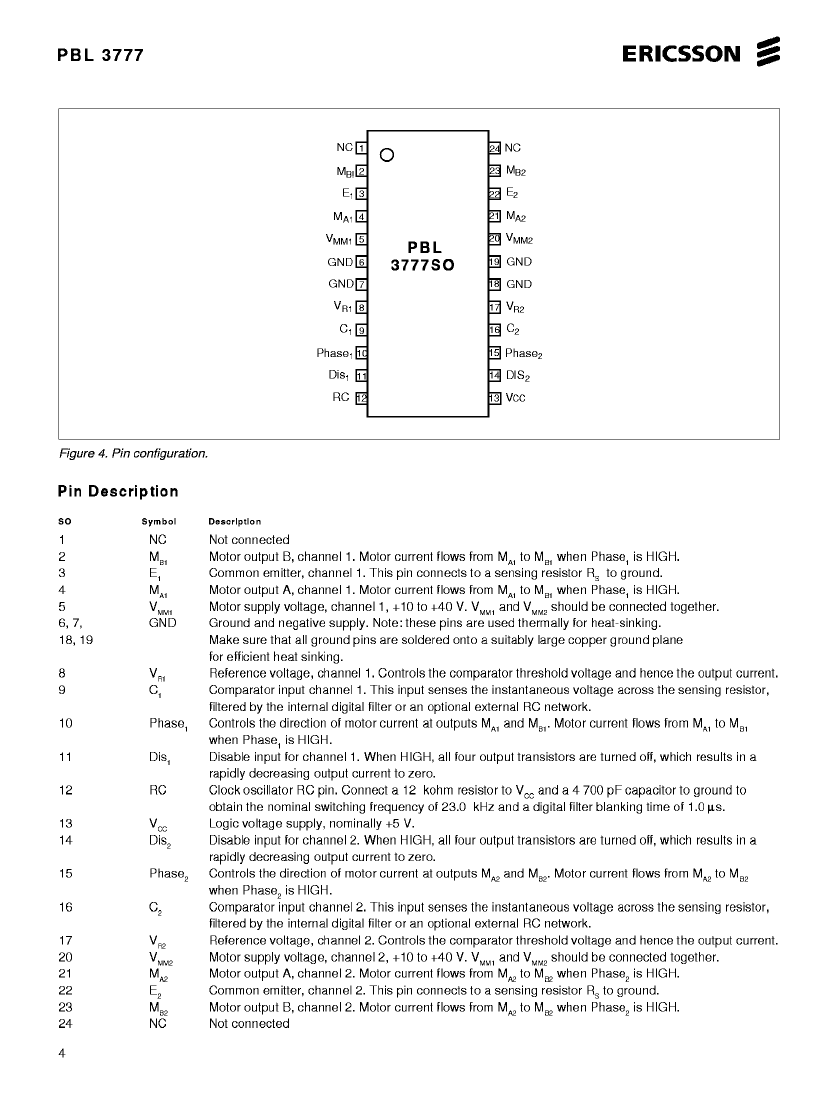

PBL3777SO:T Overview

Stepper Motor Controller, 0.9A, PDSO24, POWER, PLASTIC, SO-24

Parameter Name	Attribute value
Maker	Ericsson
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G24
length	15.4 mm
Number of functions	1
Number of terminals	24
Maximum output current	0.9 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

	PBL3777SO:T	PBL3777SO
Description	Stepper Motor Controller, 0.9A, PDSO24, POWER, PLASTIC, SO-24	Stepper Motor Controller, 0.9A, PDSO24, POWER, PLASTIC, SO-24
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	24	24
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G24	R-PDSO-G24
length	15.4 mm	15.4 mm
Number of functions	1	1
Number of terminals	24	24
Maximum output current	0.9 A	0.9 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.5 mm
