2222-300-09P-AB datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2222-300-09P-AB

Preview

2222-300-09P-AB: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Plug; CategoryThe connector The connector; File Size365KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

2222-300-09P-AB Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Plug

2222-300-09P-AB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
body width	0.494 inch
subject depth	0.516 inch
body length	1.214 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	2222
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SURFACE MOUNT
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

b

http://www.tekcon.com

http://www.tekcon.com.tw

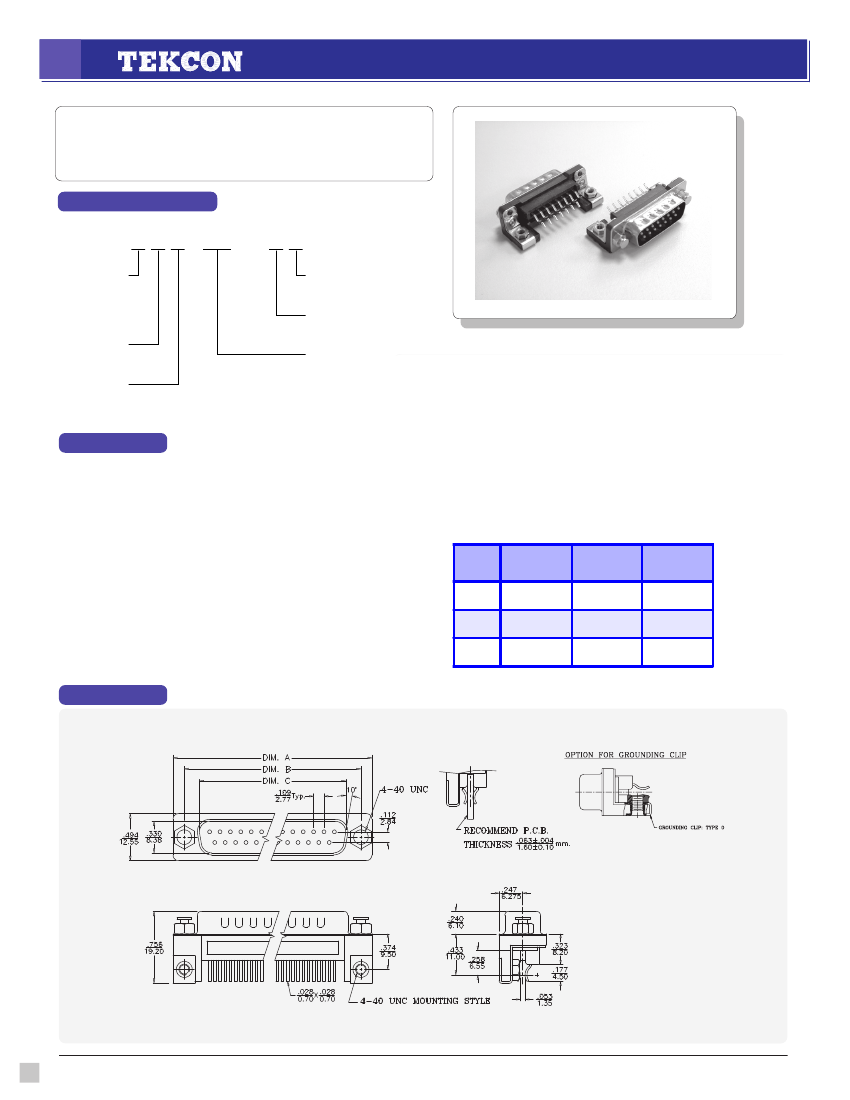

2222 Series

SMT D-SUB Miniature Connector

Double Row, Card Edge Mount, Plug

Ordering Information

2222

-

X X X

-

XX P

-

X X

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

Hex-Nut

Type 0,8,A,B

see Hex-Nut Table

(P.14-4, Appendix D.)

Grounding Clip

0 - Type 0

Shell Plating

A - Nickel (Std.)

B - Tin

Insulator Type

A - with Ears

NO. of Contact

09 - 9 positions

15 - 15 positions

25 - 25 positions

37 - 37 positions

Specification

p

Materials:

s

Insulator:

Glass Fiber Reinforced Thermoplastic, UL94V-0.

s

Shell:

Steel with Nickel Plating (Tin on Request).

s

Contact:

Copper Alloy.

s

Plating:

Gold on Contact Area and

Tin/ Lead on Solder Tail.

s

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

s

Hex-Nut:

Brass with Nickel Plating.

p

Electrical:

s

Insulation Resistance:

5000 MΩ Minimum.

s

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

s

Voltage Rating:

600V.

s

Current Rating:

5 AMP.

s

Contact Resistance:

20 mΩ Maximum.

p

Enviromental

s

Temperature: -558C to +1258C

No. of

Contact

9

15

25

Dim A

mm/in.

30.84/1.214

39.24/1.545

53.04/2.088

Dim B

mm/in

24.99/0.984

33.32/1.312

47.04/1.852

Dim C

mm/in

16.92/0.666

25.25/0.994

38.96/1.534

Dimensions

TEKCON Electronics Corporation

4-18
