FDC20-24T0515 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FDC20-24T0515

FDC20-24T0515: DescriptionDC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid, MODULE-8/7; CategoryPower/power management The power supply circuit; File Size103KB，3 Pages; ManufacturerAstrodyne TDI

Download Datasheet Parametric View All

FDC20-24T0515 Overview

DC-DC Regulated Power Supply Module, 3 Output, 20W, Hybrid, MODULE-8/7

FDC20-24T0515 Parametric

Parameter Name	Attribute value
Maker	Astrodyne TDI
Parts packaging code	MODULE
package instruction	MODULE-8/7
Contacts	8/7
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	+/-15V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	18 V
Nominal input voltage	24 V
JESD-30 code	R-XDMA-P7
length	50.8 mm
Maximum load regulation	2%
Number of functions	1
Output times	3
Number of terminals	7
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	10.7 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	20 W
Fine-tuning/adjustable output	NO
width	40.6 mm

Preview

Download Datasheet

View All

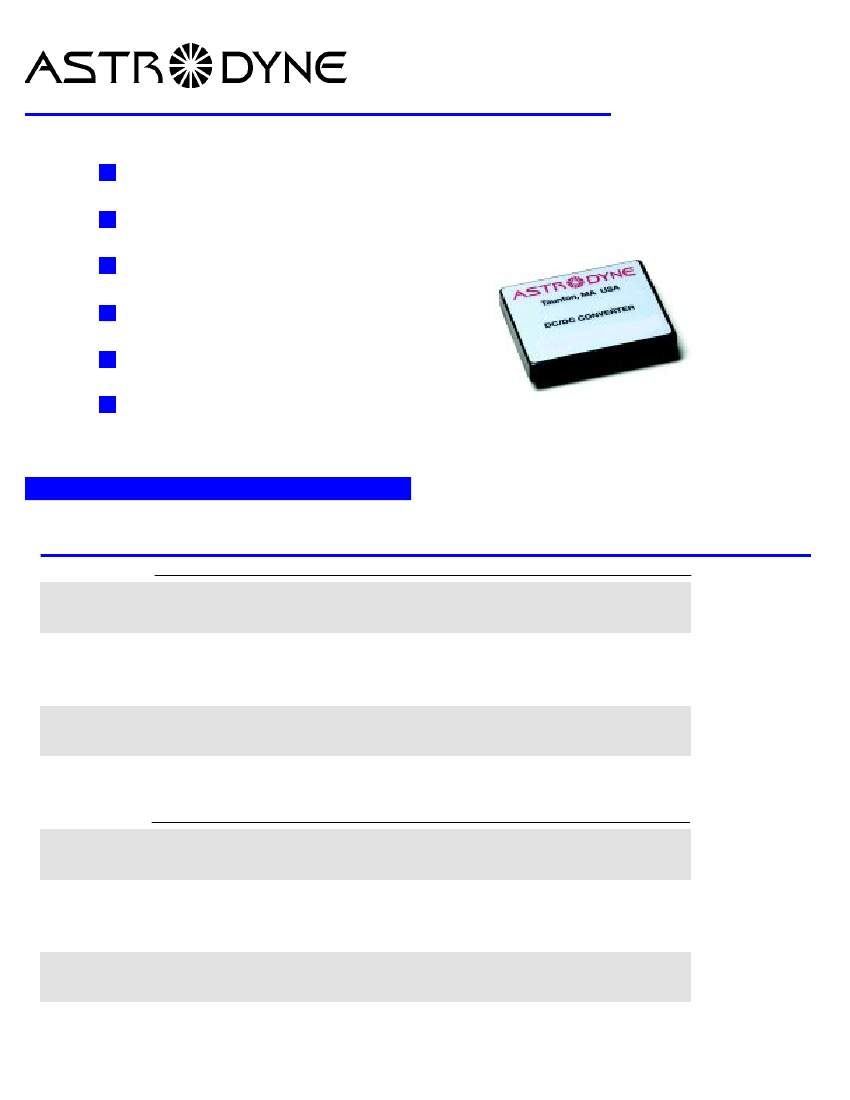

Isolated and Regulated

20 WATT

Modular DC/DC Converters

CostCutter

Wide 2 : 1 Input Range

High Efficiency

Regulated Outputs

1600V Isolation

Full EMI Shielding

PI Input Filter

FDC20

Series

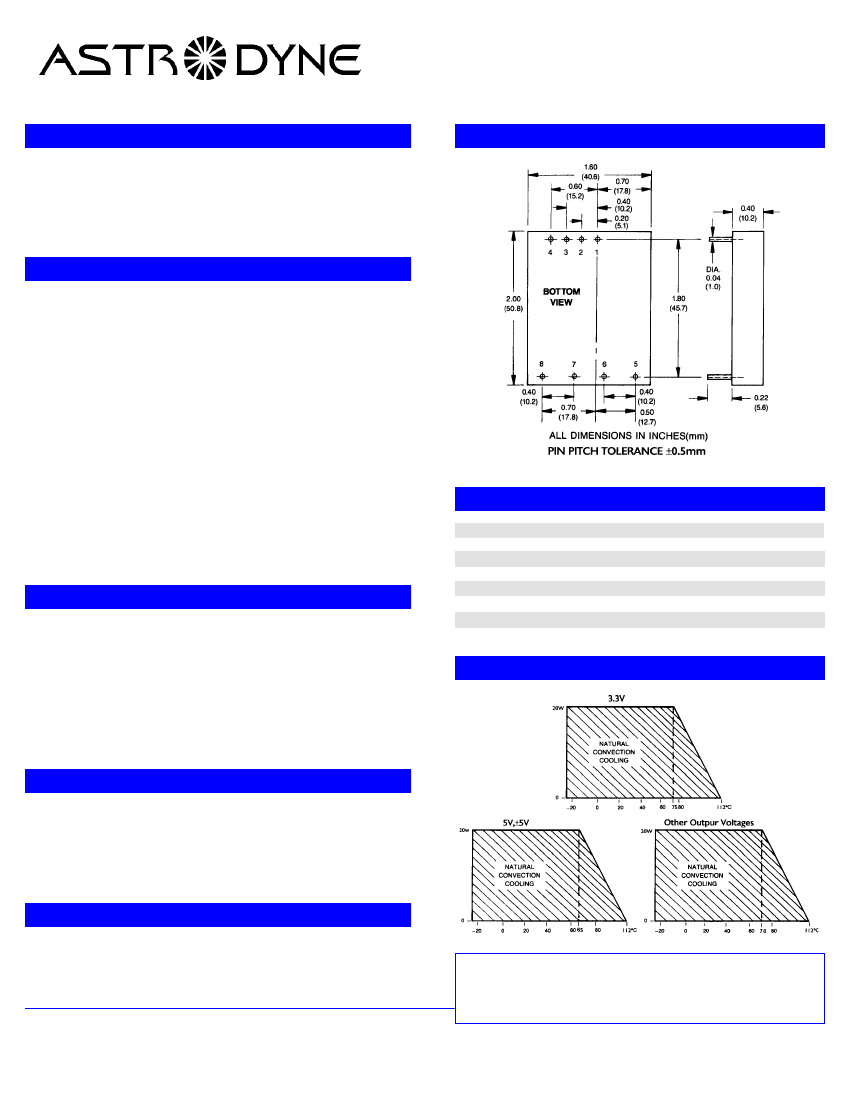

Unit measures 1.6”W x 2”L x 0.4”H

MODEL SELECTIONS

Output

Voltage

Output

Amps

Input

Range

9-18 VDC

18-36 VDC

36-72 VDC

9-18 VDC

18-36 VDC

36-72 VDC

9-18 VDC

18-36 VDC

36-72 VDC

9-18 VDC

18-36 VDC

36-72 VDC

9-18 VDC

18-36 VDC

36-72 VDC

9-18 VDC

18-36 VDC

36-72 VDC

9-18 VDC

18-36 VDC

36-72 VDC

Model

Number

FDC20-12S33

FDC20-24S33

FDC20-48S33

FDC20-12S05

FDC20-24S05

FDC20-48S05

FDC20-12S12

FDC20-24S12

FDC20-48S12

FDC20-12S15

FDC20-24S15

FDC20-48S15

FDC20-12D05

FDC20-24D05

FDC20-48D05

FDC20-12D12

FDC20-24D12

FDC20-48D12

FDC20-12D15

FDC20-24D15

FDC20-48D15

Price

$72

$75

$68

$70

SINGLE OUTPUT

3.3 VDC

5 VDC

1.67

1.33

+/-2

+/-0.833

+/-0.666

12 VDC

15 VDC

DUAL OUTPUT

+/-5 VDC

Contact

Factory

for

High Volume

Pricing

+/-12 VDC

+/-15 VDC

WWW.ASTRODYNE.COM

Rev. 2/02

300 Myles Standish Blvd., Taunton, MA 02780

Ph: 1-800-823-8082

Fax: 508-823-8181
