2-530841-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-530841-2

2-530841-2: DescriptionEDGE CONNECTOR,PCB MNT,RECEPT,50 CONTACTS,0.1 PITCH,PC TAIL TERMINAL; CategoryThe connector The connector; File Size572KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-530841-2 Overview

EDGE CONNECTOR,PCB MNT,RECEPT,50 CONTACTS,0.1 PITCH,PC TAIL TERMINAL

2-530841-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	NONE
Board mount options	MOUNTING FLANGE
body width	0.368 inch
subject depth	0.61 inch
body length	5.845 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	2.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.187 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.556 N
Base Number Matches	1

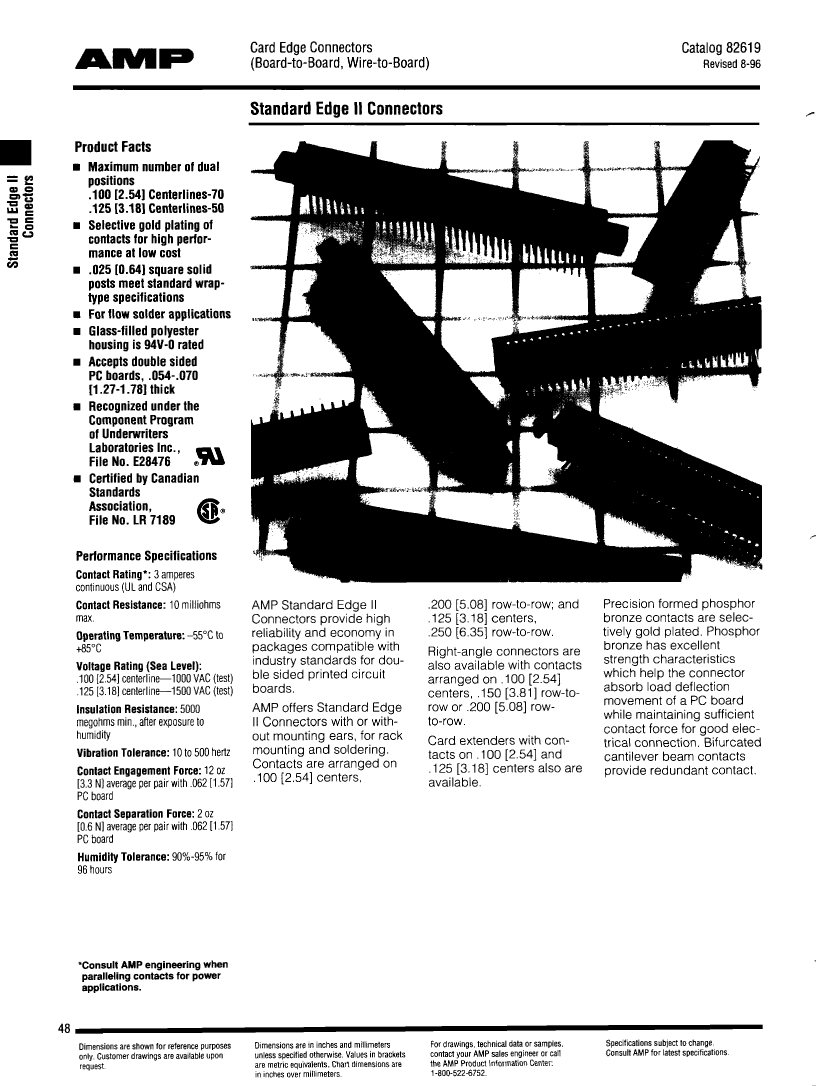

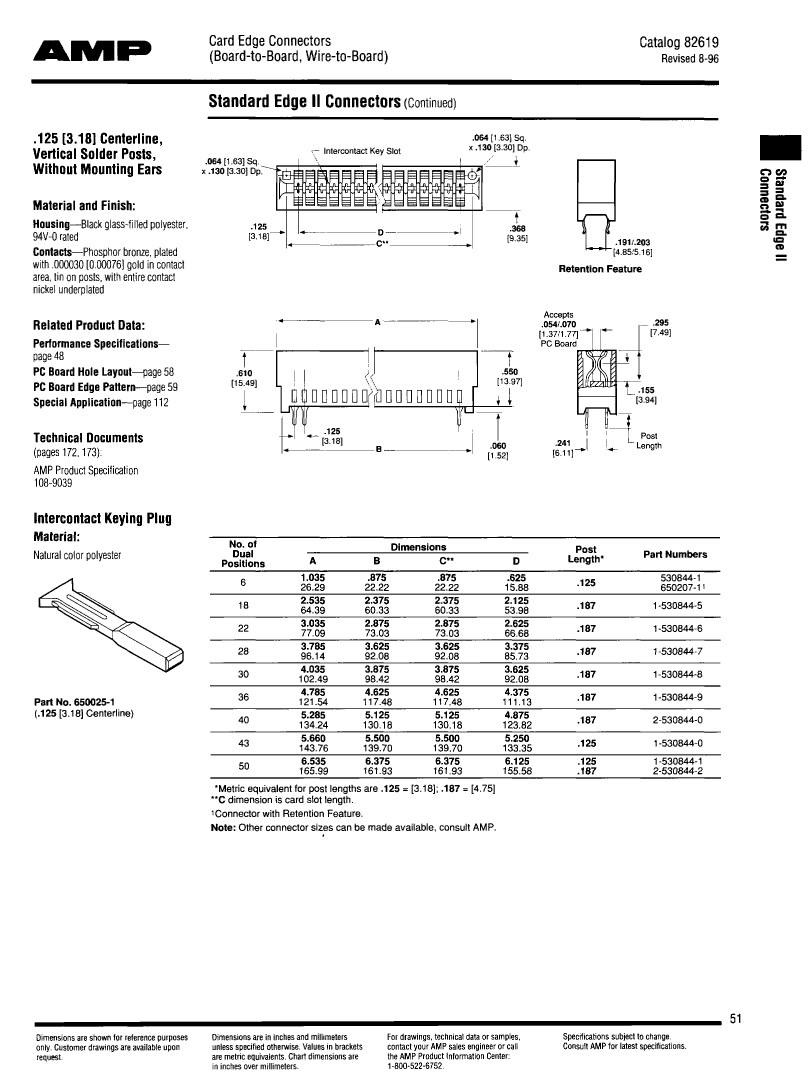

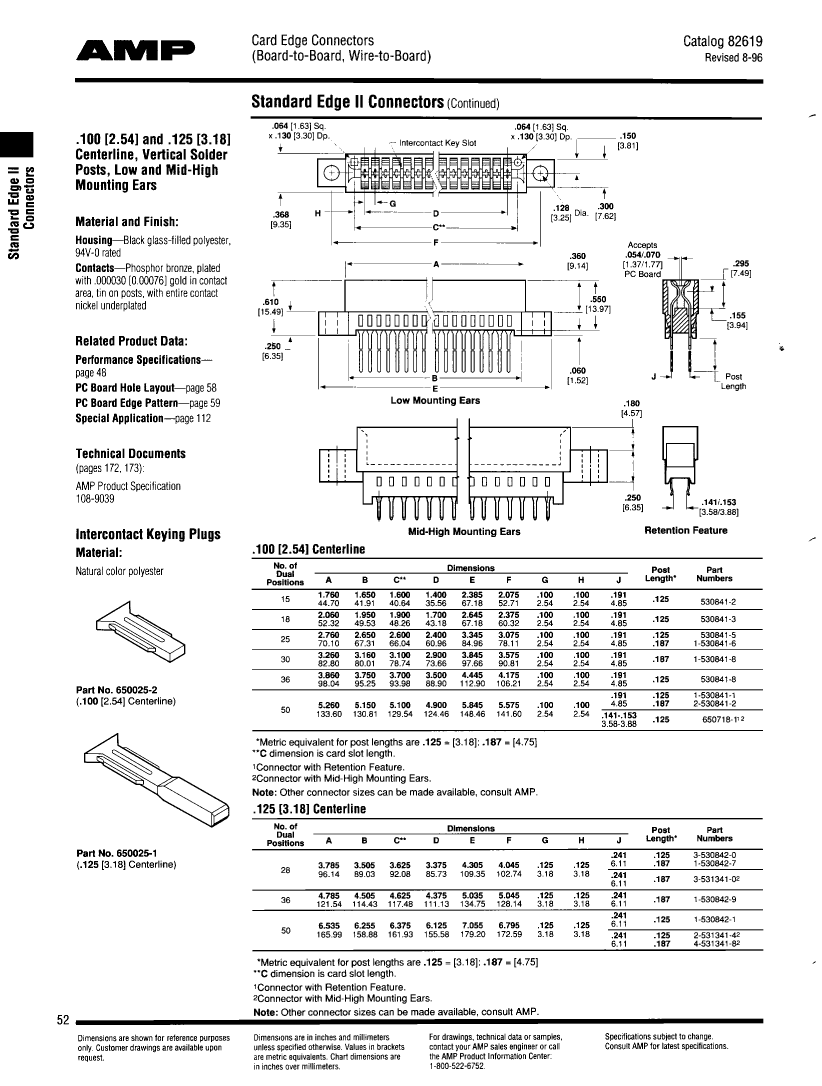

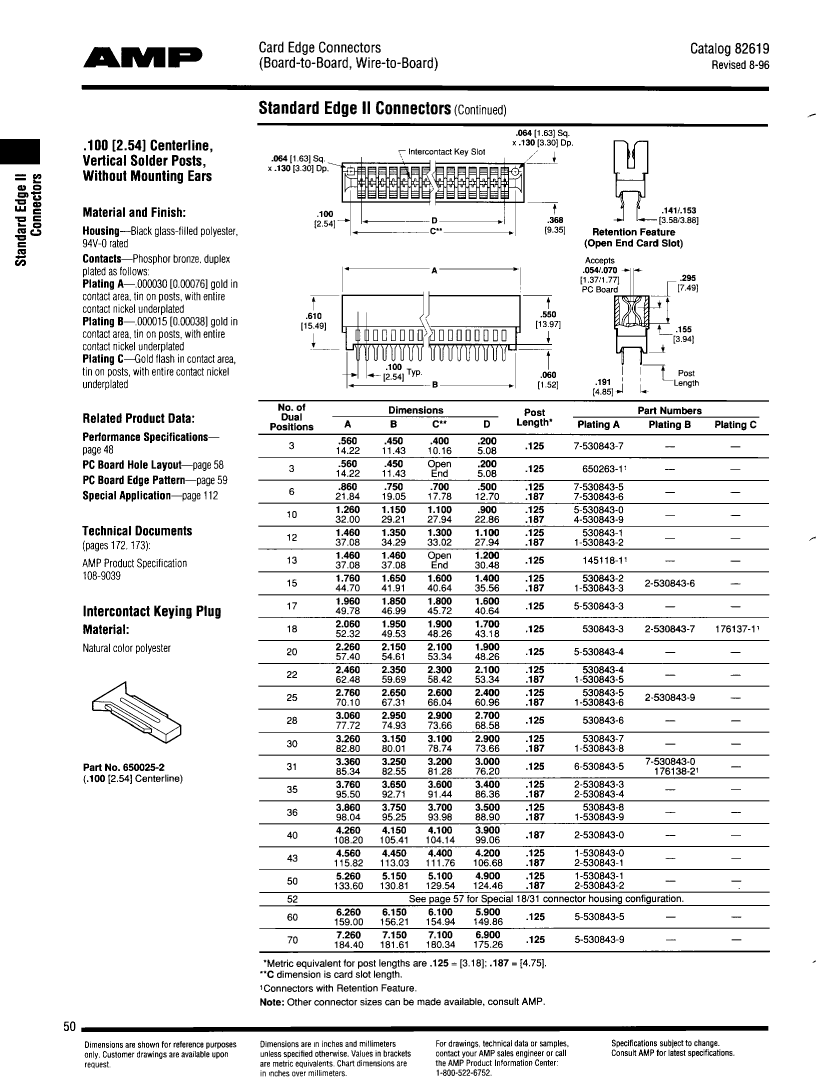

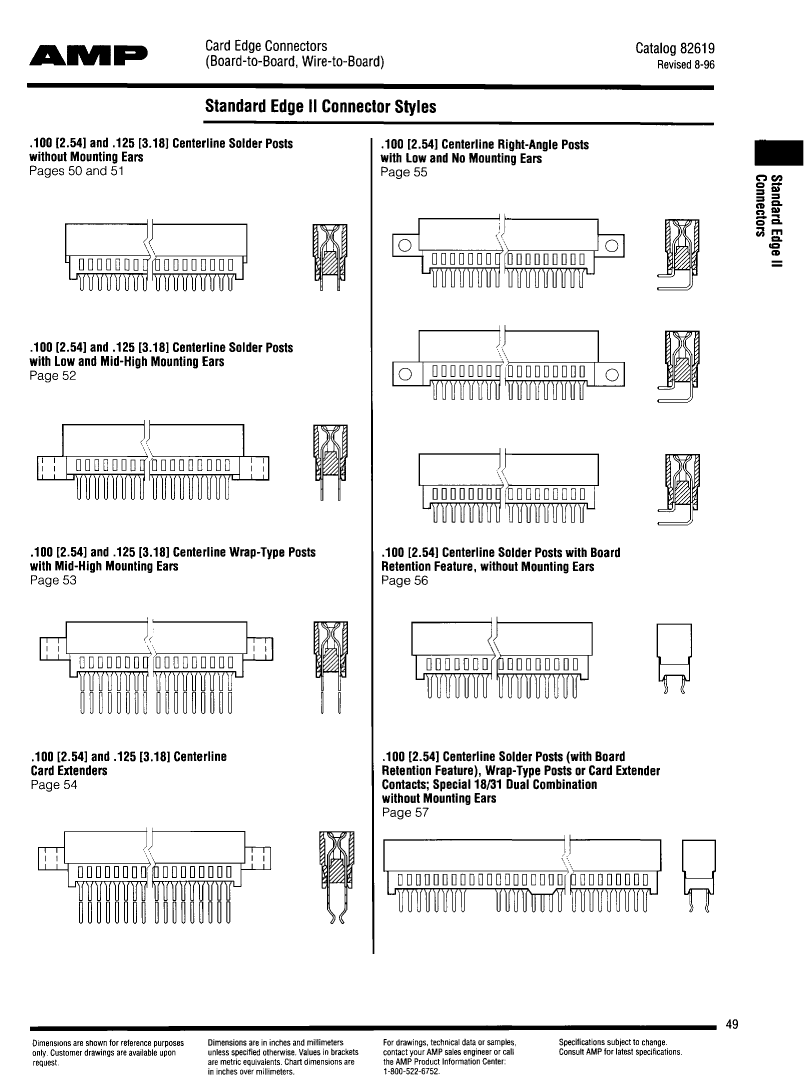

Preview

Download Datasheet

View All

2-530841-2 Related Products

	2-530841-2	4-530396-3	645405-1	4-530396-4	3-530396-4	650718-1	530844-1	530841-3	530897-2	650015-1
Description	EDGE CONNECTOR,PCB MNT,RECEPT,50 CONTACTS,0.1 PITCH,PC TAIL TERMINAL	30 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	EDGE CONNECTOR,PCB MNT,RECEPT,52 CONTACTS,0.1 PITCH,WRAP POST TERMINAL	36 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	40 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	CONNECTOR, 100 CONTACT(S), FEMALE, STRAIGHT SINGLE PART CARD EDGE CONN, SOLDER	EDGE CONNECTOR,PCB MNT,RECEPT,6 CONTACTS,0.125 PITCH,PC TAIL TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,18 CONTACTS,0.1 PITCH,PC TAIL TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,30 CONTACTS,0.1 PITCH,WRAP POST TERMINAL	EDGE CONNECTOR,PCB MNT,RECEPT,52 CONTACTS,0.1 PITCH,WRAP POST TERMINAL
Reach Compliance Code	unknow	unknown	compliant	unknown	unknown	unknown	unknown	compliant	unknown	unknow
Other features	NONE	AMP	NONE	AMP	AMP	AMP	NONE	NONE	NONE	NONE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	3.175 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	WIRE WRAP	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	WIRE WRAP	WIRE WRAP
Total number of contacts	50	30	52	36	40	100	6	18	30	52
body width	0.368 inch	-	0.368 inch	-	-	-	0.368 inch	0.368 inch	0.368 inch	0.368 inch
subject depth	0.61 inch	-	0.61 inch	-	-	-	0.61 inch	0.61 inch	0.61 inch	0.61 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	-	-	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
contact mode	RECTANGULAR	-	RECTANGULAR	-	-	-	STAGGERED	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	-	10 mΩ	-	-	-	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	-	BELLOWED TYPE	-	-	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	-	1000VAC V	-	-	-	1500VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	3.336 N	-	3.336 N	-	-	-	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	-	5000000000 Ω	-	-	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	-	BLACK	-	-	-	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	-	-	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch	-	0.1 inch	-	-	-	0.125 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.2 inch	-	0.2 inch	-	-	-	0.25 inch	0.2 inch	0.2 inch	0.2 inch
Number of connectors	ONE	-	ONE	-	-	-	ONE	ONE	ONE	ONE
PCB row number	2	-	2	-	-	-	2	2	2	2
Maximum operating temperature	85 °C	-	85 °C	-	-	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-	-55 °C	-	-	-	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	-	-	-	STAGGERED	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	-	5.08 mm	-	-	-	6.35 mm	5.08 mm	5.08 mm	5.08 mm
Rated current (signal)	2.5 A	-	2.5 A	-	-	-	2.5 A	2.5 A	2.5 A	2.5 A
Guideline	UL, CSA	-	UL, CSA	-	-	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	COMMERCIAL	-	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.187 inch	-	0.34 inch	-	-	-	0.125 inch	0.125 inch	0.34 inch	0.57 inch
Evacuation force-minimum value	.556 N	-	.556 N	-	-	-	.556 N	.556 N	.556 N	.556 N
Maker	-	-	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
