CD-C-0606B-101 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CD-C-0606B-101

CD-C-0606B-101: DescriptionGeneral Purpose Inductor, 100uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size183KB，2 Pages; ManufacturerFDK AMERICA; Environmental Compliance

Download Datasheet Parametric Compare View All

CD-C-0606B-101 Overview

General Purpose Inductor, 100uH, 20%, 1 Element, SMD

CD-C-0606B-101 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FDK AMERICA
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.6 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CD-C-0606B
Number of functions	1
Number of terminals	2
Maximum rated current	0.48 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	SPECIAL
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

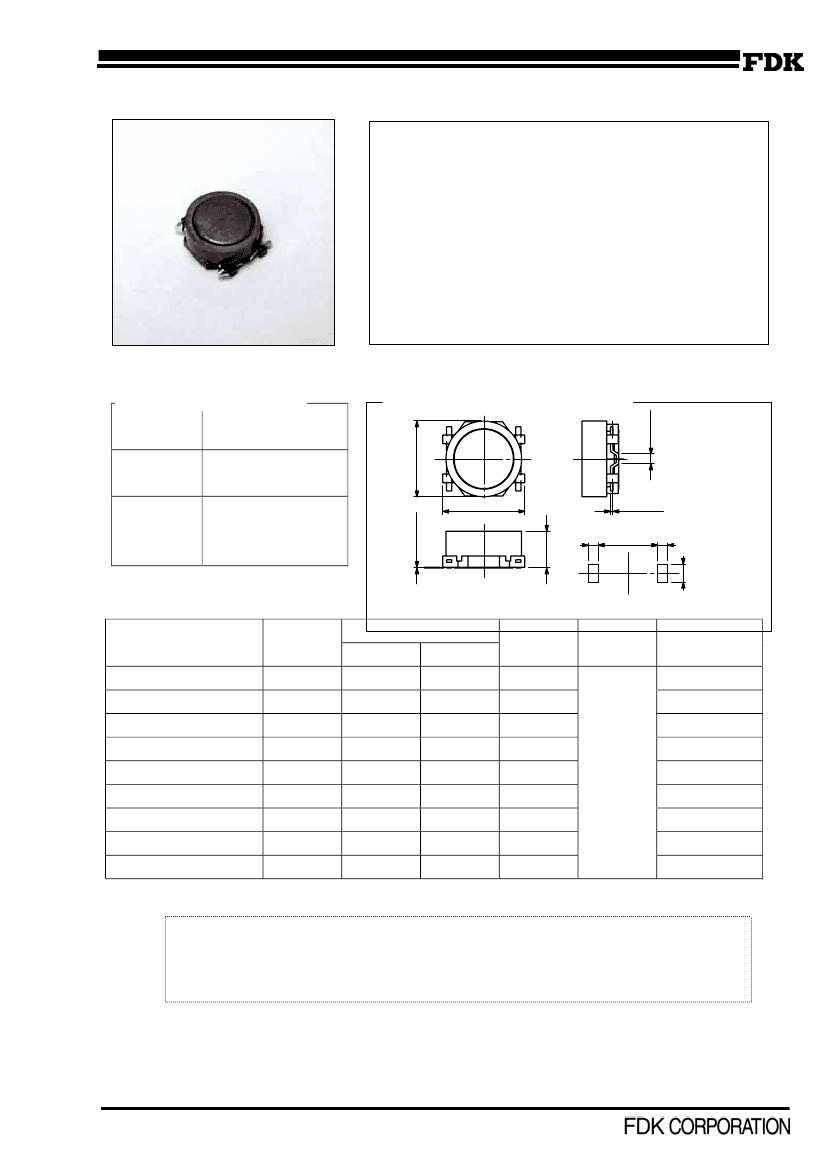

CD-TCE050-0312

SMT Power inductors CD-C-0606B series

Features

Closed magnetic path type

Reflow soldering

SMT compatibility

Lead-free soldering

Applications

DC-DC converters

Power supplies

Packing quantity

6,000pcs./BOX.

Specifications

Withstand

voltage

Insulation

resistance

Operating

temperature

DC100V 1min.

(core-coil)

DC100V

100MΩmin.

Shapes and dimensions

(0.8)

6.5±0.5

(0.05)

3 MAX

(2.8)

1.0

(0.2)

4.7

1.0

1.4

(core-coil)

-25℃ - +100°C

(including self-

temperature rise)

Standard models

Model No.

CD-C-0606B-4R7

CD-C-0606B-6R8

CD-C-0606B-100

CD-C-0606B-150

CD-C-0606B-220

CD-C-0606B-330

CD-C-0606B-470

CD-C-0606B-680

CD-C-0606B-101

Marking

4R7

6R8

100

150

220

330

470

680

101

Rated current [A]

2.55

2.10

1.70

1.45

1.20

0.95

0.82

0.65

0.55

1.75

1.70

1.48

1.28

1.05

0.75

0.68

0.60

0.48

Inductance

[µH]

4.7

6.8

100

6.5 MAX

Recommended

landing dimensions

Inductance

tolerance

DC resistance *3

[Ω]

0.05

0.06

0.07

0.1

±20%

0.14

0.26

0.31

0.40

0.60

f=1kHz, Ta=25°C

Rated current *1:

The current at which the inductance is 20% below its initial value(Ta=25°C).Rated

current *2:

The

D.C. current at which

∆t=40°C.

DC resistance *3:

Typical data.

http://www.fdk.co.jp

CD-C-0606B-101 Related Products

	CD-C-0606B-101	CD-C-0606B-470	CD-C-0606B-4R7	CD-C-0606B-6R8	CD-C-0606B-330	CD-C-0606B-150	CD-C-0606B-220	CD-C-0606B-100	CD-C-0606B-680
Description	General Purpose Inductor, 100uH, 20%, 1 Element, SMD	General Purpose Inductor, 47uH, 20%, 1 Element, SMD	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD	General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD	General Purpose Inductor, 33uH, 20%, 1 Element, SMD	General Purpose Inductor, 15uH, 20%, 1 Element, SMD	General Purpose Inductor, 22uH, 20%, 1 Element, SMD	General Purpose Inductor, 10uH, 20%, 1 Element, SMD	General Purpose Inductor, 68uH, 20%, 1 Element, SMD
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	FDK AMERICA	FDK AMERICA	FDK AMERICA	FDK AMERICA	FDK AMERICA	FDK AMERICA	FDK AMERICA	FDK AMERICA	FDK AMERICA
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.6 Ω	0.31 Ω	0.05 Ω	0.06 Ω	0.26 Ω	0.1 Ω	0.14 Ω	0.07 Ω	0.4 Ω
Nominal inductance(L)	100 µH	47 µH	4.7 µH	6.8 µH	33 µH	15 µH	22 µH	10 µH	68 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CD-C-0606B	CD-C-0606B	CD-C-0606B	CD-C-0606B	CD-C-0606B	CD-C-0606B	CD-C-0606B	CD-C-0606B	CD-C-0606B
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum rated current	0.48 A	0.68 A	1.75 A	1.7 A	0.75 A	1.28 A	1.05 A	1.48 A	0.6 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	SPECIAL	SPECIAL	SPECIAL	SPECIAL	SPECIAL	SPECIAL	SPECIAL	SPECIAL	SPECIAL
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
