TAPE AND REEL LED LAMP
L-113HDT-TNR5/8.6
L-113IDT-TNR5/8.6
L-113GDT-TNR5/8.6
L-113YDT-TNR5/8.6
L-113SRDT-TNR5/8.6
BRIGHT RED
HIGH EFFICIENCY RED
GREEN
YELLOW
SUPER BRIGHT RED
Features
FOR THE USE OF AUTOMATIC INSERTION MACHINE.
5mm FORMED LEAD.
LED LAMPS ALSO AVAILABLE IN TAPE & BOX PACKAGE.
Description
The Bright Red source color devices are m ade
with Gallium Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide
Yellow Light Emitting Diode.
The Super Bright Red source color devices are made
with Gallium Aluminum Arsenide Red Light Emitting
Diode.

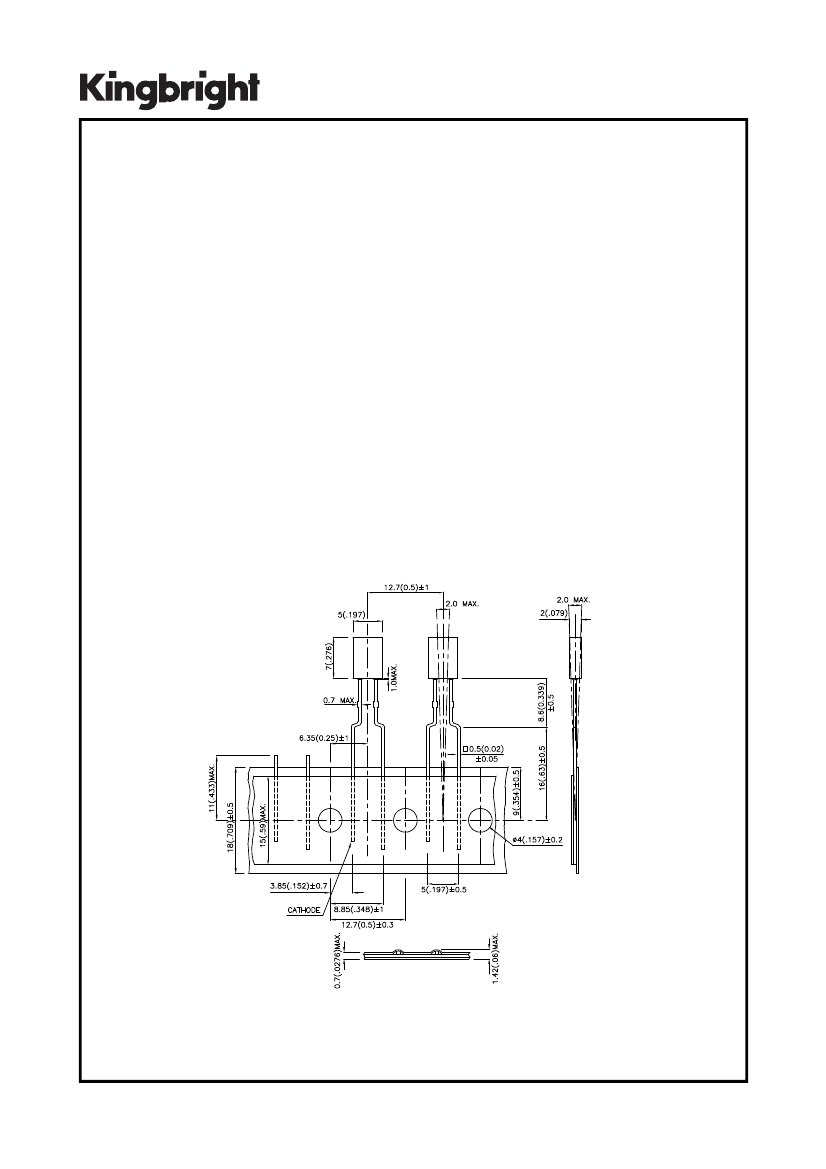

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAC8447
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/25/2003
DRAWN: Y.H.LI
PAGE: 1 OF 8
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA*20mA
Min.
L-113HDT-TNR5/8.6
L-113IDT-TNR5/8.6
L-113GDT-TNR5/8.6
L-113YDT-TNR5/8.6
L-113SRDT-TNR5/8.6
BRIGHT RED (GaP)
HIGH EFFICIENCY RED (GaAsP/GaP)
GREEN (GaP)
YELLOW (GaAsP/GaP)
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
RED DIFFUSED
GREEN DIFFUSED
YELLOW DIFFUSED
RED DIFFUSED
0.4
3
1.8
1
*36
Typ.
1
5
5
4
*80
110
°
Viewing
Angle
2θ1/2
θ
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
Parameter
Device
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
All
Typ.
700
627
565
590
660
660
625
568
588
640
45
45
30
35
20
40
15
15
20
45
2.25
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
2.5
10
Max.
Units
Test Conditions
λpeak
Peak Wavelength
nm
I
F
=20mA
λD
Dominate Wavelength
nm
I
F
=20mA
∆λ1/2
Spectral Line Half-width
nm
I
F
=20mA
C
Capacitance
pF
V
F
=0V;f=1MHz
V
F
Forward Voltage
V
I
F
=20mA
I
R
Reverse Current
uA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Bright Red High Efficiency Red
120
25
130
5
105
30
160
5
Green
105
25
140
5
Yellow
105
30
140
5
Super Bright Red
100
30
155
5
Units
mW
mA
mA
V
-40°C To +85°C
260°C For 5 Seconds
SPEC NO: DSAC8447
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: JUN/25/2003
DRAWN: Y.H.LI
PAGE: 2 OF 8
