TAPE AND REEL LED LAMPS
L113HDTTNR254, L113HDTTNR5/86 BRIGHT RED
L113IDTTNR254, L113IDTTNR5/86 HIGH EFFICIENCY RED
L113GDTTNR254, L113GDTTNR5/86 GREEN
L113YDTTNR254, L113YDTTNR5/86 YELLOW
L113SRDTTNR254, L113SRDTTNR5/86 SUPER BRIGHT RED
Features
!
FOR THE USE OF AUTOMATIC INSERTION
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
MACHINE.
!
5mm
!
LED
FORMED LEAD AND 2.54 STRAIGHT LEAD.
LAMPS ALSO AVAILABLE IN TAPE & REEL
PACKAGE.

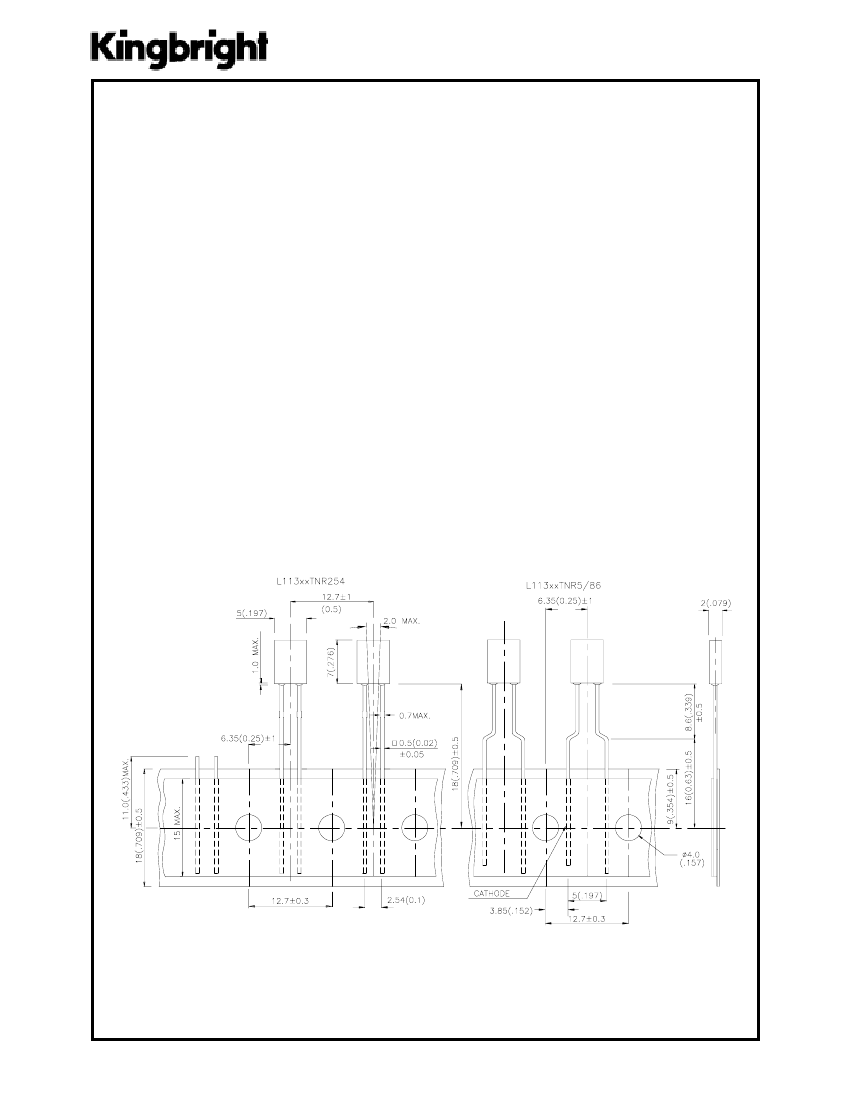

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: CDA0822
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/17/2001
DRAWN: J.X.FU
PAGE: 1 OF 6
Selection Guide
Par t No .
Dic e
L en s Ty p e
Iv (m c d )
@ 10 m A *20m A
Min .
L113HDTTNR254
L113HDTTNR5/86
L113IDTTNR254
L113IDTTNR5/86
L113GDTTNR254
L113GDTTNR5/86
L113YDTTNR254
L113YDTTNR5/86
L113SRDTTNR254
L113SRDTTNR5/86
BRIGHT RED (GaP)
RED DIFFUSED
0.5
Ty p .
1
V i ew i n g
An g l e
2θ1/2
110°
HIGH EFFICIENCY RED (GaAsP/GaP)
RED DIFFUSED
3
5
110°
GREEN (GaP)
GREEN DIFFUSED
2
5
110°
YELLOW (GaAsP/GaP)
YELLOW DIFFUSED
1
4
110°
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
*40
*80
110°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Par am et er
D ev i c e
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Ty p .
700
627
565
590
660
660
625
568
588
640
45
45
30
35
20
40
15
15
20
45
2.25
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
2.5
10
Max .
Un it s
Tes t Co n d it io n s
λ
peak
Peak Wavelength
nm
IF=20mA
λ
D
Dominate Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Spectral Line Halfwidth Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
All
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
V R = 5V
SPEC NO: CDA0822
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/17/2001
DRAWN: J.X.FU
PAGE: 2 OF 6

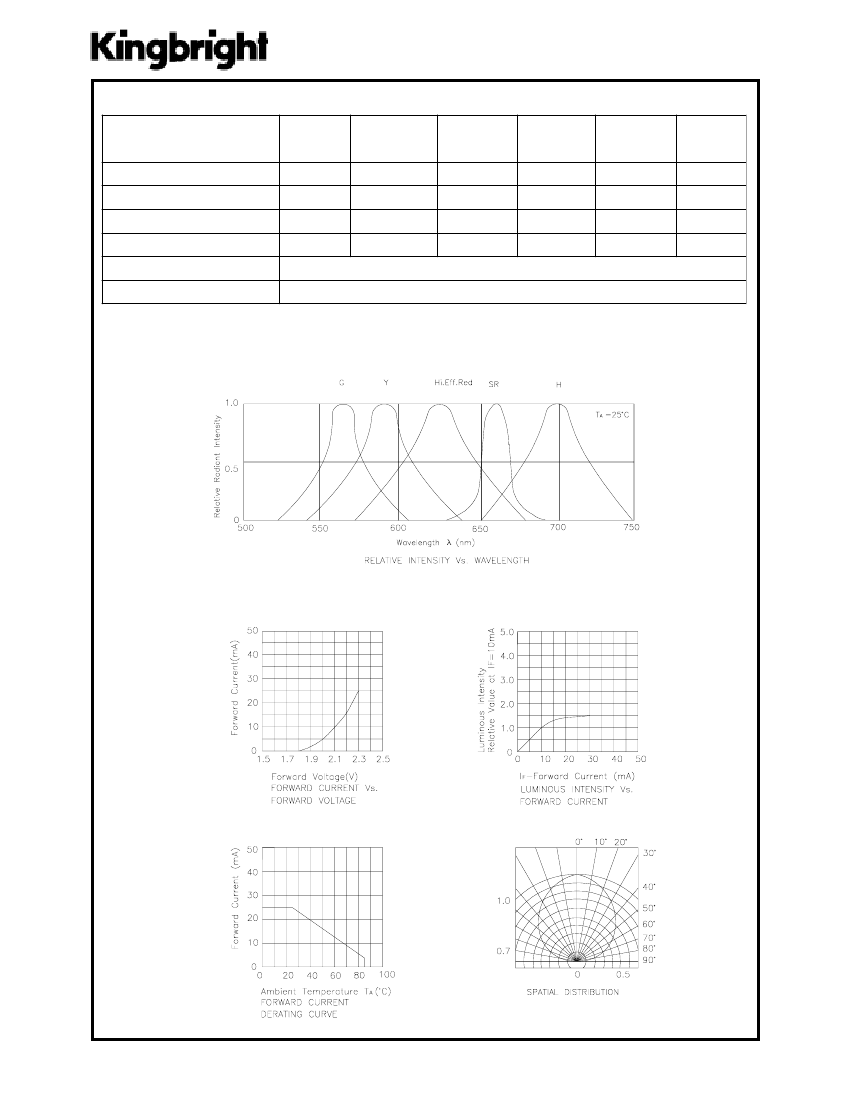

Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B r i g h t R ed
12 0
25
120
5
Hig h
E f f i c i en c y R ed
105
30
160
5
Gr een
105
25
140
5
Yello w
105
30
140
5
S u p er B r i g h t
R ed
100
30
155
5
Un it s
mW
mA
mA
V
-40
°
C To +85
°C
260
°
C For 5 Seconds
Bright Red L113HDTTNR254, L113HDTTNR5/86
SPEC NO: CDA0822
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: NOV/17/2001
DRAWN: J.X.FU
PAGE: 3 OF 6
