3.3 GHz Surface Mount Bandpass Filter
B033ND5S
DESCRIPTION
One of DLI’s surface mountable catalog
bandpass filters designed for the 5G band. This
filter utilizes DLI’s low loss temperature stable
materials which offer small size and minimal
performance variation over temperature. The
catalog BPF’s are offered in a variety of
frequency bands, which offers a drop in solution
with highly repeatable performance.
FEATURES
Small Size
Fully Shielded Component
Solder Surface Mount Package
Moisture Sensitivity Level: MSL1
Frequency Stable over Temperature
Operating & Storage Temp: -55˚C to +125˚C
Characteristic Impedance: 50Ω
Size (L x W x H)
Input Power (W)
0.393 x 0.353 x 0.128 in
9.98 x 8.97 x 3.25 mm
TBD
High Side Rejection (dB)
4.0 - 6.0
40
45
www.knowlescapacitors.com
SPECIFICATIONS*
Parameter
Frequency
Range (GHz)
Min
Typ.
Max
Insertion Loss (dB)
3.1 - 3.5
2
3.2
Return Loss (dB)
Low Side Rejection (dB)
DC - 2.25
9.5
30
15
40
*Electrical specifications based on typical probed performance at room
temperature. Insertion loss shall vary ±0.5dB over temperature.

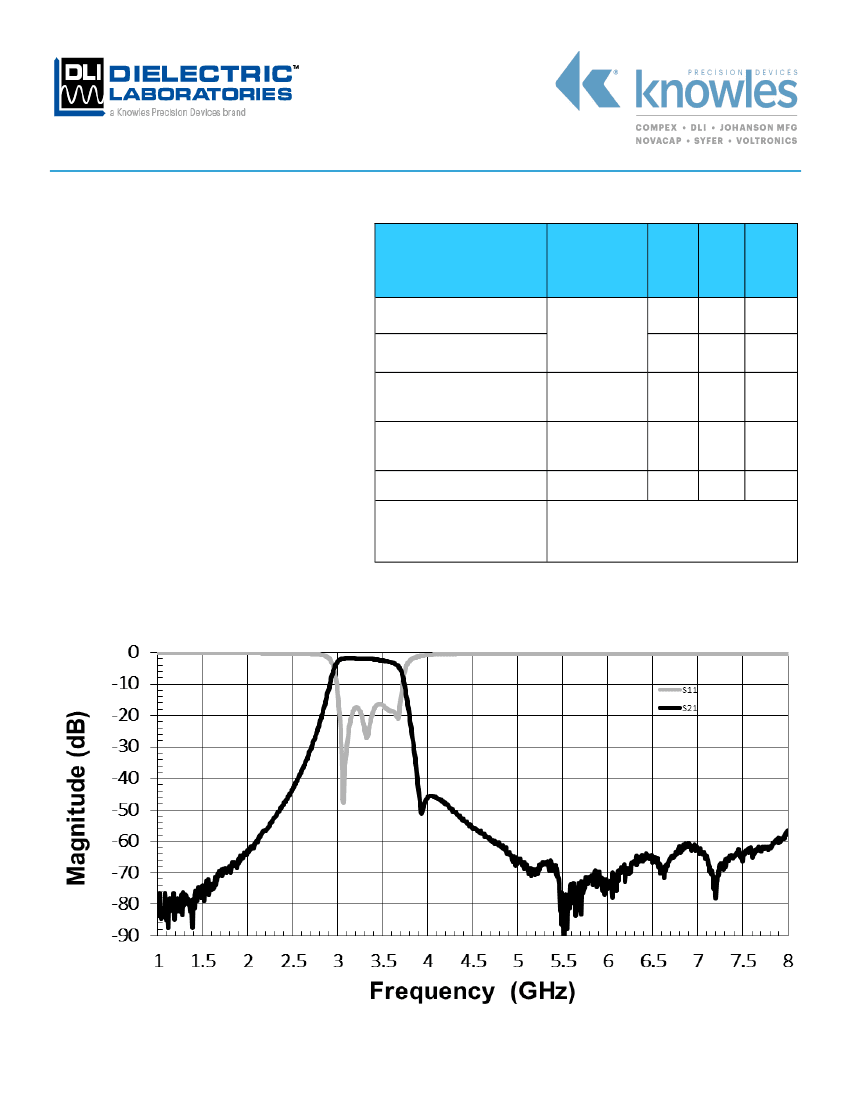

Typical Measured Performance
2777 Route 20 East, Cazenovia, NY 13035| Ph.: (315)655-8710 | KCCSales@knowles.com
July 2018
3.3 GHz Surface Mount Bandpass Filter
B033ND5S
www.knowlescapacitors.com

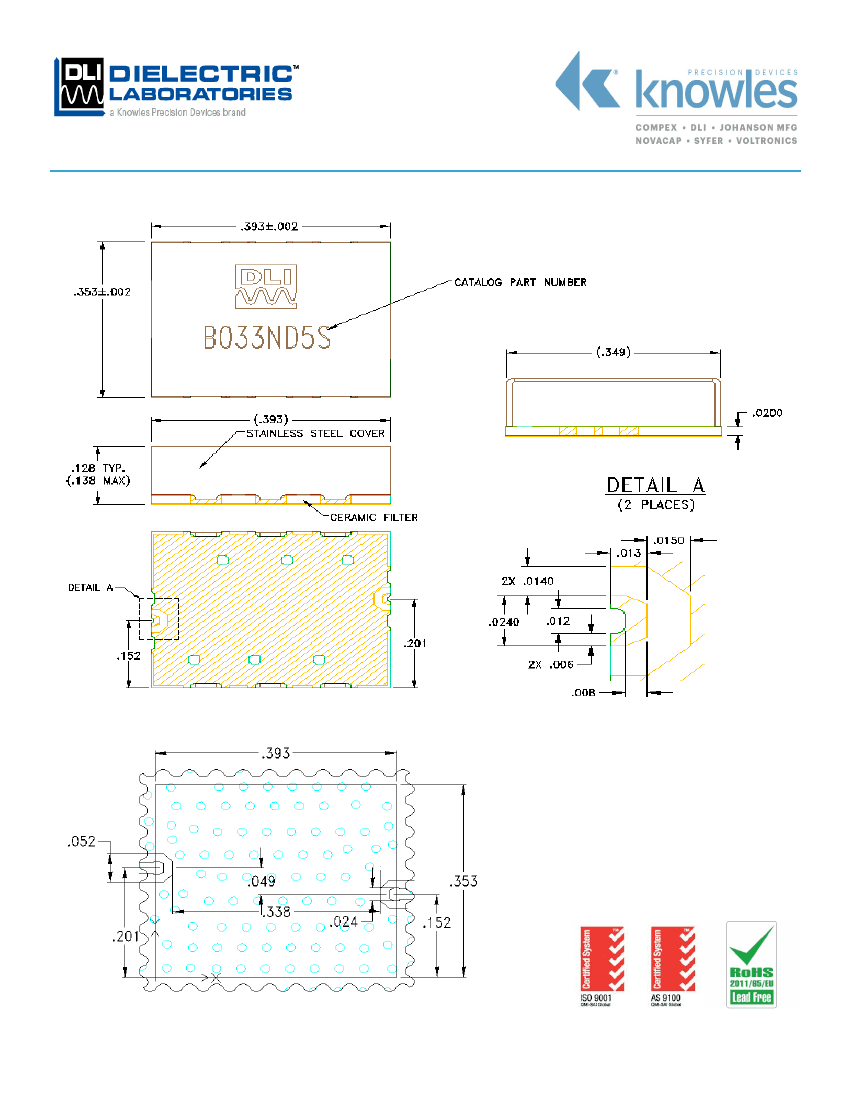

Physical Dimensions
Units = inches
Recommended PCB Layout
50Ω trace dimensions are application
specific.
Ensure adequate grounding beneath
the part.
2777 Route 20 East, Cazenovia, NY 13035| Ph.: (315)655-8710 | KCCSales@knowles.com
July 2018
