2-641237-3 datasheet, PDF - EEWORLD Datasheet

2-641237-3: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.1 PITCH,RED; CategoryThe connector The connector; File Size67KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

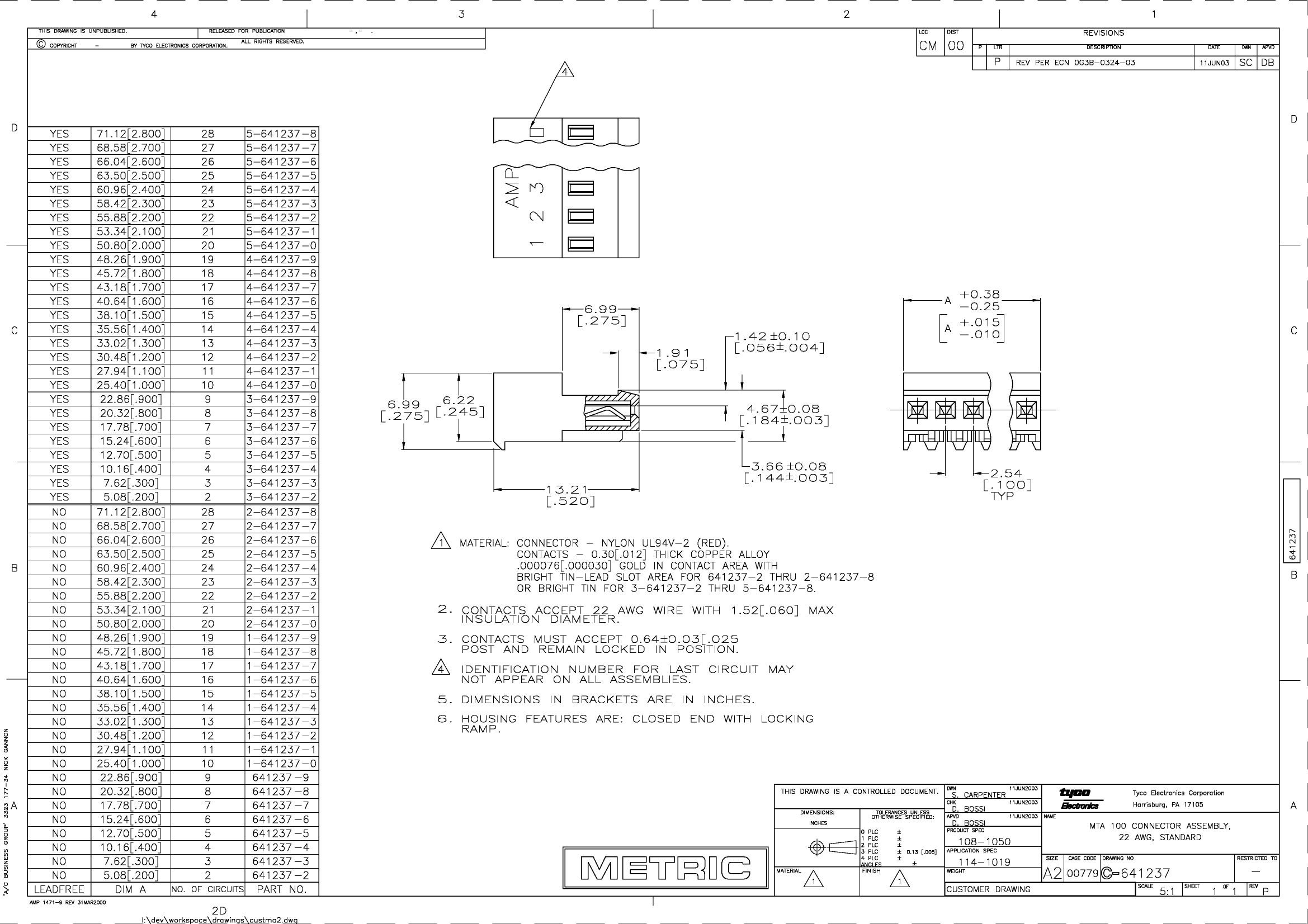

Download Datasheet Parametric View All

2-641237-3 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,23 CONTACTS,SKT,0.1 PITCH,RED

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	CLOSED END, TERMINATION
body width	0.52 inch
subject depth	0.275 inch
body length	2.3 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	NYLON
Plug contact pitch	0.1 inch
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.275 inch
Total number of contacts	23
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
