B1007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> B1007

B1007: DescriptionTelecom Transformer; CategoryPower management transformer; File Size70KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

B1007 Overview

Telecom Transformer

B1007 Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DESIGNED FOR USE WITH CONEXANT CHIPSET BT8921 AND BT8970 784 KBPS
Maximum DC unbalanced current	70 mA
Manufacturer's serial number	B1007
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TRAY
surface mount	YES
Transformer type	TELECOM TRANSFORMER

Preview

Download Datasheet

View All

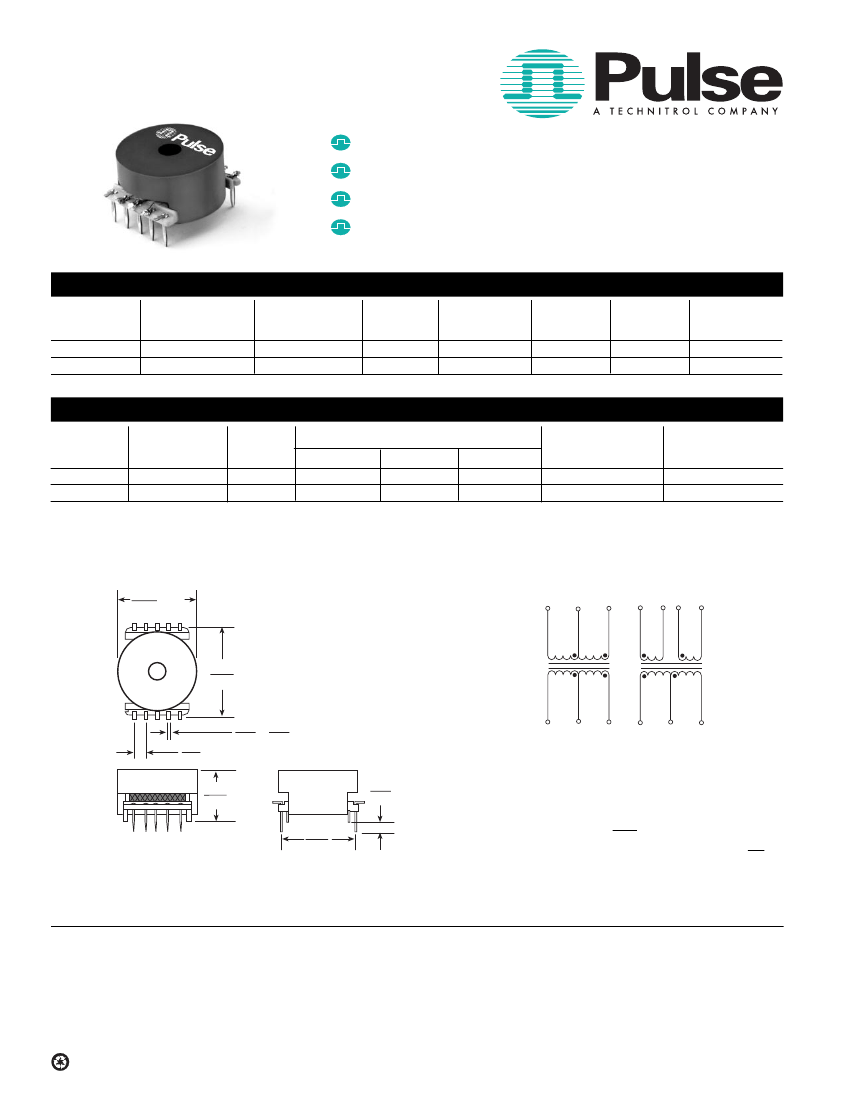

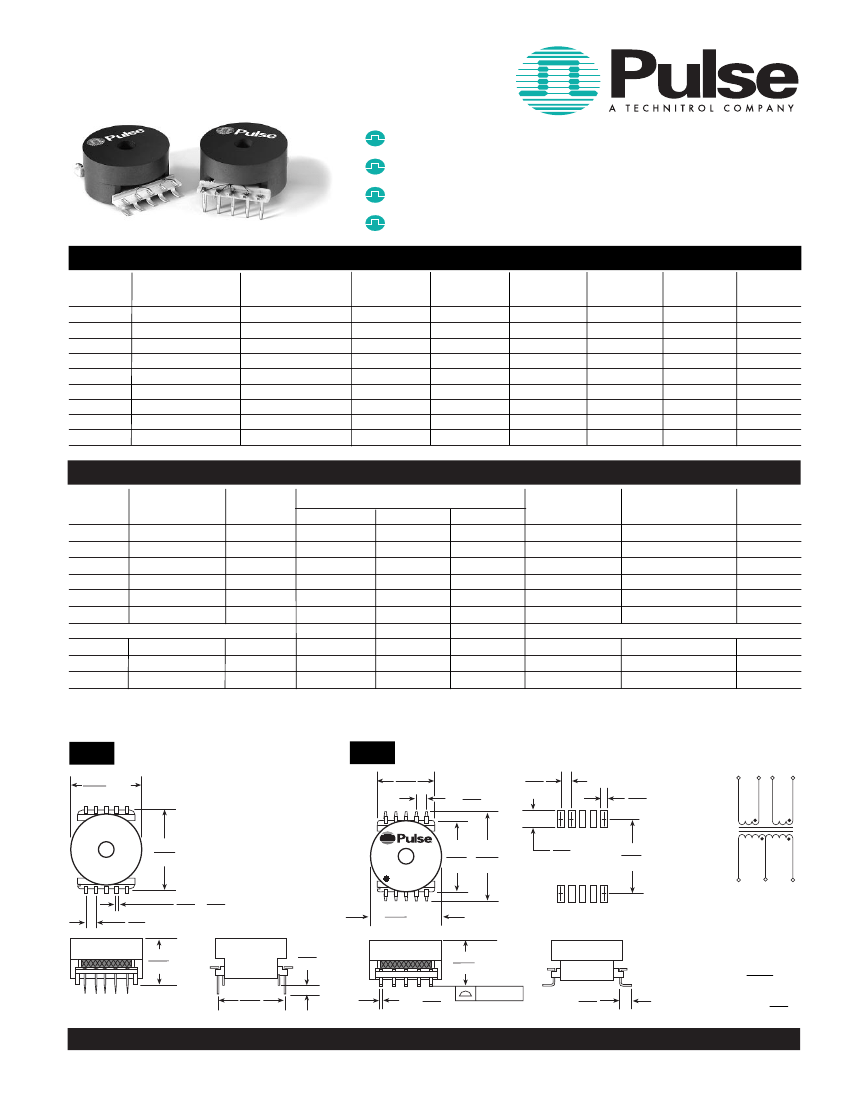

HDSL TRANSFORMERS

For Brooktree and Level One Chipsets

Designs exceed standards for ANSI and ETSI

Excellent THD performance

Maximum height .500" (12,70 mm)

Matched to Brooktree’s ICs

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

Part

Number

PE-68621

PE-68622

PE-69300

PE-69301

B1001

B1002

B1004

B1006

B1007

Matched To

Brooktree IC No.

BT8952

BT8921/BT8970

BT8960

BT8921/BT8970

Application

784 Kbps (2 pair)

1168 Kbps (2 pair)

784 Kbps (2 pair)

1168 Kbps (2 pair)

416 Kbps

288 Kbps

160 Kbps

1168 Kbps (2 pair)

784 Kbps (2 pair)

Turns Ratio

Chip-Line

(±2%)

2CT:1:1

1CT:1:1

Inductance

Line Side

(mH)

3.0 ± 6%

2.0 ± 6%

3.0 ± 6%

2.0 ± 6%

3.5 ± 10%

5.0 ± 10%

8.0 ± 10%

2.0 ± 6%

3.0 ± 6%

DC Current

Capability

(mA)

160

Leakage

Inductance

(µH MAX)

Isolation

Voltage

(Vrms MIN)

1500

Mounting

THT

SMT

Additional Information

Part

Number

PE-68621

PE-68622

PE-69300

PE-69301

B1006

B1007

B1001

B1002

B1004

DCR

Line Side

(MAX)

2.2

Ω

(6-7),(8-9)

2.2

Ω

(6-7),(8-9)

2.2

Ω

(6-7),(8-9)

2.2

Ω

(6-7),(8-9)

2.2

Ω

(6-7),(8-9)

2.2

Ω

(6-7),(8-9)

2.2

Ω

(6-7),(8-9)

2.5

Ω

(6-7),(8-9)

3.0

Ω

(6-7),(8-9)

DCR

Chip Side

(MAX)

4.4

Ω

(2-4)

4.4

Ω

(2-4)

2.2

Ω

(2-4)

2.2

Ω

(2-4)

2.2

Ω

(2-4)

2.2

Ω

(2-4)

2.2

Ω

(2-4)

2.5

Ω

(2-4)

3.0

Ω

(2-4)

Return Loss

4 KHz - 2 MHz

4 dB MIN

9 - 40 KHz

—

16.5 dB MIN

40 - 200 KHz

20 dB MIN

—

20 dB MIN

—

20 dB MIN

20 - 80 KHz

—

16.5 dB MIN

—

40 - 320 KHz

—

16.5 dB MIN

—

16.5 dB MIN

—

33 - 110 KHz

16.5 dB MIN

—

Longitudinal

Balance

(dB TYP @ 135

Ω)

55 @ 196 KHz

55 @ 292 KHz

55 @ 196 KHz

55 @ 292 KHz

55 @ 196 KHz

55 @ 104 KHz

55 @ 72 KHz

55 @ 40 KHz

THD

(dB TYP @ 135

Ω)

-75 @ 200 KHz, 6V p-p

-70 @ 104 KHz, 6V p-p

-70 @ 80 KHz, 6V p-p

-70 @ 40 KHz, 6V p-p

Mounting

THT

SMT

THT

Surge Voltage Capability:

Metallic: 800 Vpeak 10/560 µsec. Long.: 2400 Vpeak 10/700 µsec. UL approval for basic insulation has been received (File: E133523).

Mechanicals

THT

.950 MAX

24,13

Schematic

8X .150

3,81

SMT

.750

19,05

.070

1,78

7 8

8X .150

3,81

Line Side

PE-XXXXX

DATE CODE

1.05 MAX

26,67

B201X

Date Code

.900 1.065

22,86 27,05

.190

4,83

.915

23,24

Chip Side

.150 TYP

3,81

.042 x .015 TYP

1,07 0,38

.950 MAX

24,13

.130

3,30

.500 MAX

12,70

10X .038

0,97

SUGGESTED PAD LAYOUT

Weight.............14.0

grams

Tray........................45/tray

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

.500 MAX

12,70

.800

20,32

.004/0,10

10 SURFACES

10X .140

3,56

U. S. A: TEL 619 674 8100

EUROPE: TEL 441 483 428 877

ASIA: TEL 886 7 821 3141

WEB: http://www.pulseeng.com

B901.C (11/97)
