MO43PG: DescriptionDouble Balanced Mixer, 4000MHz Min, 8000MHz Max, 10.5dB Conversion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size116KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

MO43PG Overview

Double Balanced Mixer, 4000MHz Min, 8000MHz Max, 10.5dB Conversion Loss-Max

MO43PG Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	SMA-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum frequency conversion loss	10.5 dB
Maximum operating frequency	8000 MHz
Minimum operating frequency	4000 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED

Preview

Download Datasheet

View All

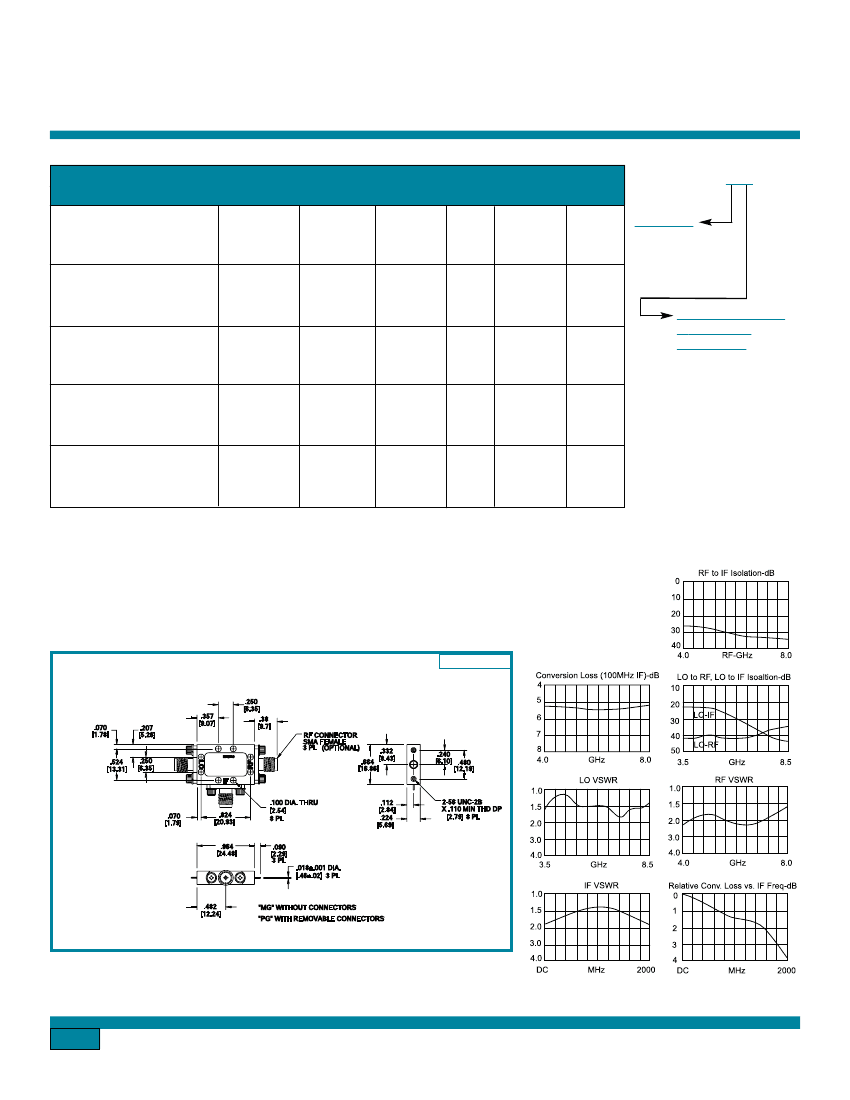

REMEC

Double Balanced Mixer

Octave Band

Electrical Specifications

Parameter

SSB Conversion

loss:

(2) (3)

Isolation

LO to RF:

LO to IF:

RF to IF:

Input 1-dB

Compression Point:

Input Third Order

Intercept Point:

LO Power:

(1)

RF 4.0-8.0 GHz

LO 3.5-8.5 GHz

IF DC-2000 MHz

:

Conditions

RF(GHz)

4.0-8.0

LO(GHz)

3.5-8.5

4.0-8.0

3.5-8.5

DC-2000

IF(MHz)

DC-500

DC-1500

DC-2000

Min

Specifications

Typical

5.5 dB

7.0 dB

8.5 dB

38 dB

30 dB

+1 dBm

+4 dBm

+8 dBm

+12 dBm

+11 dBm

+14 dBm

+18 dBm

+22 dBm

+7 dBm

+10 dBm

+14 dBm

+19 dBm

Max

7.0 dB

8.5 dB

10.5 dB

MO4xxG

LO Power

3 = +7 dBm

4 = +10 dBm

6 = +14 dBm

7 = +19 dBm

Drop-In Module or

With SMA(F)

Connectors

M = Module

P = With Connectors

25 dB

20 dB

4.0-8.0

3.5-8.5

DC-2000

(4)

4.0-8.0

3.5-8.5

DC-2000

MO43

MO44

MO46

MO47

MO43

MO44

MO46

MO47

MO43

MO44

MO46

MO47

Notes:

1. Specifications are guaranteed when tested as a downconverter in a 50 Ohm system from -55°C to +100°C

with the nominal LO power. Specifications indicated as typical are not guaranteed.

2. Noise figure is typically within ±0.5 dB of conversion loss for IF frequencies greater than 10 MHz.

3. Conversion loss typically degrades less than 0.5 dB at +100°C and improves less than 0.5 dB at -55°C.

4. Usable LO drives are up to 2 dB below and 3 dB above nominal.

Typical

Performance

at 25°C

MO4xxG

Outline: G

All dimensions are in inches and [mm].

Specifications subject to change without notice.

3-17

1590 Buckeye Drive - Milpitas, CA 95035 - TEL: 408-432-9898 - FAX: 408-432-1551 - components@remec.com - www.remec.com
