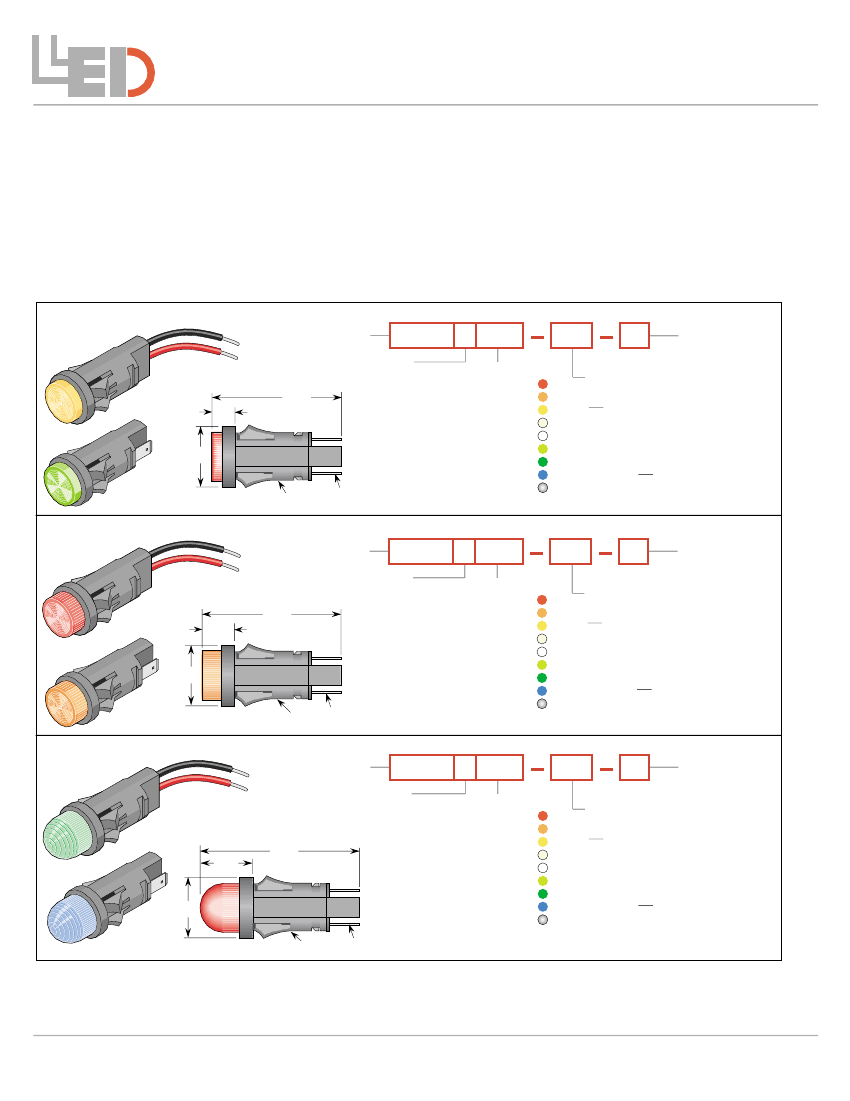

1/2" (12.7mm) Panel LED Lamps
Features
Options
•
1/2" (12.7mm) Panel Mounting
Diameter
•
Long Life 100,000+ hrs (10+ years)
•
Solid-State, High Shock/Vibration
Resistant
•
Maintenance Free, Easy Installation
•
InGaN, InGaAlP New Technology
LEDs
Low Profile Lens Single Chip LED Lamps
•
Low Power Consumption, High
•
•
•
•
Intensity
Major Power Savings
Major Reduction in Heat
Generation
Built-in Current Limiting Resistor
Sunlight-Visible Super Bright or
High-Efficiency LEDs
•
Special Voltages
•
Bi-Colors, Tri-Colors, RGB, IR
•
Extra Wide Angle Multichip LEDs
•
Flashing/Blinking
•
Custom Wire Lead Lengths
Series
PFS50 C R3K
LED Color
R3K = UL Red
O3K = SP Orange
Y3K = SP Yellow
IW2K = Inc. White
W1K = C. White
G1K = L. Green
AG6K = A. Green
B1K = P. Blue
881 = 880nm IR
5V
T
PFS50-W
.22 Max
[5.6]
1.30 Max
[33.1]
Lens
C = Tinted Clear
CW = Water Clear
TW = Milky White
.62
[15.8]
PFS50-T
.50 Mtg Dia
[12.7]
3/16" Male Tab
Std. Operating
Voltage
DC
2Vf (Ext. Res. Rqd.)
3.5Vf (Ext. Res. Rqd.)
5/6V
12/14V
24V
AC
28V
120VAC
48V
240VAC
130V
Options
T = Terminal Type
(3/16" Male Tab)
W6 = 6" Wire Leads
Top Hat Lens Single Chip LED Lamps
Series
PF50 C R3K
LED Color
R3K = UL Red
O3K = SP Orange
Y3K = SP Yellow
IW2K = Inc. White
W1K = C. White
G1K = L. Green
AG6K = A. Green
B1K = P. Blue
881 = 880nm IR
5V
T
PF50-W
.36 Max
[9.2]
1.44 Max
[36.6]
Lens
C = Tinted Clear
CW = Water Clear
TW = Milky White
.62
[15.8]
PF50-T
3/16" Male Tab
.50 Mtg Dia
[12.7]
Std. Operating
Voltage
DC
2Vf (Ext. Res. Rqd.)
3.5Vf (Ext. Res. Rqd.)
5/6V
12/14V
24V
AC
28V
48V
120VAC
130V
240VAC
Options
T = Terminal Type
(3/16" Male Tab)
W6 = 6" Wire Leads
Dome Lens Single Chip LED Lamps
Series
PD50 C R3K
LED Color
R3K = UL Red
O3K = SP Orange
Y3K = SP Yellow
IW2K = Inc. White
W1K = C. White
G1K = L. Green
AG6K = A. Green
B1K = P. Blue
881 = 880nm IR
5V
T
Lens
C = Tinted Clear
CW = Water Clear
TW = Milky White
PD50-W
.54 Max
[13.7]
1.62 Max
[41.2]
.62
[15.8]
PD50-T
.50 Mtg Dia
[12.7]
3/16" Male Tab
Notes:
1. Contact local representative to determine best style for each application
2. Not all possible combinations of color, voltage and polarity are available
LEDTRONICS,
INC.
THE FUTURE OF LIGHT
ISO 9001
REGISTERED
Phone: (310) 534-1505
Fax: (310) 534-1424
Website: http://www.ledtronics.com
Log # 115C Rev 09-2000
Std. Operating
Voltage
DC
2Vf (Ext. Res. Rqd.)
3.5Vf (Ext. Res. Rqd.)
5/6V
12/14V
24V
AC
28V
48V
120VAC
130V
240VAC
Options
T = Terminal Type
(3/16" Male Tab)
W6 = 6" Wire Leads
