6QCD-078-06.00-SBL-TEU-2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 6QCD-078-06.00-SBL-TEU-2

6QCD-078-06.00-SBL-TEU-2: DescriptionInterconnection Device, ROHS COMPLIANT; CategoryThe connector The connector; File Size847KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

6QCD-078-06.00-SBL-TEU-2 Overview

Interconnection Device, ROHS COMPLIANT

6QCD-078-06.00-SBL-TEU-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	INTERCONNECTION DEVICE

Preview

Download Datasheet

View All

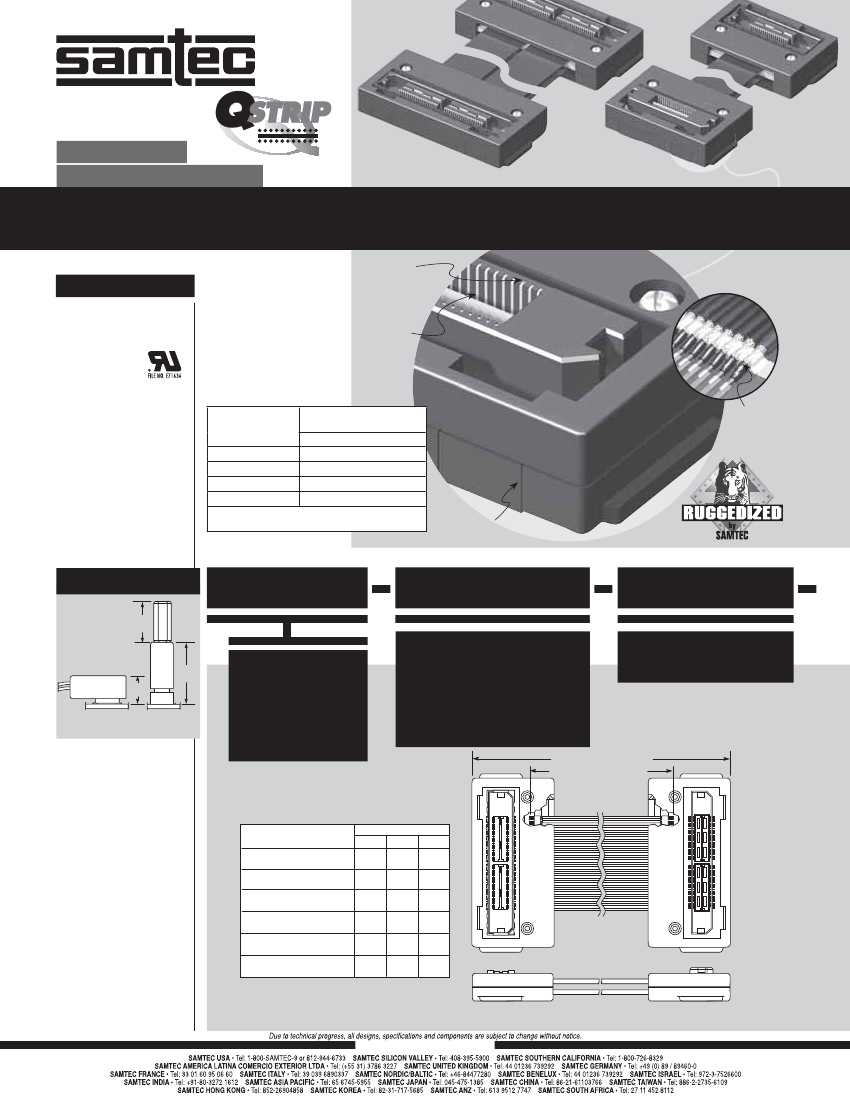

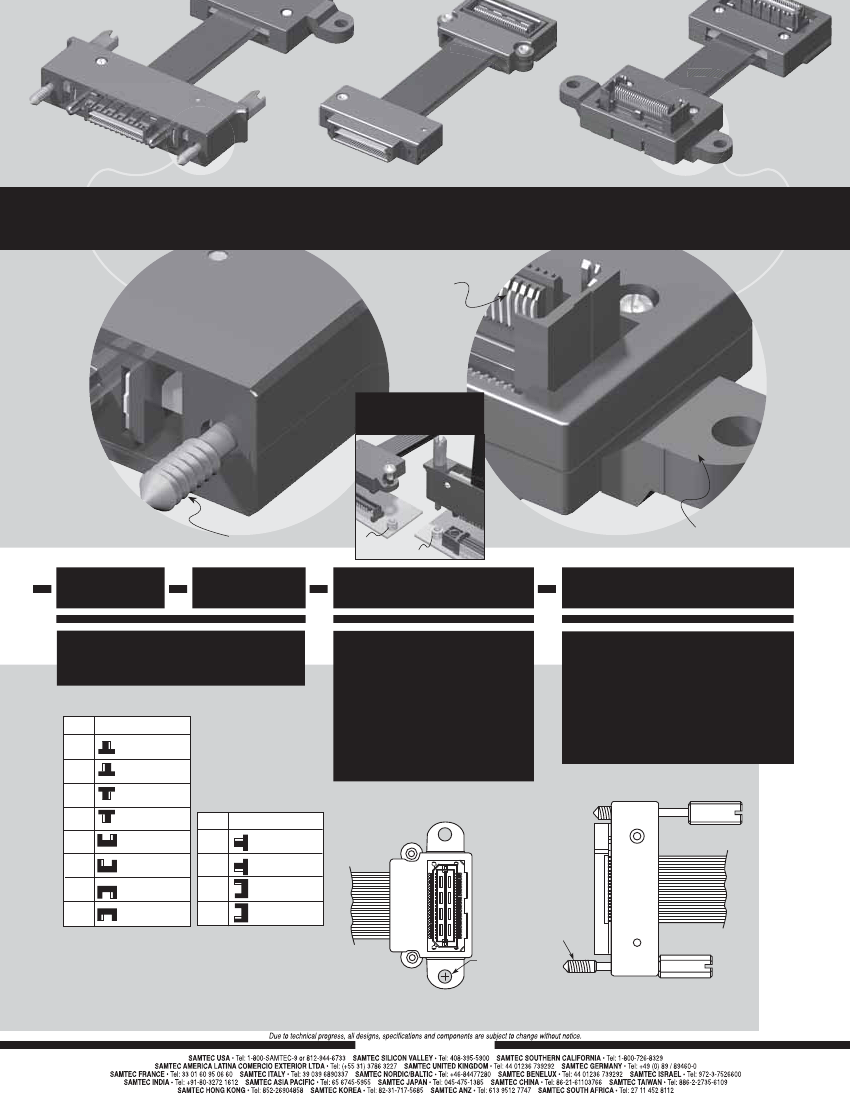

F-210-1 SUPPLEMENT

(0,635mm) .025"

MICD, SQCD, 6QCD SERIES

MICD–038–06.00–STR–STL–4

MICD–019–06.00–TTL–STL–3

HIGH SPEED COAX CABLE ASSEMBLIES

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?MICD,

see www.samtec.com?SQCD or

see www.samtec.com?6QCD

Cable:

38 AWG coax

micro ribbon

Signal Routing:

(MICD, SQCD only)

50Ω Single-Ended

Overall Length:

(152mm) 6" to

(1m) 40" standard

Cable Flexing Life:

>40,000 cycles

Cable Bending Radius:

<2,5mm

Plating:

Au over 50µ" (1,27µm) Ni

Current Rating:

300 millamp max

Propagation Delay:

4.5 nsec/meter

Operating Temp Range:

-40°C to +105°C

RoHS Compliant:

Yes

MICD Mates with:

MIS, MIT

SQCD Mates with:

QTS, QSS

6QCD Mates with:

QMS, QFS

Increased

Insertion

Depth

Socket or

Terminal

Cable

Length

6" (152,4mm)

12" (304,8mm)

19.68" (0,5m)

39.37" (1m)

Rated @ 7dB

Insertion Loss

MICD

3.51 GHz / 7.02 Gbps

3.45 GHz / 6.90 Gbps

4.47 GHz / 8.94 Gbps

1.60 GHz / 3.20 Gbps

38 AWG

micro ribbon

coax cable

Performance and complete test data available at

www.samtec.com?MICD or contact sig@samtec.com

Surface Mount or

Edge Mount

APPLICATIONS

(12,70)

.500

TYPE

NO. POSITIONS

PER ROW

WIRE LENGTH

–019, –038, –057, –076

(16,56)

.652

(9,28)

.365

–“XX.XX”

= Wire Length in Inches

(95,3mm) 03.75" Minimum.

MICD

= Mates with MIS/MIT

(MICD)

–025, –050, –075, –100

(SQCD)

SQCD

= Mates with QTS/QSS

Processing conditions will

affect mated height.

–026, –052, –078, –104

(6QCD)

OAL = Wire Length +

Wire Length ±(1,27) .050

6QCD

= Mates with QMS/QFS

Note:

Cable lengths longer than

40.00" (1 meter) are not

supported with S.I. test data.

Note:

Verify part number and correct

wiring scheme with Samtec’s

Interactive Cable Builder at

www.samtec.com/cable_

builder/pitch.aspx

Note:

This Series is non-standard,

non-returnable.

END TO END

Surface Mount to

Surface Mount

Surface Mount to

Edge Mount (Terminal)

Surface Mount to

Edge Mount (Socket)

Edge Mount (Terminal) to

Edge Mount (Terminal)

Edge Mount (Terminal) to

Edge Mount (Socket)

Edge Mount (Socket) to

Edge Mount (Socket)

MICD SQCD 6QCD

(27,98)

1.101

(24,15)

.951

(23,51)

.926

(20,32)

.800

(19,69)

.775

(19,05)

.750

(24,13) (28,47)

1.121

.950

(21,21) (27,09)

1.067

.835

(20,48) (25,70)

1.012

.806

(18,29)

N/A

.720

(17,55)

N/A

.691

(16,81)

N/A

.662

END NO. 1

(-STR SHOWN)

END NO. 2

(-TTR SHOWN)

WWW.SAMTEC.COM
