HGTD1N120BNS datasheet, PDF - EEWORLD Datasheet

HGTD1N120BNS: DescriptionInsulated Gate Bipolar Transistor, 5.3A I(C), 1200V V(BR)CES, N-Channel, TO-252AA; CategoryDiscrete semiconductor The transistor; File Size371KB，12 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

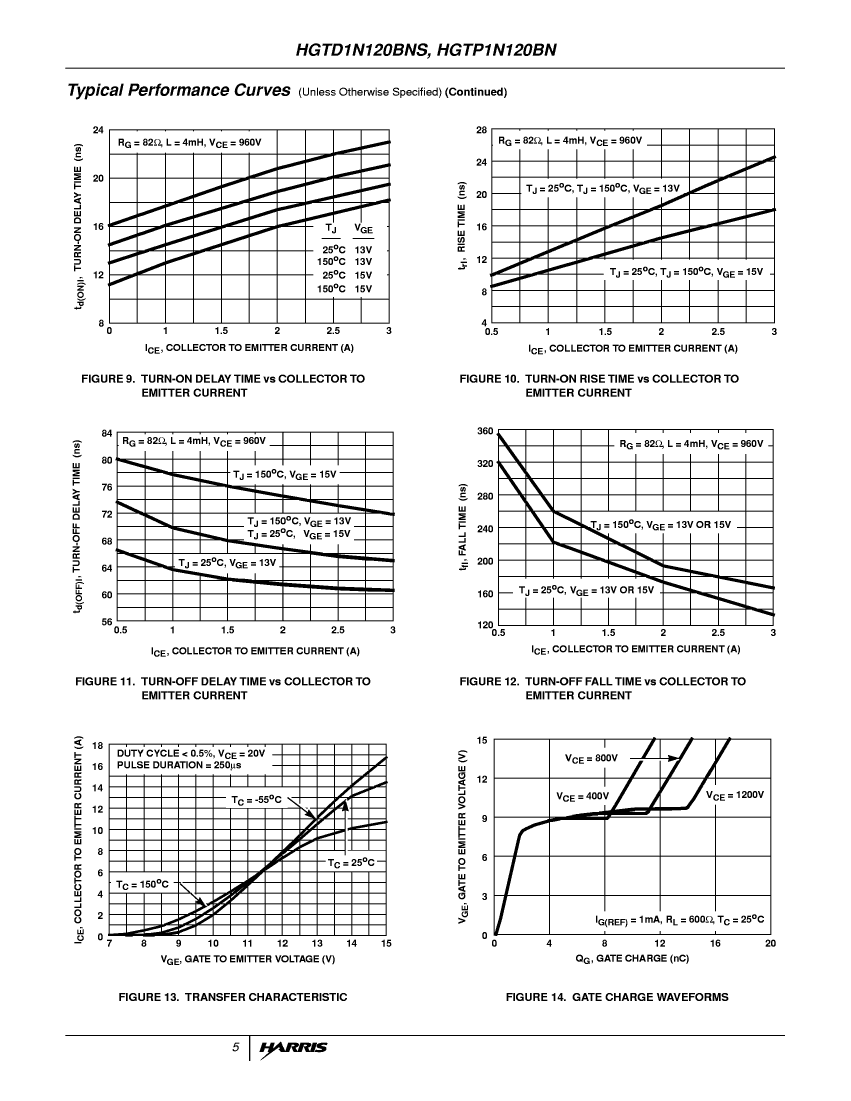

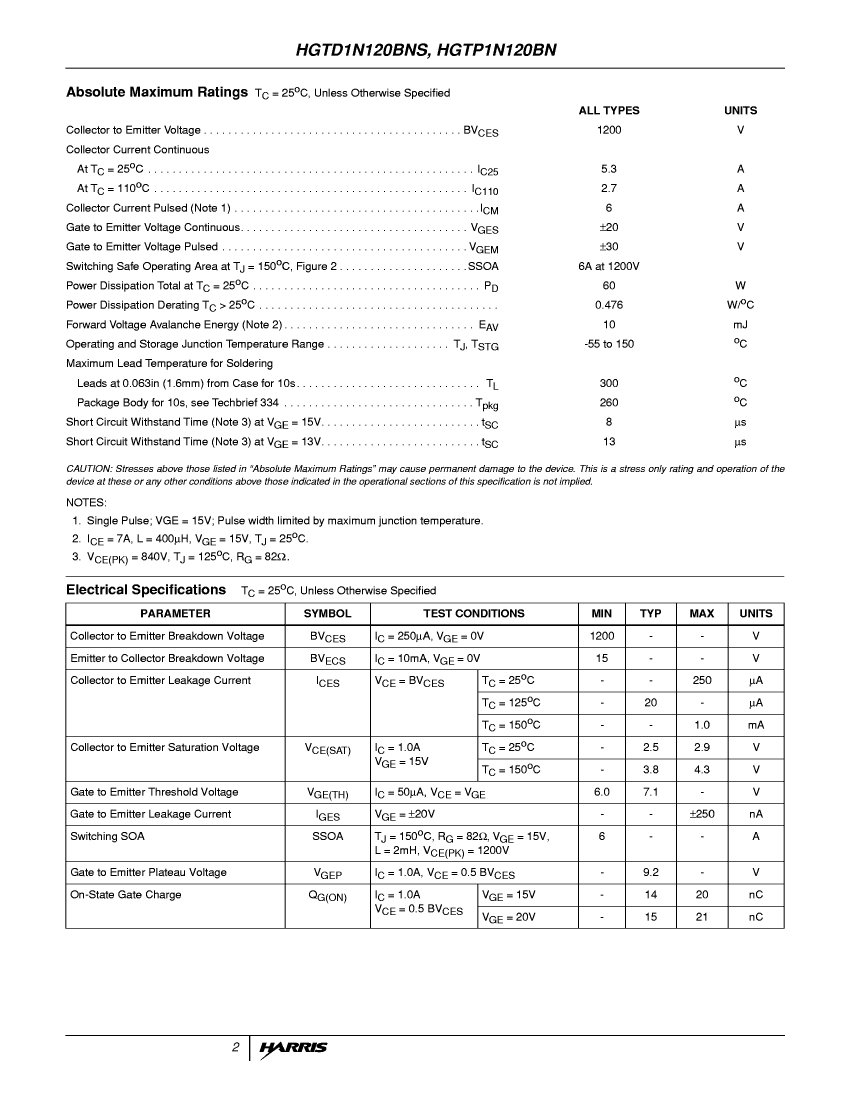

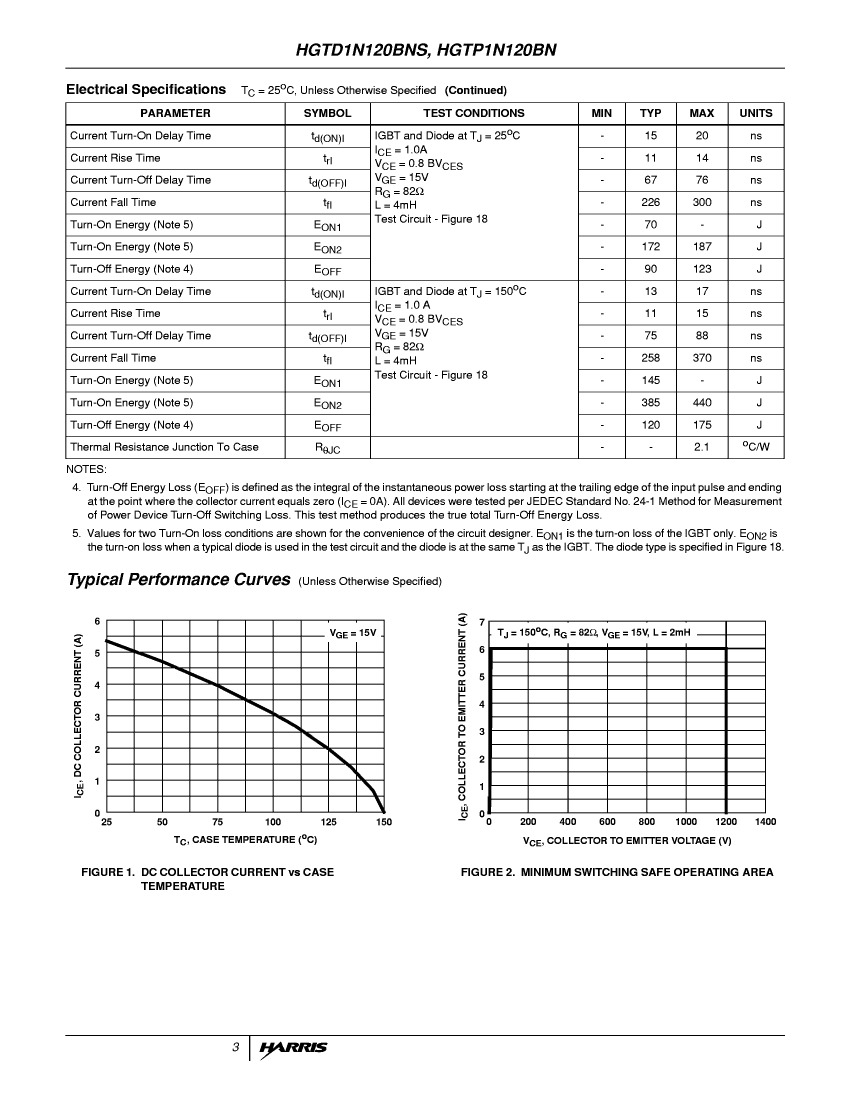

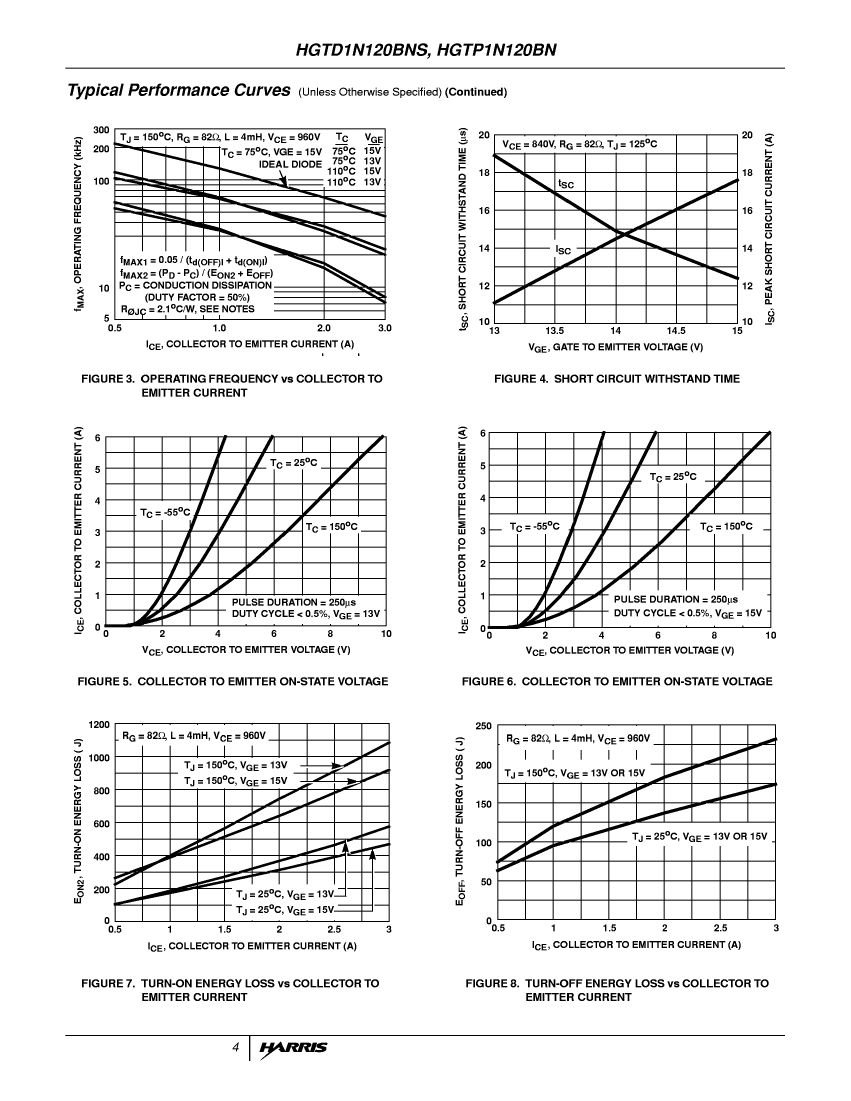

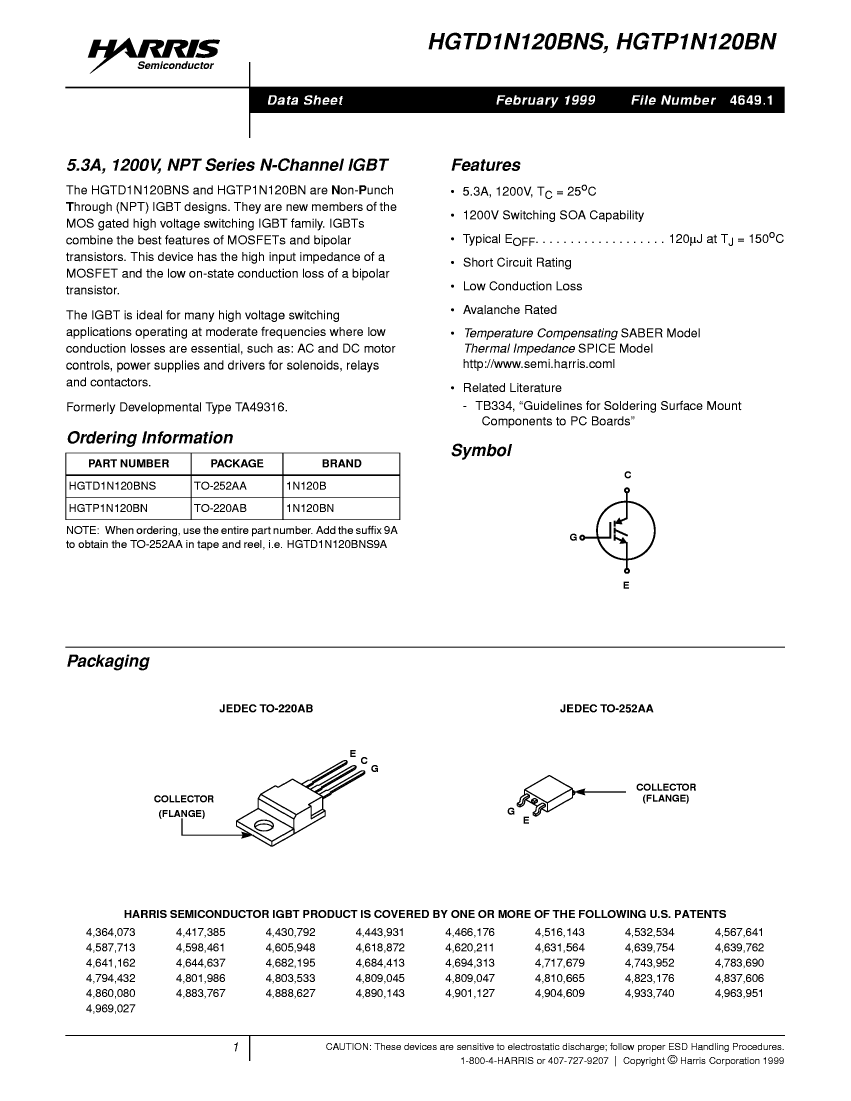

HGTD1N120BNS Overview

Insulated Gate Bipolar Transistor, 5.3A I(C), 1200V V(BR)CES, N-Channel, TO-252AA

Parameter Name	Attribute value
Maker	Harris
package instruction	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown
Other features	LOW CONDUCTION LOSS
Shell connection	COLLECTOR
Maximum collector current (IC)	5.3 A
Collector-emitter maximum voltage	1200 V
Configuration	SINGLE
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	N-CHANNEL
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	MOTOR CONTROL
Transistor component materials	SILICON
Nominal off time (toff)	75 ns
Nominal on time (ton)	13 ns

	HGTD1N120BNS	HGTP1N120BN	HGTD1N120BNS9A
Description	Insulated Gate Bipolar Transistor, 5.3A I(C), 1200V V(BR)CES, N-Channel, TO-252AA	Insulated Gate Bipolar Transistor, 5.3A I(C), 1200V V(BR)CES, N-Channel, TO-220AB	Insulated Gate Bipolar Transistor, 5.3A I(C), 1200V V(BR)CES, N-Channel, TO-252AA
Maker	Harris	Harris	Harris
package instruction	SMALL OUTLINE, R-PSSO-G2	FLANGE MOUNT, R-PSFM-T3	SMALL OUTLINE, R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown
Other features	LOW CONDUCTION LOSS	LOW CONDUCTION LOSS	LOW CONDUCTION LOSS
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	5.3 A	5.3 A	5.3 A
Collector-emitter maximum voltage	1200 V	1200 V	1200 V
Configuration	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-252AA	TO-220AB	TO-252AA
JESD-30 code	R-PSSO-G2	R-PSFM-T3	R-PSSO-G2
Number of components	1	1	1
Number of terminals	2	3	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT	SMALL OUTLINE
Polarity/channel type	N-CHANNEL	N-CHANNEL	N-CHANNEL
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
transistor applications	MOTOR CONTROL	MOTOR CONTROL	MOTOR CONTROL
Transistor component materials	SILICON	SILICON	SILICON
Nominal off time (toff)	75 ns	75 ns	75 ns
Nominal on time (ton)	13 ns	13 ns	13 ns
