2-643819-4 datasheet, PDF - EEWORLD Datasheet

2-643819-4: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size137KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

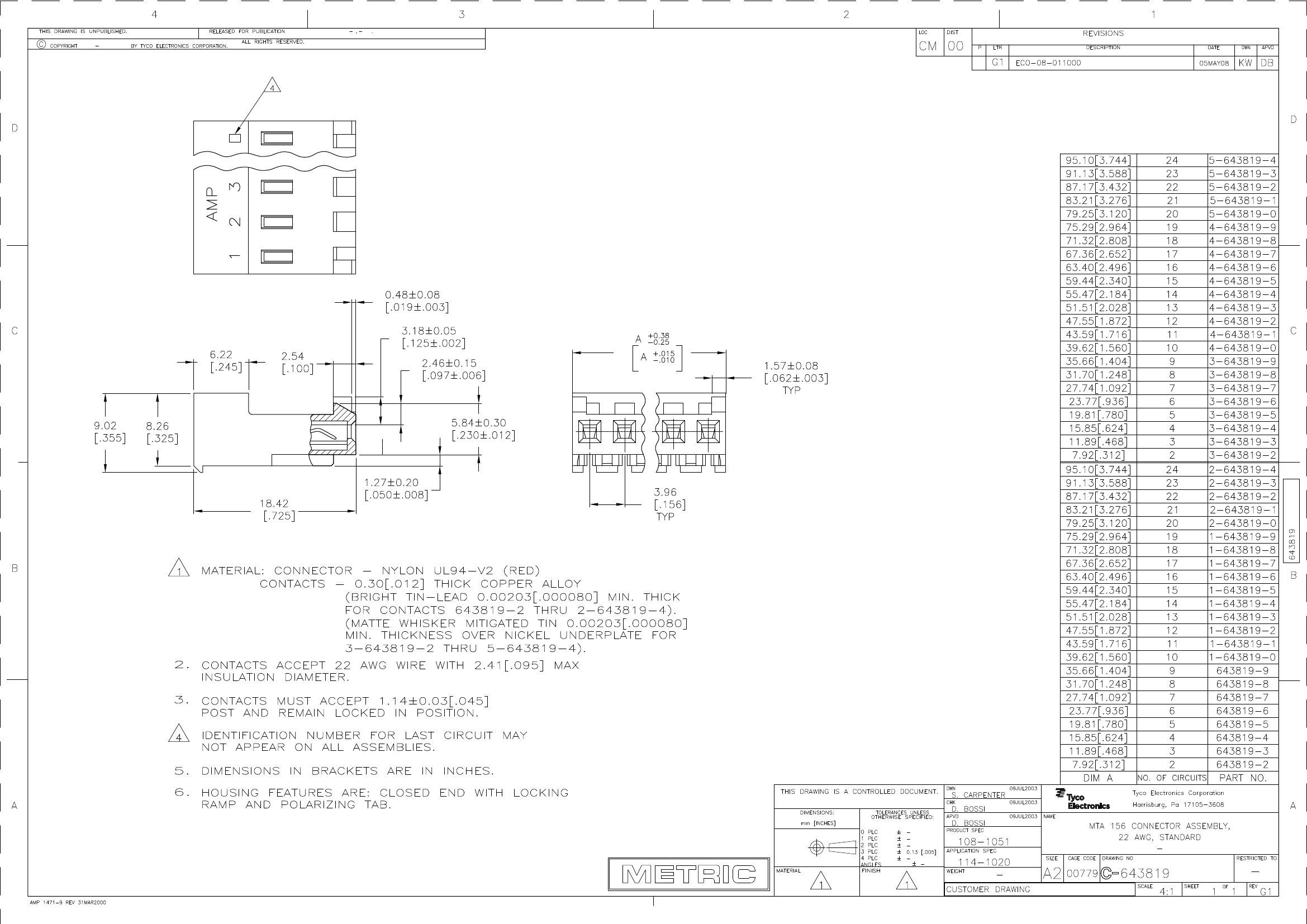

2-643819-4 Overview

TWO PART BOARD CONNECTOR

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	CLOSED END, TERMINATION
body width	0.725 inch
subject depth	0.355 inch
body length	3.744 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V
Insulation resistance	5000000 Ω
Insulator color	ORANGE
insulator material	NYLON
JESD-609 code	e4
Plug contact pitch	0.156 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.48 inch
Termination type	IDC
Total number of contacts	24
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG
Base Number Matches	1

	2-643819-4	2-643819-3
Description	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Other features	CLOSED END, TERMINATION	CLOSED END, TERMINATION
body width	0.725 inch	0.725 inch
subject depth	0.355 inch	0.355 inch
body length	3.744 inch	3.588 inch
Body/casing type	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	3 mΩ	3 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V	1250VAC V
Insulation resistance	5000000 Ω	5000000 Ω
Insulator color	ORANGE	ORANGE
insulator material	NYLON	NYLON
JESD-609 code	e4	e4
Plug contact pitch	0.156 inch	0.156 inch
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.48 inch	0.48 inch
Termination type	IDC	IDC
Total number of contacts	24	23
Maximum wire diameter	22 AWG	22 AWG
Minimum wire diameter	22 AWG	22 AWG
Base Number Matches	1	1
