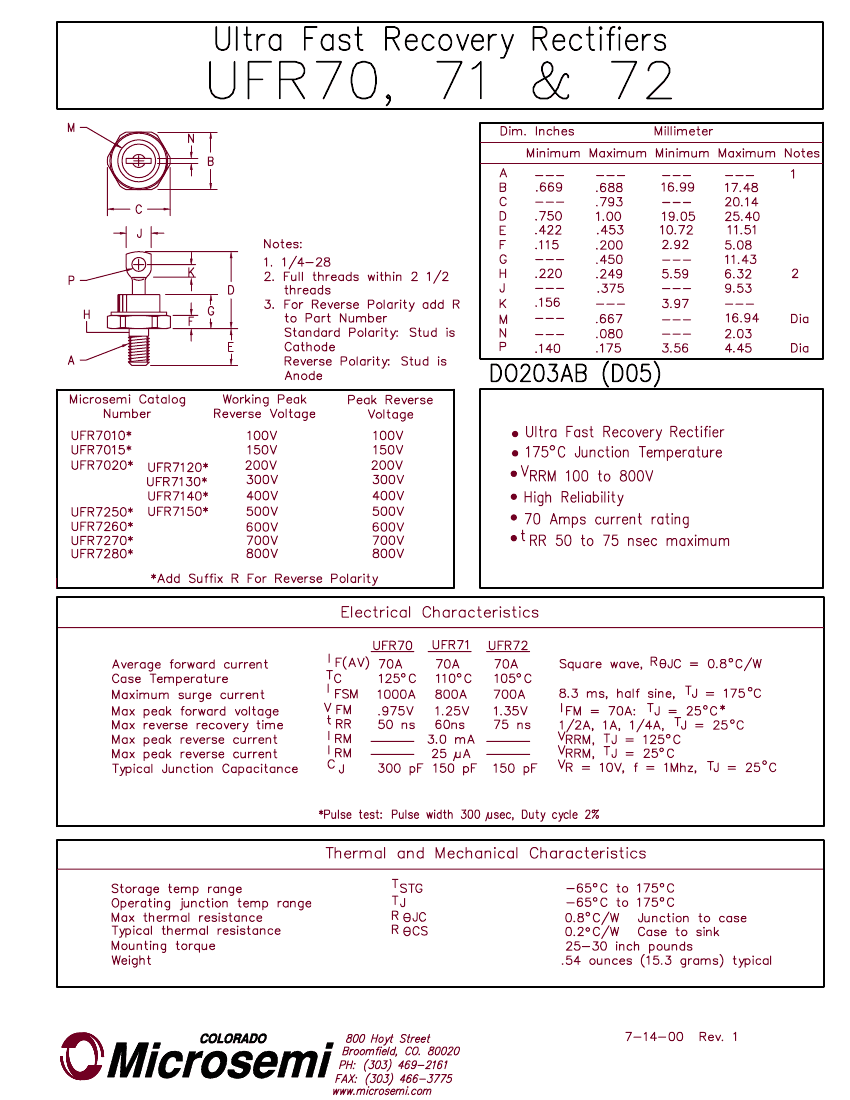

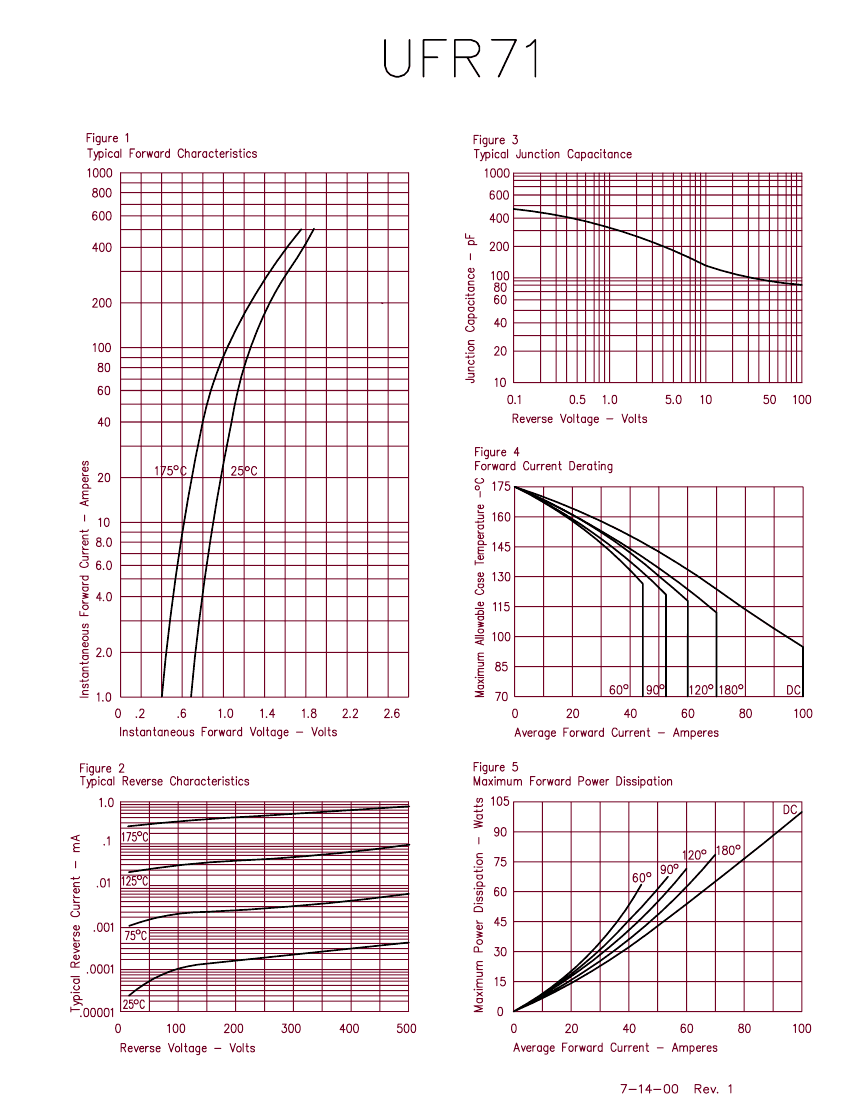

Rectifier Diode, 1 Phase, 1 Element, 70A, 400V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN

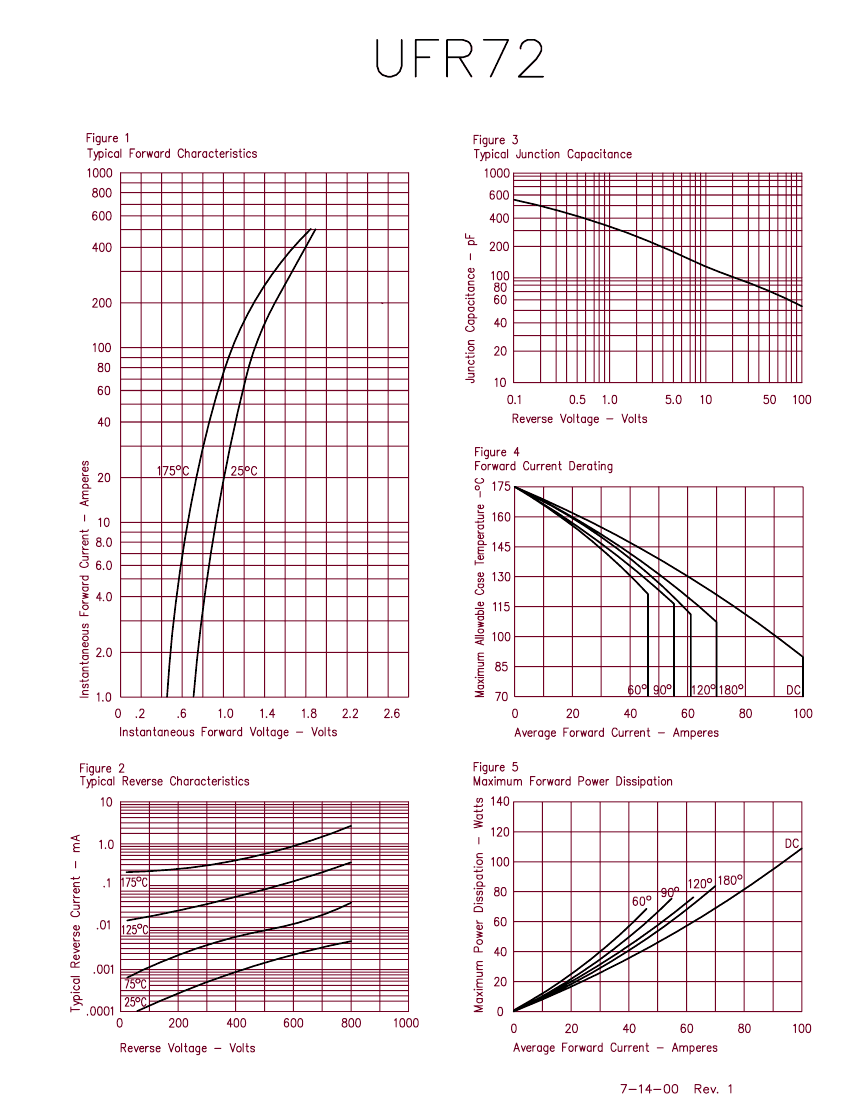

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Microsemi |
| Parts packaging code | DO-5 |
| package instruction | DO-5, 1 PIN |
| Contacts | 1 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | HIGH RELIABILITY |
| application | FAST RECOVERY |
| Shell connection | ANODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V |
| JEDEC-95 code | DO-203AB |
| JESD-30 code | O-MUPM-D1 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 800 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -65 °C |
| Maximum output current | 70 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| Maximum reverse current | 25 µA |
| Maximum reverse recovery time | 0.075 µs |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| UFR7140R | UFR7260R | UFR7280R | |
|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 70A, 400V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 70A, 600V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN | Rectifier Diode, 1 Phase, 1 Element, 70A, 800V V(RRM), Silicon, DO-203AB, DO-5, 1 PIN |
| Is it lead-free? | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Microsemi | Microsemi | Microsemi |
| Parts packaging code | DO-5 | DO-5 | DO-5 |
| package instruction | DO-5, 1 PIN | DO-5, 1 PIN | DO-5, 1 PIN |
| Contacts | 1 | 1 | 1 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY |
| application | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY |
| Shell connection | ANODE | ANODE | ANODE |
| Configuration | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.25 V | 1.35 V | 1.35 V |
| JEDEC-95 code | DO-203AB | DO-203AB | DO-203AB |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| JESD-609 code | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 800 A | 700 A | 700 A |
| Number of components | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C |
| Maximum output current | 70 A | 70 A | 70 A |
| Package body material | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V | 600 V | 800 V |
| Maximum reverse current | 25 µA | 25 µA | 25 µA |
| Maximum reverse recovery time | 0.075 µs | 0.075 µs | 0.075 µs |
| surface mount | NO | NO | NO |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
