M5M482257TP-7 datasheet, PDF - EEWORLD Datasheet

M5M482257TP-7: DescriptionVideo DRAM, 256KX8, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, TSOP2-44/40; Categorystorage storage; File Size1MB，44 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric View All

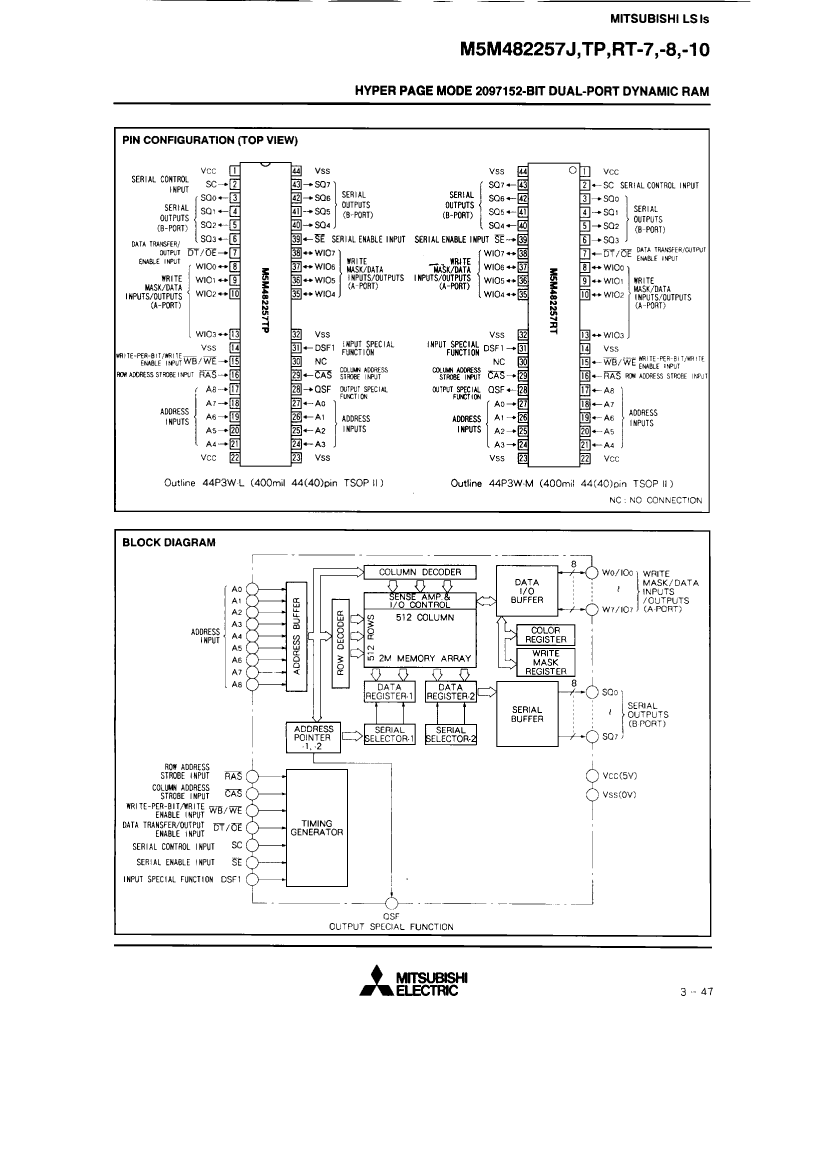

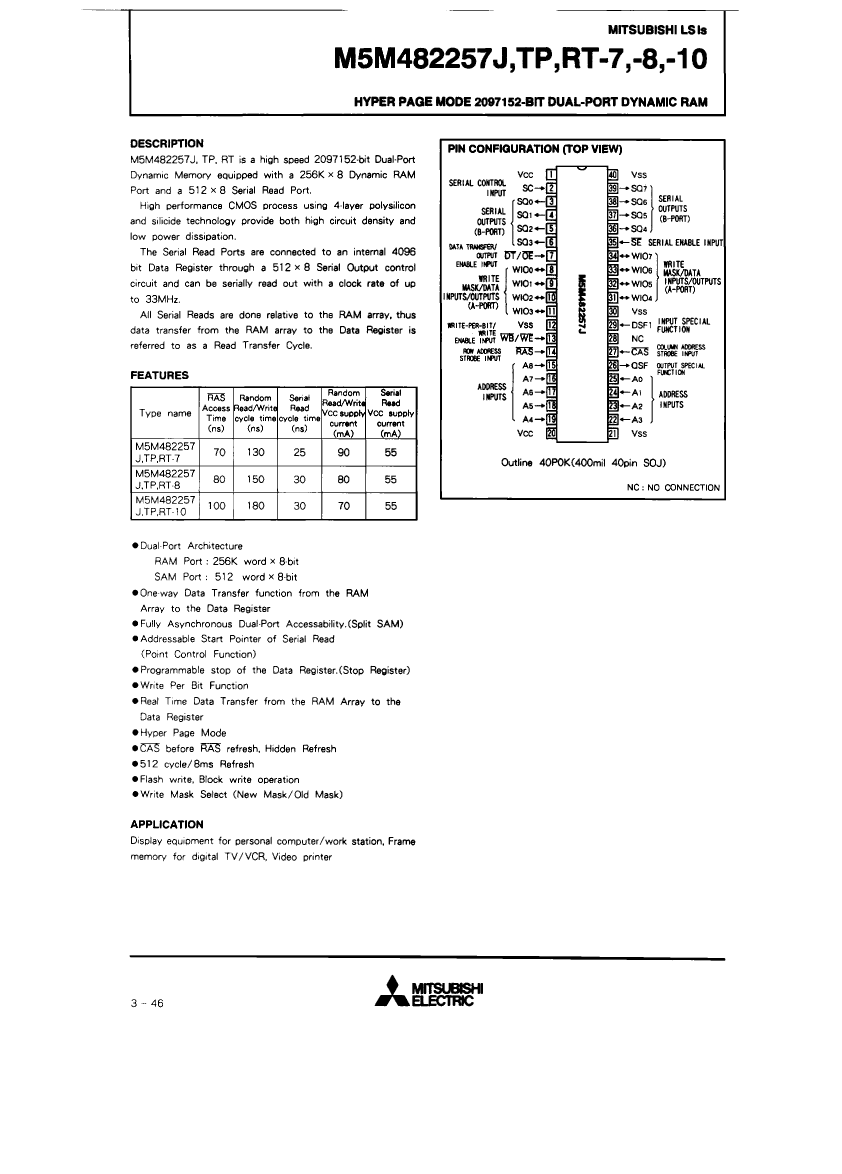

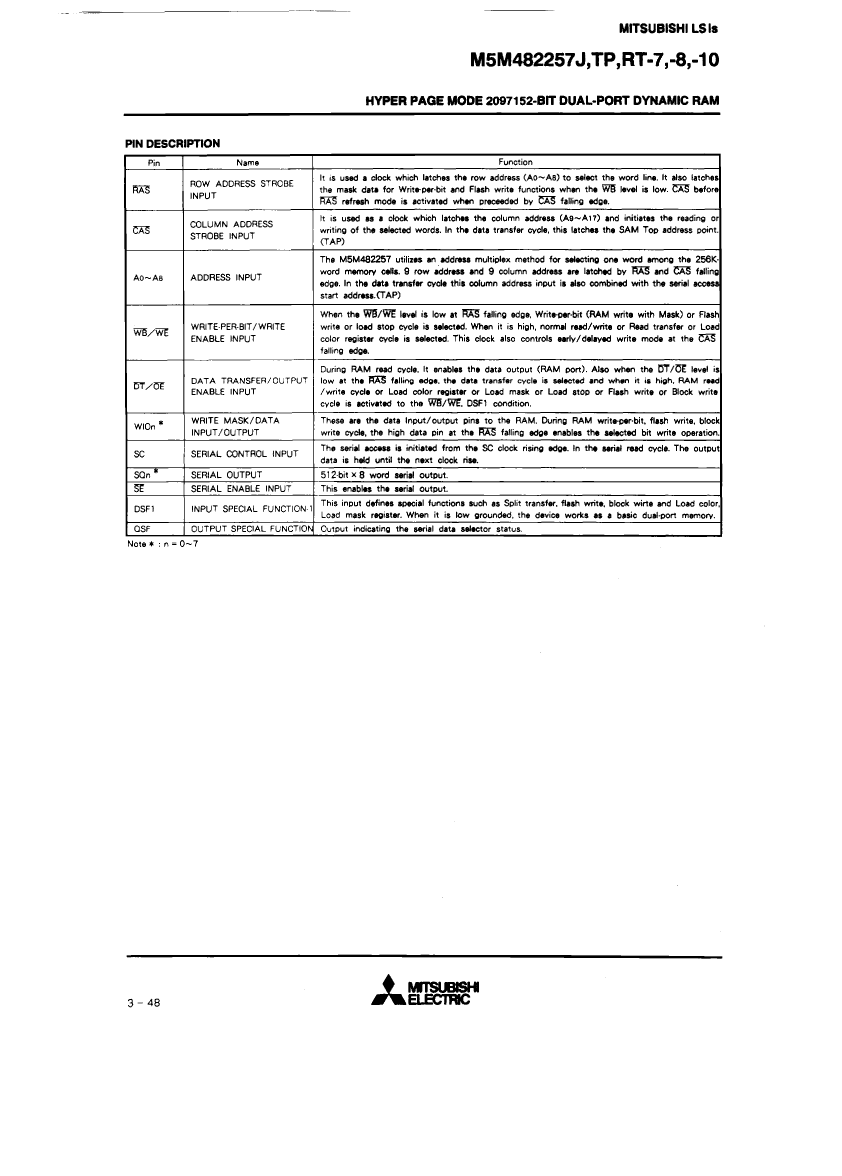

M5M482257TP-7 Overview

Video DRAM, 256KX8, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, TSOP2-44/40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP40/44,.46,32
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99

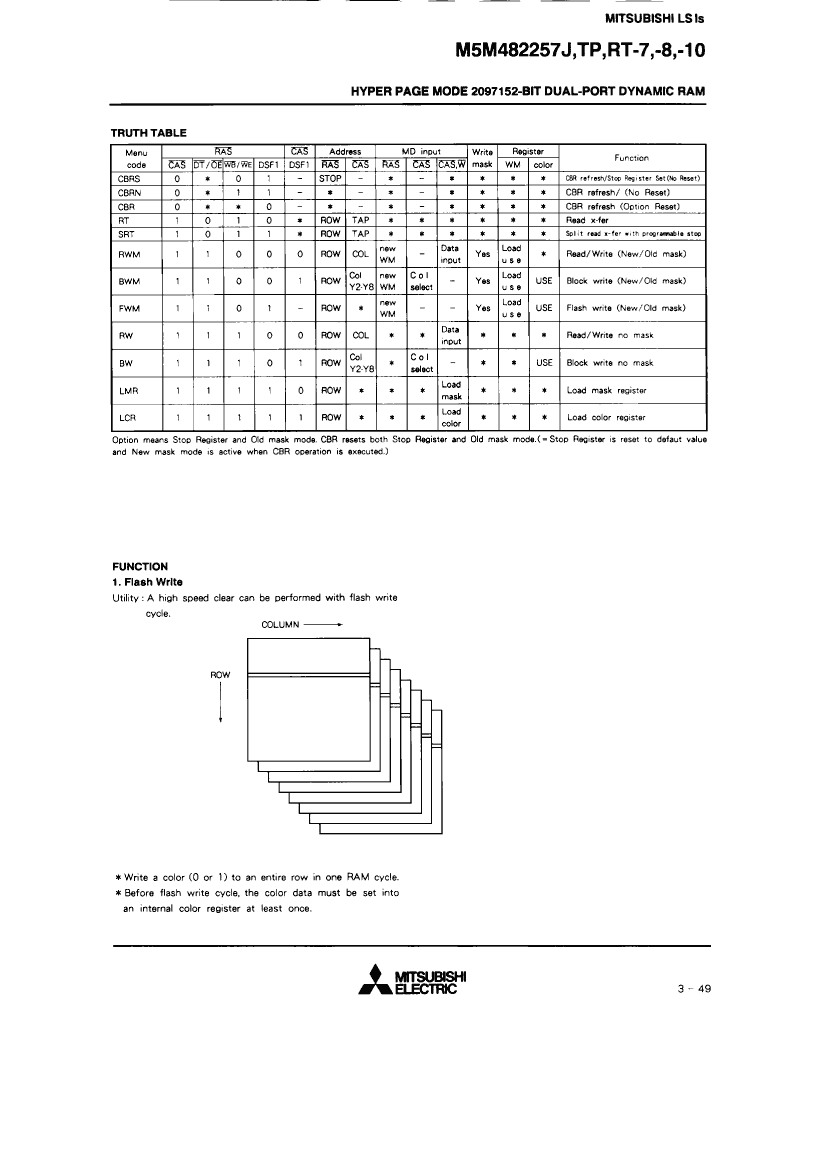

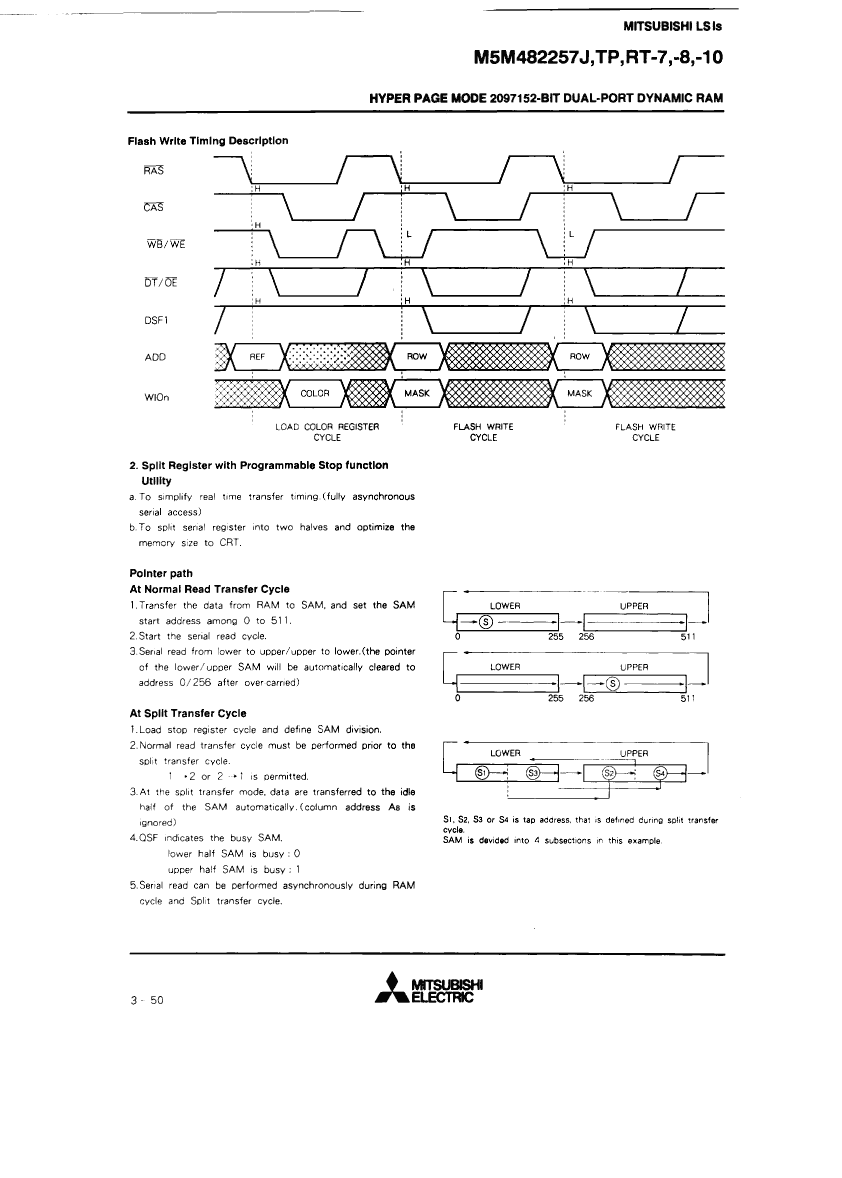

access mode	FAST PAGE WITH EDO
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 512 X 8 SAM PORT
JESD-30 code	R-PDSO-G40
JESD-609 code	e0
length	18.41 mm
memory density	2097152 bit
Memory IC Type	VIDEO DRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	40
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP40/44,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	1.2 mm
Maximum standby current	0.005 A
Maximum slew rate	0.16 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
