2-644020-2 datasheet, PDF - EEWORLD Datasheet

2-644020-2: Description22 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC; CategoryThe connector The connector; File Size145KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

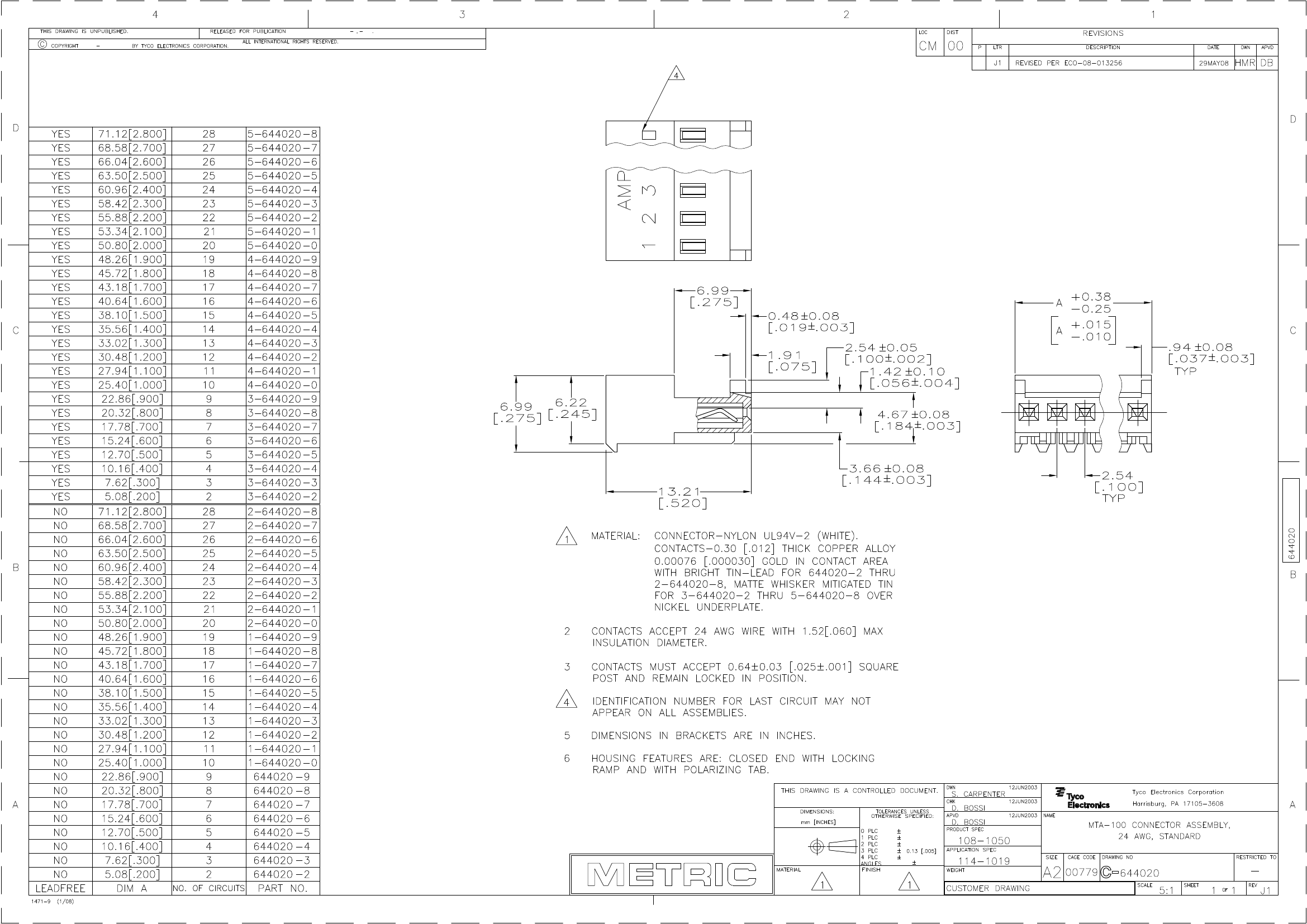

2-644020-2 Overview

22 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AMP
body width	0.52 inch
subject depth	0.275 inch
body length	2.2 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	5 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	644020
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.275 inch
Termination type	IDC
Total number of contacts	22
UL Flammability Code	94V-2
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
