PZ5064N10A84 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PZ5064N10A84

PZ5064N10A84: DescriptionEE PLD, 12.5ns, PQCC84; CategoryProgrammable logic devices Programmable logic; File Size530KB，20 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PZ5064N10A84 Overview

EE PLD, 12.5ns, PQCC84

PZ5064N10A84 Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	QCCJ,
Reach Compliance Code	unknown
Other features	64 MACROCELL; IN-SYSTEM PROGRAMMABLE
maximum clock frequency	77 MHz
JESD-30 code	S-PQCC-J84
length	29.3116 mm
Dedicated input times	2
Number of I/O lines	64
Number of terminals	84
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	2 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	EE PLD
propagation delay	12.5 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.3116 mm

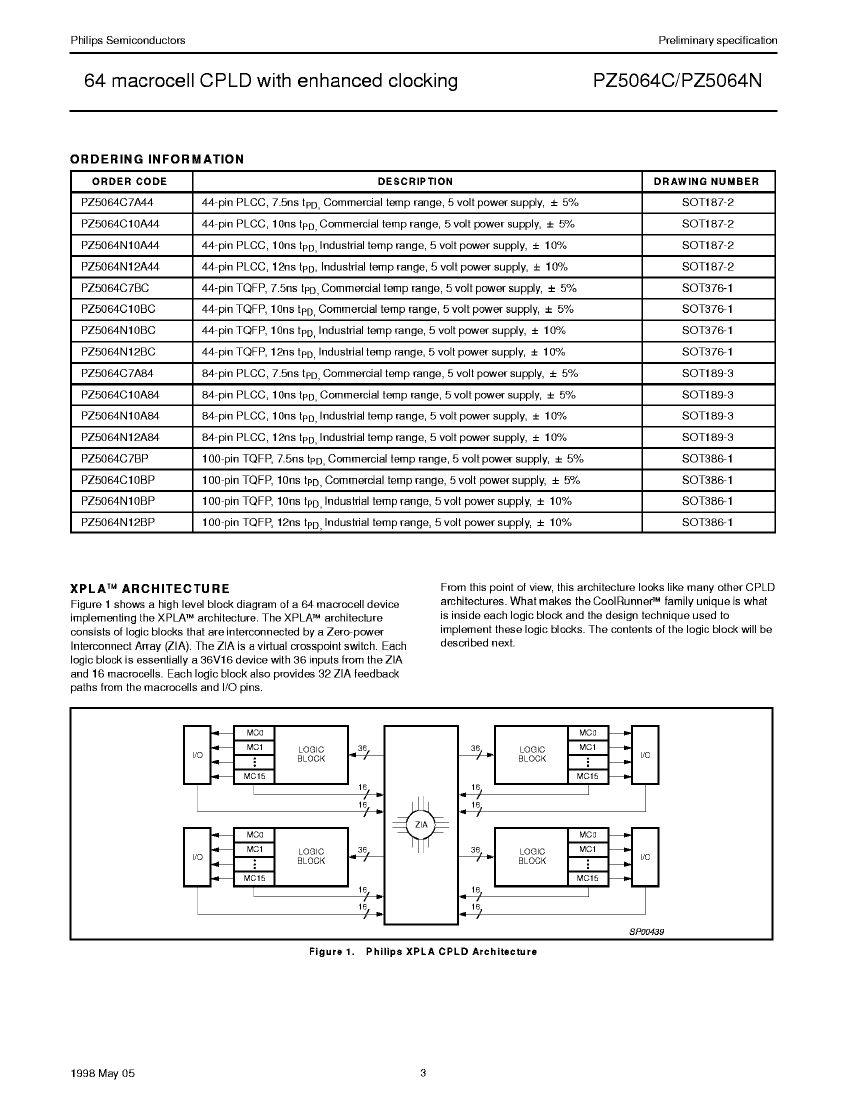

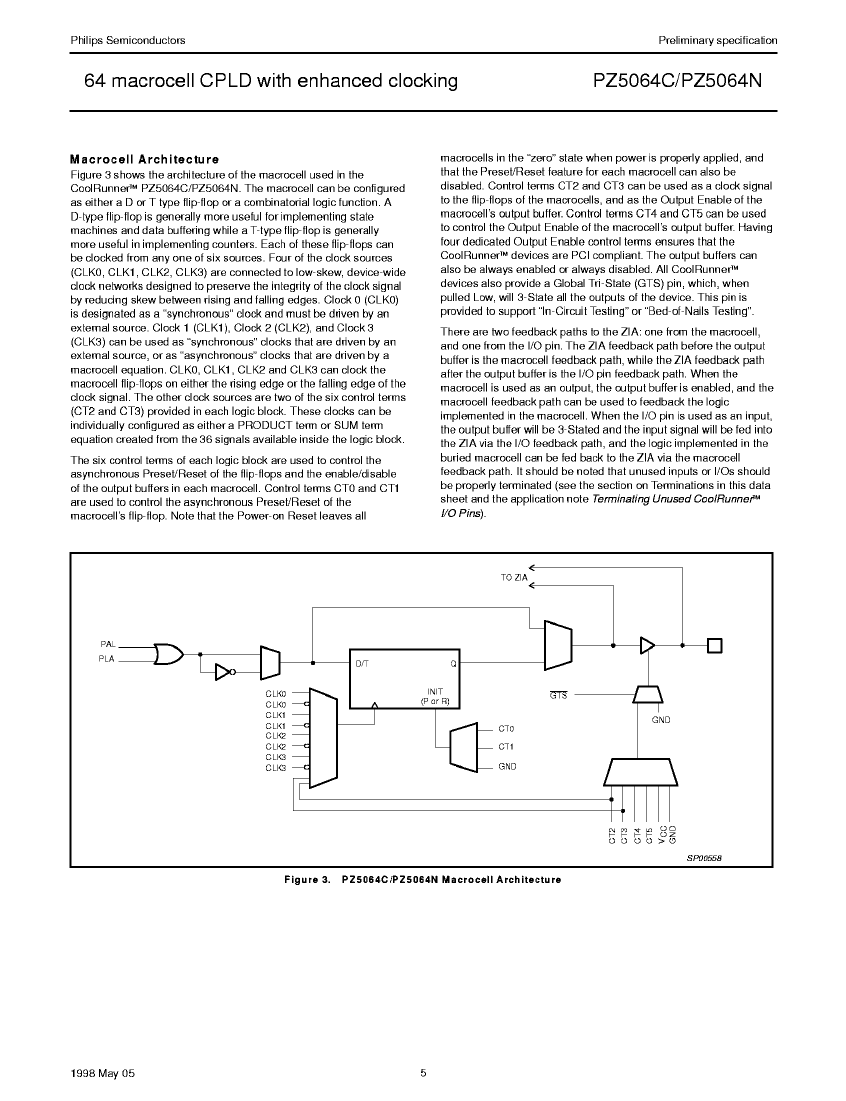

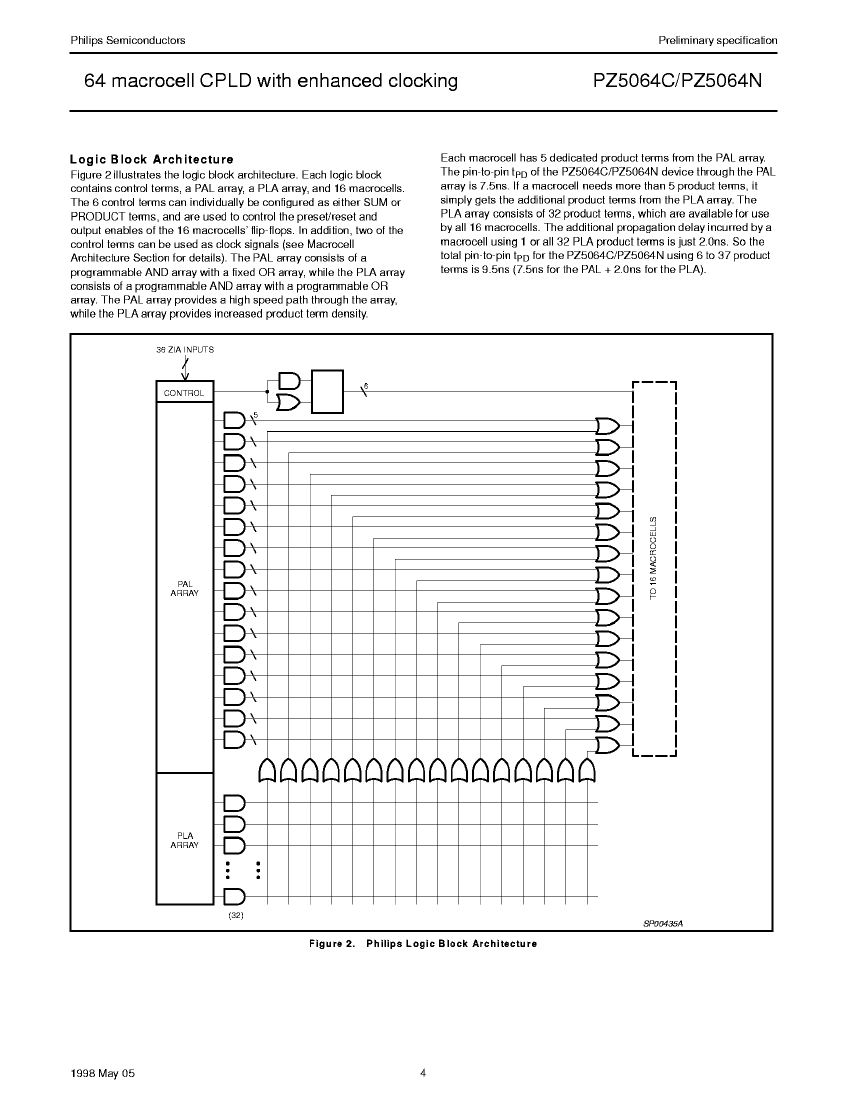

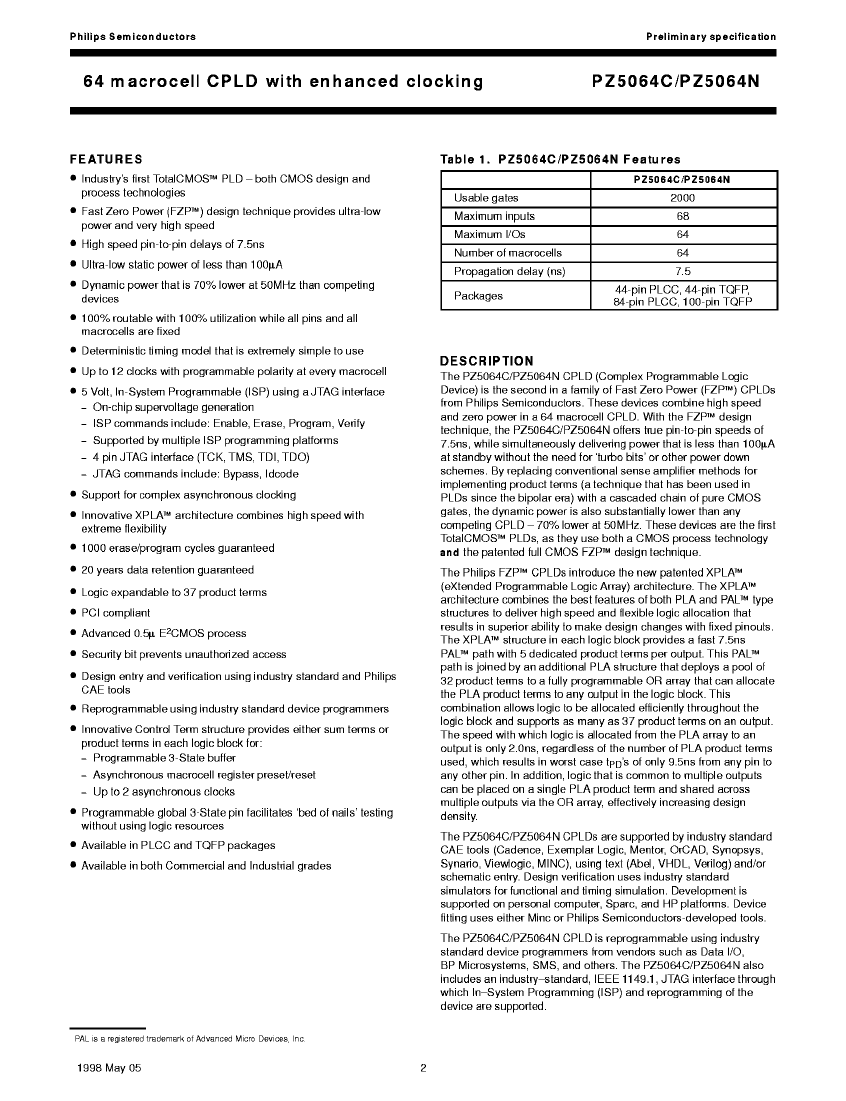

PZ5064N10A84 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PZ5064N10A84 Related Products

	PZ5064N10A84	PZ5064C10A84	PZ5064N12A84	PZ5064C7A84
Description	EE PLD, 12.5ns, PQCC84	EE PLD, 12.5ns, PQCC84	EE PLD, 14.5ns, PQCC84	EE PLD, 9.5ns, PQCC84
Maker	NXP	NXP	NXP	NXP
package instruction	QCCJ,	QCCJ,	QCCJ,	QCCJ,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	64 MACROCELL; IN-SYSTEM PROGRAMMABLE	64 MACROCELL; IN-SYSTEM PROGRAMMABLE	64 MACROCELL; IN-SYSTEM PROGRAMMABLE	64 MACROCELL; IN-SYSTEM PROGRAMMABLE
maximum clock frequency	77 MHz	77 MHz	67 MHz	105 MHz
JESD-30 code	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84	S-PQCC-J84
length	29.3116 mm	29.3116 mm	29.3116 mm	29.3116 mm
Dedicated input times	2	2	2	2
Number of I/O lines	64	64	64	64
Number of terminals	84	84	84	84
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C
organize	2 DEDICATED INPUTS, 64 I/O	2 DEDICATED INPUTS, 64 I/O	2 DEDICATED INPUTS, 64 I/O	2 DEDICATED INPUTS, 64 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	12.5 ns	12.5 ns	14.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Maximum supply voltage	5.5 V	5.25 V	5.5 V	5.25 V
Minimum supply voltage	4.5 V	4.75 V	4.5 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
width	29.3116 mm	29.3116 mm	29.3116 mm	29.3116 mm
