RP73D1J681RBTDG: DescriptionRESISTOR, THIN FILM, 0.1W, 0.1%, 15ppm, 681ohm, SURFACE MOUNT, 0603, CHIP; CategoryPassive components The resistor; File Size272KB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

RP73D1J681RBTDG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RP73D1J681RBTDG	-	-	View	Buy Now

RP73D1J681RBTDG Overview

RESISTOR, THIN FILM, 0.1W, 0.1%, 15ppm, 681ohm, SURFACE MOUNT, 0603, CHIP

RP73D1J681RBTDG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	CHIP
Reach Compliance Code	compliant
Factory Lead Time	7 weeks
Other features	HIGH PRECISION
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	RP73
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.45 mm
Package length	1.55 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.8 mm

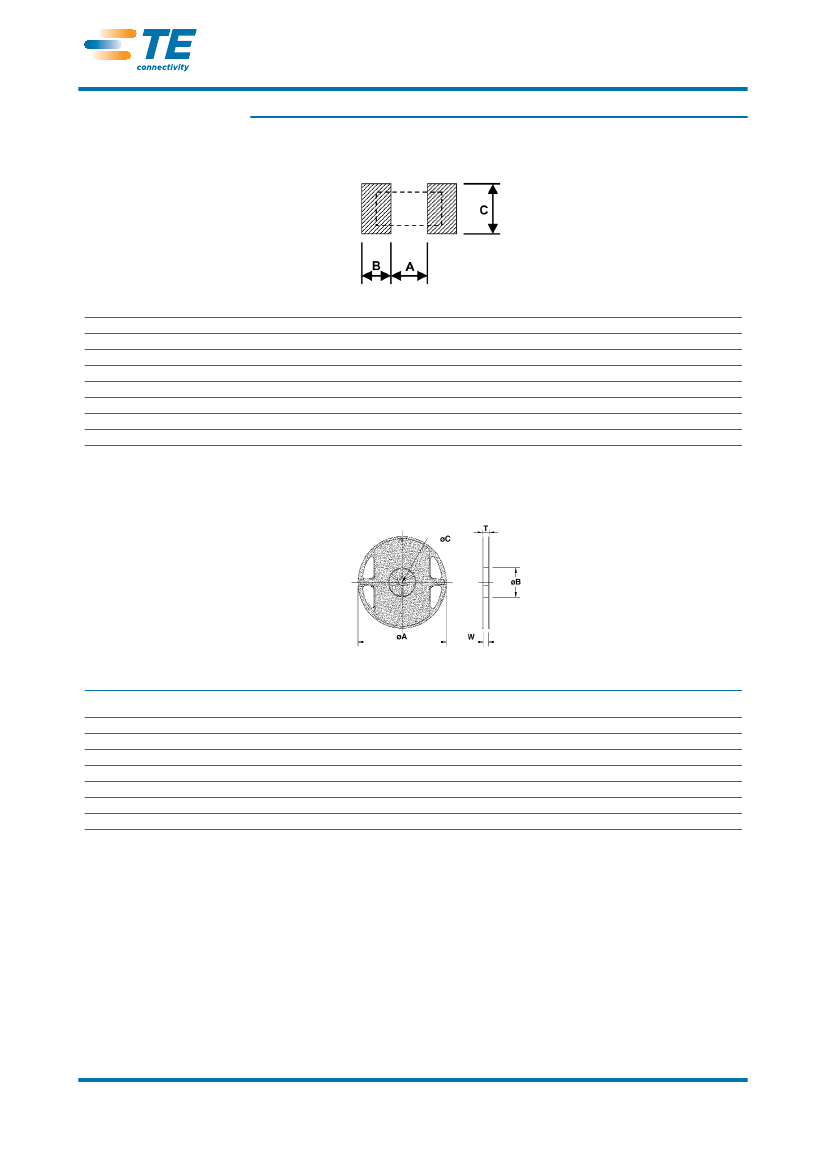

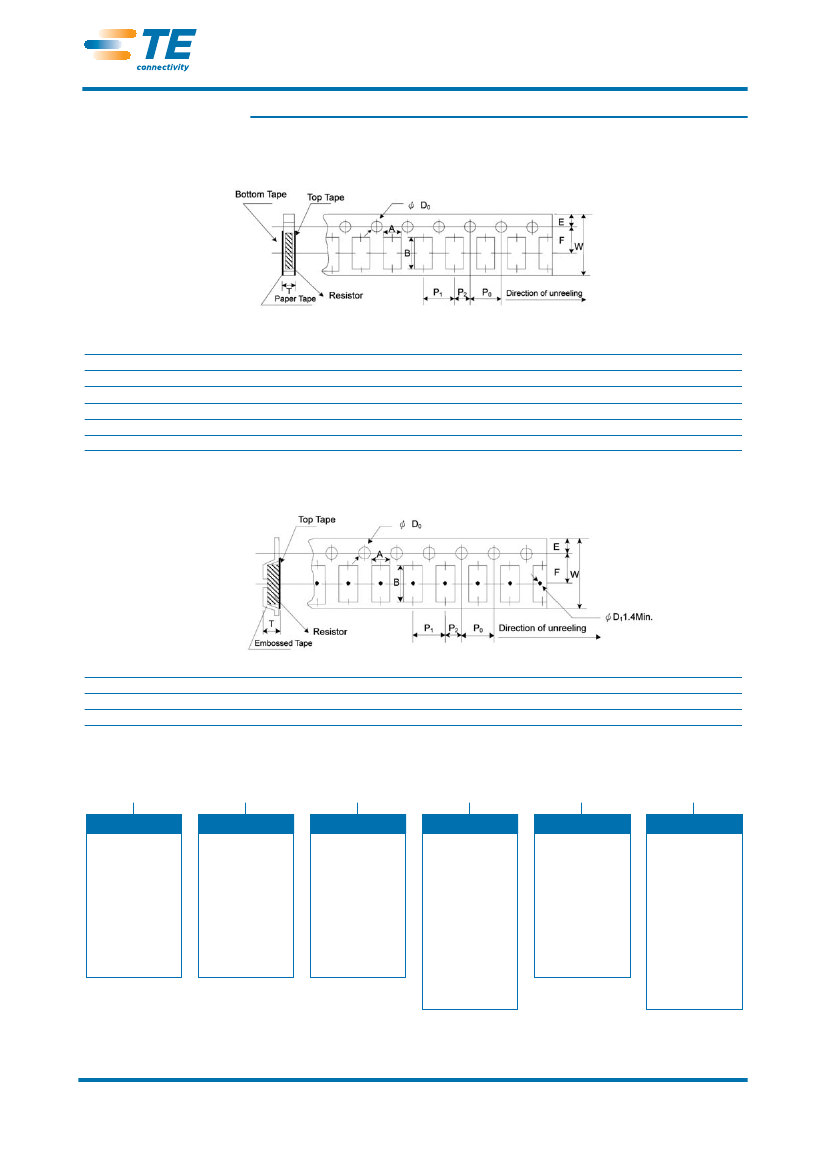

method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
Guideline	MIL-STD-202
resistance	681 Ω
Resistor type	FIXED RESISTOR
series	RP73
size code	0603
surface mount	YES
technology	THIN FILM
Temperature Coefficient	15 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	75 V

Preview

Download Datasheet

View All

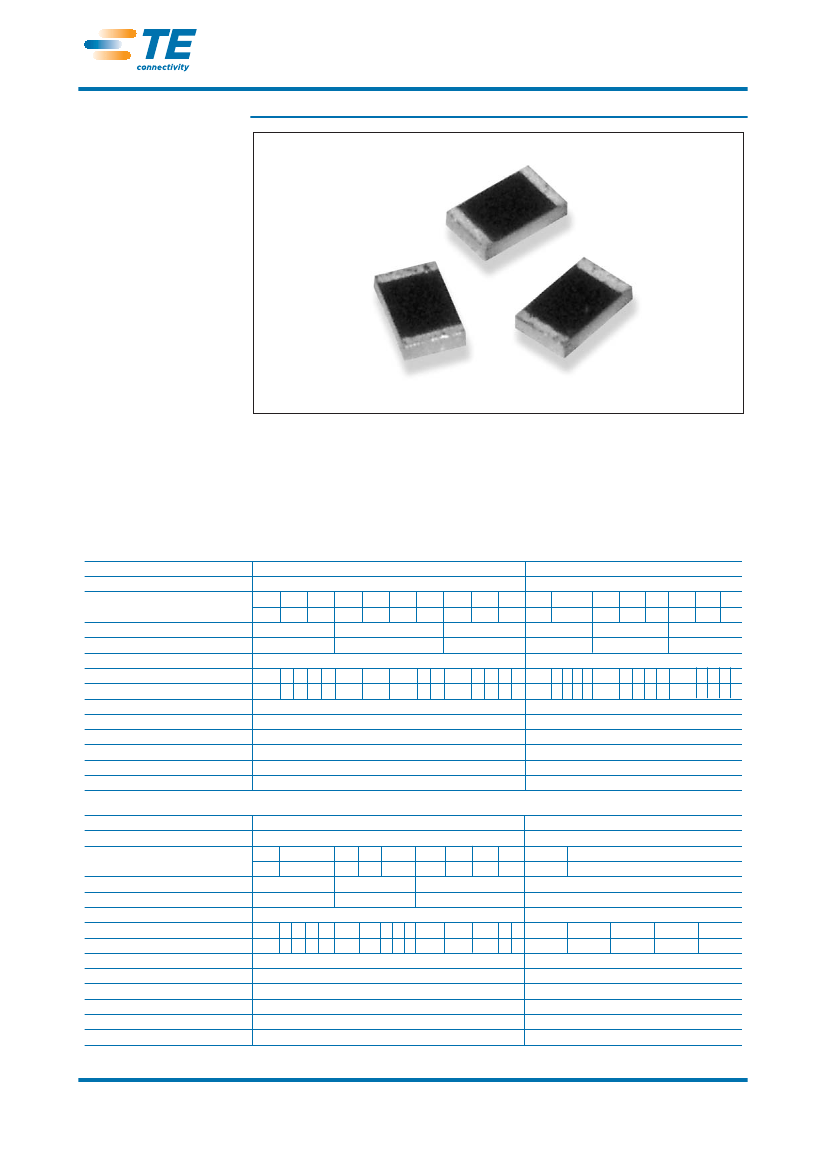

SMD High Power Precision Resistors

Type RP73 Series

Key Features

High precision -

tolerances down to

0.05%

Low TCR - down to 5ppm/°C

Stable high frequency

performance

Operating temperature

-55°C to +155°C

Increased power rating -

up to 1.0W

Up to 200V DC operating

voltage

Range of packaging options

Terminal finish -

electroplated 100% matte Sn

Applications

Communications

Instrumentation

Industrial Controls

Medical

The RP73 resistor series is a stable thin film chip resistor range offering increased power

dissipation, higher temperature capabilities and increased working voltages compared to the

standard RN73 series. The resistor is produced by sputtering a metal film onto high grade

alumina and protecting with three complete printed layers. Values are normally offered in E96

and E24 series. The RP73 resistor has accurate and uniform physical dimensions to reduce

placement problems.

Characteristics - Electrical

0402

Rated Power @ 70°C:

0.063W

4R7

332K

10 15 2550

C D F G

Max:

5K0 15K 100K 5K0 15K

Tolerance (%):

Code Letter:

Selection Series:

Temp. Coefficient (ppm/°C):

Code Letter:

Limiting Element Voltage:

Max. Overload Voltage:

Operating Temp. Range:

Climatic Category (°C):

Insulation Resistance Dry Min:

Stability:

10 15 25 50

C D F G

0.05

25V

50V

-55 to +155°C

55/125/55

1000MΩ

0.5%

E24 & E96

25 50

F G

10 15 25 50

C D F G

70K 255K 5K0

15K 255K 15K

0.5 / 1

D/F

Resistance Range (Ohms) Min:

49R9 49R9 49R9 49R9 49R9 49R9 10R 49R9 49R9 10R 24R9

0.1

0603

0.1W

24R9 4R7 4R7 24R9 4R7 4R7

15K 332K 1M0 15K 332K 1M0

0.1

E24 & E96

10 15 25 50

C D F G

75V

150V

-55 to +155°C

55/125/55

1000MΩ

0.5%

1015 25 50

CD F G

0.5 / 1

D/F

0.05

0805

Rated Power @ 70°C:

Resistance Range (Ohms) Min:

24R9

Max:

30K

Tolerance (%):

Code letter:

Selection Series:

Temp. Coefficient (ppm/°C):

Code Letter:

Limiting Element Voltage:

Max. Overload Voltage:

Operating Temp. Range:

Climatic Category (°C):

Insulation Resistance Dry Min:

Stability:

10 15 25 50

C D F G

0.05

4R7

511K

0.125W

24R9 4R7

0.1

E24 & E96

10 15 25 50

D F G

150V

300V

-55 to +155°C

55/125/55

1000MΩ

0.5%

25 50

F G

4R7

24R9 4R7 4R7 1R0

30K 511K 1M0 1M0

0.5 / 1

D/F

24R9

50K

30K 511K 1M0

1206

0.25W

4R7

1M0

0.05 / 0.1 / 0.5 / 1

A/B/D/F

E24 & E96

200V

400V

-55 to +155°C

55/125/55

1000MΩ

0.5%

1773272 CIS BI 06/2011

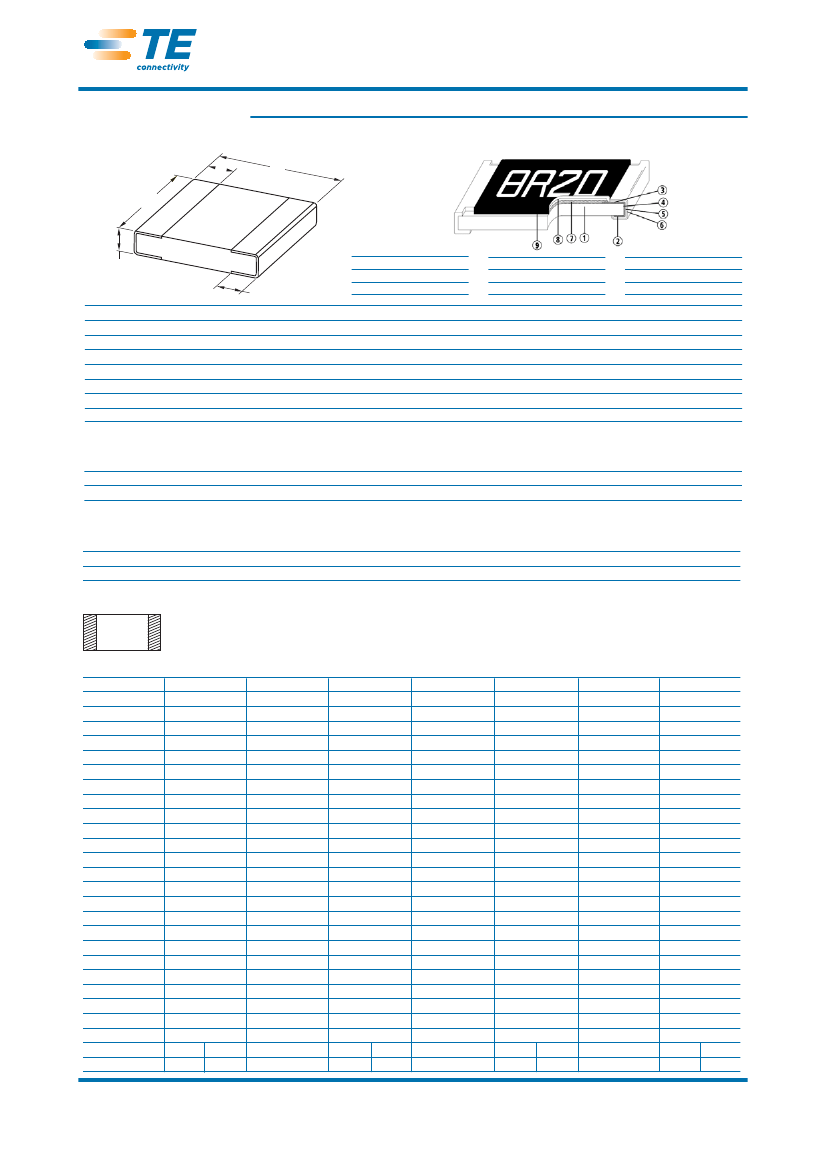

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are standard equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.
