Ordering number : ENN4169B
SB007T03Q
SB007T03Q
Applications
•
•
Schottky Barrier Diode (Series Connection)
30V, 70mA Rectifier
Universal-use rectifiers.
High frequency rectification (switching regulators, converters, choppers).
Features
•
•
•
•
•
Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=10ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure.
Series connection of 2 elements in an ultrasmall-sized package facilitates high-density mounting and permits
SB007T03Q-applied equipment to be made smaller.
Absolute Maximum Ratings
at Ta=25°C
Parameter
Repetitive Peak Reverse Voltage
Nonrepetitive Peak Reverse Surge Voltage
Average Output Current
Surge Forward Current
Junction Temperature
Storage Temperature
Symbol
VRRM
VRSM
IO
IFSM
Tj
Tstg
50Hz sine wave, 1 cycle
Conditions
Ratings
30
35
70
2
--55 to +125
--55 to +125
Unit
V
V
mA
A
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Reverse Voltage
Forward Voltage
Reverse Current
Interterminal Capacitance
Reverse Recovery Time
Thermal Resistance
Symbol
VR
VF
IR
C
trr
Rth(j-a)
IR=20µA
IF=70mA
VR=15V
VR=10V, f=1MHz

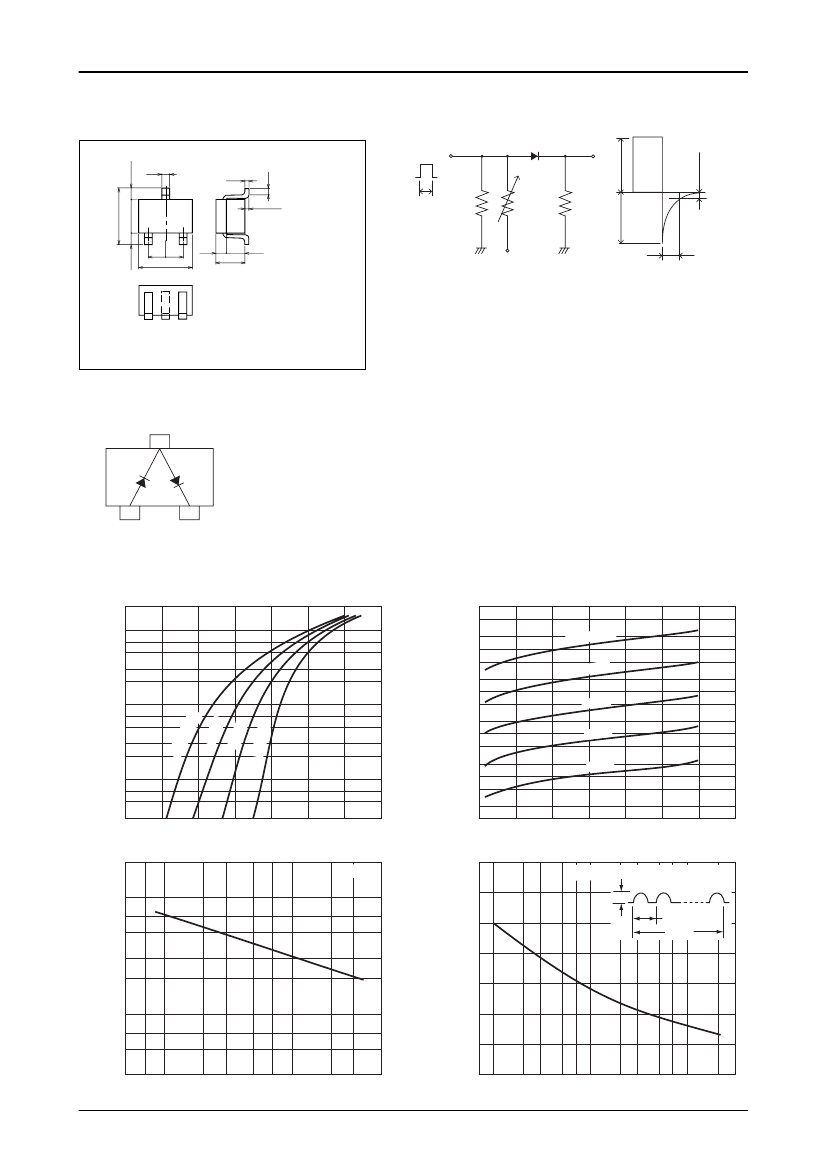

IF=IR=10mA, See specified Test Circuit.
Mounted on a ceramic board (600mm
2
!0.8mm)
Conditions
Ratings
min
30
0.55
5
3.0
10
650
typ
max
Unit
V
V
µA
pF
ns
°C
/ W
Marking : N
