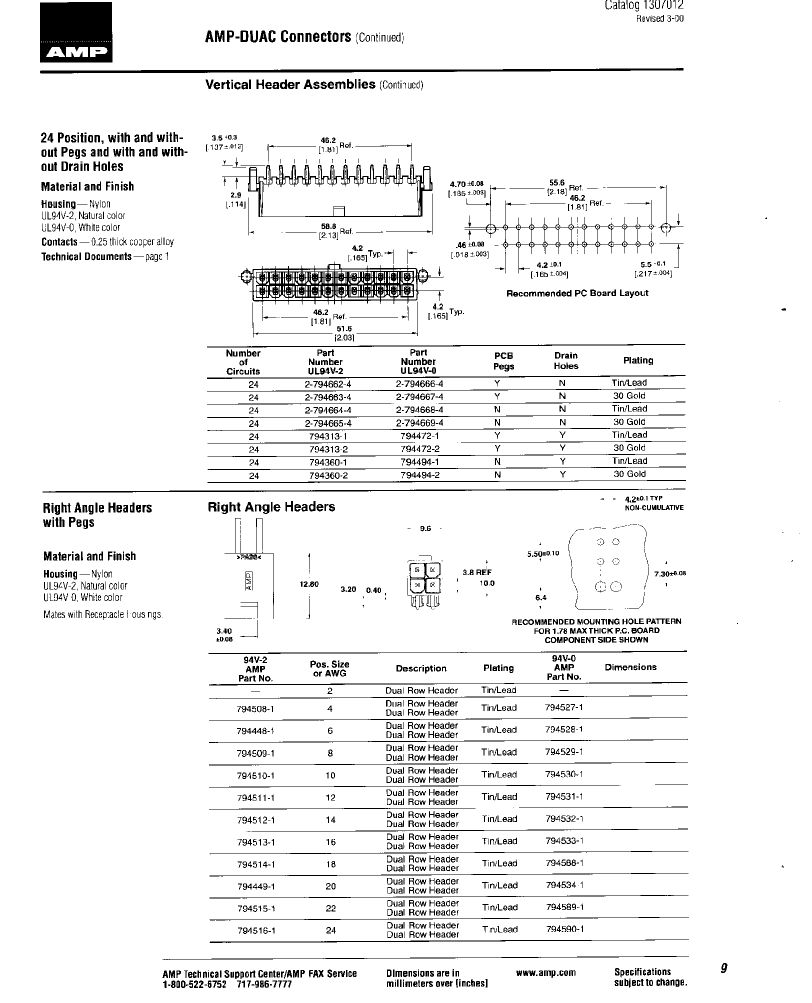

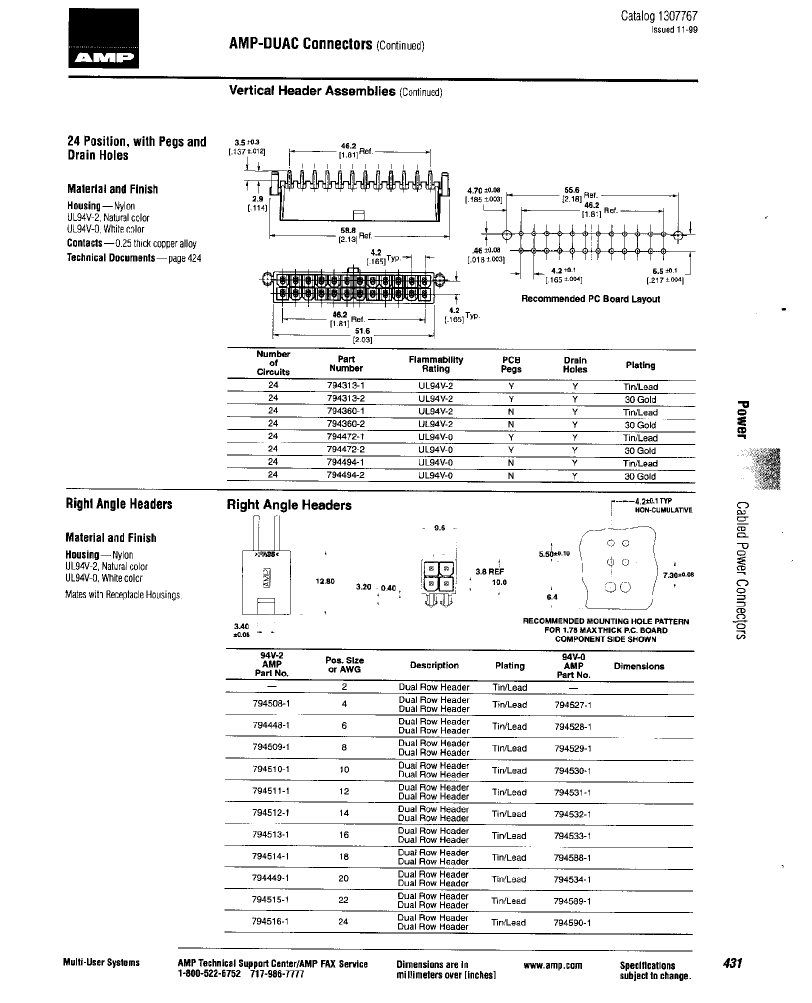

2-794663-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,0+24 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Board mount options	PEG
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	NYLON
Manufacturer's serial number	794663
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	30u inch
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	0+24
Base Number Matches	1

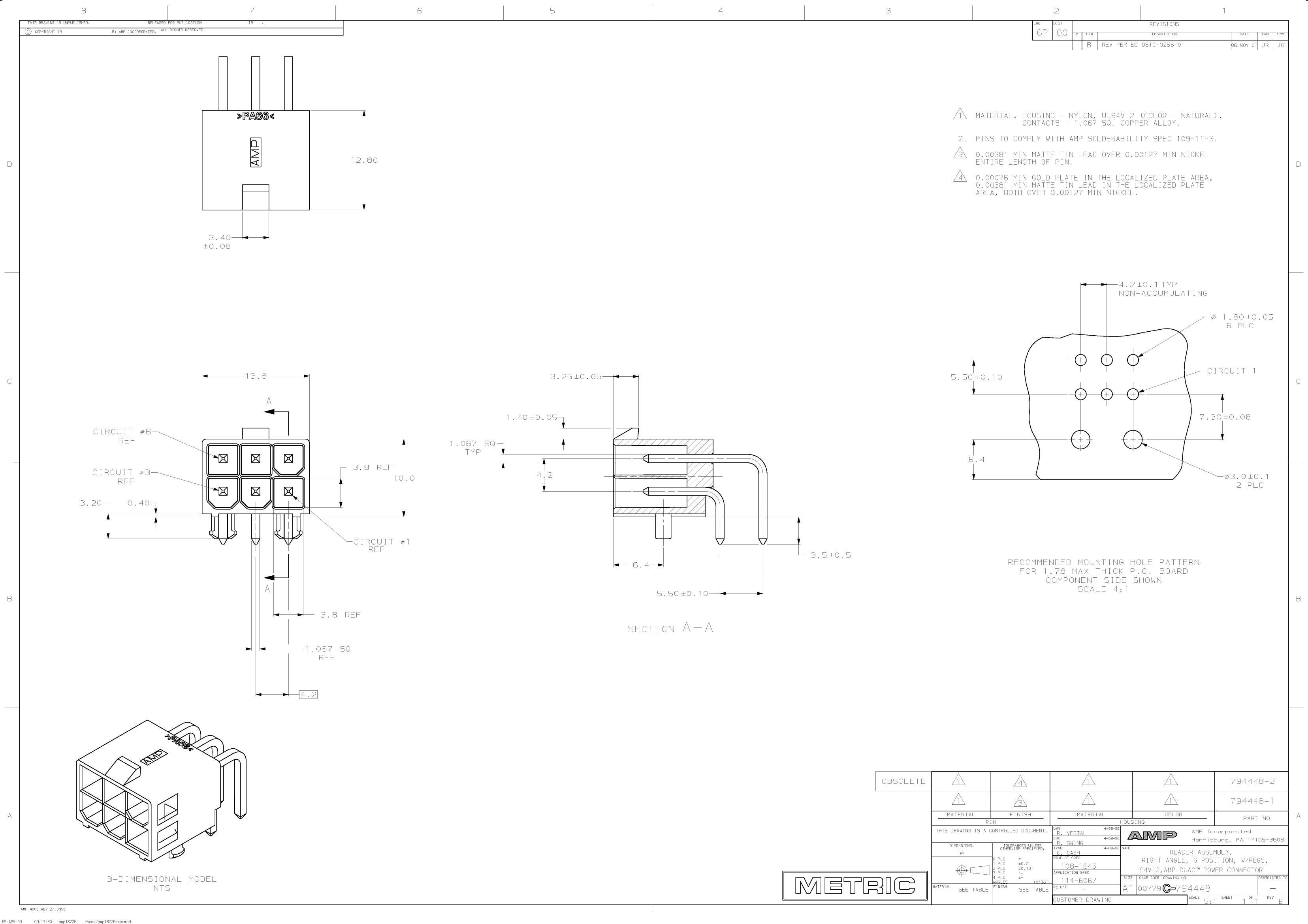

	2-794663-4	2-794662-4	2-794669-4	794448-2
Description	HEADER CONNECTOR,PCB MNT,RECEPT,0+24 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,NATURAL	CONNECTOR, 24 CONTACT(S), MALE, POWER CONNECTOR, SOLDER	HEADER CONNECTOR,PCB MNT,RECEPT,0+24 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	CONNECTOR, 6 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Reach Compliance Code	unknow	unknow	unknow	unknown
Connector type	BOARD CONNECTOR	RECTANGULAR POWER CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Manufacturer's serial number	794663	794662	794669	794448
Installation type	BOARD	BOARD AND PANEL	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	0+24	24	0+24	6
Base Number Matches	1	1	1	1
Is it Rohs certified?	incompatible	incompatible	incompatible	-
Contact to complete cooperation	AU	TIN LEAD	AU	-
Contact completed and terminated	GOLD	TIN LEAD	GOLD	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Number of rows loaded	2	-	2	2
Terminal pitch	4.191 mm	-	4.191 mm	4.2 mm
