M50-3001522

Description
Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Socket
CategoryThe connector    The connector
File Size230KB，1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/
Download Datasheet Parametric View All

M50-3001522 Overview

Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Socket

M50-3001522 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresNONE
body width0.118 inch
subject depth0.173 inch
body length0.766 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability50 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.556 N
Insulation resistance5000000000 Ω
insulator materialTHERMOPLASTIC
MIL complianceNO
Manufacturer's serial numberM50-300
Plug contact pitch0.05 inch
Match contact row spacing0.05 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing1.27 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.115 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts30
Evacuation force-minimum value.417 N

Preview

Download Datasheet

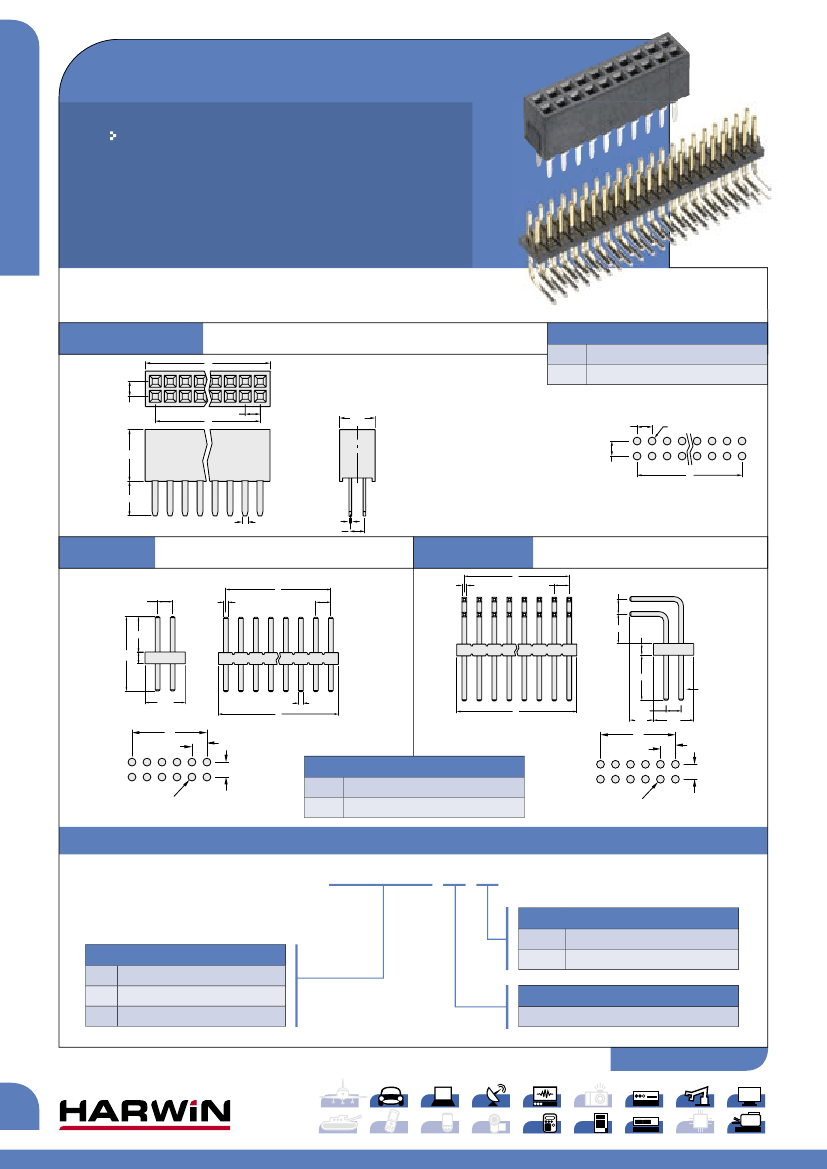

M50 Connectors
1.27mm (.050") PITCH
B
0.40 Square
1.27
0.55 Max.
A
Male & Female PC Tail Connectors
Mating connectors, also suitable for use with other
un-shrouded M50 connectors.
A
1.27
B
1.27
3.05
4.30
WITHOUT POSTS
1.27
1.27
1.27
CALCULATION
A
A
A
A
B
B +
2.40
1.67
1.27 x (No. of ways per row – 1)
0.40
0.15
1.27
B
B
1.27
1.27
B
1.27
3.05
3.05
3.05
1.27
Ø0.65
4.30
4.30
4.30
1.27
B
2.40
0.40
0.40
0.40
0.15
1.27
0.15
1.27
0.15
1.27
2.40
2.40
Recommended PC Board Pattern
VERTICAL
1.27
1.27
1.27
1.27
HORIZONTAL
B
B
0.40
0.40 SQUARE SQUARE
1.27
1.27
1.27
1.27
1.27
1.27
Ø0.65
Ø0.65
Ø0.65
B
0.40 Square
1.27
1.27
B
B
3.00
6.30
1.00
3.81
3.81
2.50
2.50
1.00
1.00
1.27
3.00
6.30
1.00
B
3.41
0.55 Max.
A
3.41
A
A
1.27
3.00
1.27
3.00
3.41
SELECTIVE SELECTIVE
GOLD
GOLD
IN THIS
IN THIS
AREA
AREA
3.41
B
1.27
1.27
Ø 0.65
B
1.27
CALCULATION
A
B
1.27 x No. of ways per row
1.27 x (No. of ways per row – 1)
Ø 0.65
1.27
Recommended PC Board Pattern
Recommended PC Board Pattern
HOW TO ORDER
M50 – XXX XX 22
FINISH
22
Gold + Tin/Lead
Gold + Tin
SERIES CODE
300
DIL Vertical PC Tail Socket
350
DIL Vertical PC Tail Pin Header
390
DIL Horizontal PC Tail Pin Header
42
NO. OF WAYS PER ROW
05 to 12, 15, 20, 25, 30, 35, 40, 45, 50
www.harwin.com
18
