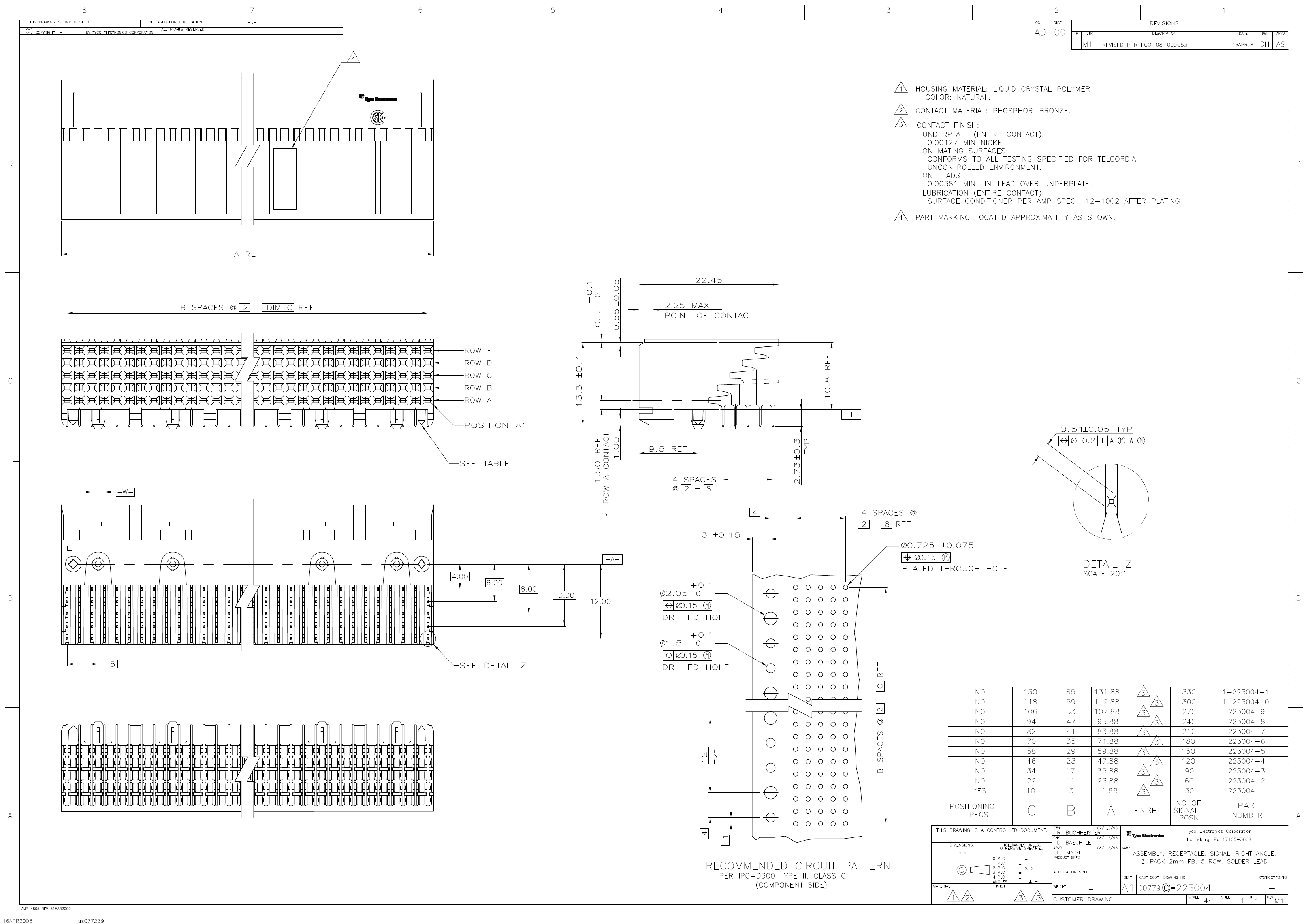

HEADER CONNECTOR,PCB MNT,PLUG,270 CONTACTS,SKT,0.079 PITCH,EDGE MOUNT TERMINAL
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compli |
| Other features | WITH LOCATING POSTS |
| Board mount options | EDGE MOUNT |
| body width | 0.543 inch |
| subject depth | 0.884 inch |
| body length | 4.247 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU-PD-NI ON NI |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Durability | 250 Cycles |
| maximum insertion force | .695 N |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | 223004 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 5 |
| Number of rows loaded | 5 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | FLASH inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.107 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 270 |
| Evacuation force-minimum value | .1112 N |
| Base Number Matches | 1 |
| 223004-9 | 223004-6 | 223004-7 | 353-1-018-1-T-RT0-0370 | |
|---|---|---|---|---|
| Description | HEADER CONNECTOR,PCB MNT,PLUG,270 CONTACTS,SKT,0.079 PITCH,EDGE MOUNT TERMINAL | HEADER CONNECTOR,PCB MNT,PLUG,180 CONTACTS,SKT,0.079 PITCH,EDGE MOUNT TERMINAL | HEADER CONNECTOR,PCB MNT,PLUG,210 CONTACTS,SKT,0.079 PITCH,EDGE MOUNT TERMINAL | Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal |
| Reach Compliance Code | compli | compli | compli | compliant |
| Board mount options | EDGE MOUNT | EDGE MOUNT | EDGE MOUNT | PEG |
| body width | 0.543 inch | 0.543 inch | 0.543 inch | 0.043 inch |
| subject depth | 0.884 inch | 0.884 inch | 0.884 inch | 0.071 inch |
| body length | 4.247 inch | 2.83 inch | 3.302 inch | 0.709 inch |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU-PD-NI ON NI | AU-PD-NI ON NI | AU-PD-NI ON NI | SN |
| Contact point gender | FEMALE | FEMALE | FEMALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | THERMOPLASTIC |
| Manufacturer's serial number | 223004 | 223004 | 223004 | 353 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.039 inch |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 5 | 5 | 5 | 2 |
| Number of rows loaded | 5 | 5 | 5 | 1 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -40 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | STAGGERED |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 3.0988 mm |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT |
| Total number of contacts | 270 | 180 | 210 | 18 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | - |
| Other features | WITH LOCATING POSTS | WITH LOCATING POSTS | WITH LOCATING POSTS | - |
| Body/casing type | PLUG | PLUG | PLUG | - |
| Durability | 250 Cycles | 250 Cycles | 250 Cycles | - |
| maximum insertion force | .695 N | .695 N | .695 N | - |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | - |
| Plating thickness | FLASH inch | FLASH inch | FLASH inch | - |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | - |
| Terminal length | 0.107 inch | 0.107 inch | 0.107 inch | - |
| Evacuation force-minimum value | .1112 N | .1112 N | .1112 N | - |
| Base Number Matches | 1 | 1 | 1 | - |
