2-640623-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-640623-6

2-640623-6: DescriptionTWO PART BOARD CONNECTOR; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-640623-6 Overview

TWO PART BOARD CONNECTOR

2-640623-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	FEED THRU, LOOSE PIECE PKG.
body width	0.305 inch
subject depth	0.52 inch
body length	2.6 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	25 Cycles
maximum insertion force	8.896 N
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	80u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	26
Maximum wire diameter	22 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	3.614 N
Base Number Matches	1

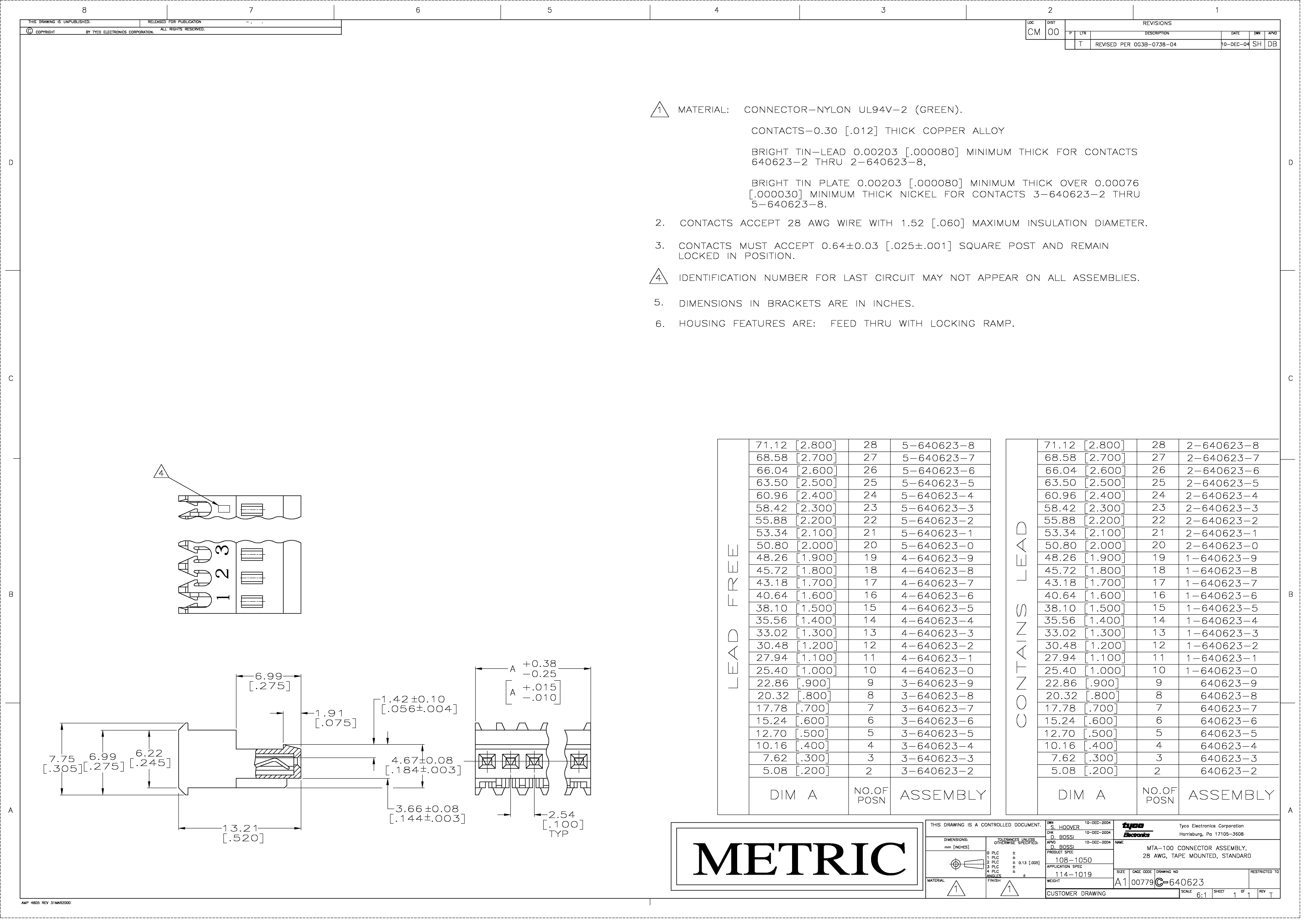

Preview

Download Datasheet

View All

2-640623-6 Related Products

	2-640623-6	2-640623-1	2-640623-3	2-640623-4	2-640623-5	2-640623-7	8133-431-5322-20	8144-111-6221-20	8144-111-6223-10	640623-8
Description	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	TWO PART BOARD CONNECTOR	D Subminiature Connector, 25 Contact(s), Female and Male, Solder Terminal, Receptacle-plug	D Subminiature Connector, 37 Contact(s), Male and Male, Solder Terminal, Plug-plug	D Subminiature Connector, 37 Contact(s), Male and Male, Solder Terminal, Plug-plug	TWO PART BOARD CONNECTOR
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FEED THRU, LOOSE PIECE PKG.	FEED THRU, LOOSE PIECE PKG.	FEED THRU, LOOSE PIECE PKG.	FEED THRU, LOOSE PIECE PKG.	FEED THRU, LOOSE PIECE PKG.	FEED THRU, LOOSE PIECE PKG.	OTHER STACKING CONNECTOR: 25 CONTACTS, 3/B SHELL SIZE	OTHER STACKING CONNECTOR: 37 CONTACTS, 4/C SHELL SIZE	OTHER STACKING CONNECTOR: 37 CONTACTS, 4/C SHELL SIZE	FEED THRU, LOOSE PIECE PKG.
body width	0.305 inch	0.305 inch	0.305 inch	0.305 inch	0.305 inch	0.305 inch	1.394 inch	1.119 inch	1.119 inch	0.305 inch
subject depth	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.52 inch	0.77 inch	0.77 inch	0.77 inch	0.52 inch
body length	2.6 inch	2.1 inch	2.3 inch	2.4 inch	2.5 inch	2.7 inch	2.091 inch	2.732 inch	2.732 inch	0.8 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	RECEPTACLE-PLUG	RECEPTACLE-PLUG	RECEPTACLE-PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE AND MALE	MALE AND MALE	MALE AND MALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	STAGGERED	STAGGERED	STAGGERED	RECTANGULAR
Contact resistance	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	20 mΩ	20 mΩ	20 mΩ	6 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	2100VAC V	2100VAC V	2100VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN	GREEN	GREEN	BLUE	BLUE	BLUE	GREEN
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER	NYLON
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.109 inch	0.109 inch	0.109 inch	0.1 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	CABLE
Number of rows loaded	1	1	1	1	1	1	2+2	2+2	2+2	1
Plating thickness	80u inch	80u inch	80u inch	80u inch	80u inch	80u inch	15u inch	15u inch	10u inch	80u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	3 A	3 A	3 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	CUL; UL	CUL; UL	CUL; UL	UL, CSA
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	SOLDER	SOLDER	SOLDER	IDC
Total number of contacts	26	21	23	24	25	27	50	74	74	8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	-	incompatible
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-	-	-	PREASSEM CONN
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	-	-	-	SN
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	-	-	Tin (Sn)
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-	-	COPPER ALLOY
Durability	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	25 Cycles	-	-	-	25 Cycles
maximum insertion force	8.896 N	8.896 N	8.896 N	8.896 N	8.896 N	8.896 N	-	-	-	8.896 N
JESD-609 code	e3	e3	e3	e3	e3	e3	-	-	-	e3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	-	-	-	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-	-55 °C
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	-	COMMERCIAL
Maximum wire diameter	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	22 AWG	-	-	-	22 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	-	-	-	28 AWG
Evacuation force-minimum value	3.614 N	3.614 N	3.614 N	3.614 N	3.614 N	3.614 N	-	-	-	3.614 N
Base Number Matches	1	1	1	1	1	1	-	-	-	-
