FC*: Straight plug, cable collet and safety locking ring
2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
D17: 15.6 - 17.5 mm
Performance
Configuration
Insulator
Rated Current
5B.310 : 10 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
20 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 3 mm (0.118in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 2.7 mm (0.106in)
Max. Solid Conductor: 4 mm^2 (AWG 10)
Max. Stranded Conductor: 4 mm^2 (AWG 12)
R (max): 3.1 mOhm
Vtest (contact-shell): 2300 V (AC), 3250 V (DC)
Vtest (contact-contact): 2350 V (AC), 3320 V (DC)
Others
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

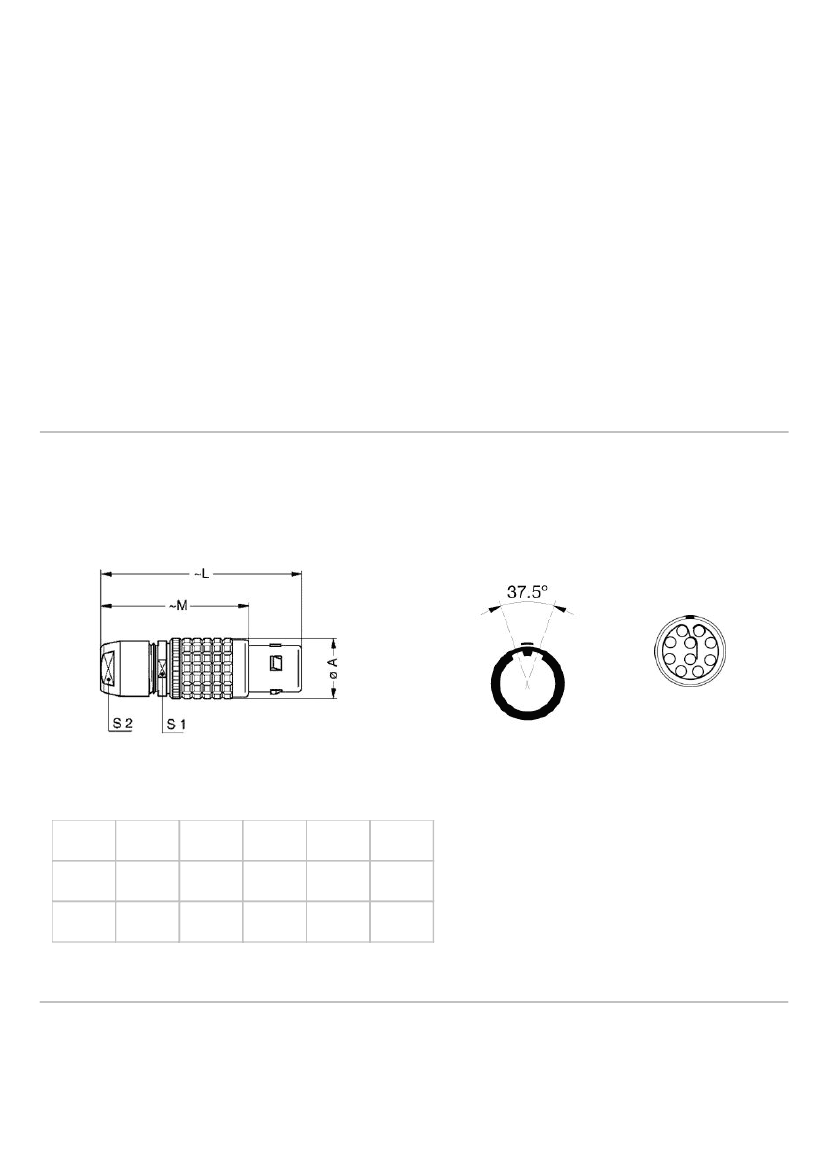

DRAWINGS
Draws
Dimensions
A
mm.
in.
35
1,38
L
103
4,06
M
78
3,07
S1
31
1,22
S2
30
1,18
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
None
Cables
