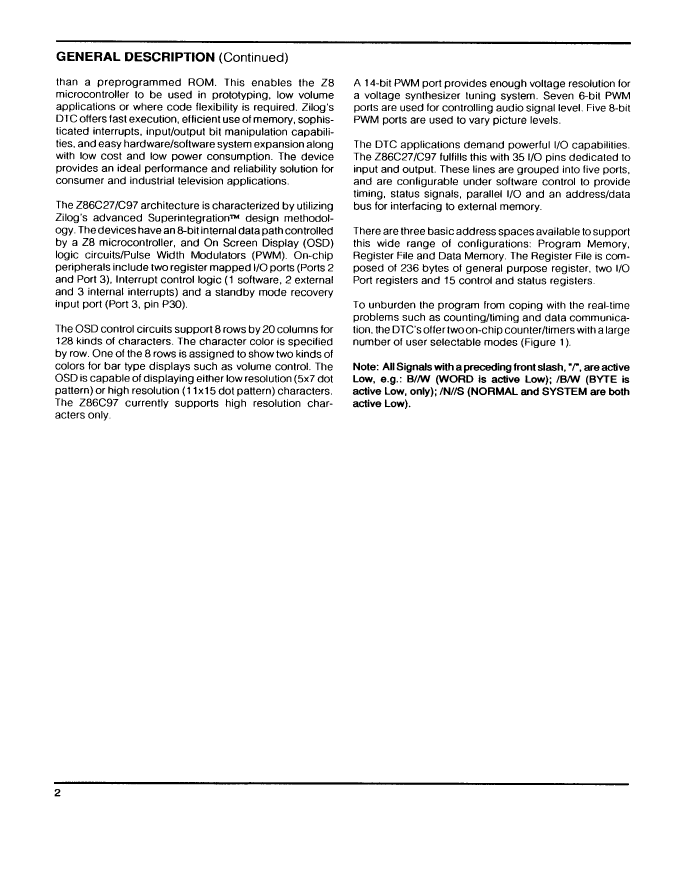

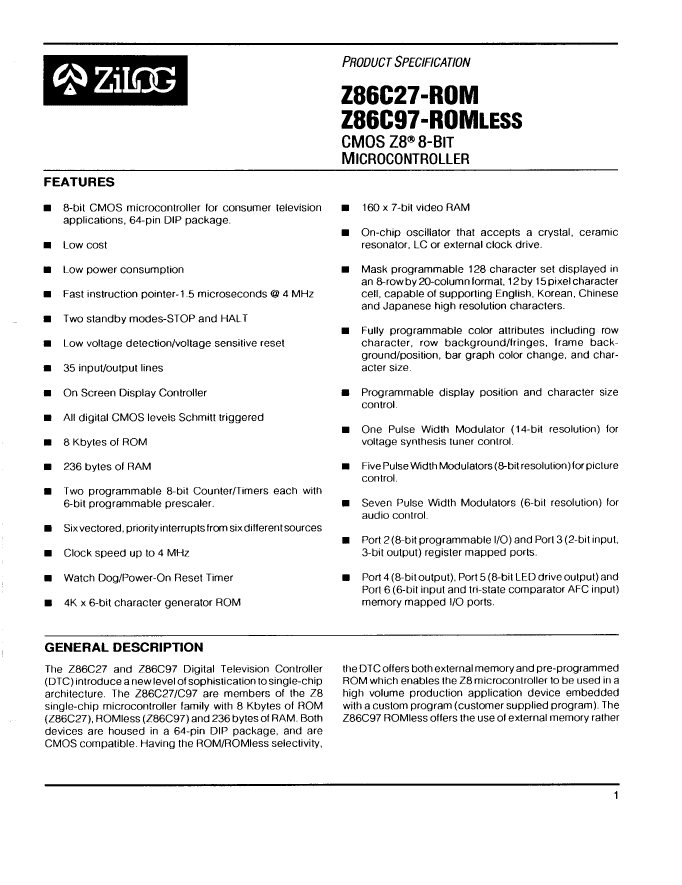

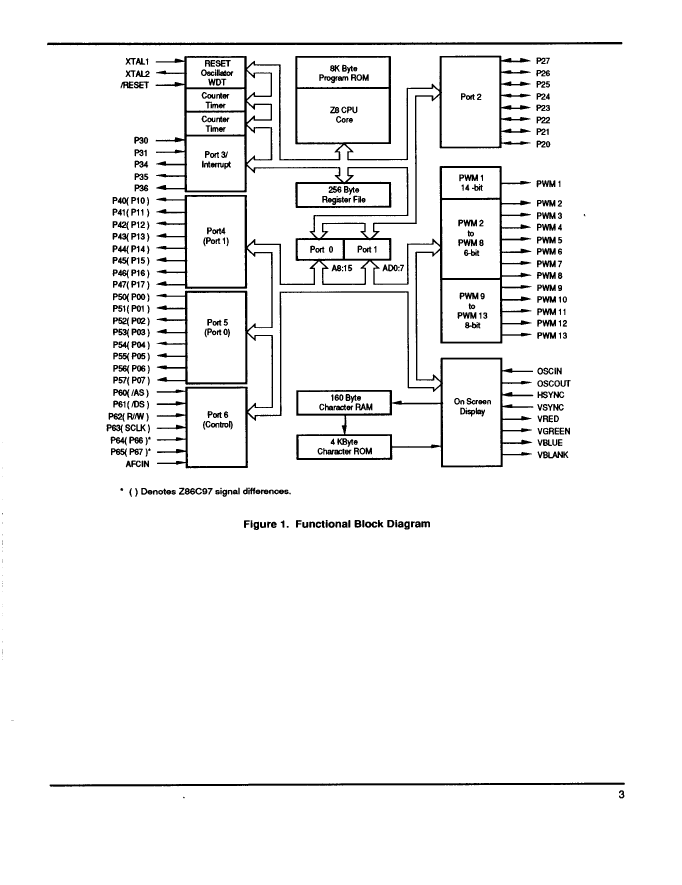

Microcontroller, 8-Bit, Z8 CPU, 4MHz, CMOS, PDIP64, PLASTIC, DIP-64

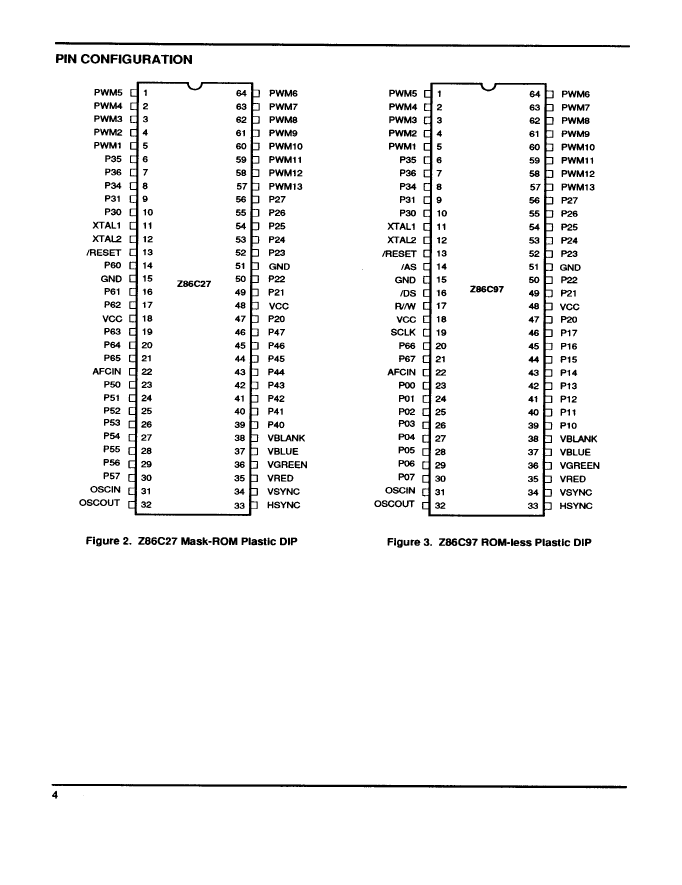

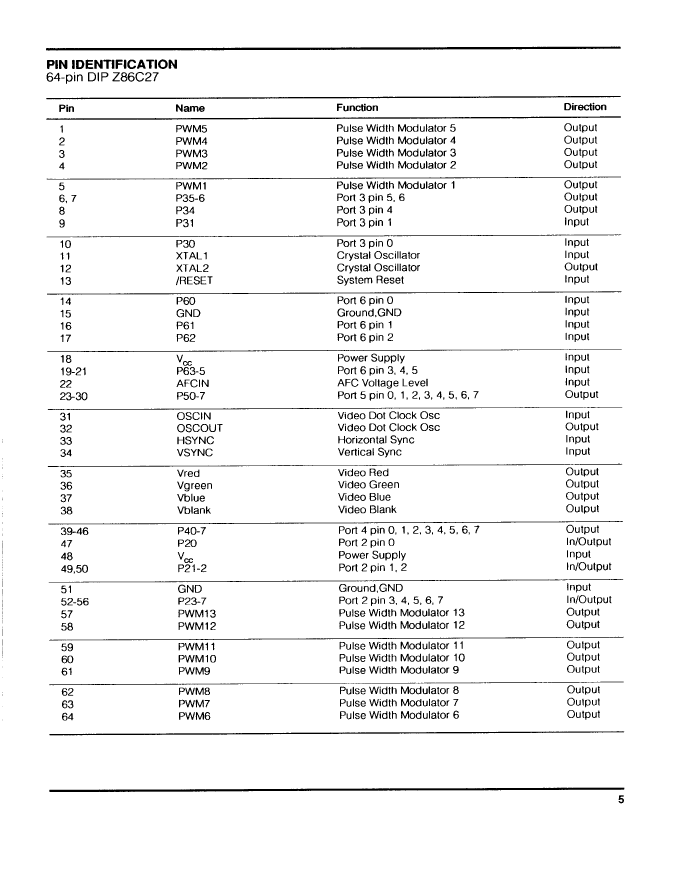

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Zilog, Inc. |
| Parts packaging code | DIP |
| package instruction | SDIP, SDIP64,.75 |
| Contacts | 64 |
| Reach Compliance Code | unknown |
| Has ADC | NO |
| Other features | 4K X 6 CHARACTER GENERATOR ROM; 160 X 7 VIDEO RAM |
| Address bus width | 16 |
| bit size | 8 |
| boundary scan | NO |
| CPU series | Z8 |
| maximum clock frequency | 4 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | R-PDIP-T64 |
| JESD-609 code | e0 |
| length | 57.785 mm |
| low power mode | YES |
| Number of DMA channels | |
| Number of external interrupt devices | 2 |
| Number of I/O lines | 31 |
| Number of serial I/Os | |
| Number of terminals | 64 |
| Number of timers | 2 |
| On-chip data RAM width | 8 |
| On-chip program ROM width | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | YES |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SDIP |
| Encapsulate equivalent code | SDIP64,.75 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE, SHRINK PITCH |
| power supply | 5 V |
| Certification status | Not Qualified |
| RAM (bytes) | 236 |
| RAM (number of words) | 236 |
| rom(word) | 0 |
| Maximum seat height | 5.01 mm |
| speed | 4 MHz |
| Maximum slew rate | 20 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 1.778 mm |
| Terminal location | DUAL |
| width | 19.05 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Z86C9704PSC | Z86C2704PSC | |
|---|---|---|
| Description | Microcontroller, 8-Bit, Z8 CPU, 4MHz, CMOS, PDIP64, PLASTIC, DIP-64 | Microcontroller, 8-Bit, MROM, Z8 CPU, 4MHz, CMOS, PDIP64, PLASTIC, DIP-64 |
| Is it Rohs certified? | incompatible | incompatible |
| Maker | Zilog, Inc. | Zilog, Inc. |
| Parts packaging code | DIP | DIP |
| package instruction | SDIP, SDIP64,.75 | SDIP, SDIP64,.75 |
| Contacts | 64 | 64 |
| Reach Compliance Code | unknown | unknown |
| Has ADC | NO | NO |
| Other features | 4K X 6 CHARACTER GENERATOR ROM; 160 X 7 VIDEO RAM | 4K X 6 CHARACTER GENERATOR ROM; 160 X 7 VIDEO RAM |
| bit size | 8 | 8 |
| boundary scan | NO | NO |
| CPU series | Z8 | Z8 |
| maximum clock frequency | 4 MHz | 4 MHz |
| DAC channel | NO | NO |
| DMA channel | NO | NO |
| Format | FIXED POINT | FIXED POINT |
| Integrated cache | NO | NO |
| JESD-30 code | R-PDIP-T64 | R-PDIP-T64 |
| JESD-609 code | e0 | e0 |
| length | 57.785 mm | 57.785 mm |
| low power mode | YES | YES |
| Number of external interrupt devices | 2 | 2 |
| Number of I/O lines | 31 | 35 |
| Number of terminals | 64 | 64 |
| Number of timers | 2 | 2 |
| On-chip data RAM width | 8 | 8 |
| Maximum operating temperature | 70 °C | 70 °C |
| PWM channel | YES | YES |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SDIP | SDIP |
| Encapsulate equivalent code | SDIP64,.75 | SDIP64,.75 |
| Package shape | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE, SHRINK PITCH | IN-LINE, SHRINK PITCH |
| power supply | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified |
| RAM (bytes) | 236 | 236 |
| RAM (number of words) | 236 | 236 |
| Maximum seat height | 5.01 mm | 5.01 mm |
| speed | 4 MHz | 4 MHz |
| Maximum slew rate | 20 mA | 20 mA |
| Maximum supply voltage | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V |
| surface mount | NO | NO |
| technology | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 1.778 mm | 1.778 mm |
| Terminal location | DUAL | DUAL |
| width | 19.05 mm | 19.05 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | MICROCONTROLLER |
