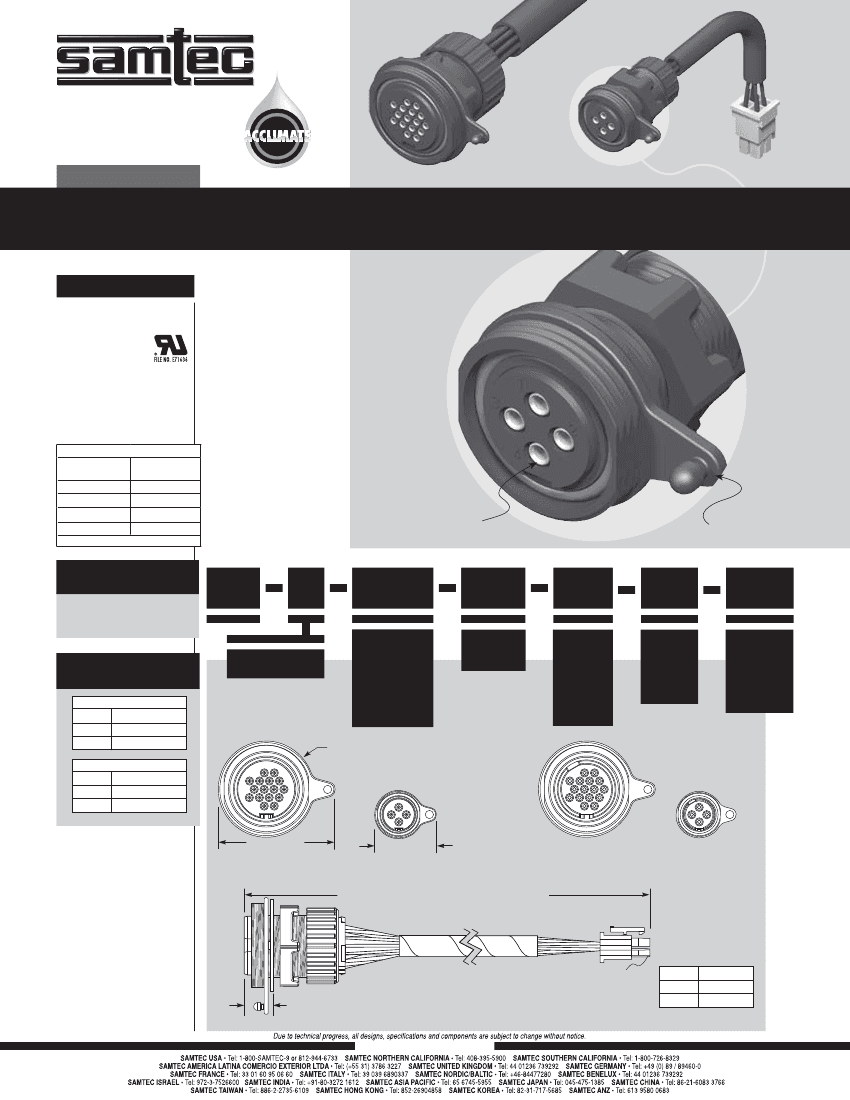

F-212 SUPPLEMENT
TM
SCR1 SERIES
SCR1–17–16–T–00.25–S–S1
SCR1–10–04–T–00.25–S–S1
IP68 SEALED POWER RECEPTACLE
SPECIFICATIONS
For complete specifications and
recommended panel hole layout
see www.samtec.com?SCR1
Insulator Material:
PBT
Panel & Board
Contacts:
Phosphor Bronze
Terminal Material:
Brass Alloy
Wire:
22 AWG
RoHS Compliant:
Yes
CURRENT RATING
AMBIENT
SCP1-10/
TEMP
SCR1-10
20°C
9.2A
40°C
8.0A
60°C
6.6A
75°C
5.6A
4 POSITIONS POWERED
Mates with:
SCP1, IPBT (2 x 8 positions,
2 x 2 positions)
Meets IP68
requirements
for dust and
waterproof
sealing
4 or 16
positions
Dust caps
also available
APPLICATION
SPECIFIC
Single ended and custom
wire lengths available.
Call Samtec.
SCR1
SIZE
NO. OF
POSITIONS
PLATING
WIRE
LENGTH
END 1
OPTION
END 2
OPTION
–04
ALSO
AVAILABLE
DUST CAPS
SIZE
SCRX
–T
= Tin
–00.25
= (0,25m)
9.84"
–S
= Socket
–S1
= Socket
Power Mate
®
–10, –17
= 04 Positions
(Size –10 only)
–16
= 16 Positions
(Size –17 only)
(39,90)
1.571
DIA
–00.50
= (0,50m)
19.68"
–T
= Terminal
–BC
= Blunt Cut
–10
–17
DCA-10-01
DCA-17-01
PANEL PLUGS
SIZE
SCRX
–10
–17
SCPPA-10-01
SCPPA-17-01
(48,45) 1.907
–17 SOCKET
(31,80) 1.252
–17 TERMINAL
–10 TERMINAL
–10 SOCKET
Assembled Length = Wire Length + (26,80) 1.055
See PMSD
Series
A
SIZE
A
(9,5) .374
(12,7) .50
–10
–17
Note:
This Series is
non-standard, non-returnable.
Cable shipped with panel mount hardware but not assembled.
WWW.SAMTEC.COM
