Precision modular connectors to suit your application
Since its creation in Switzerland in 1946 the LEMO Group has been recognized as a global leader of circular Push-Pull
connectors and connector solutions. Today LEMO and its affiliated companies, REDEL and COELVER, are active in more
than 80 countries with the help of over 40 subsidiaries and distributors.

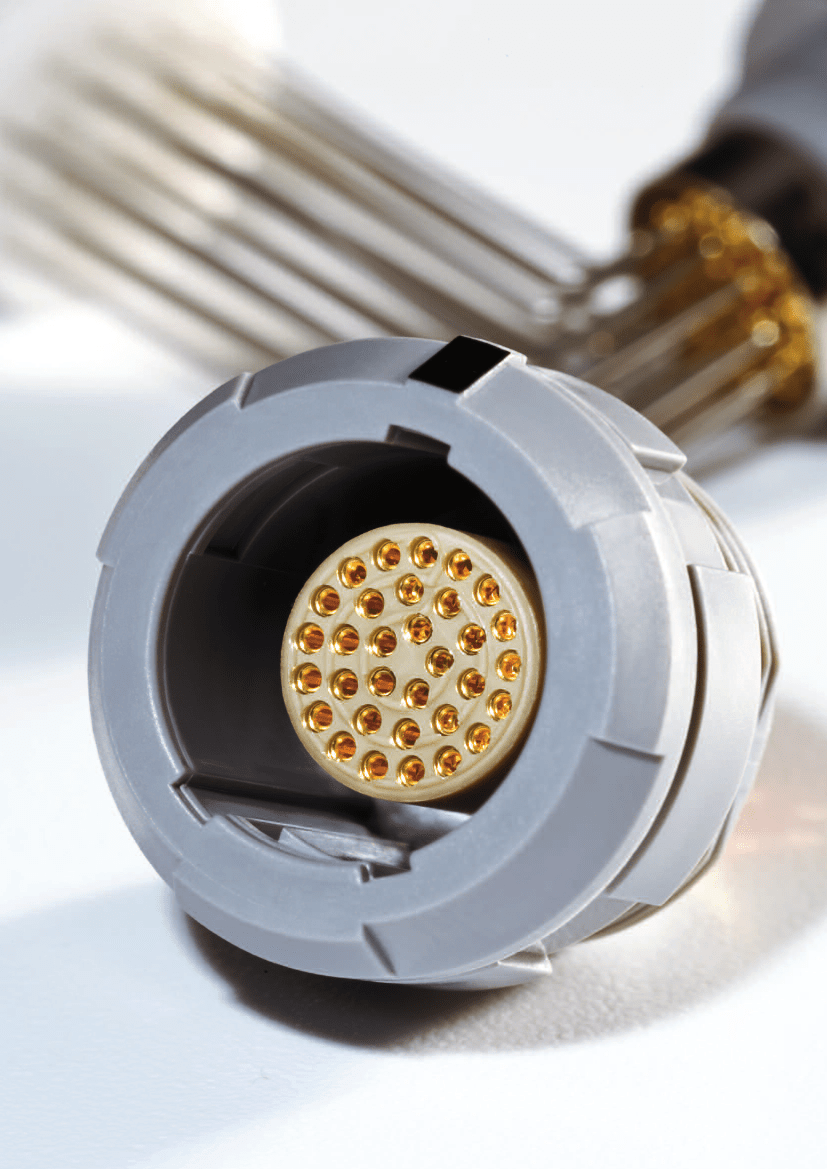

Over 5’000 REDEL connectors
The modular design of the REDEL range provides over 5’000 connectors from ø 14 mm to ø 21 mm, capable of handling
cable diameters up to 9.5 mm and up to 32 contacts.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets,
including medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and
military.
REDEL’s Push-Pull Self-Latching Connection System
This self-latching system is renowned worldwide for its easy and quick mating and unmating features. It provides absolute
security against vibration, shock or pull on the cable, and facilitates operation in a very limited space.
The REDEL self-latching system allows the
connector to be mated by simply pushing
the plug axially into the socket.
Once firmly latched, connection cannot be
broken by pulling on the cable or any other
component part other than the outer release
sleeve.
When required, the connector is disengaged
by a single axial pull on the outer release
sleeve. This first disengages the latches and
then withdraws the plug from the socket.
UL Recognition
®

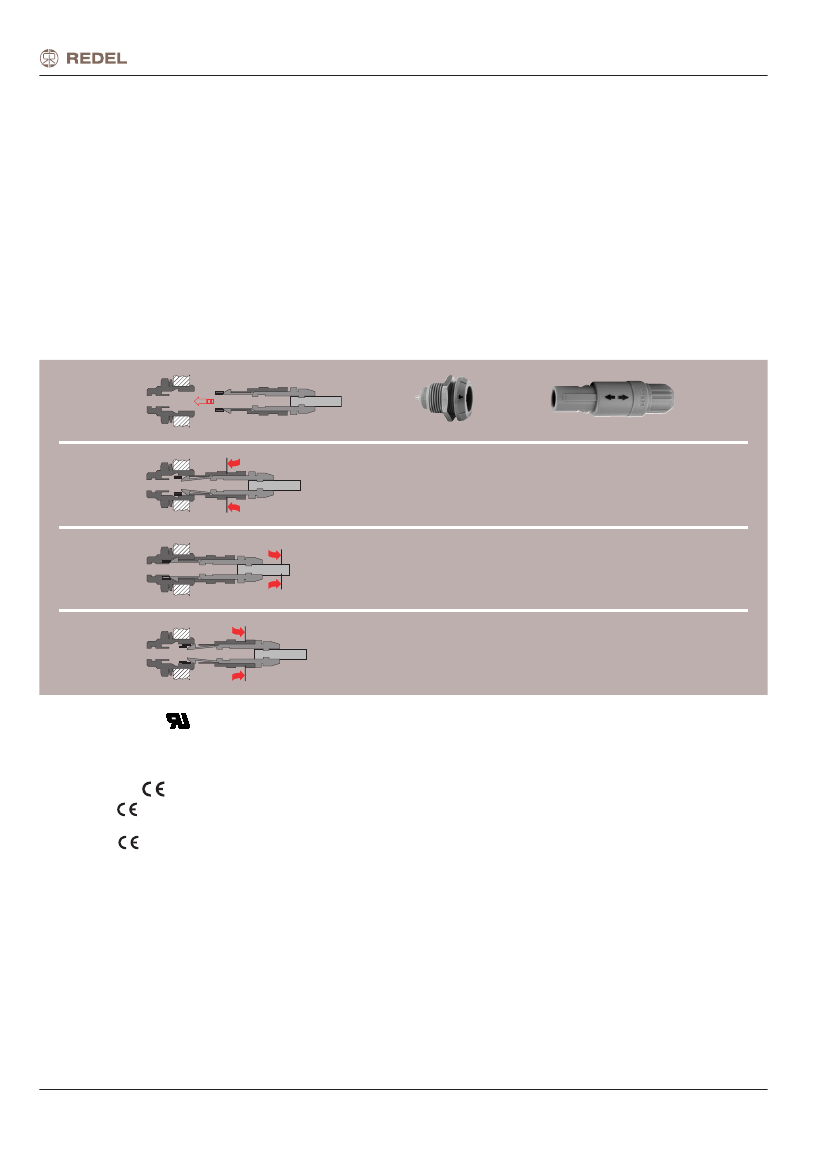

REDEL connectors are recognized by the Underwriters Laboratories (UL). The approval of the complete system (REDEL
connector, cable and your equipment) will be easier because REDEL connectors are approved.
CE Marking
CE marking
means that the appliance or equipment bearing it complies with the protection requirements of one or
several European safety directives.
CE marking
applies to complete products or equipment,
but not to electromechanical components, such as
connectors.
RoHS
REDEL connector specifications exceed the requirements of the RoHS directives (2011/65/EU) of the European Parliament
and the latest amendments. This directive specifies the restrictions of the use of hazardous substances in electrical and
electronic equipment marketed in Europe.
2
REDEL connector range
The REDEL connectors are plastic Push-Pull connectors. These circular plastic connectors are especially adapted for
applications such as medical electronics and test & measurement. REDEL offers a wide choice of connectors with various
contact configurations: multipole contacts, coaxial, fibre optics and fluidic connectors. In addition, a range of one time use
connectors and connectors for mains power is available. The REDEL connectors are available in 3 sizes, depending on the
cable diameter.
Features & Benefits
●
Aesthetically pleasing design
●
Lightweight
●
Plastic shell made of PSU or PEI
●
Extensive sterilisation (over 100 cycles)
●
Excellent electrical safety (touch & scoop proof)
●
Wide choice of colours for easy identification
(grey, blue, yellow, black, red, green and white)
●
Large choice of keying to avoid cross mating
●
Various contact types: solder, crimp, print
and elbow print 90º
●
Disposable models
Applications
●
Medical electronics
●
Test and measurement
●
Industrial electronics
●
Automotive

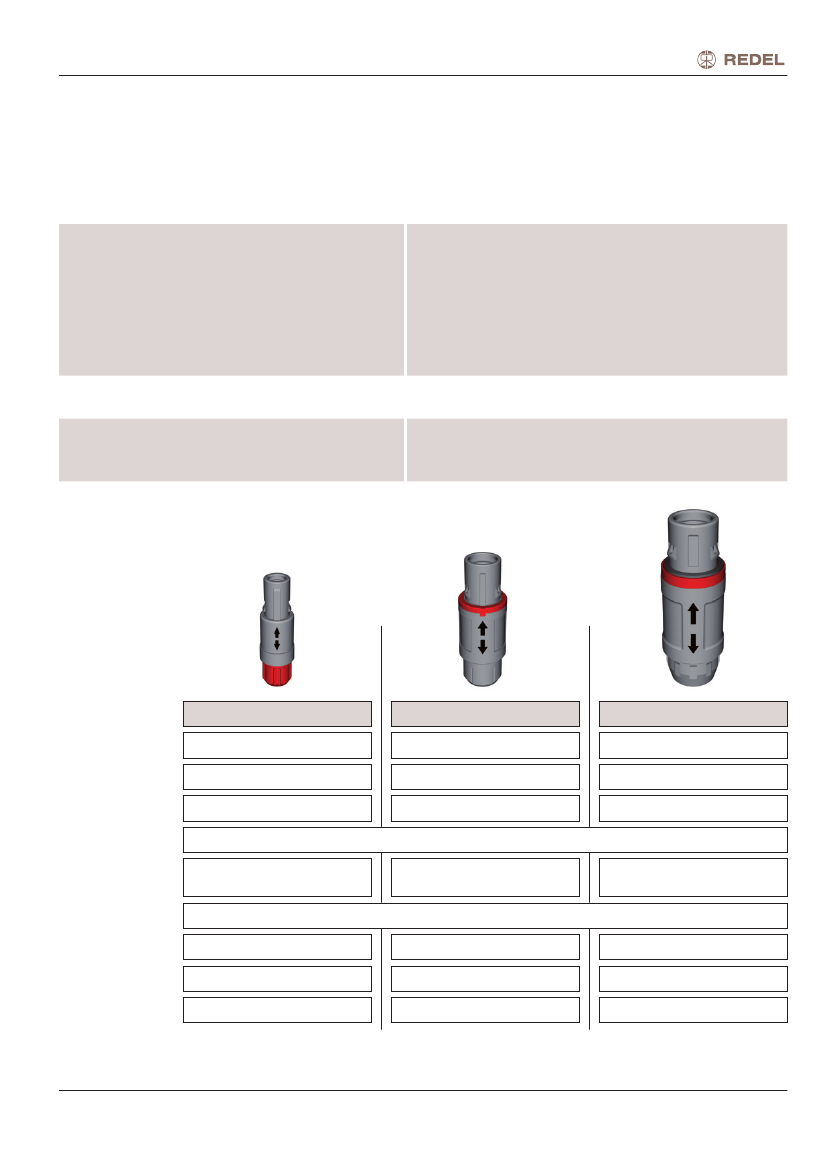

Series
Environment
Ingress
1)
protection
Temperature
range
Latching
1P
indoor / splash proof
IP50 / IP64
PSU: -50°/ +150°C
PEI: -50°/ +170°C
2P
indoor / outdoor
IP50 / IP66
PSU: -50°/ +150°C
PEI: -50°/ +170°C
Push-Pull self latching
Multipole, Hybrid: fluidic +
LV, coaxial + LV
Solder, crimp or print
3P
indoor / dripping water
IP61
PSU: -50°/ +150°C
Insulator type
Contact type
Other
Cable diameter
Features
Multipole, Mains Power, Fluidic
Multipole, Hybrid: high voltage +
LV, coaxial + LV, fibre optic + LV,
fluidic + LV
Disposable models
2.7 mm to 6.5 mm
6 keyways
Note:
1)
-
3.2 mm to 9.2 mm
3 keyways
-
6.7 mm to 9.5 mm
Insert Polarizations
mated connector.
3
