IDT54AHCT182LB datasheet, PDF - EEWORLD Datasheet

IDT54AHCT182LB: DescriptionLook-Ahead Carry Generator, CMOS, CQCC20; Categorylogic logic; File Size212KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT54AHCT182LB Overview

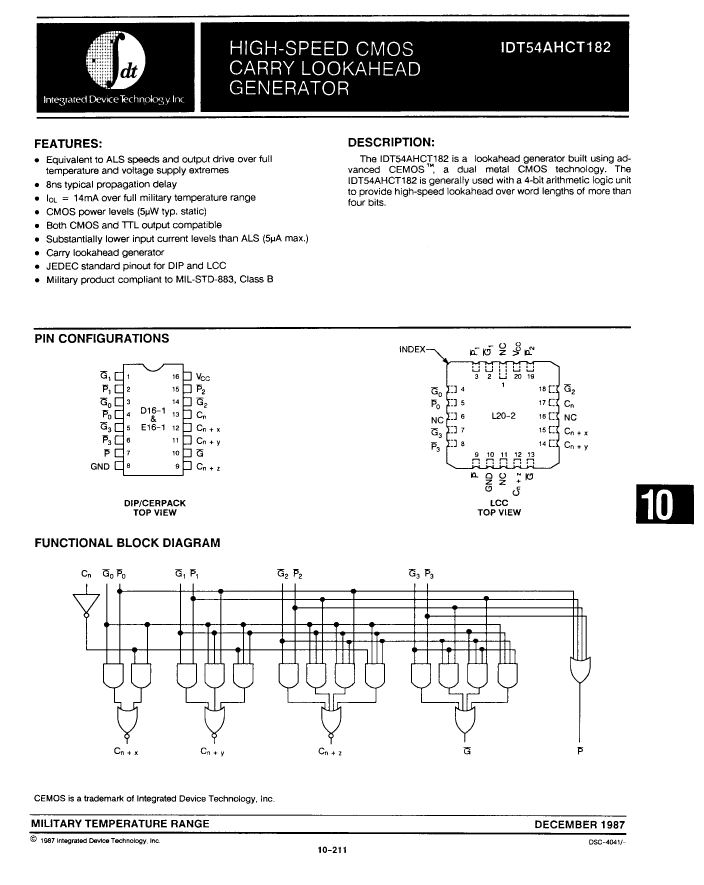

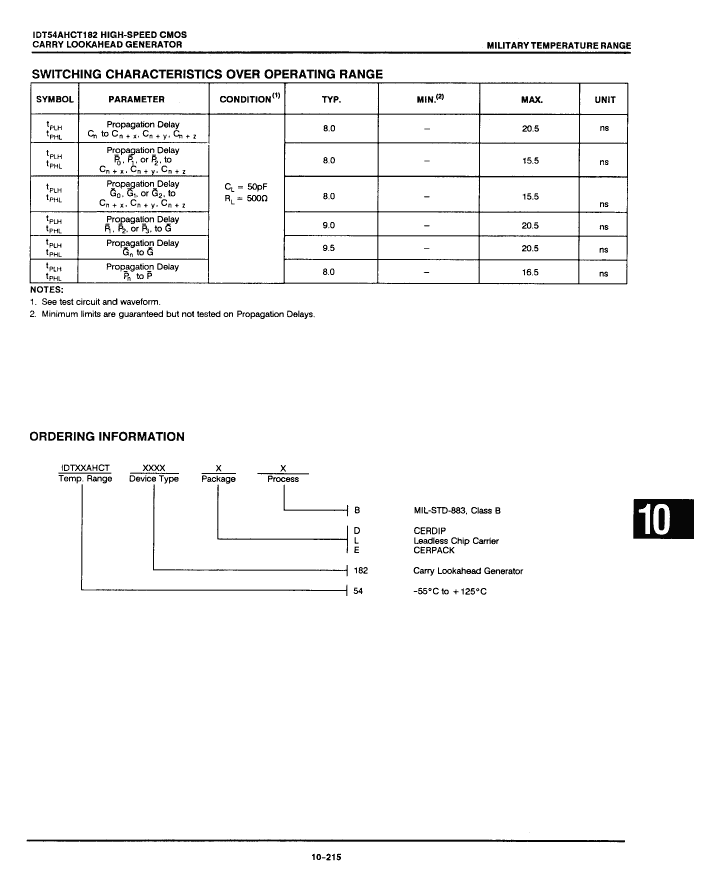

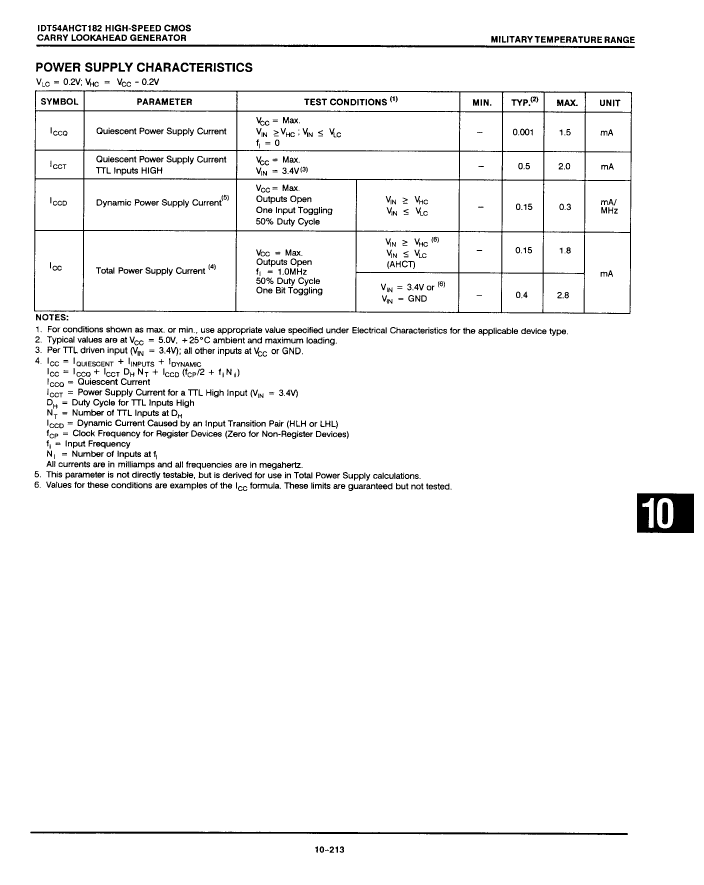

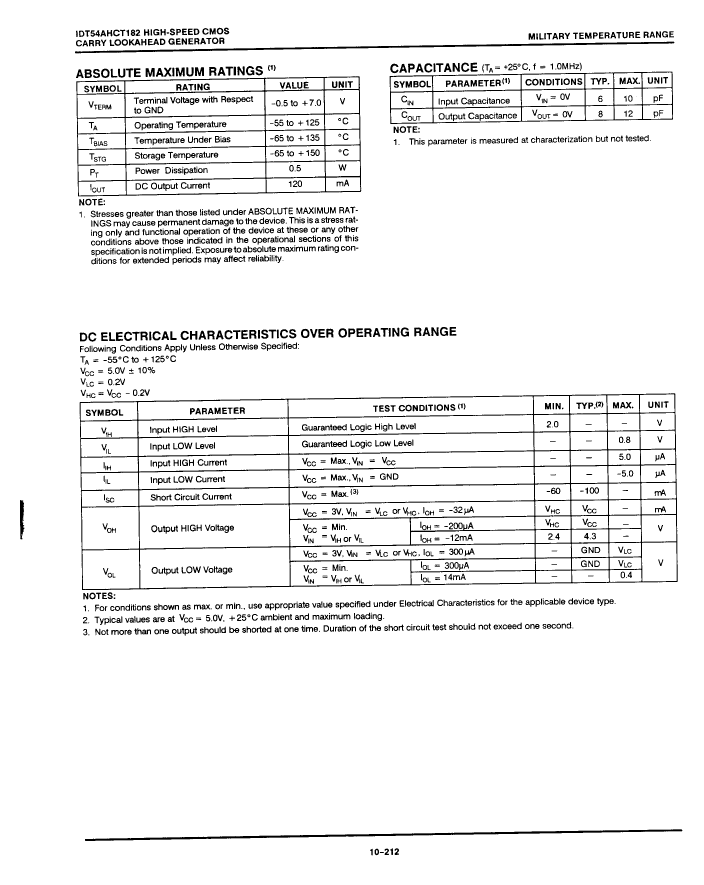

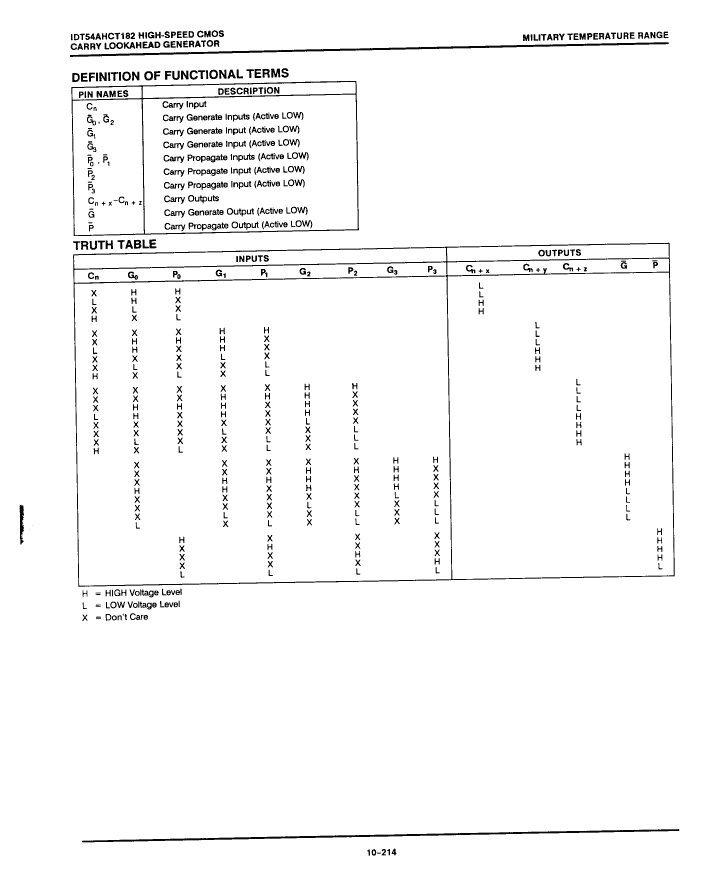

Look-Ahead Carry Generator, CMOS, CQCC20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	LOOK-AHEAD CARRY GENERATOR
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

	IDT54AHCT182LB	IDT54AHCT182DB	A28JH-GA
Description	Look-Ahead Carry Generator, CMOS, CQCC20	Look-Ahead Carry Generator, CMOS, CDIP16	General Specifications
Is it Rohs certified?	incompatible	incompatible	-
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-
Reach Compliance Code	not_compliant	not_compliant	-
JESD-30 code	S-XQCC-N20	R-XDIP-T16	-
JESD-609 code	e0	e0	-
Logic integrated circuit type	LOOK-AHEAD CARRY GENERATOR	LOOK-AHEAD CARRY GENERATOR	-
Number of terminals	20	16	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC	CERAMIC	-
encapsulated code	QCCN	DIP	-
Encapsulate equivalent code	LCC20,.35SQ	DIP16,.3	-
Package shape	SQUARE	RECTANGULAR	-
Package form	CHIP CARRIER	IN-LINE	-
power supply	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	-
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
Nominal supply voltage (Vsup)	5 V	5 V	-
surface mount	YES	NO	-
technology	CMOS	CMOS	-
Temperature level	MILITARY	MILITARY	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	NO LEAD	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	-
Terminal location	QUAD	DUAL	-
