2-794666-0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2-794666-0

Preview

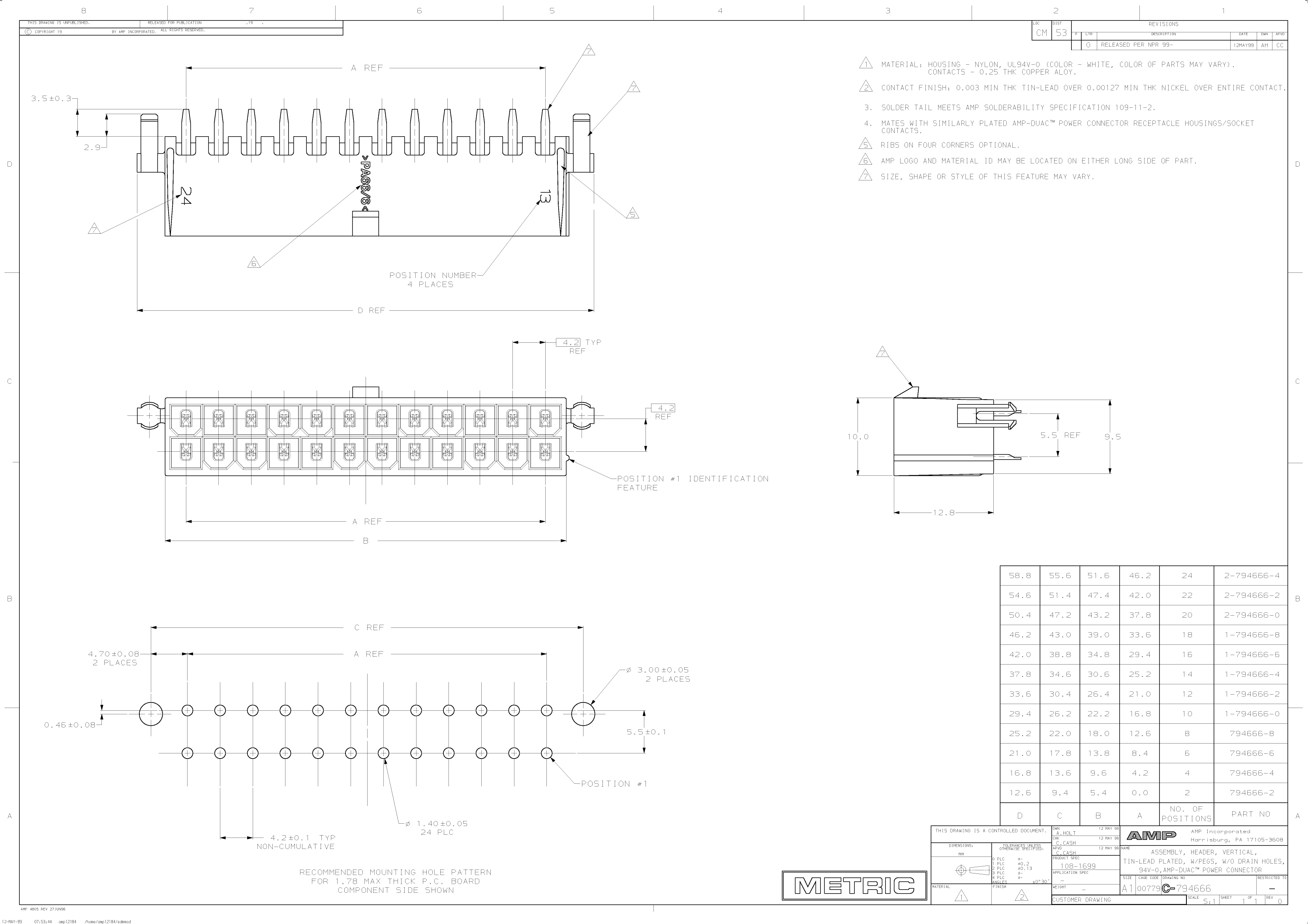

2-794666-0: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,0+20 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

2-794666-0 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,0+20 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE

2-794666-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Board mount options	PEG
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	794666
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	0+20
Base Number Matches	1

Preview

Download Datasheet

View All

2-794666-0 Related Products

	2-794666-0	2-794666-2	2-794666-4	794666-8	794666-6	NRWY221M6.3V5X11TRF	NRWY221M6.3V5X11TRSTF
Description	HEADER CONNECTOR,PCB MNT,RECEPT,0+20 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+22 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+24 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+8 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	HEADER CONNECTOR,PCB MNT,RECEPT,0+6 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 220uF, Through Hole Mount, 5 MML RADIAL LEADED, CAN, ROHS COMPLIANT	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 6.3V, 220uF, THROUGH HOLE MOUNT, RADIAL LEADED, CAN, ROHS COMPLIANT
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	conform to
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	compliant	compliant
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Board mount options	PEG	PEG	PEG	PEG	PEG	-	-
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	-
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	-
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	SN-PB	SN-PB	-	-
Contact completed and terminated	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	TIN/LEAD	-	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	-	-
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	-	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	-	-
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	-
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	-	-
insulator material	NYLON	NYLON	NYLON	POLYAMIDE	POLYAMIDE	-	-
Plug contact pitch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	-	-
Match contact row spacing	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.165 inch	-	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	-
Number of connectors	ONE	ONE	ONE	ONE	ONE	-	-
PCB row number	2	2	2	2	2	-	-
Number of rows loaded	2	2	2	2	2	-	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-
PCB contact row spacing	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	-	-
Rated current (signal)	9 A	9 A	9 A	9 A	9 A	-	-
Guideline	UL	UL	UL	UL	UL	-	-
Terminal pitch	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm	-	-
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	-
Total number of contacts	0+20	0+22	0+24	8	6	-	-
Objectid	-	-	-	304082467	304082466	1612022494	1612022495
ECCN code	-	-	-	EAR99	EAR99	EAR99	EAR99
