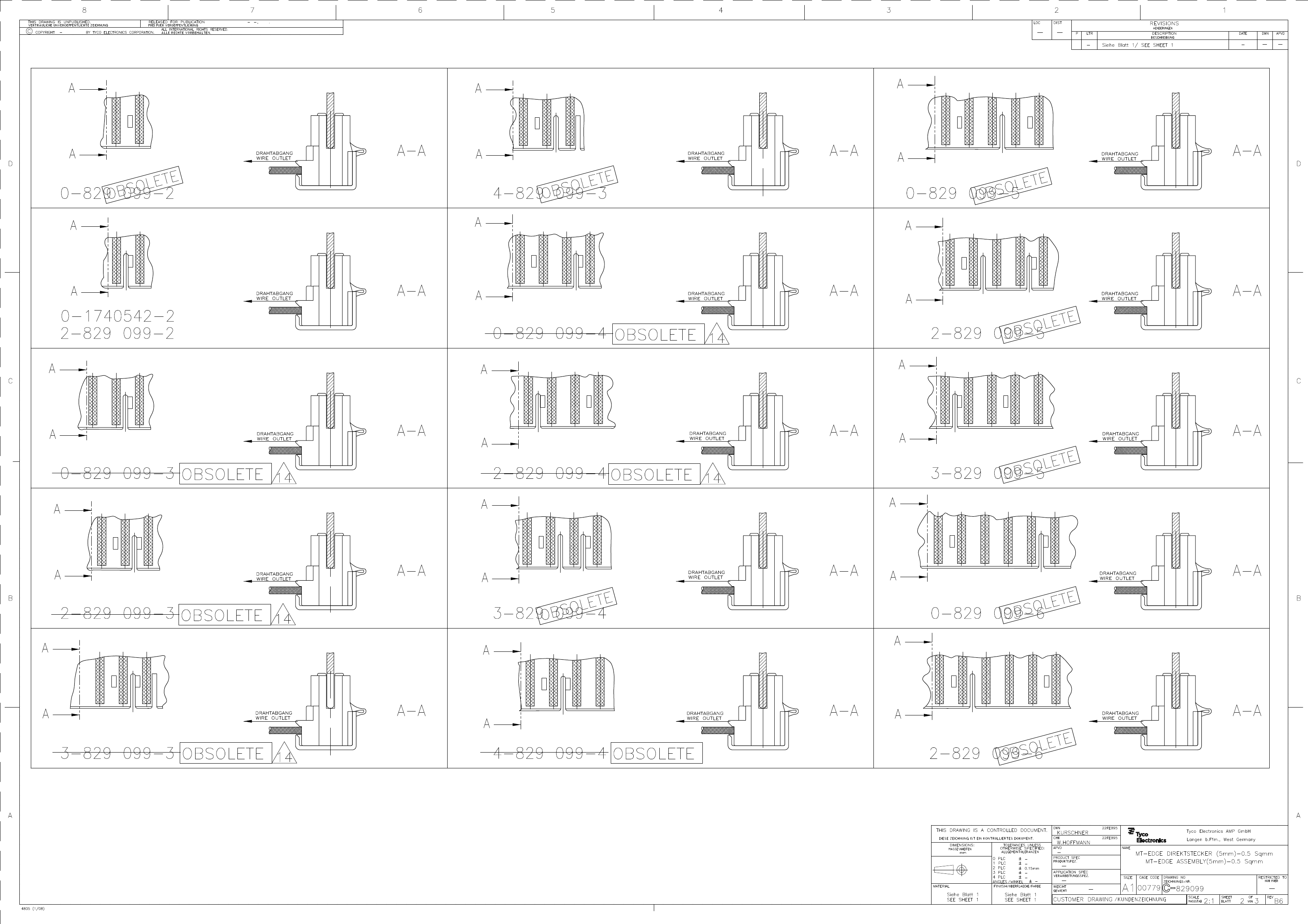

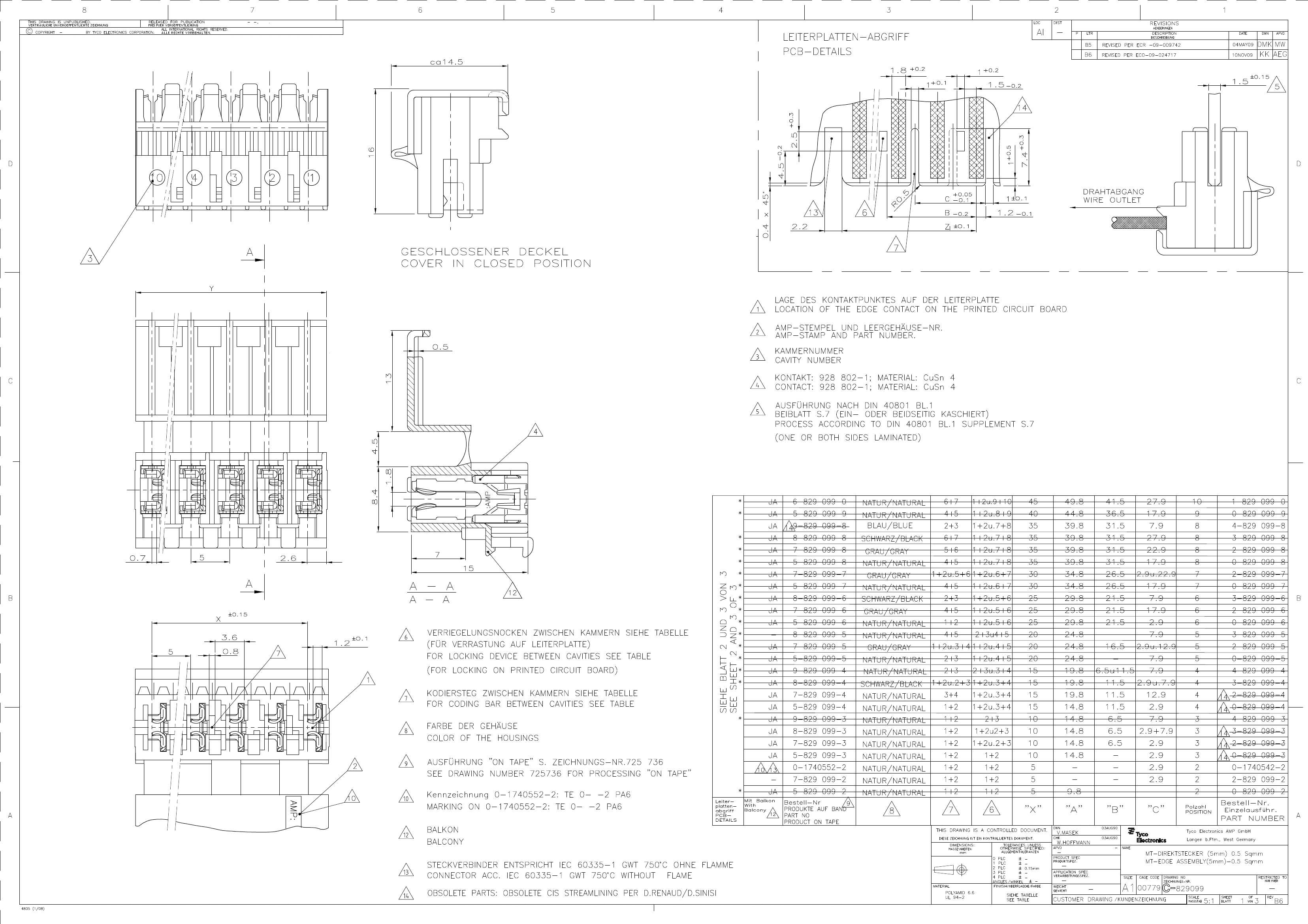

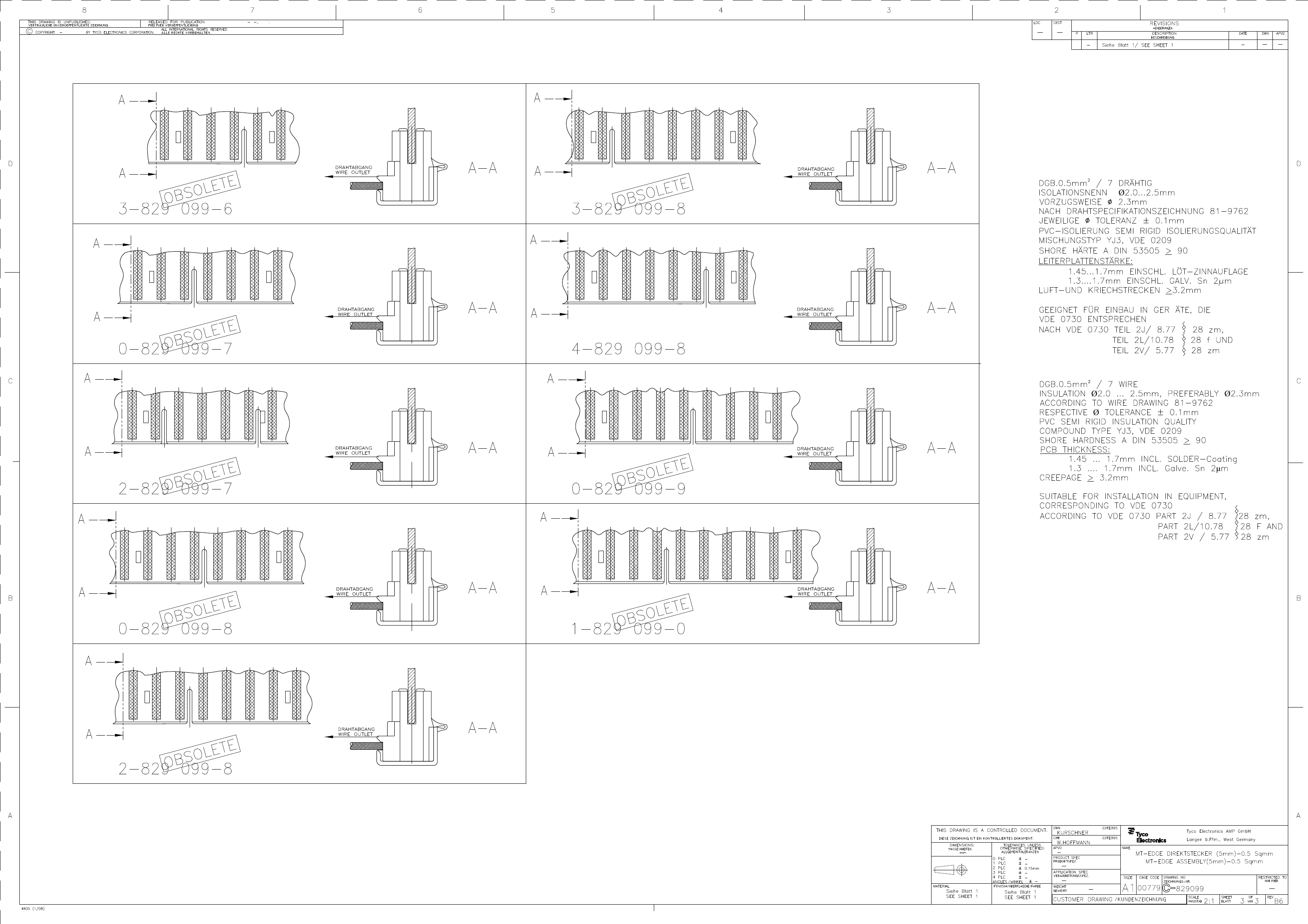

2-829099-2: DescriptionEDGE CONNECTOR,CABLE MNT,4 CONTACTS,2,IDC TERMINAL; CategoryThe connector The connector; File Size590KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2-829099-2 Overview

EDGE CONNECTOR,CABLE MNT,4 CONTACTS,2,IDC TERMINAL

2-829099-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	LOOSE PIECE PACKAGING
Board mount options	EDGE MOUNT
body width	0.571 inch
subject depth	0.63 inch
body length	0.386 inch
Connector type	CARD EDGE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V
maximum insertion force	8.0064 N
Minimum insulation diameter	0.079 inch
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	829099
Plug contact pitch	0.197 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	79u inch
Rated current (signal)	6 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	4
Maximum wire diameter	18 AWG
Minimum wire diameter	20 AWG
Evacuation force-minimum value	3.9198 N
Base Number Matches	1

Preview

Download Datasheet

View All

2-829099-2 Related Products

	2-829099-2	4-829099-8	5-829099-4	7-829099-2	8-829099-3	7-829099-3	7-829099-4
Description	EDGE CONNECTOR,CABLE MNT,4 CONTACTS,2,IDC TERMINAL	8 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, IDC	CONNECTOR, 4 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, IDC	EDGE CONNECTOR,CABLE MNT,4 CONTACTS,2,IDC TERMINAL	EDGE CONNECTOR,CABLE MNT,6 CONTACTS,2,IDC TERMINAL	EDGE CONNECTOR,CABLE MNT,6 CONTACTS,2,IDC TERMINAL	4 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN, IDC
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	unknown	unknown	compliant	compliant	compliant	unknown
Other features	LOOSE PIECE PACKAGING	LOOSE PIECE PACKAGING	POLARIZED	TAPE PACKAGING	TAPE PACKAGING	TAPE PACKAGING	TAPE PACKAGING
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	SN	NOT SPECIFIED	NOT SPECIFIED	SN	SN	SN	NOT SPECIFIED
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Manufacturer's serial number	829099	829099	829099	829099	829099	829099	829099
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	4	8	4	4	6	6	4
Board mount options	EDGE MOUNT	EDGE MOUNT	-	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT	EDGE MOUNT
body width	0.571 inch	0.571 inch	-	0.571 inch	0.571 inch	0.571 inch	0.571 inch
subject depth	0.63 inch	0.63 inch	-	0.63 inch	0.63 inch	0.63 inch	0.63 inch
body length	0.386 inch	1.567 inch	-	0.386 inch	0.583 inch	0.583 inch	0.78 inch
Contactor design	PREASSEM CONN	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	-	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	3500VAC V	3500VAC V	-	3500VAC V	3500VAC V	3500VAC V	3500VAC V
maximum insertion force	8.0064 N	8.0064 N	-	8.0064 N	8.0064 N	8.0064 N	8.0064 N
Minimum insulation diameter	0.079 inch	0.079 inch	-	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Insulator color	NATURAL	BLUE	-	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	POLYAMIDE	POLYAMIDE	-	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
Plug contact pitch	0.197 inch	0.197 inch	-	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
Plating thickness	79u inch	79u inch	-	79u inch	79u inch	79u inch	79u inch
Rated current (signal)	6 A	6 A	-	6 A	6 A	6 A	6 A
Guideline	UL	UL	-	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Maximum wire diameter	18 AWG	18 AWG	-	18 AWG	18 AWG	18 AWG	18 AWG
Minimum wire diameter	20 AWG	20 AWG	-	20 AWG	20 AWG	20 AWG	20 AWG
Evacuation force-minimum value	3.9198 N	3.9198 N	-	3.9198 N	3.9198 N	3.9198 N	3.9198 N
Maker	-	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
