2-794667-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2-794667-2

2-794667-2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,0+22 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE; CategoryThe connector The connector; File Size3MB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

2-794667-2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,0+22 CONTACTS,PIN,0.165 PITCH,PC TAIL TERMINAL,LOCKING,WHITE

2-794667-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Board mount options	PEG
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	NYLON
Manufacturer's serial number	794667
Plug contact pitch	0.165 inch
Match contact row spacing	0.165 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	30u inch
Rated current (signal)	9 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	0+22
Base Number Matches	1

Preview

Download Datasheet

View All

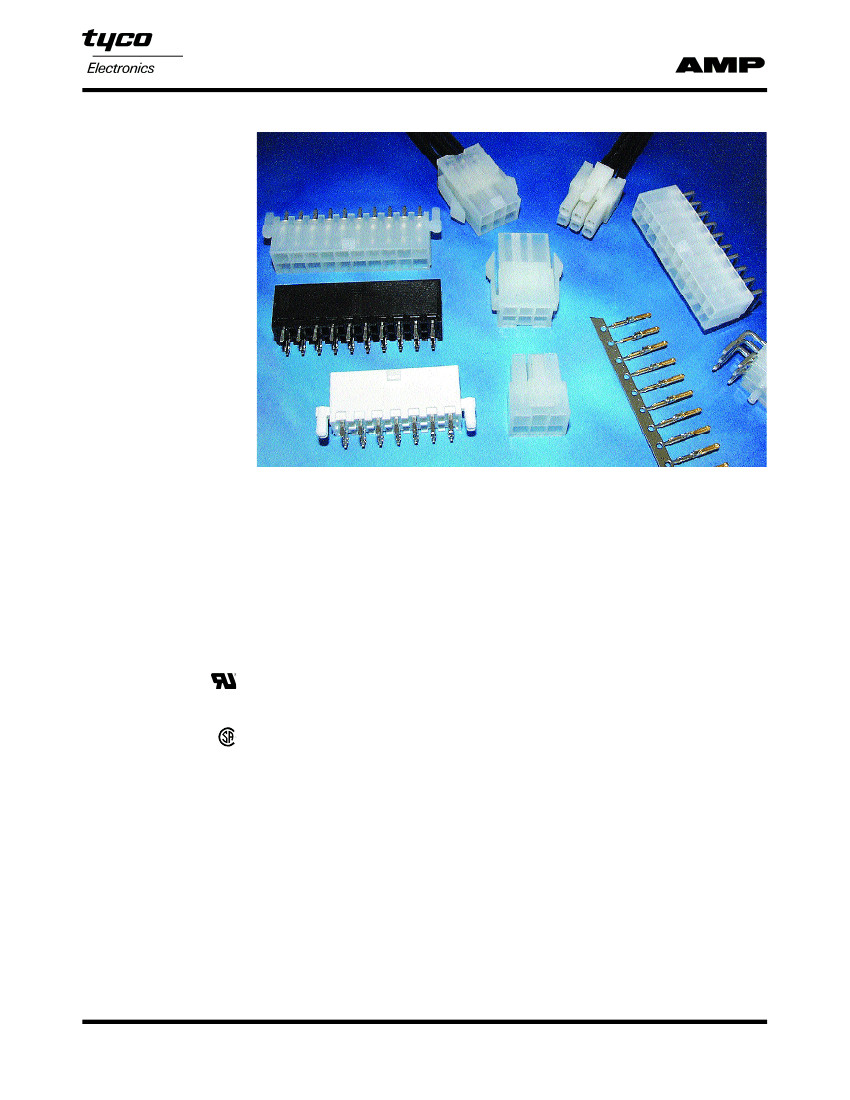

AMP-DUAC Connectors

Product Facts

Wire-to-board and wire-to-

wire connector system

Free hanging or panel

mount plug housings

Vertical header with or

without mounting pegs and

with or without drain holes

Selective loading available

on vertical headers

4.2 mm x 4.2 mm

centerline

Male and female contacts

designed for 26-22 AWG

and 22-18 AWG wire

Receptacle housings accept

female contacts with less

orientation than competi-

tive product

Right-angle headers

Designed for power

applications

Positive latch feature helps

prevent disconnection

AMP-DUAC (dual action)

receptacle contacts

Anti-stubbing contact

design

Polarized housings

Intermateable with Molex

Mini-Fit Jr. connectors

Recognized under

Component Program

of Underwriters

Laboratories Inc.,

File No. E28476

Certified by Canadian

Standards Association,

File No. LR7189

AMP-DUAC Connectors,

for power or signal

applications, belong to the

broad family of Tyco

Electronics Soft Shell

connectors.

The dual action design

of the female receptacle

contact provides for low

insertion force, yet

maintains high-

performance current

capacity. To help meet your

production requirements,

semiautomatic bench

machines and hand tools

are available for strip and

loose piece contacts,

respectively.

High density, 4.2 mm x

4.2 mm [.165 x .165]

centerline, dual-row

receptacle housings mate

with plug housings (free

hanging or panel mount) or

pc board headers (vertical

or right-angle). Selective

contact loading is available

for vertical headers.

All housings are polarized

for easier mating and

locking latches help

maintain reliable

connections.

Catalog 1307012

Revised 9-04

www.tycoelectronics.com

Dimensions are in millimeters

and inches unless otherwise

specified. Values in brackets

are U.S. equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

AMP-DUAC wire-to-board,

wire-to-panel, and wire-to-

wire connectors are

intermateable with Molex

Mini-Fit Jr. series

connectors.

Technical Documents

Product Specifications

108-1699 — Headers

108-19099 — Receptacles

Application Specifications

114-6067 — Crimping Contacts

114-19048 — Use of Receptacles

Qualification Test Report

501-434

Need more information?

Call Technical Support.

Technical Support is staffed

with specialists well versed

in Tyco Electronics products.

They can provide you with:

Technical support

Catalogs

Technical Documents

Product Samples

Tyco Electronics Authorized

Distributor Locations

Performance Data

Voltage Rating

— 600 VAC

Current Rating

— 9 amps maximum

in 2 position applications

Low Level Resistance

—

10 megohms max.

Dielectric Withstanding Voltage

— 1500 VAC/min.

Insulation Resistance

—

1000 megohms minimum

Operating Temperature

—

–55°C to +105°C [-67°F to +221°F]

AMP, AMP-DUAC, AMP-O-LECTRIC,

AMP-O-MATIC, and TYCO are trade-

marks.

Mini-Fit Jr. is a trademark of Molex

Incorporated.
