UPD4311C-55 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> UPD4311C-55

UPD4311C-55: DescriptionStandard SRAM, 16KX1, 55ns, MIXMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20; Categorystorage storage; File Size99KB，4 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPD4311C-55 Overview

Standard SRAM, 16KX1, 55ns, MIXMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20

UPD4311C-55 Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	0.300 INCH, PLASTIC, DIP-20
Reach Compliance Code	unknown
Maximum access time	55 ns
JESD-30 code	R-PDIP-T20
memory density	16384 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	20
word count	16384 words
character code	16000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	16KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MIXMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

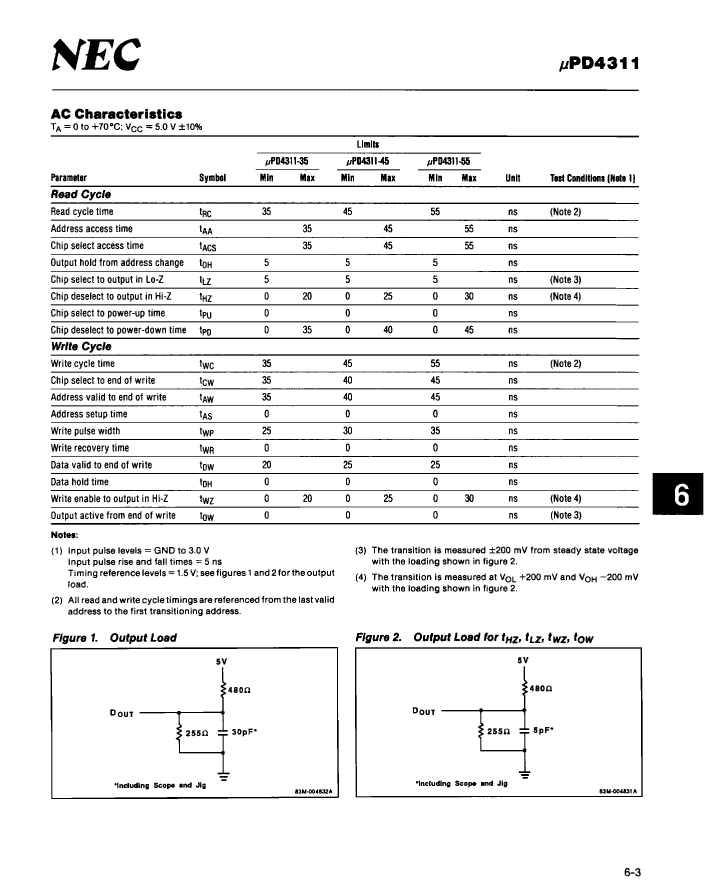

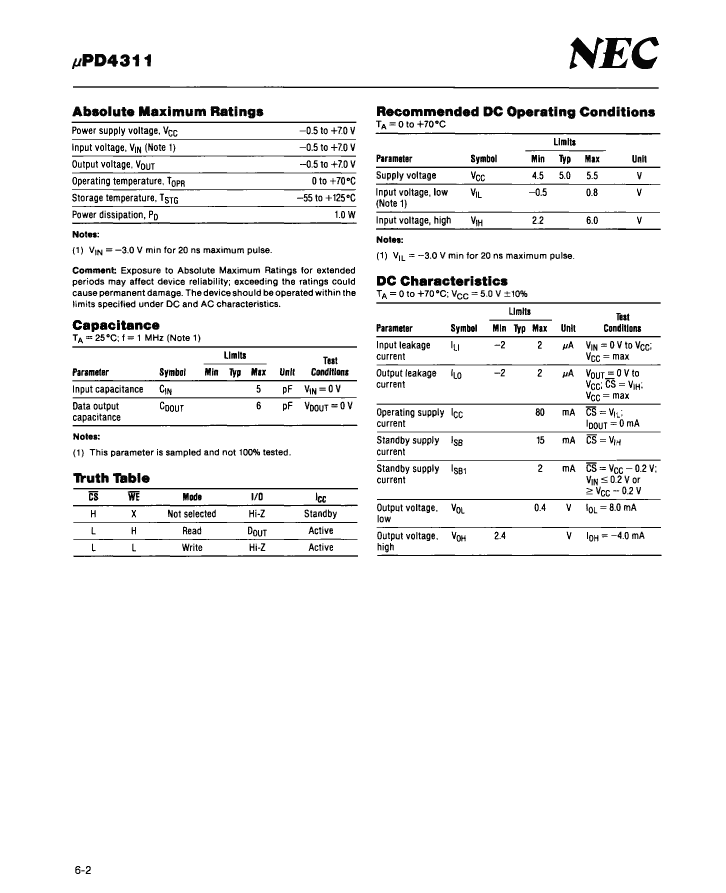

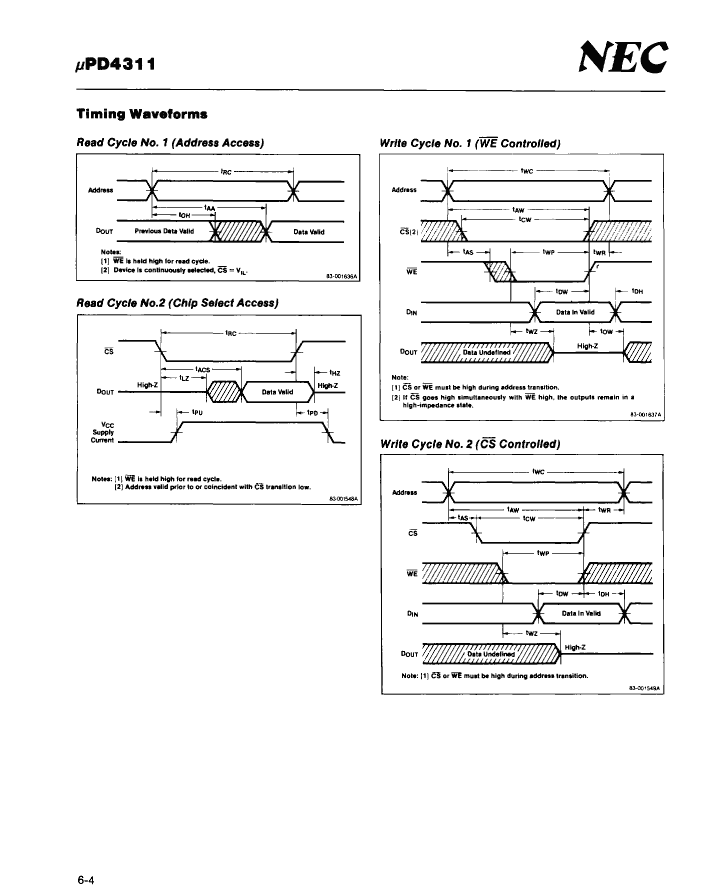

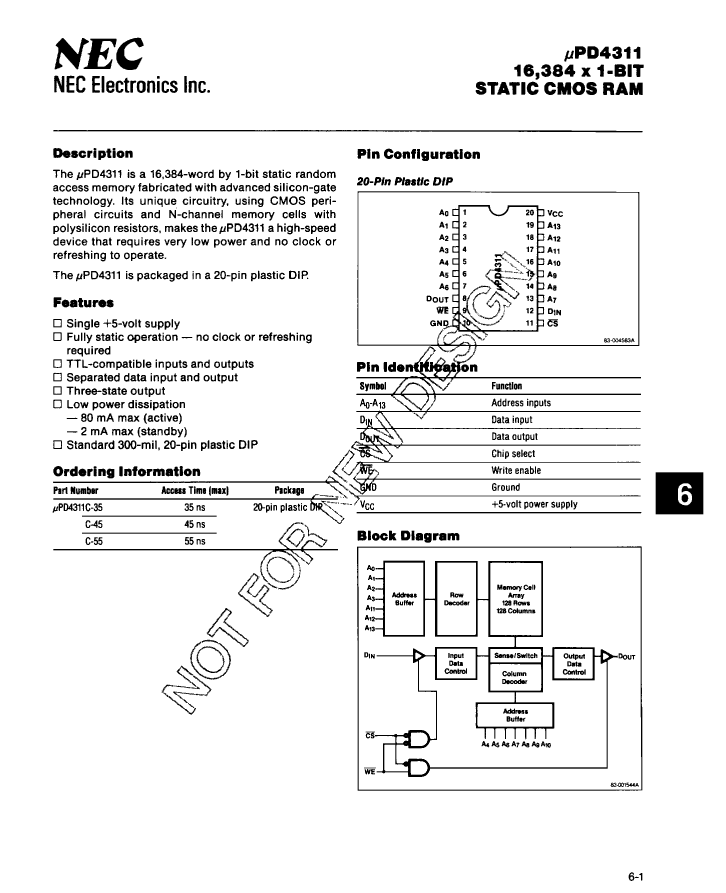

UPD4311C-55 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UPD4311C-55 Related Products

	UPD4311C-55	UPD4311C-35	UPD4311C-45
Description	Standard SRAM, 16KX1, 55ns, MIXMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20	Standard SRAM, 16KX1, 35ns, MIXMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20	Standard SRAM, 16KX1, 45ns, MIXMOS, PDIP20, 0.300 INCH, PLASTIC, DIP-20
Maker	NEC Electronics	NEC Electronics	NEC Electronics
package instruction	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, DIP-20	0.300 INCH, PLASTIC, DIP-20
Reach Compliance Code	unknown	unknown	unknown
Maximum access time	55 ns	35 ns	45 ns
JESD-30 code	R-PDIP-T20	R-PDIP-T20	R-PDIP-T20
memory density	16384 bit	16384 bit	16384 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	20	20	20
word count	16384 words	16384 words	16384 words
character code	16000	16000	16000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	16KX1	16KX1	16KX1
Output characteristics	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	MIXMOS	MIXMOS	MIXMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm
