MR-34SRMAN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MR-34SRMAN

MR-34SRMAN: DescriptionRectangular Connector,; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

MR-34SRMAN Overview

Rectangular Connector,

MR-34SRMAN Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	incompatible
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Connector type	RECTANGULAR CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	Silver (Ag)
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

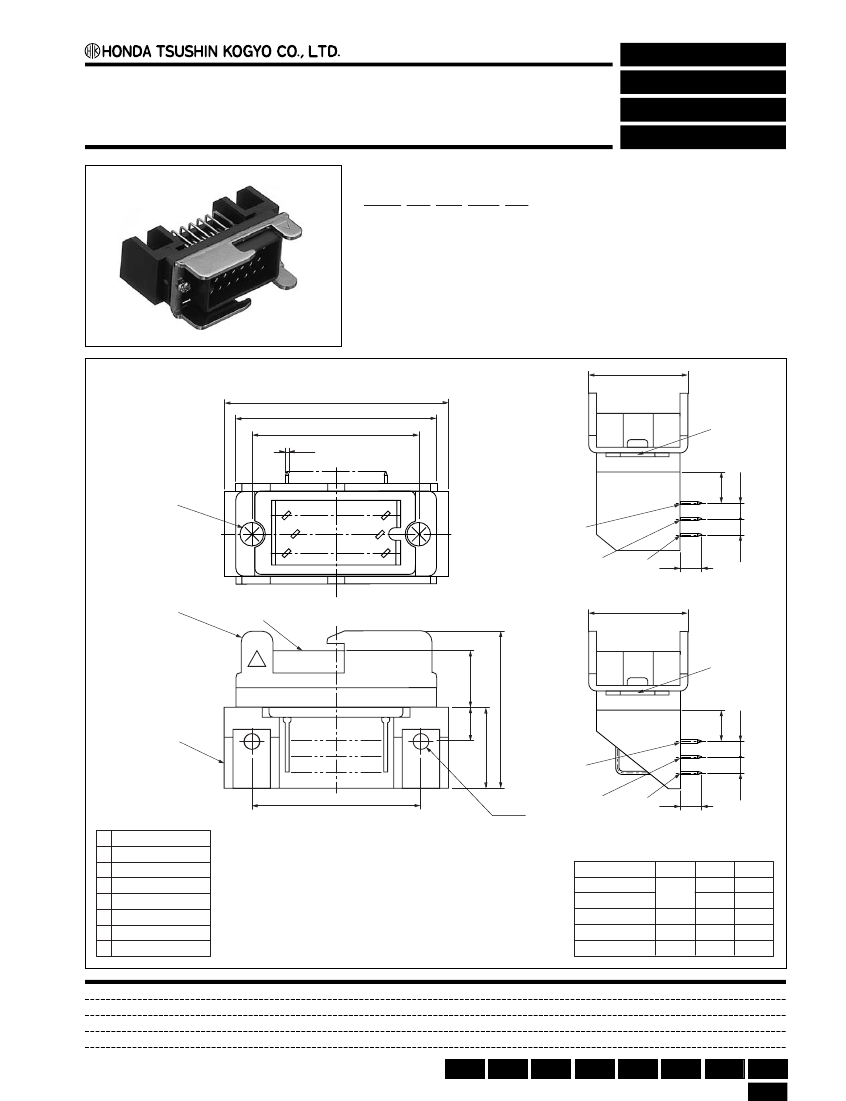

Rectangular connector

Right-angle DIP type male connector with brace for PCBs

MR-( )SRMA( )

●

Configuration of product Part No.

For PCBs

Right-angle DIP type

With brace

MR- ( ) SR MA ( )

➀

➁

➂

➃

➄

➀

Series name

➁

No. of contacts: 16, 20, 25, 34 or 50

➂

With brace

➃

Form of contact: Right-angle DIP, male

➄

Contact plating:

None: Silver plate

: Gold plate

15.7

œ0.5

2.54

25.2

27.8

33.0

40.8

56.4

34.4

37.0

42.2

50.0

65.6

SMT

DIP

•

∞

15.7

3.5

2.54

16, 25 or 34-contact Connector

9.6

•

25.9 REF.

5.5

13.2

™

2-ø2.8

∞

3.5

●

Components

➀

Insulator

➁

Bracket

➂

Contacts (short)

➃

Contacts (middle)

➄

Contacts (long)

➅

Brace

➆

Tapping screws

➇

Spring washers

20 or 50-contact Connector

Ω

Dimensions

Part No.

MR-16SRMA( )

MR-20SRMA( )

MR-25SRMA( )

MR-34SRMAN( )

MR-50SRMA( )

33.0

40.0

45.0

67.0

Mating case:

MR-( )NS

Mating connectors with case:

MR-( )NS2F( ) etc.

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

5.5

2.54

MR-34SRMAN Related Products

	MR-34SRMAN	MR-16SRMAG	MR-16SRMA	MR-20SRMAG	MR-20SRMA	MR-25SRMA	MR-50SRMA	MR-25SRMAG	MR-34SRMANG	MR-50SRMAG
Description	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,	Rectangular Connector,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR	RECTANGULAR CONNECTOR
Contact to complete cooperation	SILVER	GOLD	SILVER	GOLD	SILVER	SILVER	SILVER	GOLD	GOLD	GOLD
Contact completed and terminated	Silver (Ag)	Gold (Au)	Silver (Ag)	Gold (Au)	Silver (Ag)	Silver (Ag)	Silver (Ag)	Gold (Au)	Gold (Au)	Gold (Au)
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Base Number Matches	-	1	1	1	1	1	1	-	-	-
