LM-0355-VRC: Description5X7 DOT MATRIX DISPLAY, RED, 27.9 mm; CategoryLED optoelectronic/LED photoelectric; File Size93KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric View All

LM-0355-VRC Overview

5X7 DOT MATRIX DISPLAY, RED, 27.9 mm

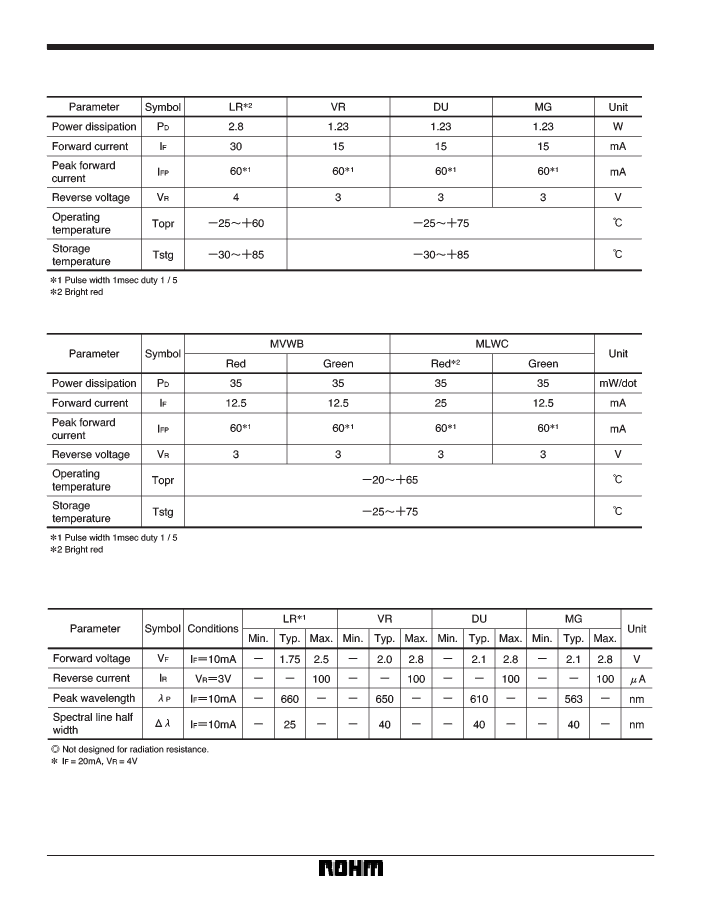

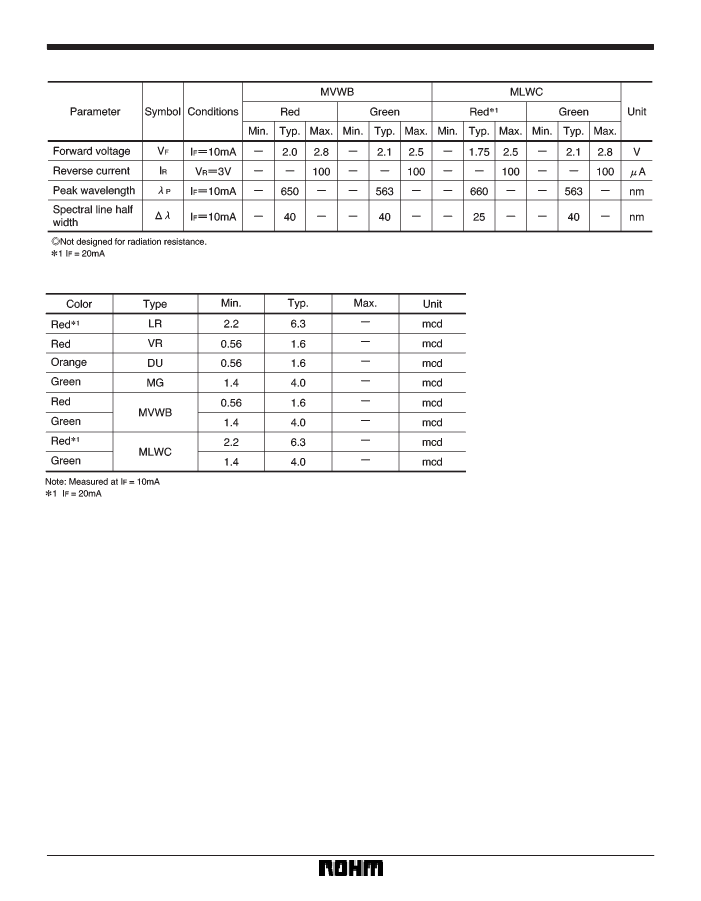

LM-0355-VRC Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	COMMON CATHODE, 1 DIGIT
Display height	27.9 mm
Maximum forward current	0.015 A
Number of characters	1
Number of functions	1
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 5 X 7 DOT MATRIX LED DISPLAY
peak wavelength	650 nm

Preview

Download Datasheet

View All

LED displays

7 matrix displays

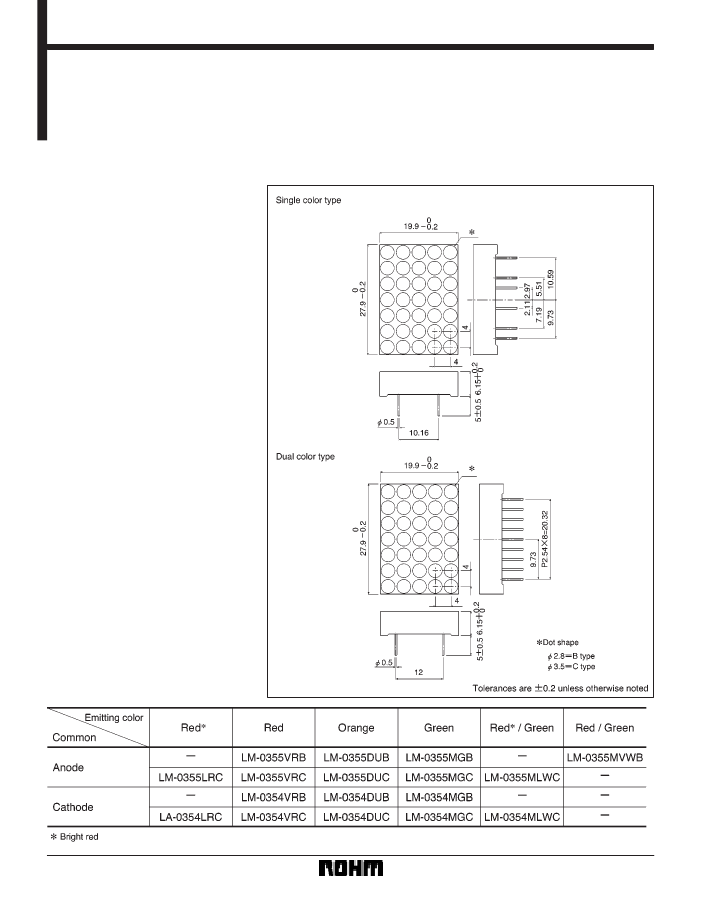

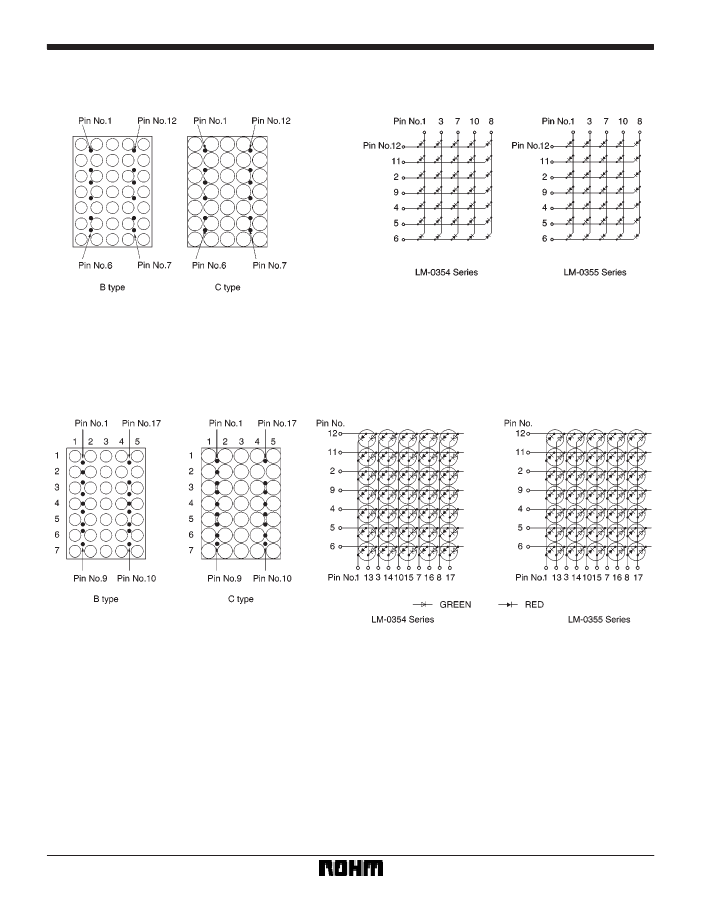

FExternal

dimensions (Units: mm)

LM-0354 / LM-0355 Series

The LM-0354 and LM-0355 series are

7 matrix displays which can be

used in a wide variety of applications,

including alphabet, numeric, symbol,

and graphic displays. Four single-color

types (bright red, red, orange and

green) and two dual-color types (bright

red / green and red / green) are available

with circular or large circular emitters to

allow easy incorporation into the appa-

ratus design.

FApplications

Light sources for displays

FFeatures

1) 5

7 dot matrix

Circular and large circular emitters.

2) External dimensions: 27.9

19.9

6.15 mm

3) Circular emitter diameter: 2.8 mm;

large circular emitter diameter: 3.5

mm.

4) Black package, colored emitters

(dual-color emitters are milky

white).

FSelection

guide

234
