LB-602 A / K2 Series
LED displays
Double Digits LED Numeric Display
LB-602 A / K2 Series
LB-602 A / K2 series is designed to use in the light.
Materials of emission are GaAsP on GaP, AlGalnP GaP
and GaN. This is the height of a letter 14.3mm, double
digits LED Numeric Display that is packed by epoxy resin.
Dimensions
(Unit : mm)
25.0±0.1
12.5
10°
1.3
14.3
19.0±0.1
Features
1) The height of a letter is 14.3mm.
2) Dimension is 25.0×19.0×8.0mm.
3) The package of surface color is black. Color of segment
is colored in emitting color. (Blue color is only milky
white)
4) Each color has anode common and cathode common
respectively.
1.3
8.0
2−φ1.5
0.5
(2.54)
(20.32)
Tolerance are
±0.3
unless otherwise noted :
Selection guide
Emitting color
Common
Anode
Cathode
Red
LB-602VA2
LB-602VK2
Yellow
Red
Orange
(High brightness)
(High brightness) (High brightness)
LB-602AA2
LB-602AK2
LB-602EA2
LB-602EK2
LB-602XA2
LB-602XK2
Green
LB-602MA2
LB-602MK2
Blue
LB-602BA2
LB-602BK2
Pin assignments
18 17 16 15 14 13 12 11 10
3.5Min.
8.0
0.25
+
+
+
+
+
+
+
+
+
Pin No.
1
2
3
4
5
6
7
8
9
Function
Segment "e1"
Segment "d1"
Segment "c1"
D.P1
Segment "e2"
Segment "d2"
Segment "g2"
Segment "c2"
D.P2
Pin No.
10
11
12
13
14
15
16
17
18
Function
Segment "b2"
Segment "a2"
Segment "f2"
Digit 2 Common
Digit 1 Common
Segment "b1"
Segment "a1"
Segment "g1"
Segment "f1"
a1
f1
g1
e1
d1
Digit 1 D.P1
c1 e2
d2
b1 f2
a2
b2
g2
c2
Digit 2 D.P2
+
Pin No. 1
+
2
+
3
+
4
+
5
+
6
+
7
+
8
+
9
Equivalent circuit (anode common)
a1 b1 c1 d1 e1 f1 g1 D.P1
16 15 3
2
1 18 17 4
a2 b2 c2 d2 e2 f2 g2 D.P2
11 10 8
6
5 12 7
9
(cathode common)
a1 b1 c1 d1 e1 f1 g1 D.P1
16 15 3
2
1 18 17 4
a2 b2 c2 d2 e2 f2 g2 D.P2
11 10 8
6
5 12 7
9
14
Dig.1
COM
Dig.2
13
COM
Dig.1
14
COM
Dig.2
13
COM
Rev.B
(15.24)
1/4
LB-602 A / K2 Series
LED displays
Absolute maximum ratings
(Ta=25°C)
Parameter
Power dissipation
Power dissipation
Forward current
Peak forward current
Reverse voltage
Operating temperature
Storage temperature
∗1
Pulse width 1ms Duty 1 / 5
∗2
Pulse width 0.1ms Duty 1 / 10
Symbol
P
D
P
D
/ seg
I
F
I
FP
V
R
Topr
Tstg
Orange
Yellow
Red
Blue
Green
(High brightness)
(High brightness) (High brightness)
LB-602VA2 / VK2 LB-602AA2 / AK2
LB-602EA2 /EK2
LB-602XA2 / XK2 LB-602MA2 / MK2 LB-602BA2 / BK2
960
960
960
1040
1040
1040
65
42
60
65
65
65
20
10
20
25
25
25
∗1
∗2
∗2
∗2
∗1
60
50
∗2
60
50
50
50
5
5
5
5
5
5
−25
to
+75
−30
to
+85
Red
Unit
mW
mW
mA
mA
V
˚C
˚C
Electrical characteristics
(Ta=25°C)
Parameter
Forward voltage
Reverse current
Peak wavelength
Spectral line half width
Symbol
Conditions
Orange
Yellow
Red
(High brightness)
(High brightness) (High brightness)
Typ. Max. Typ.
Max.
Typ.
Max.
Typ.
Max.
2.0 2.8
2.05
∗
2.6
∗
2.05
∗
2.6
∗
2.05
∗
2.6
∗
100
100
100
100
−
−
−
−
650
626
∗
610
∗
589
∗
−
−
−
−
∗
∗
∗
40
18
17
15
−
−
−
−
Red
Green
Blue
Unit
V
F
I
R
λ
P
∆λ
I
F
=10mA
V
R
=3V
I
F
=10mA
I
F
=10mA
Typ. Max. Typ. Max.
2.1
2.8
3.6
4.2
100
100
−
−
563
470
−
−
40
26
−
−
V
µA
nm
nm
∗
Shows the number on the condition of I
F
=20mA.
The products are not radiations resistant.
Luminous intensity
Color
λ
P
(nm)
650
626
610
589
563
470
Red
Red (High brightness)
Orange (High brightness)
Yellow (High brightness)
Green
Blue
Type
LB-602VA2
LB-602VK2
LB-602AA2
LB-602AK2
LB-602EA2
LB-602EK2
LB-602XA2
LB-602XK2
LB-602MA2
LB-602MK2
LB-602BA2
LB-602BK2
Min.
5.6
36
36
36
9
14
Typ.
16
90
90
90
25
56
Unit
mcd
mcd
mcd
mcd
mcd
mcd
A condition of measurement is I
F
=10mA.
Rev.B
2/4
LB-602 A / K2 Series
LED displays

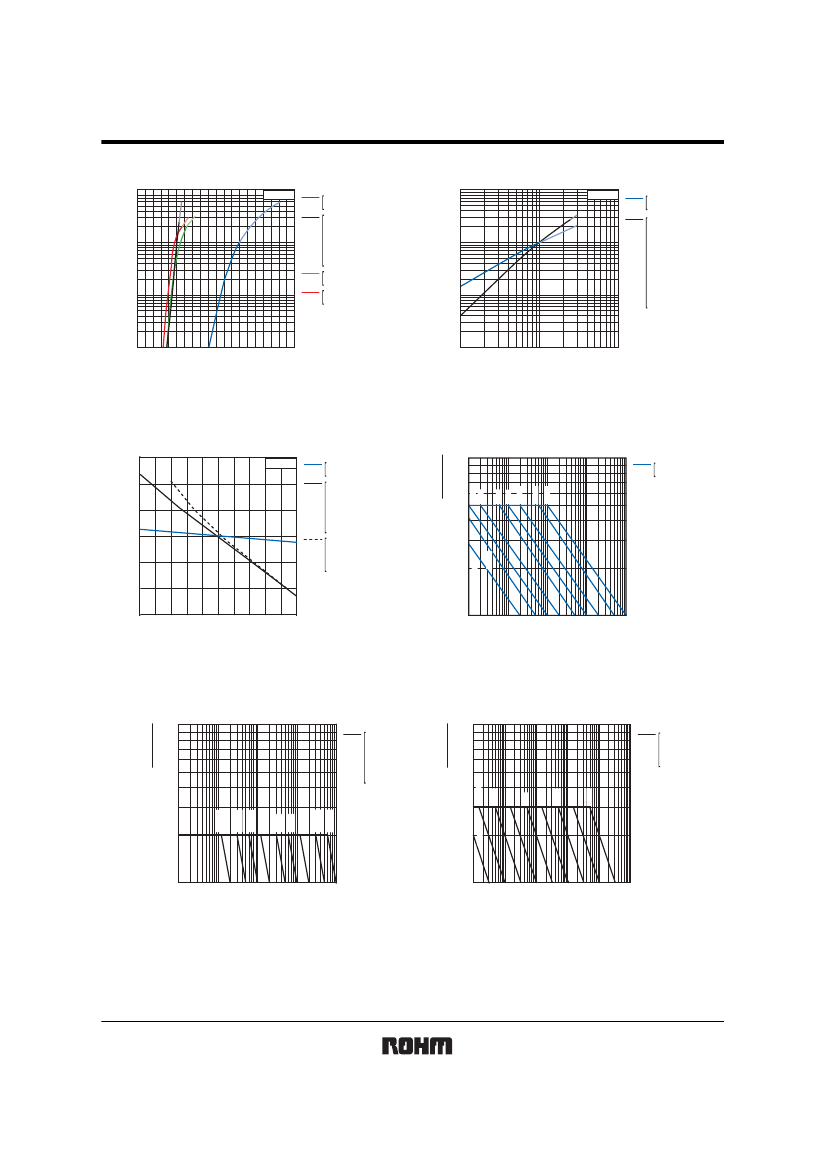

Electrical and optical characteristic curves
100
Ta=25°C
10.00
Relative Luminous Intensity
Forward Current:I
F
(mA)
10
1
LB-602BA2
LB-602BK2
LB-602XA2
LB-602XK2
LB-602EA2
LB-602EK2
LB-602AA2
LB-602AK2
LB-602MA2
LB-602MK2
LB-602VA2
LB-602VK2
Ta=25°C
1.00
0.10
LB-602BA2
LB-602BK2
LB-602XA2
LB-602XK2
LB-602EA2
LB-602EK2
LB-602AA2
LB-602AK2
LB-602MA2
LB-602MK2
LB-602VA2
LB-602VK2
0.1 1
2
3
4
5
0.01
1
10
Forward Current:I
F
(mA)
100
Forward Voltage:V
F
(V)
Fig.1 Forward Current - Forward Voltage
Fig.2 Relative Luminous Intensity - Forward Current
I
F
=10mA
1.4
Relative Luminous Intensity
1.2
1
0.8
0.6
0.4
-25 -15 -5
5
15 25 35 45 55 65 75
1
1
50kHz
LB-602BA2
LB-602BK2
LB-602XA2
LB-602XK2
LB-602EA2
LB-602EK2
LB-602AA2
LB-602AK2
LB-602MA2
LB-602MK2
LB-602VA2
LB-602VK2
IF peak Max.
Ratio of Maximum Tolerance Peak
IF Max.
Current to Maximum Tolerance DC Current
1.6
)
10
LB-602BA2
LB-602BK2
10kHz
5kHz
500Hz
200Hz
100Hz
2kHz
20kHz
1kHz
(
5
10
100
1000
10000
Case Temparature (°C)
Pulse Duration tw(µs)
Fig.3 Relative Luminous Intensity - Case Temperature
Fig.4 Ratio of Maximum Tolerable Peak Current - Pulse Duration (
Ι
)
)
IF peak Max.
Ratio of Maximum Tolerance Peak
IF Max.
Current to Maximum Tolerance DC Current
LB-602XA2
LB-602XK2
LB-602EA2
LB-602EK2
LB-602AA2
LB-602AK2
I
F
peak Max.
Ratio of Maximum Tolerable peak
I
F
Max.
Current to Maximum Forward Current
10
)
10
(
(
LB-602MA2
LB-602MK2
LB-602VA2
LB-602VK2
100kHz
300Hz
100Hz
30kHz
10kHz
500Hz
200Hz
100Hz
50kHz
20kHz
10kHz
5kHz
2kHz
1kHz
1
1
10
100
1000
10000
1
1
300kHz
10
100
1000
30Hz
3kHz
1kHz
10000
100000
Pulse Duration : Tw (µs)
Pulse Duration : tw(µs)
Fig.5 Ratio of Maximum Tolerable Peak Current - Pulse Duration (
ΙΙ
)
Fig.6 Ratio of Maximum Tolerable Peak Current - Pulse Duration (
ΙΙΙ
)
Rev.B
3/4
