KM23C2100FP-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM23C2100FP-15

KM23C2100FP-15: DescriptionMASK ROM, 256KX8, 150ns, CMOS, CQFP44, QFP-44; Categorystorage storage; File Size100KB，4 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM23C2100FP-15 Overview

MASK ROM, 256KX8, 150ns, CMOS, CQFP44, QFP-44

KM23C2100FP-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	QFP
package instruction	WQFP, TQFP44,.6SQ,32
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	150 ns
Spare memory width	16
JESD-30 code	S-CQFP-G44
JESD-609 code	e0
length	10 mm
memory density	2097152 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	44
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQFP
Encapsulate equivalent code	TQFP44,.6SQ,32
Package shape	SQUARE
Package form	FLATPACK, WINDOW
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10 mm

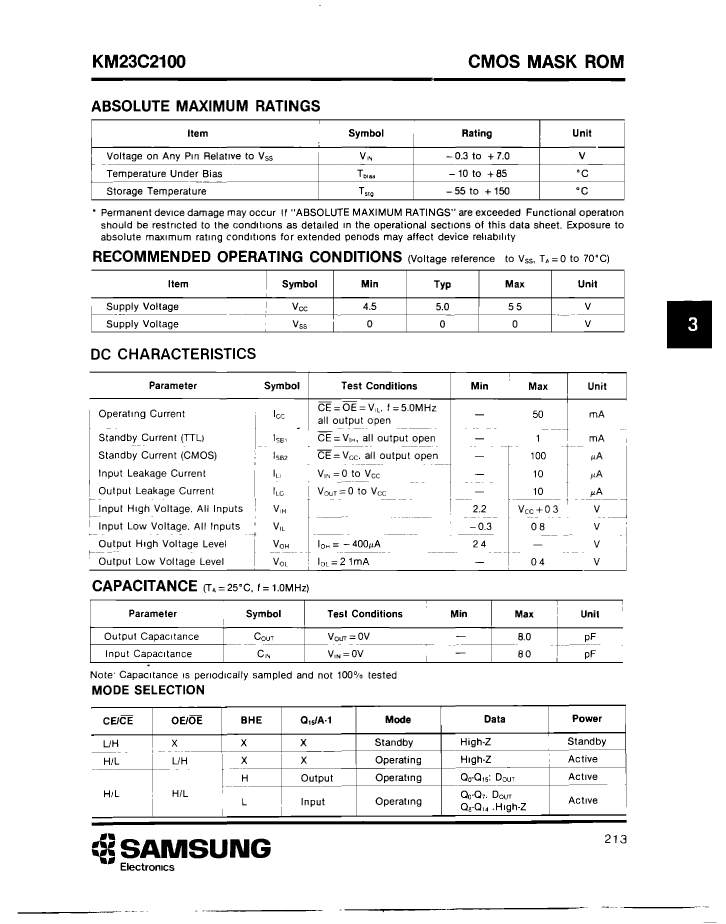

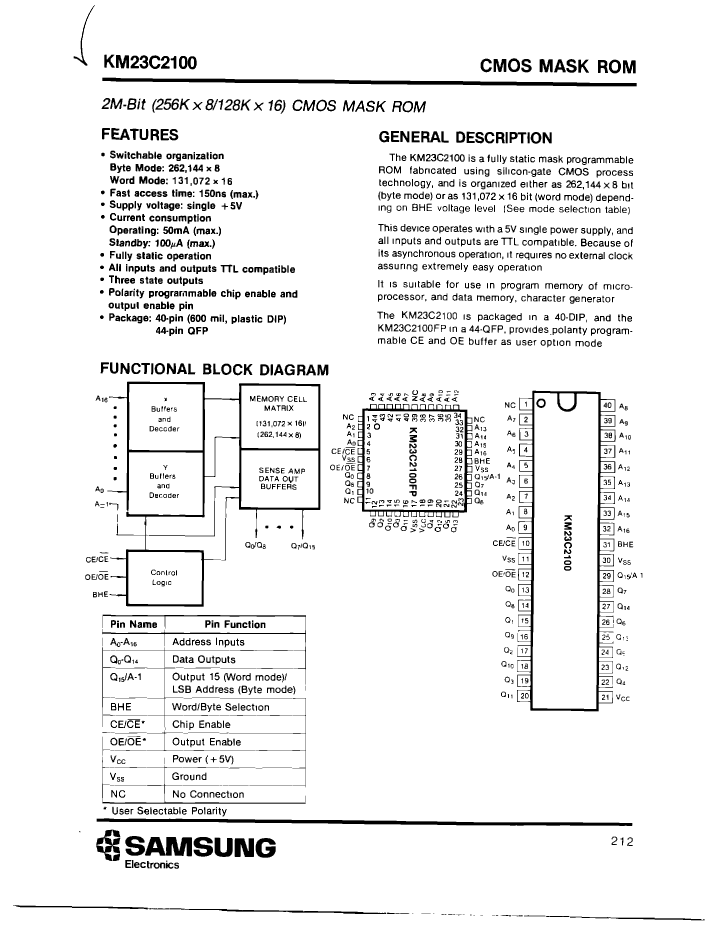

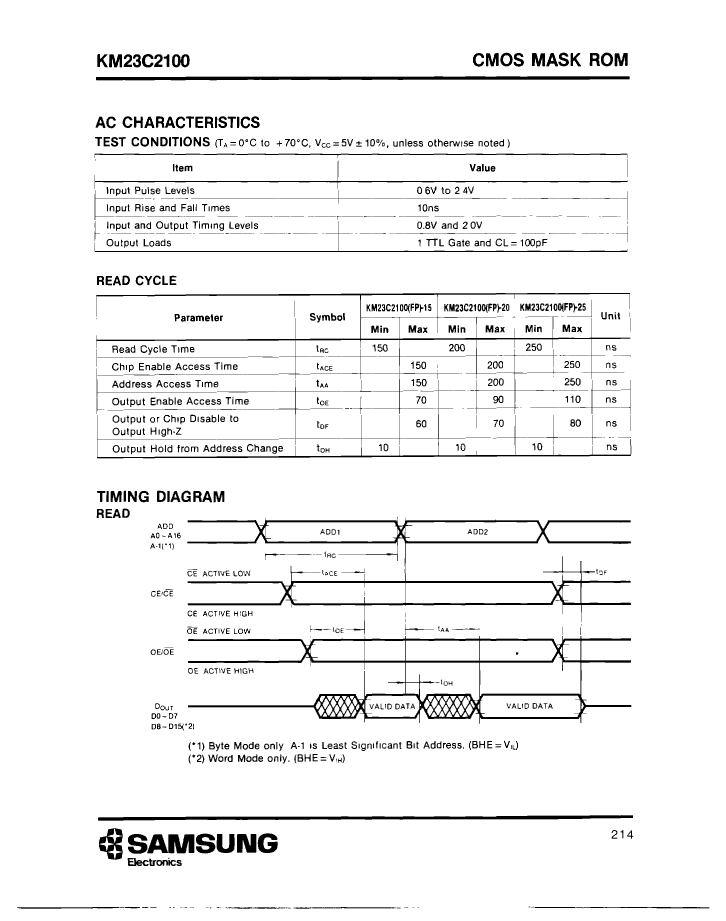

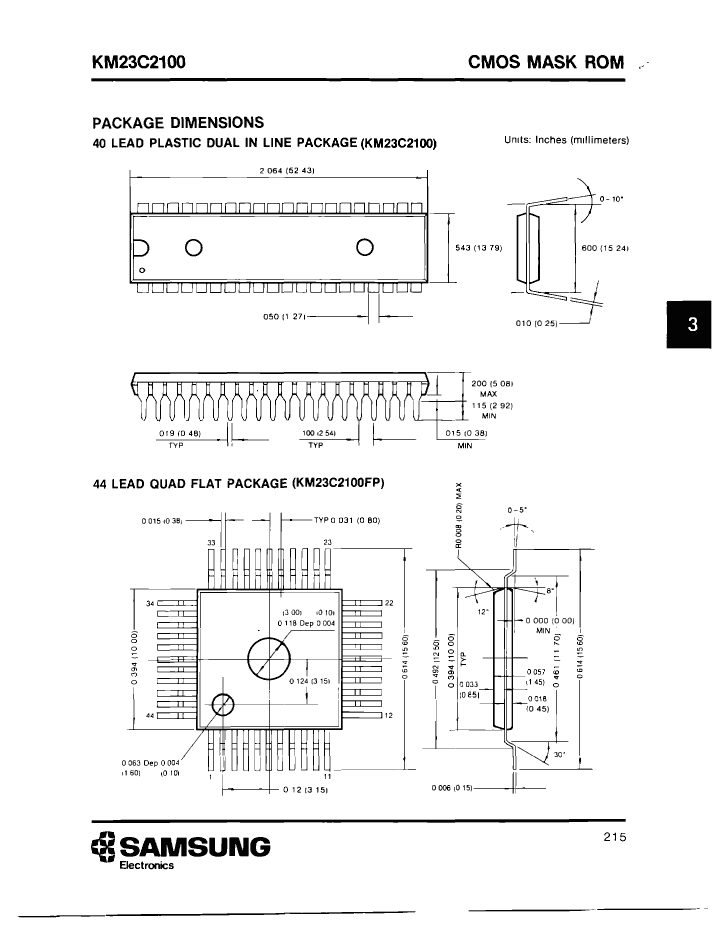

Preview

Download Datasheet

View All

KM23C2100FP-15 Related Products

	KM23C2100FP-15	KM23C2100FP-20	KM23C2100FP-25
Description	MASK ROM, 256KX8, 150ns, CMOS, CQFP44, QFP-44	MASK ROM, 256KX8, 200ns, CMOS, CQFP44, QFP-44	MASK ROM, 256KX8, 250ns, CMOS, CQFP44, QFP-44
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	SAMSUNG	SAMSUNG	SAMSUNG
Parts packaging code	QFP	QFP	QFP
package instruction	WQFP, TQFP44,.6SQ,32	WQFP, TQFP44,.6SQ,32	WQFP, TQFP44,.6SQ,32
Contacts	44	44	44
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	150 ns	200 ns	250 ns
Spare memory width	16	16	16
JESD-30 code	S-CQFP-G44	S-CQFP-G44	S-CQFP-G44
JESD-609 code	e0	e0	e0
length	10 mm	10 mm	10 mm
memory density	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	44	44	44
word count	262144 words	262144 words	262144 words
character code	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQFP	WQFP	WQFP
Encapsulate equivalent code	TQFP44,.6SQ,32	TQFP44,.6SQ,32	TQFP44,.6SQ,32
Package shape	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, WINDOW	FLATPACK, WINDOW	FLATPACK, WINDOW
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10 mm	10 mm	10 mm
