SHD120021 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SHD120021

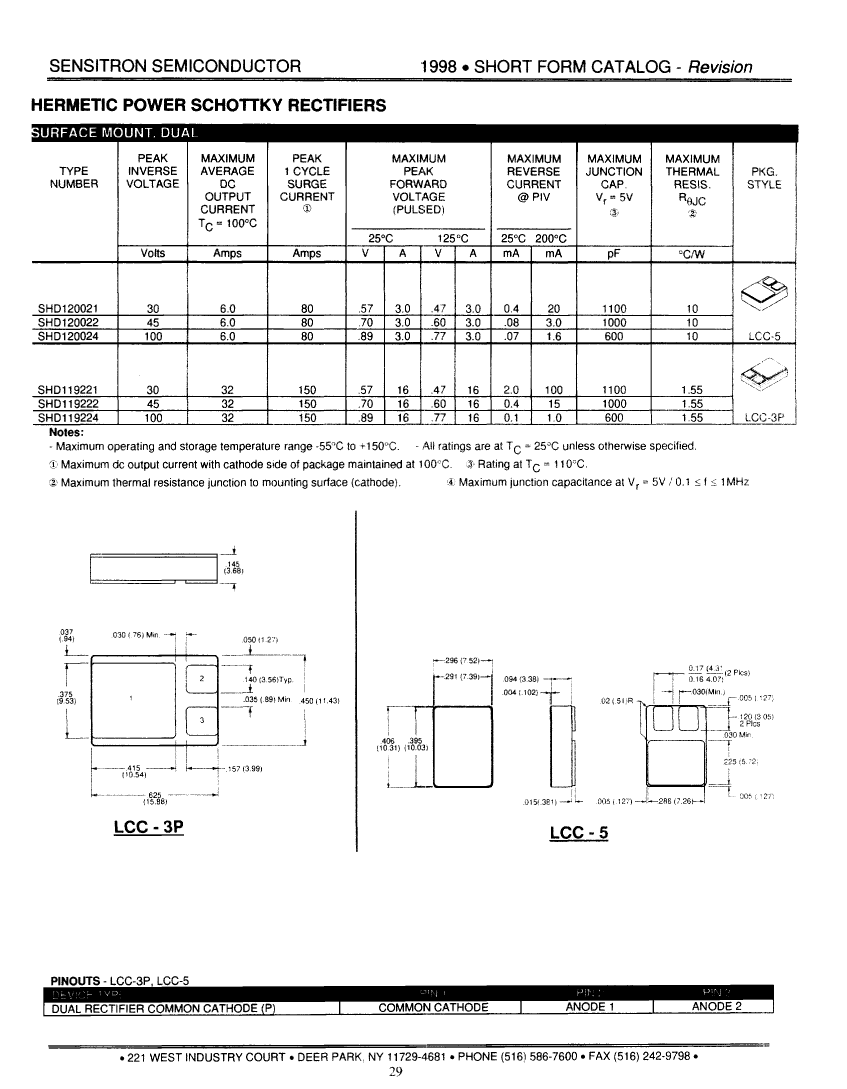

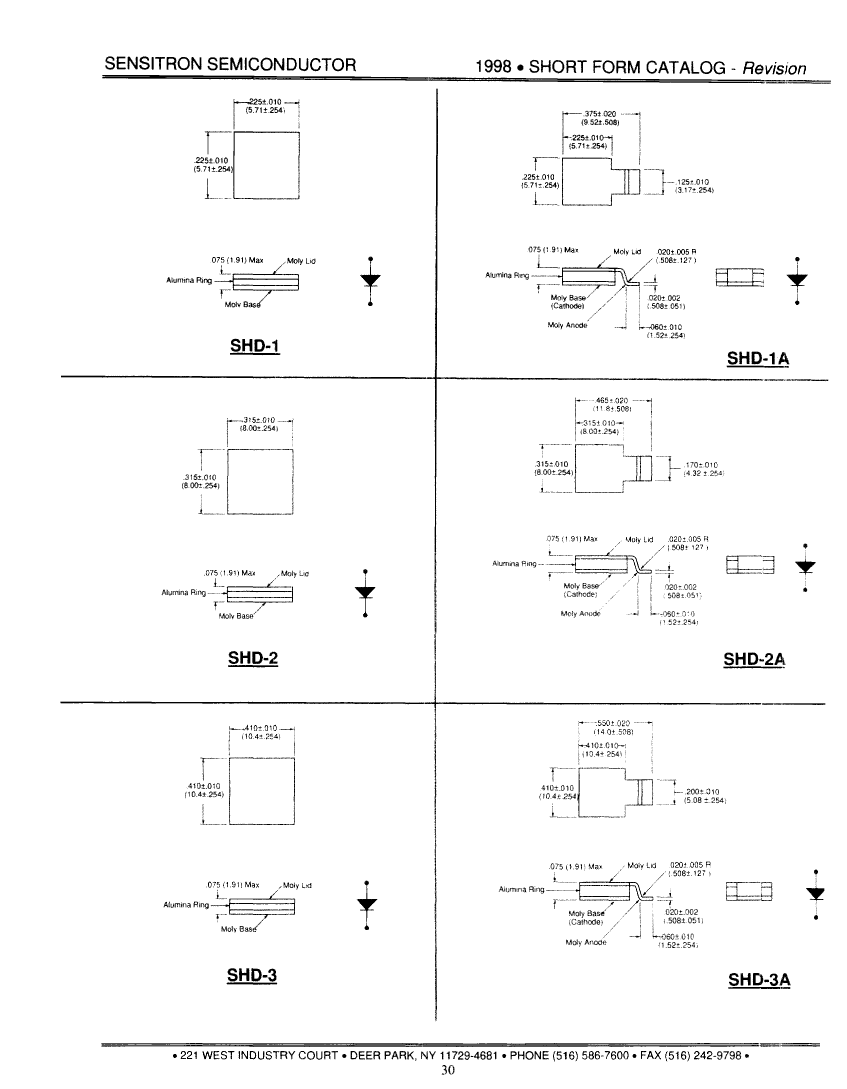

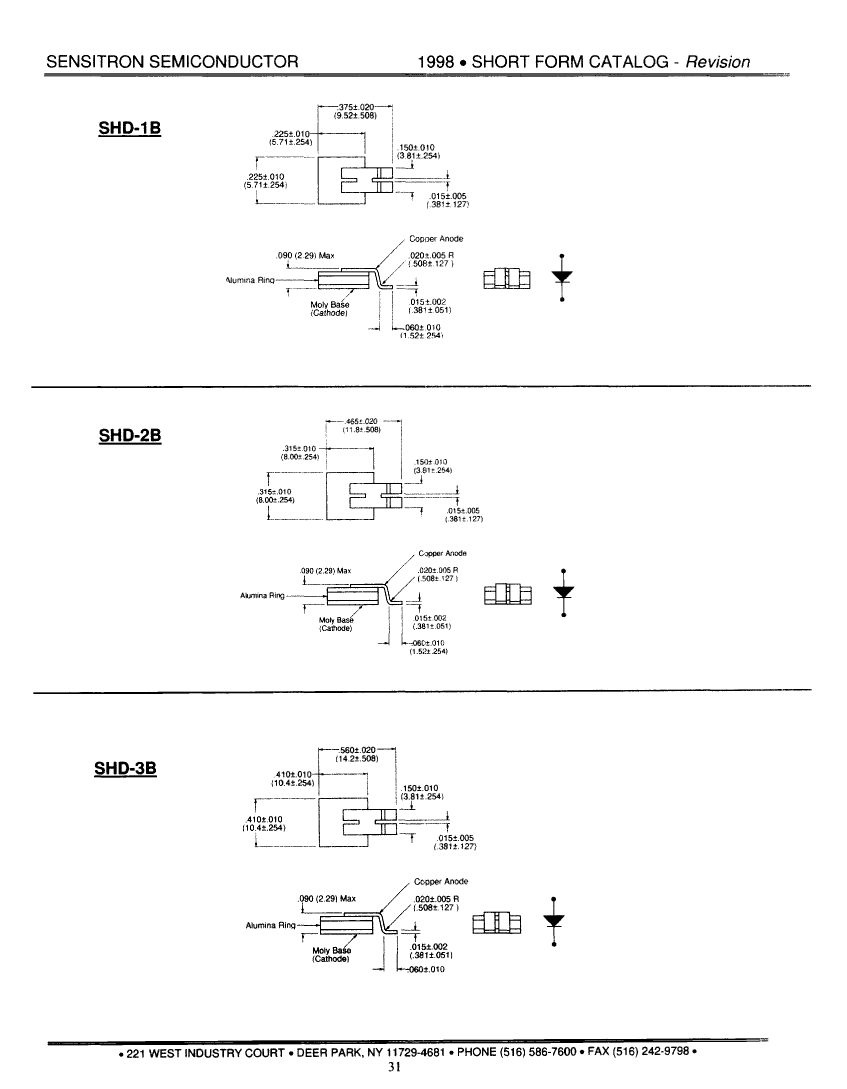

SHD120021: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 6A, Silicon, HERMETIC SEALED, LCC-5; CategoryDiscrete semiconductor diode; File Size114KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

SHD120021 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 6A, Silicon, HERMETIC SEALED, LCC-5

SHD120021 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	LCC
package instruction	R-CBCC-N3
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
application	POWER
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-CBCC-N3
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum output current	6 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	YES
technology	SCHOTTKY
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SHD120021 Related Products

	SHD120021	SHD120024S	SHD119222S	SHD120021S	SHD119224S	SHD119221S
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 6A, Silicon, HERMETIC SEALED, LCC-5	Rectifier Diode, Schottky, 1 Phase, 2 Element, 6A, Silicon, HERMETIC SEALED, LCC-5	Rectifier Diode, Schottky, 1 Phase, 2 Element, 32A, Silicon, HERMETIC SEALED, LCC-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 6A, Silicon, HERMETIC SEALED, LCC-5	Rectifier Diode, Schottky, 1 Phase, 2 Element, 32A, Silicon, HERMETIC SEALED, LCC-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 32A, Silicon, HERMETIC SEALED, LCC-3
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON	SENSITRON
Parts packaging code	LCC	LCC	DLCC	LCC	DLCC	DLCC
package instruction	R-CBCC-N3	HERMETIC SEALED, LCC-5	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
Contacts	5	5	3	5	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	POWER	POWER	POWER	POWER	POWER	POWER
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
Maximum non-repetitive peak forward current	80 A	80 A	150 A	80 A	150 A	150 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Maximum output current	6 A	6 A	32 A	6 A	32 A	32 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
