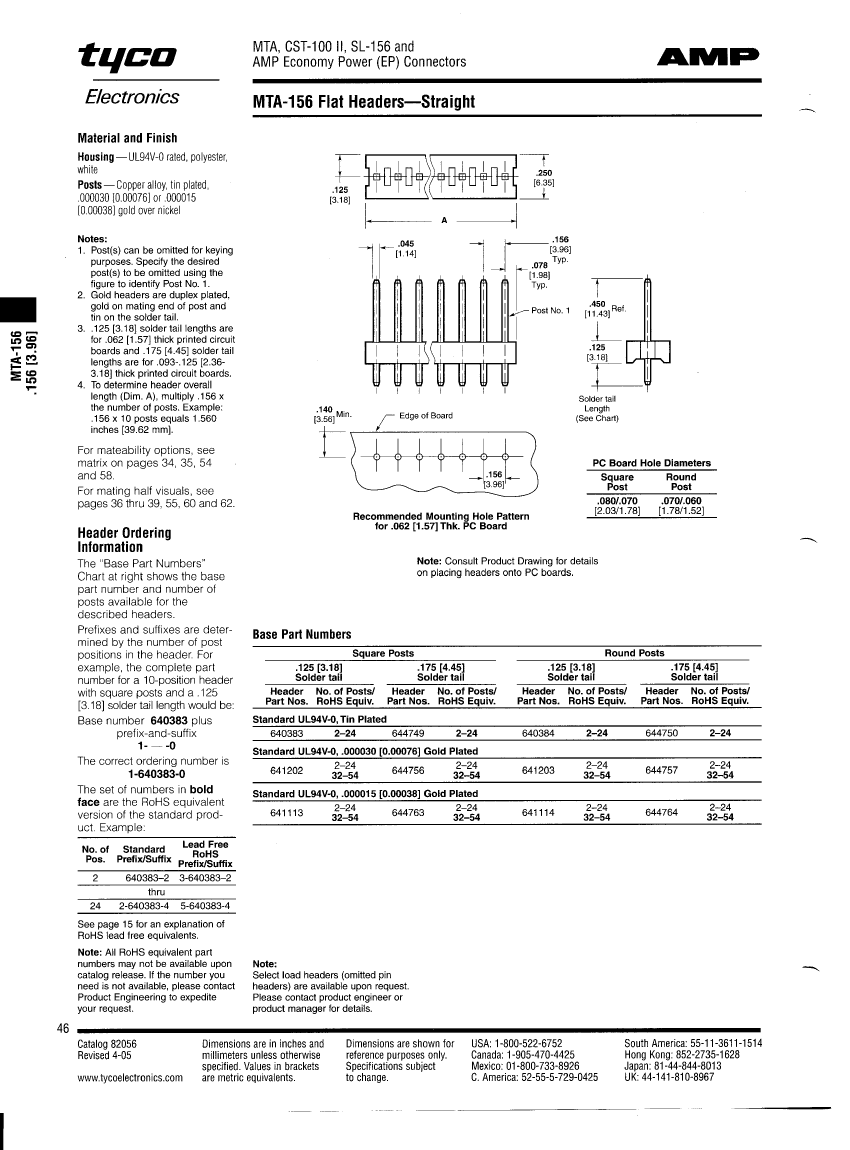

2-644764-0 datasheet, PDF - EEWORLD Datasheet

2-644764-0: Description20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2-644764-0 Overview

20 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	AMP
body width	0.25 inch
subject depth	0.125 inch
body length	3.12 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1250VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	5.7824 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	POLYESTER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	644764
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.175 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Evacuation force-minimum value	.4448 N
Base Number Matches	1
