2-799371-3 datasheet, PDF - EEWORLD Datasheet

2-799371-3: DescriptionPGA SOCKET,288 CONTACTS,17X17,0.1 ROW SPACING,PC TAIL TERMINAL; CategoryThe connector socket; File Size78KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

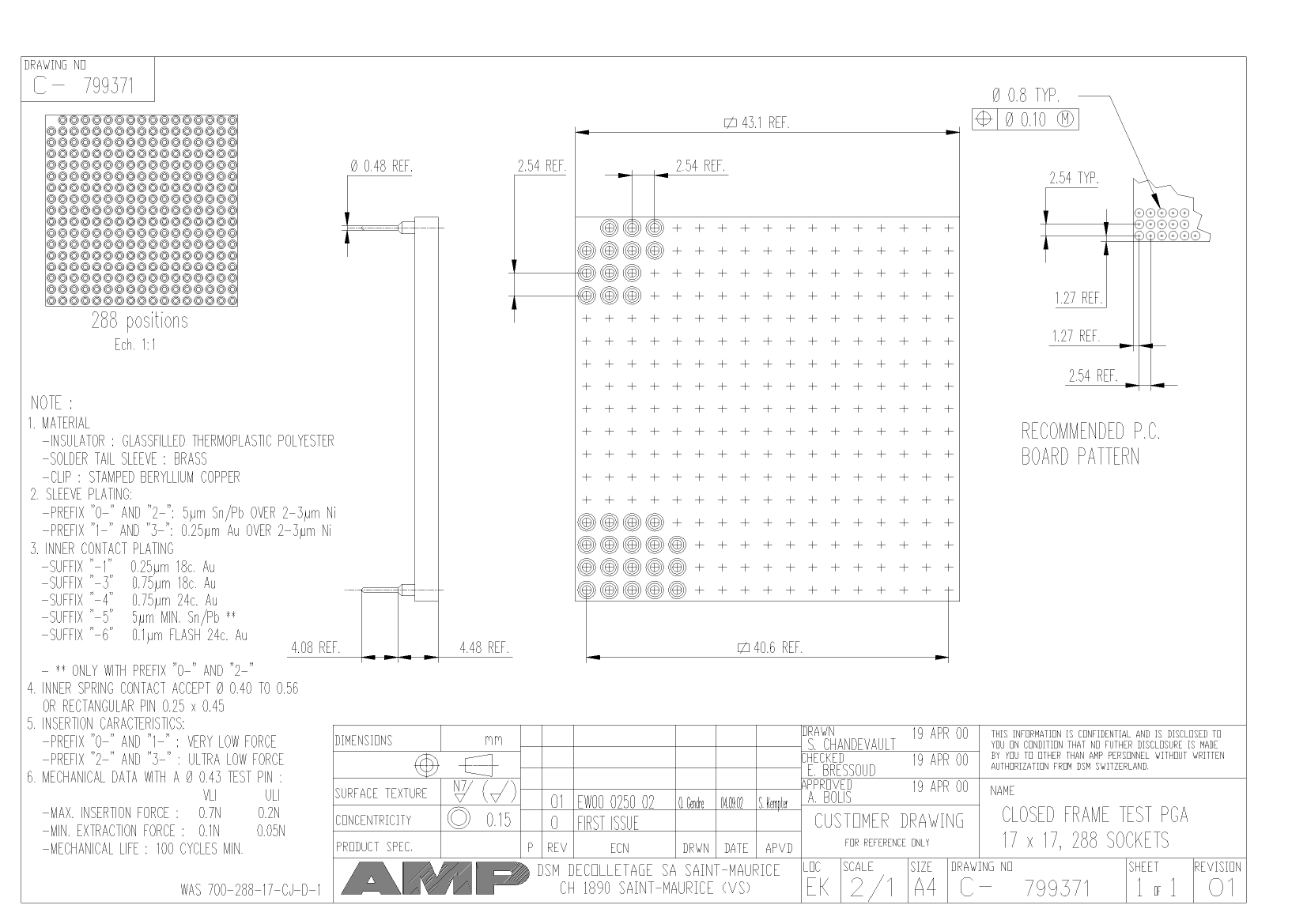

2-799371-3 Overview

PGA SOCKET,288 CONTACTS,17X17,0.1 ROW SPACING,PC TAIL TERMINAL

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ULTRA LOW INSERTION FORCE
body width	1.697 inch
subject depth	0.176 inch
body length	1.697 inch
Contact structure	17X17
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact material	BE-CU
Contact style	MACHINE SCREW
Device slot type	IC SOCKET
Type of equipment used	PGA288
Dielectric withstand voltage	1000VDC V
Insulation resistance	5000000000 Ω
Manufacturer's serial number	799371
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	288
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1
