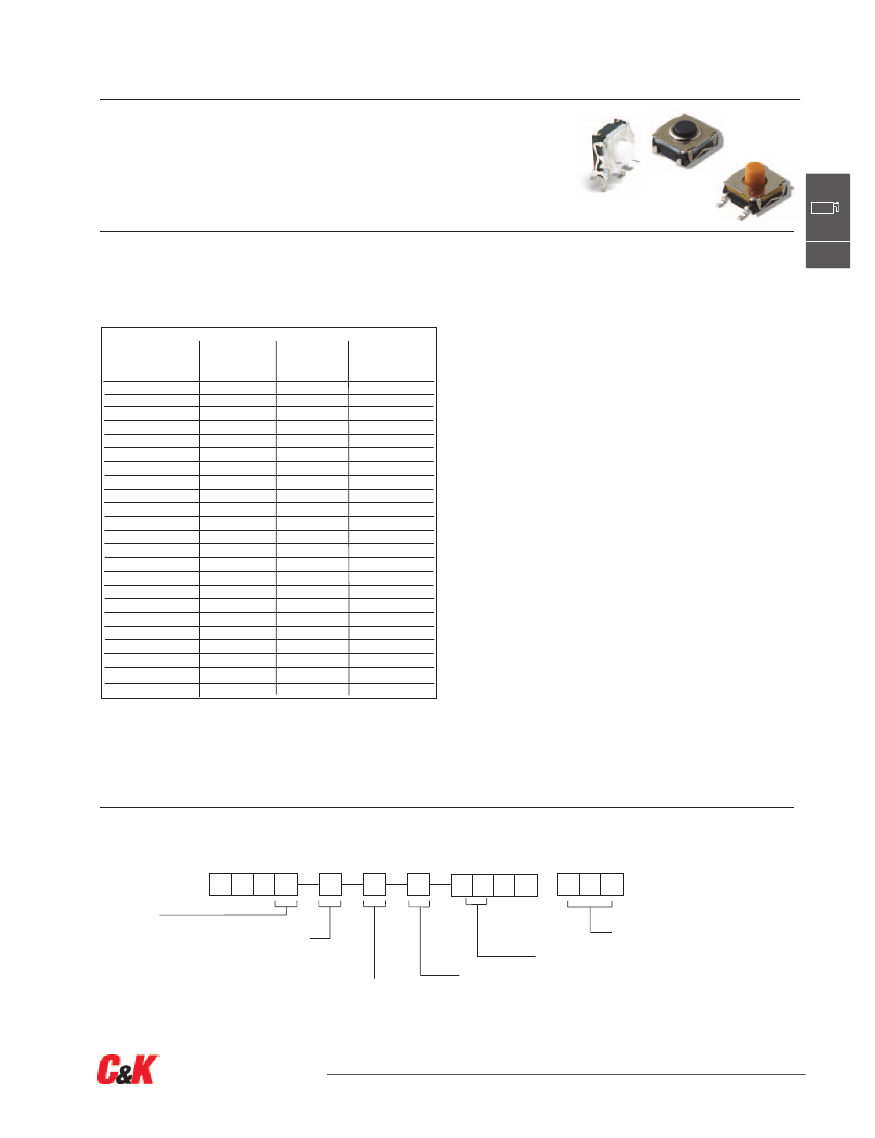

KSC Series
Sealed Tact Switch for SMT
Features/Benefits
•
Positive tactile feeling
•
Range of 6 actuation forces
•
J or G terminations
•
Tape & reel
•
IP 67
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
TERMINALS: J bend & Gullwing type for SMT
Typical Applications
•
Automotive
•
Cellular phones
•
Industrial electronics
•
Network infrastructure and IT
Electrical
MAXIMUM POWER:
MAXIMUM VOLTAGE:
MINIMUM VOLTAGE:
MAXIMUM CURRENT:
MINIMUM CURRENT:
Silver
1 VA
32 VDC
20 mV
50 mA
1 mA
Gold
0.2 VA
32 VDC
20 mV
10 mA
1 mA
B
Tactile Switches
Mechanical
Type
Operating
force FA
(Newtons)
Min/Max
1.2 / 2.5
2.25 / 3.75
4.1 / 6.9
0.9 / 2.0
1.5 / 2.5
1.5 / 2.5
2.6 / 4.4
4.1 / 7.0
1.6 / 2.4
2.25 / 3.75
4.0 / 6.0
0.82 / 1.38
1.05 / 1.75
1.25 / 2.12
1.25 / 2.12
3.0 / 5.0
3.0 / 5.0
1.0 / 1.65
2.25 / 3.75
1.4 / 2.2
1.1 / 1.9
1.7 / 2.8
2.9 / 4.9
Operating
life
(operations)
200,000
200,000
100,000
300,000
500,000
1,000,000
300,000
300,000
300,000
300,000
100,000
1,000,000
1,000,000
300,000
1,000,000
300,000
1,000,000
300,000
300,000
300,000
100,000
300,000
300,000
Travel
(mm)
0.3 ± 0.15
0.3 ± 0.15
0.35 ± 0.15
0.3 +0.2 /-0.15
0.35 +0.3 /-0.1
0.35 +0.3 /-0.1
0.5 ± 0.2
0.5 ± 0.2
0.2 +0.3 /0
0.2 +0.3 /0
0.25 +0.3 /0
0.3 ± 0.15
0.35 ± 0.20
0.5 ± 0.25
0.5 ± 0.25
0.75 ± 0.25
0.75 ± 0.25
0.5 ± 0.2
0.5 ± 0.2
0.375 ± 0.225
0.5 ± 0.2
0.3 ± 0.15
0.4 ± 0.20
KSC121J
KSC141J
KSC151J
KSC201J
KSC221J
KSC222J
KSC241J
KSC251J
KSC321J
KSC341J
KSC351J
KSC401J
KSC411J
KSC421J
KSC422J
KSC441J
KSC442J
KSC621J
KSC641J
KSC421V
KSC621V
KSC721 J
KSC741J
DIELECTRIC STRENGTH (50 Hz, 1 min.): 250 V
CONTACT RESISTANCE: < 100 mΩ
INSULATION RESISTANCE (100 V): > 10
9
Ω
BOUNCE TIME: < 1 ms
Environmental
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
Silver
-40˚C to 85˚C
-55˚C to 85˚C
Gold
-40˚C to 125˚C
-55˚C to 125˚C
Process
SOLDERING: Depending on the application, this component is
suited to the following methods:
– Terminals being silver or gold plated over a nickel barrier, the
use of slightly activated flux is suitable.
– Soldering on double wave machine for vertical versions:
soldering time < 5 sec.
– Cleaning according to typical washing processes.
– Infrared Reflow Soldering in accordance with IEC 61760-1.
50SH
70SH
70SH
70SH
70SH
70SH

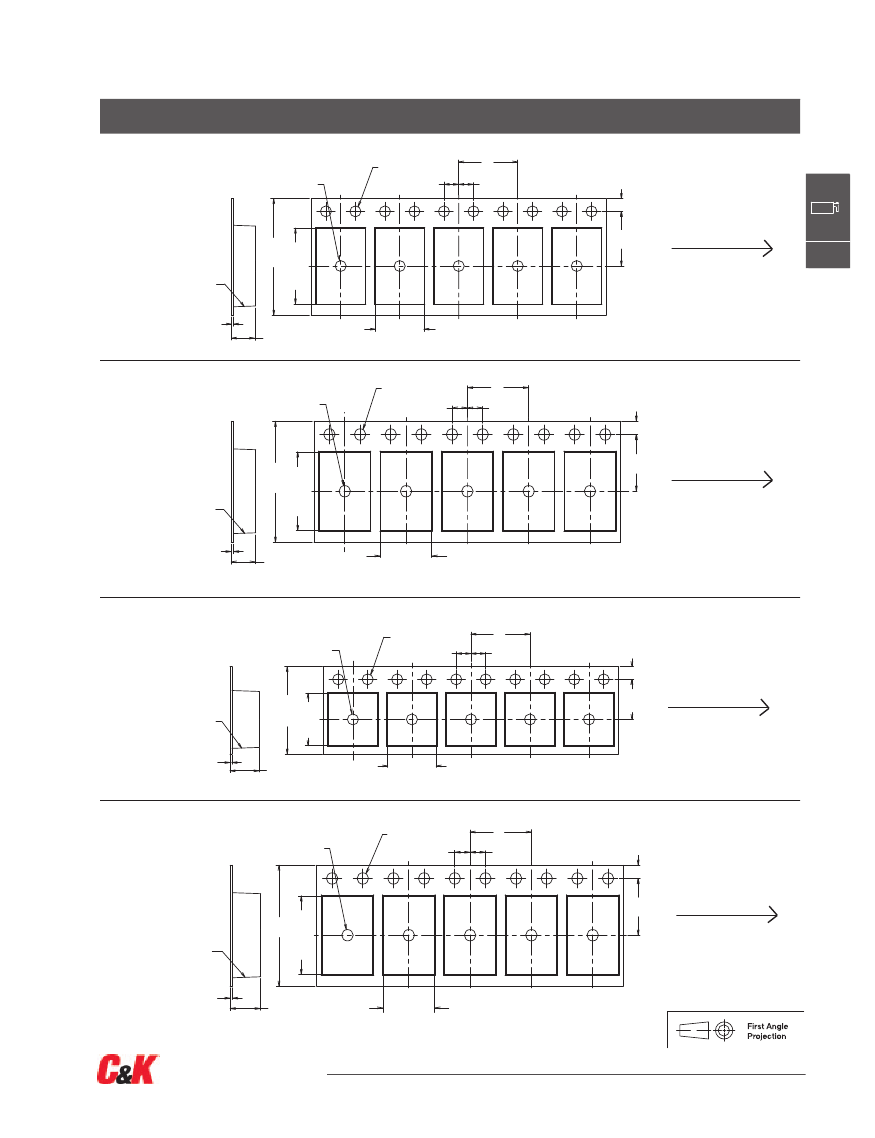

Packaging
KSC1, KSC2 and KSC3 are delivered on continuous tape and reels of
2,000 pieces, KSC4 in reels of 1,000 pieces. KSC 6 in reels of 750
pieces. KSC7 in reels of 1,000 pieces. KSCV in boxes of 500 pieces.
Dimensions of reels according to EIA RS481 or IEC 2863. External
diameter 330 mm ± 2 mm.
NOTE:
Specifications listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Other versions in terms of force, termination length and corrosion protection available.
Please contact your sales representative.
This data sheet does not provide enough information for applications which require a
certain level of quality or safety such as automotive, medical systems, safety equipment.
Please contact your sales representative to get contractual specification package.
A detect switch version is available KSC4D1J and KSC4D1G.
Please see Detect chapter.
KSC vertical series have an IP40 sealing level.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
For any part number different from those listed above, please consult your local representative.
K
Actuator
1
Without, H=2,5 mm
2
Soft, H=3,5 mm
3
Hard, H=3,5 mm
4
Soft, H=5,2 mm
6
Hard, H=7,7 mm
7
Soft, H=4,3 mm****
S
C
S
H
Operating Force
0
1.2 N (120 grams)
1
1.4 N (140 grams)
2
1.6 N / 1.7 N *
(160 grams)/(170 grams)
4
3N/4N*
(300 grams)/(400 grams)
5
5.5 N (550 grams)
6
4.5 N / 8.0
(450 grams)/(800 grams)
LFS
Lead free compatible, silver plated.
LFG
Lead free compatible, gold plated.

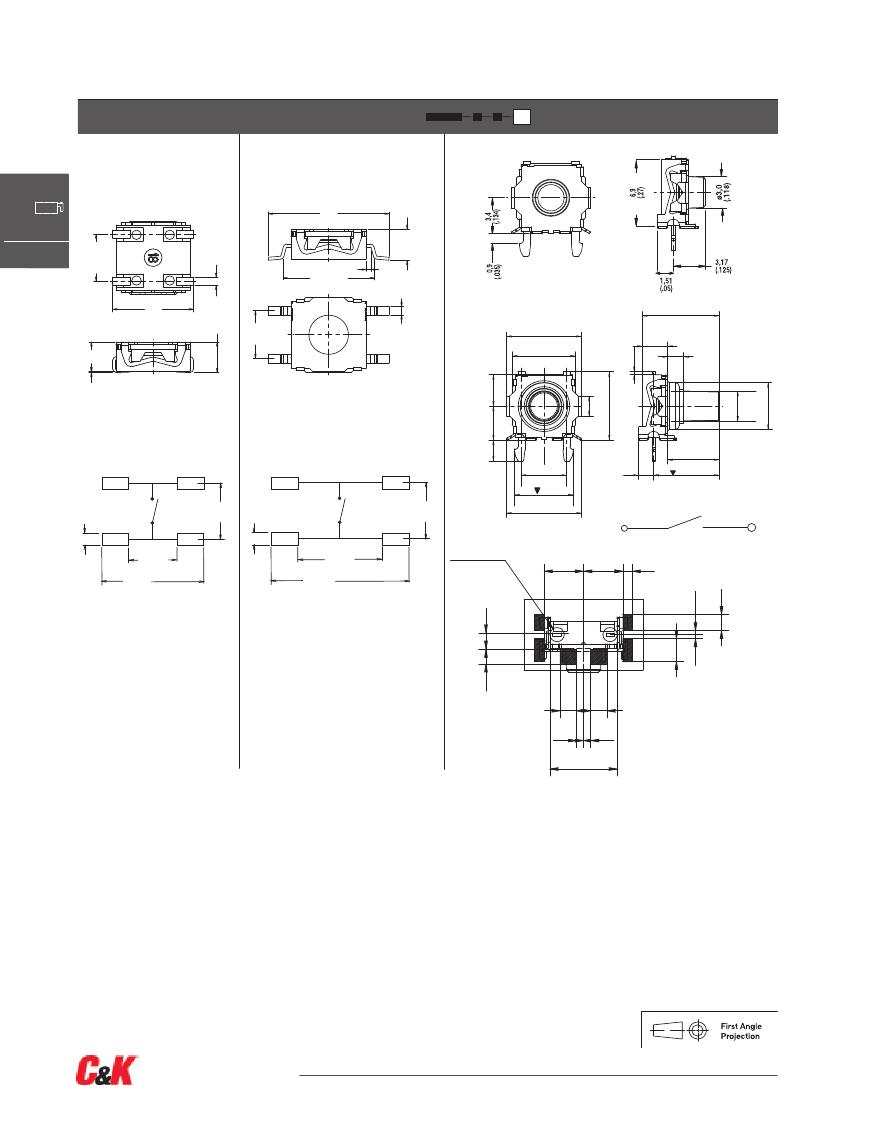

Termination
J
J bend
G
Gull wing
V
Right angle
(available in KSC421V and
KSC621V versions only)
Rubber Hardness Indication
50
Shore**
70
Shore***
* See Mechanical chart above to confirm specifications.
** Applies to KSC401J50SH only.
*** Applies to KSC 411J70SH, KSC421J70SH,KSC441J70SH
**** KSC7 offered with blue actuator as standard
Contact Material
Operating life
1
Silver
2
Silver long life
3
Gold
4
Gold long life
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
B–23
www.ck-components.com
KSC Series
Sealed Tact Switch for SMT

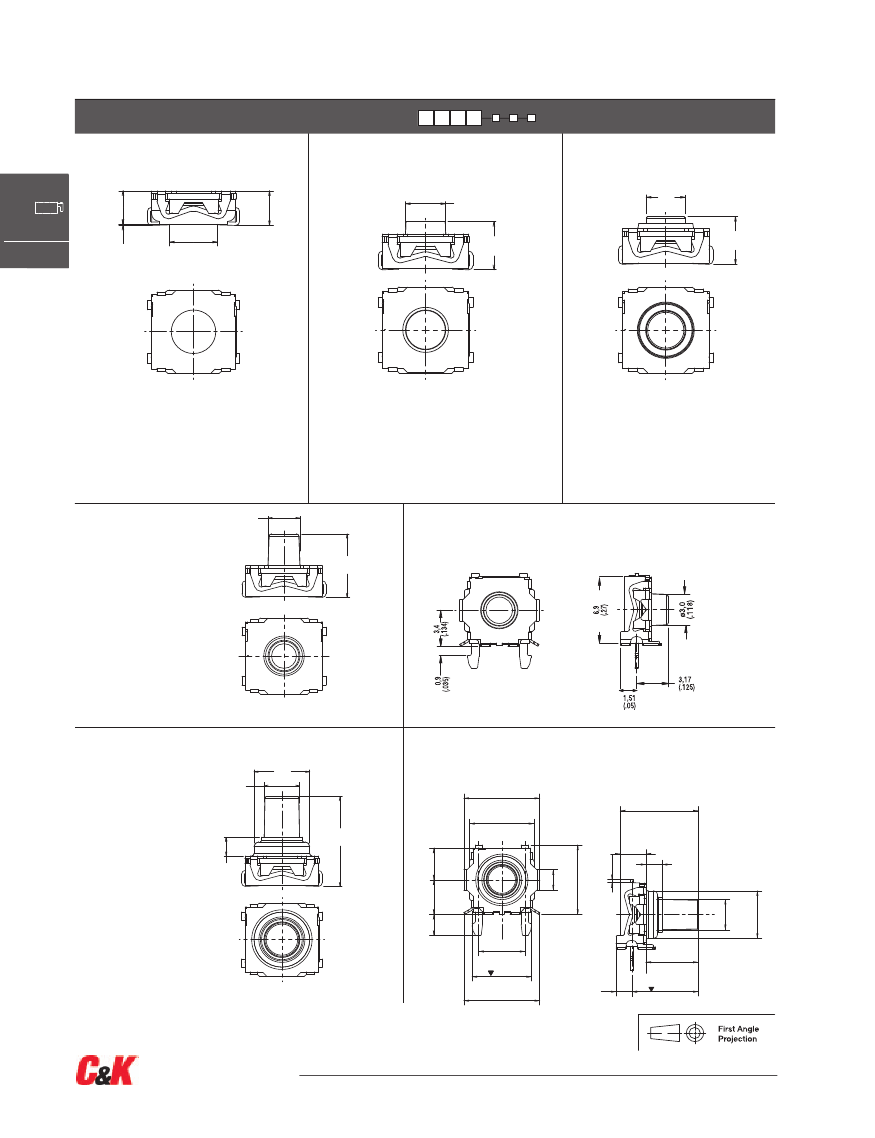

ACTUATOR
KSC1
WITHOUT, 2.5 mm HIGH
KSC2
SOFT, 3,5 mm HIGH
KSC3
HARD, 3,5 mm HIGH
(2,5)
2,9
(.114)
2,6
ø2,8
(.110)
0,1
B
Tactile Switches
1
1
3,5
(.138)
3,5
2
0
KSC4
SOFT, 5,2 mm HIGH
ø2,6
(.102)
KSC4
5,2
(.205)
KSC421V ONLY
NOTE:
KSC4 standard silicone
material is 70 shore, the only
exception is KSC401J which is
50 shore.
NOTE:
KSC421V requires metalized holds for simultaneous reflow soldering of switch
terminals and bracket terminals.
0
1
KSC6
HARD, 7,7 mm HIGH
ø4,7
(.185)
KSC6
ø3,0
(.118)
KSC621V ONLY
NOTE
: KSC621V requires metalized holds for simultaneous reflow soldering of switch
terminals and bracket terminals.
7,4
(.291)
7,7
(.303)
6,25±0,25
(.246±,010)
3,15
(.124)
0,3 maxi
(.012)
2,5 ±0,15
(.098±.006)
1,6±0,1
(.063±.004)
3,4
(.134)
6,9 maxi
(.271)
1,6
(.063)
2
(.079)
.
.
7,6 ±0,25
(.299±.010)
+0,05
ø 30
+.010
(.118 0)
5,1
(.200)
1,5
(.059)
6,47
(.255)
3,47
(.137)
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
4,52
(.178)
5,8
(.228)
7,4
(.291)
B–24
www.ck-components.com
(.185±.004)
2,1
(.083)
ø 4,7±0,1
