50VQ04 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 50VQ04

50VQ04: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-251AA,; CategoryDiscrete semiconductor diode; File Size76KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

50VQ04 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-251AA,

50VQ04 Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-PSIP-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V
JEDEC-95 code	TO-251AA
JESD-30 code	R-PSIP-T3
Maximum non-repetitive peak forward current	45 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	3000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

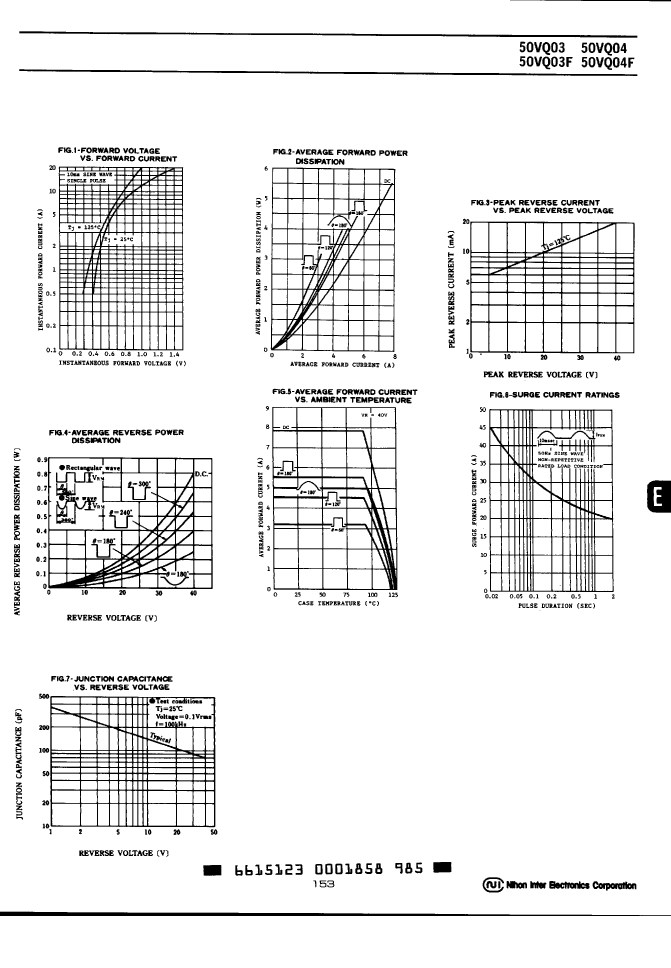

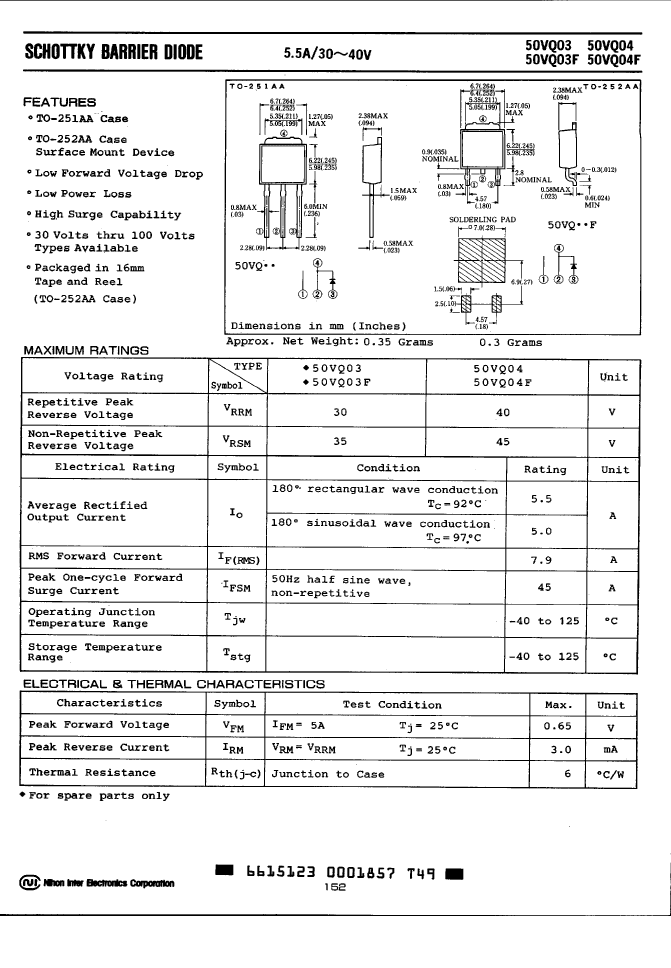

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

50VQ04 Related Products

	50VQ04	50VQ03	50VQ03F	50VQ04F
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-251AA,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 30V V(RRM), Silicon, TO-251AA,	Rectifier Diode, Schottky, 1 Element, 5A, 30V V(RRM), Silicon, TO-252AA, 3 PIN	Rectifier Diode, Schottky, 1 Element, 5A, 40V V(RRM), Silicon, TO-252AA, 3 PIN
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V	0.65 V	0.67 V	0.67 V
JEDEC-95 code	TO-251AA	TO-251AA	TO-252AA	TO-252AA
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2	R-PSSO-G2
Maximum non-repetitive peak forward current	45 A	45 A	45 A	45 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	3	3	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Maximum output current	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	30 V	30 V	40 V
surface mount	NO	NO	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
package instruction	R-PSIP-T3	-	R-PSSO-G2	R-PSSO-G2
