5KF30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 5KF30

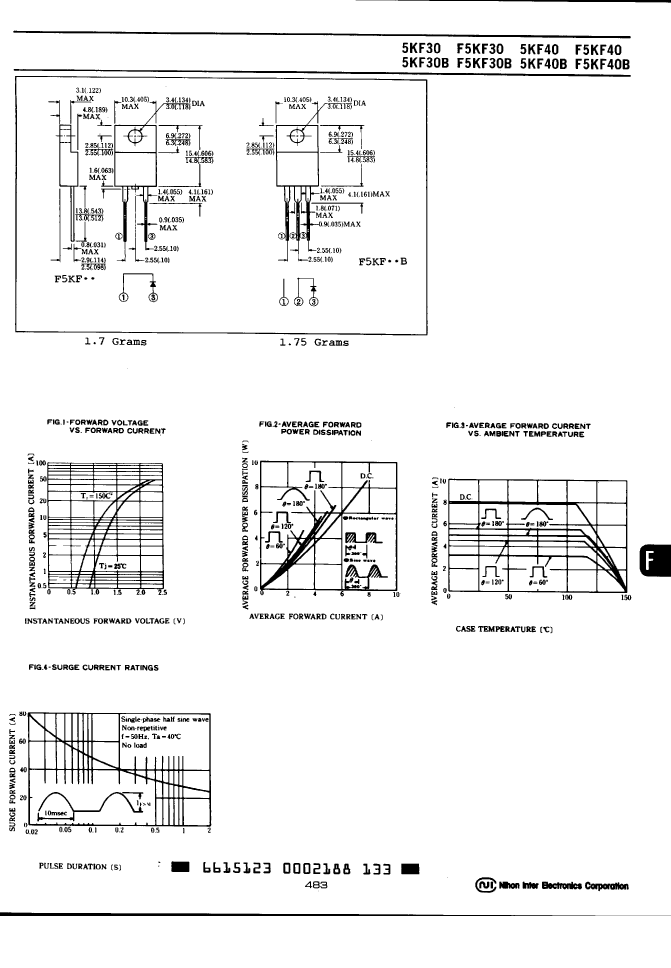

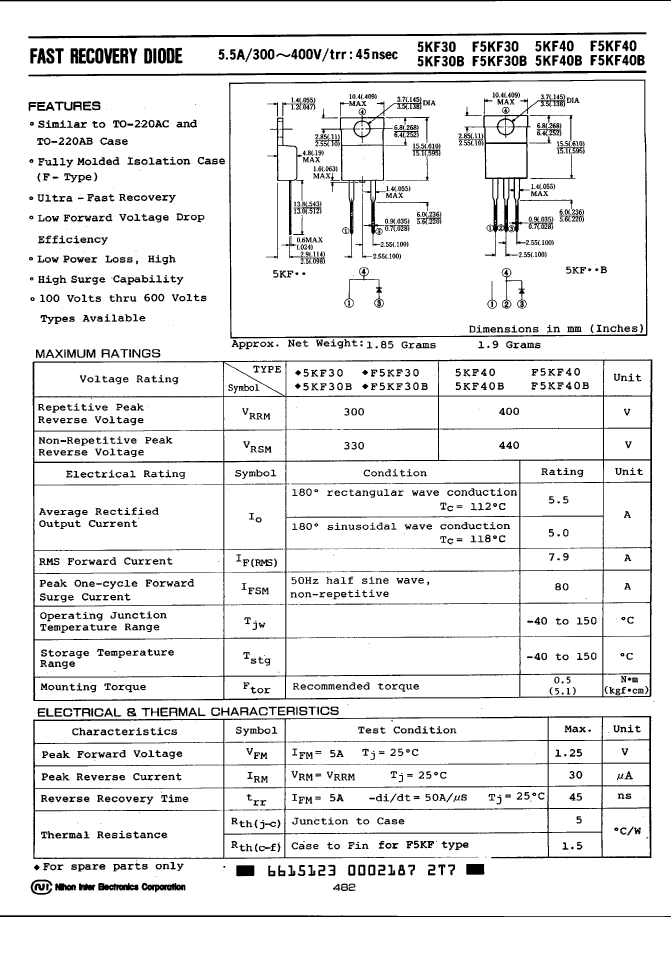

5KF30: DescriptionRectifier Diode, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN; CategoryDiscrete semiconductor diode; File Size73KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

5KF30 Overview

Rectifier Diode, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN

5KF30 Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
Parts packaging code	TO-220AC
package instruction	R-PSFM-T2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	80 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	30 µA
Maximum reverse recovery time	0.045 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

5KF30 Related Products

	5KF30	5KF40	F5KF40	F5KF30	F5KF30B
Description	Rectifier Diode, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 5A, 400V V(RRM), Silicon, SIMILAR TO TO-220AC, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 5A, 400V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2	Rectifier Diode, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, SIMILAR TO TO-220AC, FULL PACK-2	Rectifier Diode, 1 Phase, 1 Element, 5A, 300V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
Parts packaging code	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AB
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T3
Contacts	2	2	2	2	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	CATHODE	CATHODE	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T3
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	400 V	400 V	300 V	300 V
Maximum reverse current	30 µA	30 µA	30 µA	30 µA	30 µA
Maximum reverse recovery time	0.045 µs	0.045 µs	0.045 µs	0.045 µs	0.045 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
